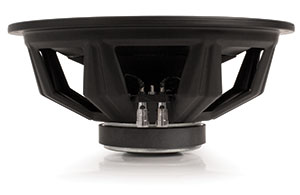

35 Series 3512-02 12" 250W RMS 2 Ohm Subwoofer

12 Inch Inverted Apex 35 Series Car Subwoofer
SKU: 3512-02
Availability: In stock
Manufacturer: MTX Audio
(0)
$99.95
$89.95

The 3512-02 is a 12" single voice coil, 2 ohm subwoofer designed to deliver outstanding SPL and sound quality.

This subwoofer features a new Inverted Apex surround that increases surface area allowing for more air movement and higher SPL, and a progressive suspension that lowers distortion resulting in improved sound quality. This subwoofer also incorporates Spider Plateau Venting which is a mechanical cooling process that targets cool air at the voice coil effectively managing the temperature for long term performance.

35 Series subwoofers are ideal for improving the sound in any vehicle. Their low profile does not require a large enclosure so they are perfect for most vehicles.

Learn how to properly wire your subwoofers with this easy subwoofer wiring diagram tool.

Speaker Impedance
Expanded surface area allows for increased volume displacement and SPL
Progressive suspension controls excursion at high power reducing distortion
Inverted Apex surround with symmetrical geometry controls cone movement
RMS Power (Watts) 250
Recommended Amp Power (RMS) 125 - 250
Peak Power (Watts) 500
Frequency Response 26Hz - 130Hz
Sensitivity (1W/1M) 86dB
Voice Coil 1.75" (4.45 cm)
Magnet Weight 56 oz
Mounting Depth 5.313"
Cut Out Diameter 11.125"
Volume Displacement (cu in) 28.53 cu in
Sealed Enclosure Net Volume 1.0 cu ft
Vented Enclosure Net Volume 2.32 cu ft
Tech Data Sheet 3512-02 Tech Data Sheet.pdf
50Hz Frequency Test Tone 50Hzmp3.zip
50Hz Test Tone 50Hz.mp3

How to Wire Your Subwoofers to the Correct Impedance

Benefits of the Inverted Apex Surround
