MTX Amplifier Feature - Input Select Switch

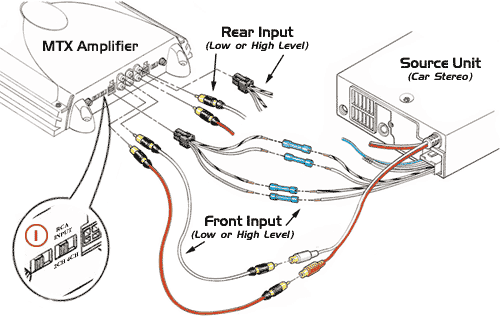

This switch is used to match the amplifier's input to the source unit's output so all
four or five channels of the amplifier are driven. Note: The five channel amplifer will
have 2, 4, and 5 channel input selections.If your source unit has 2 outputs (a left and right) connect them to the amplifier's front channel inputs, and place the input select switch in the 2CH position. If your source unit has 4 outputs, (left front, left rear, and right front, right rear) connect them to the amplifier inputs and place the input select switch in the 4CH postion. If your source unit has 5 or 6 outputs, (left front, left rear, right front, right rear, and Sub) connect them to the amplifier inputs and place the input select switch in the 5CH postion. In the 4CH or 5CH position, the fader on your source unit will operate. Amplifiers with this feature: Thunder342 |
