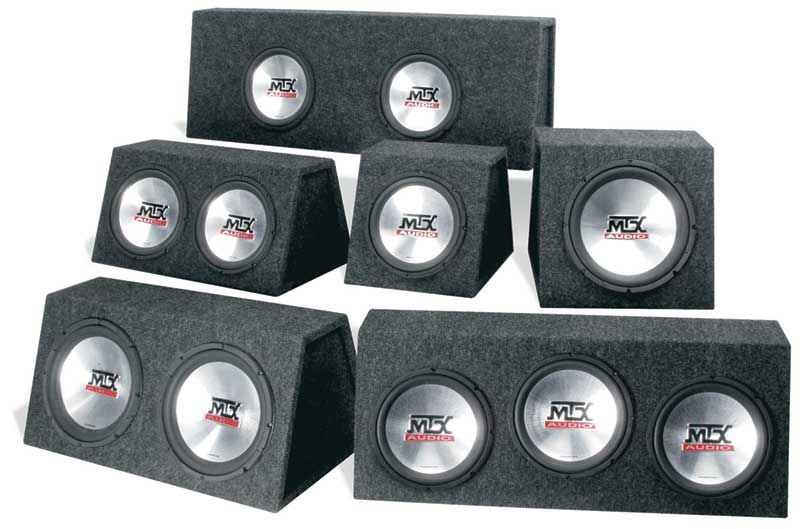

Thunder4500 Loaded Enclosures
 |
SledgeHammer
T4500 Enclosures |
 |
SledgeHammer T4500 Enclosure Specifications
| SLH-T4510X3-A Enclosure Specifications |
| Model |
SLH-T4510X3-A |
| Driver Type |
Thunder4500 |
| Description |
Triple 10", T4500 SledgeHammer 4 Ω |
| RMS |
675W |
| Frequency Response (± 3dB) |
35-150Hz |
| Enclosure Height |
15.250" |
| Enclosure Width |
35.250" |
| Enclosure Depth |
16.250" |
| Weight |
69 lbs |
| Recommended Amp Power |
338 - 675 Wrms |

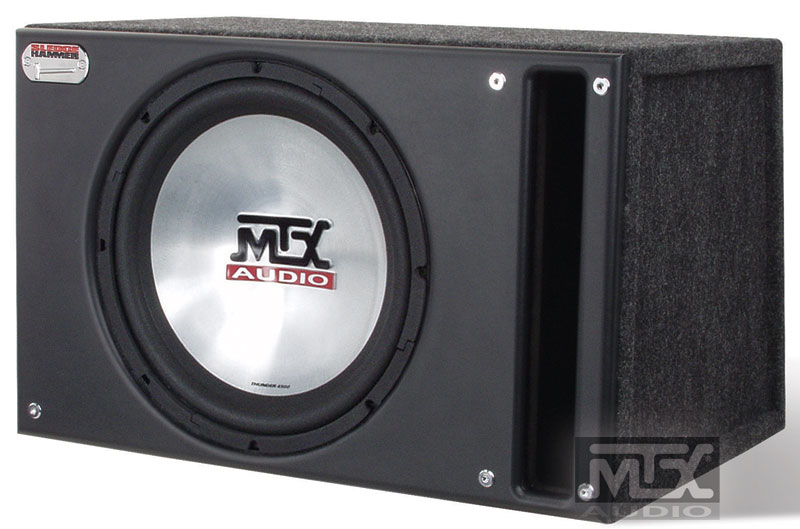

| SLH-T4512-A Enclosure Specifications |
| Model |
SLH-T4512-A |
| Driver Type |
Thunder4500 |
| Description |
Single 12", T4500 SledgeHammer 4 Ω |
| RMS |
225W |
| Frequency Response (± 3dB) |
29-150Hz |
| Enclosure Height |
14.250" |
| Enclosure Width |
22.250" |
| Enclosure Depth |
16.250" |
| Weight |
41.5 lbs |
| Recommended Amp Power |
113 - 225 Wrms |

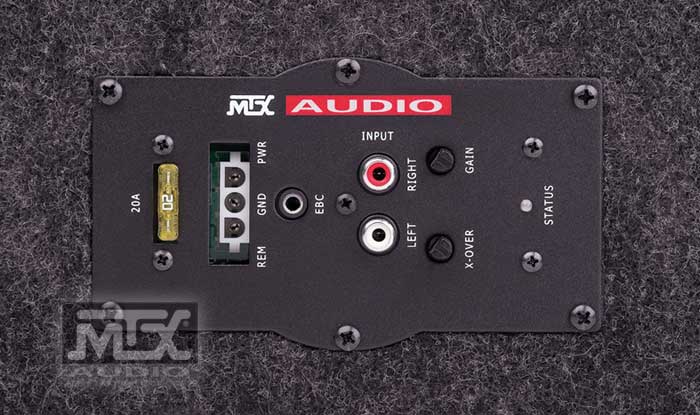

 The new Amplified SledgeHammer loaded enclosures include an on-board, 200 watt, Class D amplifier. The highly efficient amp is optimized for use with the latest subwoofer technology, Thunder4500 High-performance subwoofers, which come installed in the enclosure. You get deep, low bass without having to wire in a separate amplifier, and MTX’s Smart Engage™ circuitry eliminates the need to remove the factory head unit during most installs. These enclosures feature a proprietary woofer design utilizing a .35 ohms for a single woofer, .7 ohm in parallel for dual woofers. With the included EBC (External Bass Control), you can adjust the bass from the driver’s seat.
| SLH-T4510x3-200 Enclosure Specifications |
| Model |
SLH-T4510x3-200 |
| Driver Type |
Thunder4500 |
| Description |
Amplified, Triple 10", T4500 Sledge Hammer (200 W RMS) |
| Frequency Response (± 3dB) |
48-150Hz |
| Enclosure Height |
15.250" |
| Enclosure Width |
35.250" |
| Enclosure Depth |
17"BD X 14.375"TD |
| Weight |
80 lbs |
| SLH-T4512x2-200 Enclosure Specifications |
| Model |
SLH-T4512x2-200 |
| Driver Type |
Thunder4500 |
| Description |
Amplified, Dual 12", T4500 Sledge Hammer (200 W RMS) |
| Frequency Response (± 3dB) |
48-150Hz |
| Enclosure Height |
14.250" |
| Enclosure Width |
34.250" |
| Enclosure Depth |
18"BD X 15.5625"TD |
| Weight |
80 lbs |

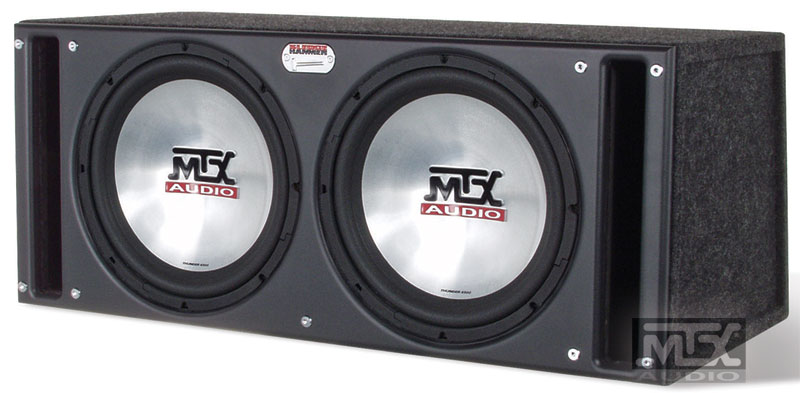

| SLH-T4510x2-200 Enclosure Specifications |
| Model |
SLH-T4510x2-200 |
| Driver Type |
Thunder4500 |
| Description |
Amplified, Dual 10", T4500 Sledge Hammer (200 W RMS) |
| Frequency Response (± 3dB) |
44-150Hz |
| Enclosure Height |
14.000" |
| Enclosure Width |
30.250" |
| Enclosure Depth |
18.250"BD X 15.875"TD |
| Weight |
70 lbs |
|
|
|
