Click diagrams for larger, printable images.

- click for larger image. - click for larger image.

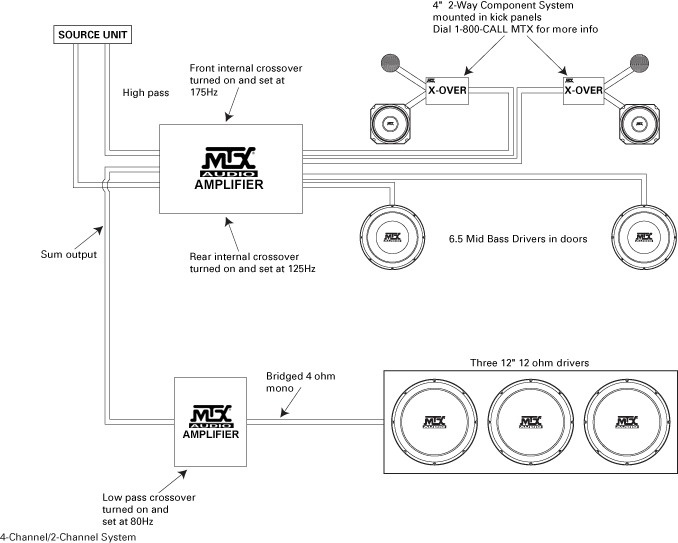

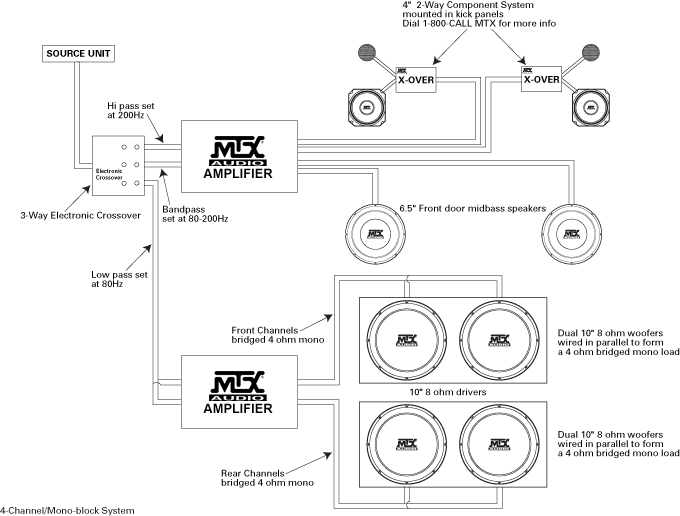

4-Channel/2-Channel System 4-Channel/Mono-Block System

- click for larger image. - click for larger image.

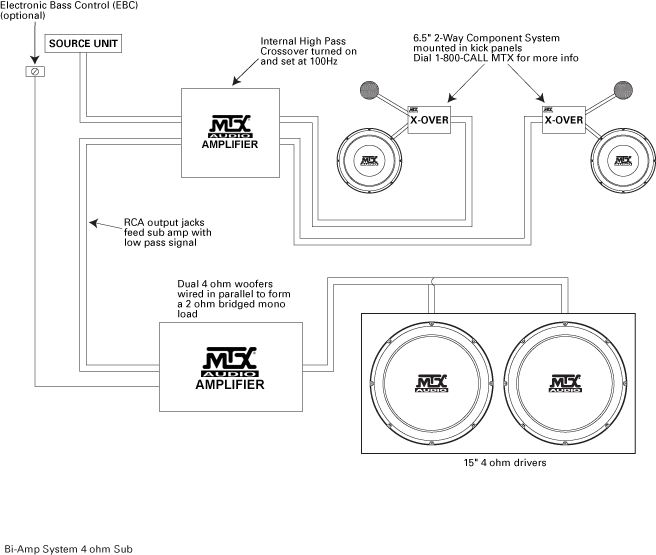

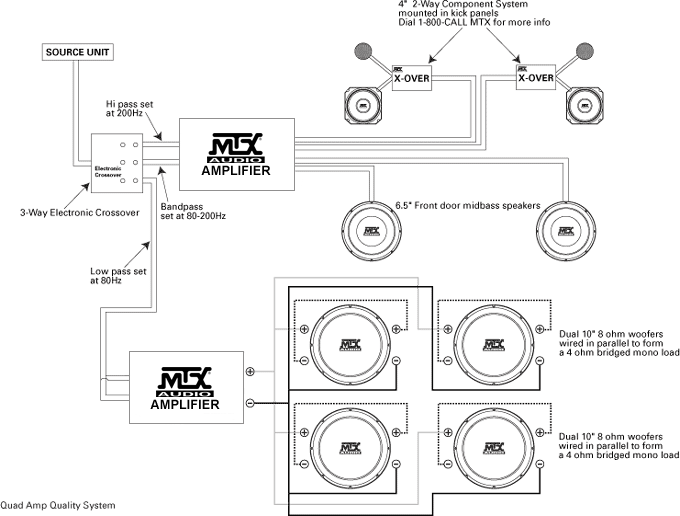

Bi-Amp System 4 Ω Sub Quad Amp Quality System

Basic Sub Upgrade - click for larger image. Bi-Amp System 8ohm Sub - click for larger image.

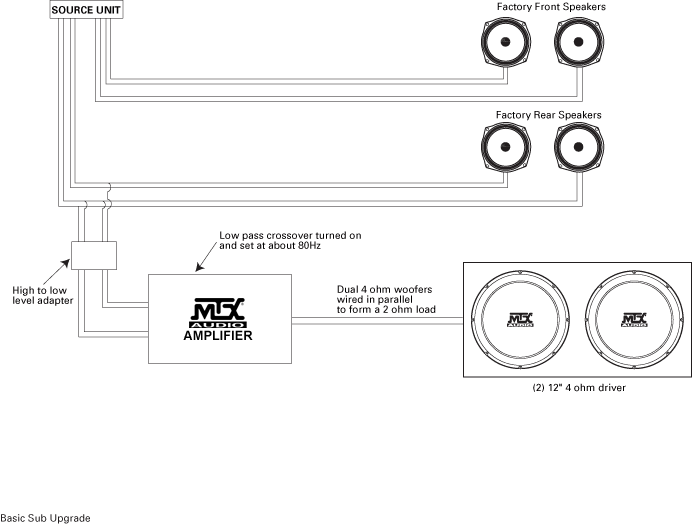

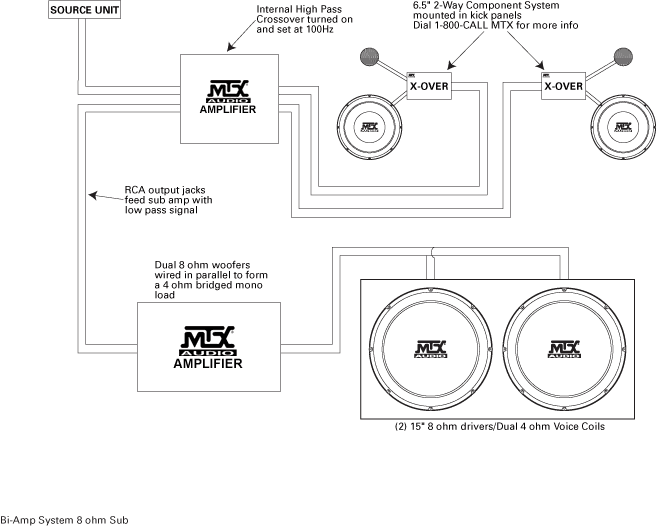

Basic Sub Upgrade Bi-Amp System 8ohm Sub

Quad Amp SPL System - click for larger image. Single Amp System - click for larger image.

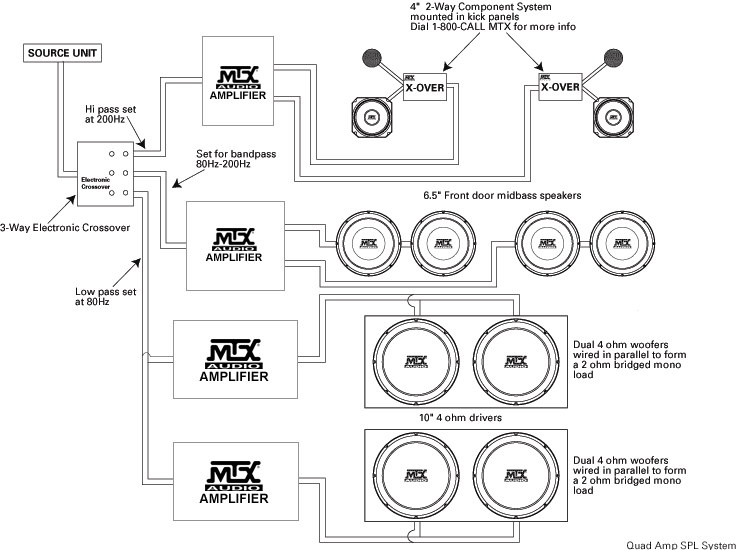

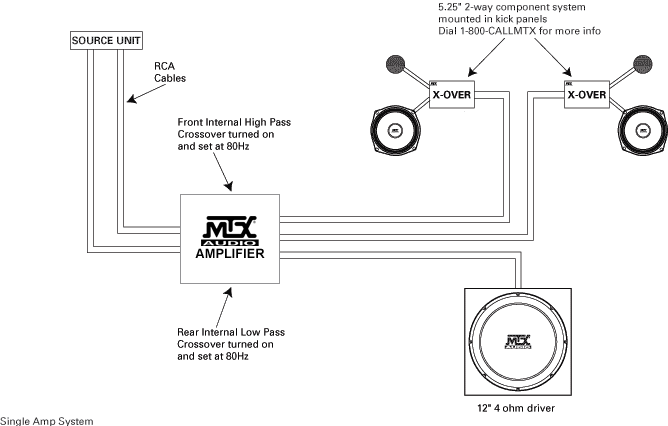

Quad Amp SPL System Single Amp System

Single Amp System Without Rear - click for larger image. Tri Amp Quality System - click for larger image.

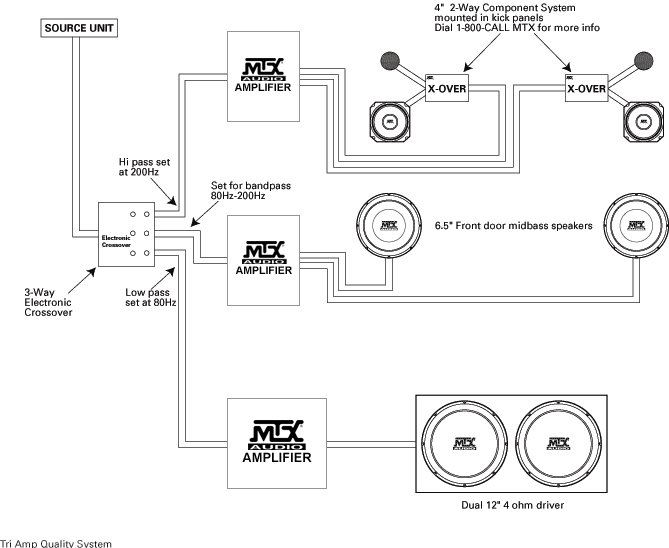

Single Amp System w/o rear Tri-Amp Quality System

Tri Amp System Sound Quality - click for larger image. 5 Channel Fader System - click for larger image.

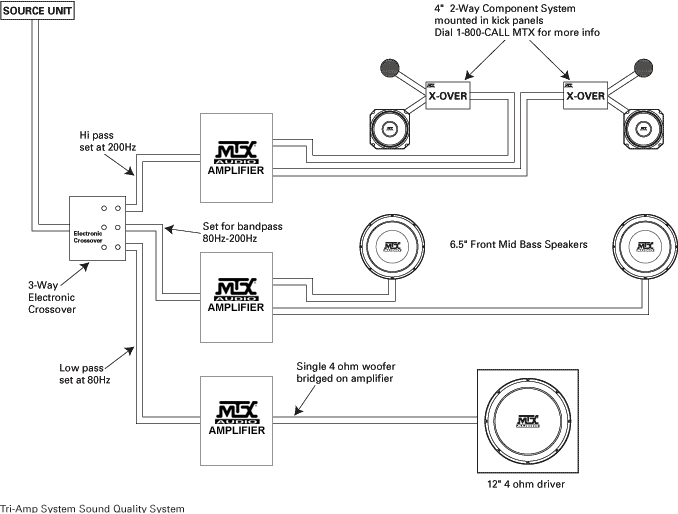

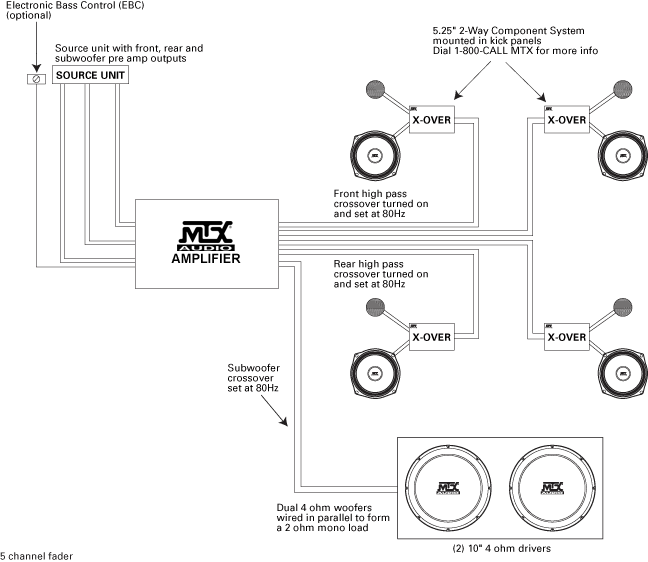

Tri-Amp System Sound Quality 5-Channel Fader System


Match Subwoofers to Amplifiers
