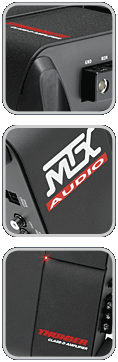

Click for more Images
|
TC3001 Specifications |
| # of Channels |
1 |
| Class |
D (Patented Adaptive Class D) (Pat. No: US06753729) |
x |
| Amp Type |
Optimized for Subwoofer |
x |
| CEA-2006 Primary Ratings |
RMS Power @ 4
|
150 Watts x 1 Channel and <1% THD+N |
Signal-To-Noise Ratio
(1 Watt) |
75 dB |
| CEA-2006 Secondary Ratings |
RMS Power @ 2
|
300 Watts x 1 Channel and <1% THD+N |
| THD+Noise (Distortion) (1Watt) |
<0.25% |
Frequency Response
(-3dB) |
20Hz-200Hz |
| Maximum Input Signal |
5V |
| Maximum Sensitivity |
100mV |
| Non-CEA Specifications |
Max Power |
900 Watts |
| Low Level Input |
x |
| Hi-Level Input w/ Smart Engage Auto Turn-on |
x |
| Low-Pass Crossover |
40Hz-200Hz, 24dB |
| SubSonic Filter |
30Hz, 12dB/oct |
| Thunder EQ |
0-18dB, Freq. 40Hz |
| Remote Level Control |
Subwoofer (Parallelable) |
| DIMENSIONS |
Width |
7-7/8" |
| Depth |
9-7/8" |
| Height |
2-3/8" |
|
 |
|
|
