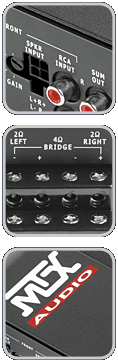

Click for more Images
|
| TC4004 Specifications |
| # of Channels |
4 |
| Class |
A/B (Patented Pure N-Channel) (Pat. No: US05631608, US05783970) |
x |
| Amp Type |
Full Range |
x |
| CEA-2006 Primary Ratings |
RMS Power @ 4
|
50 Watts x 4 Channel and <1% THD+N |
Signal-To-Noise Ratio
(1 Watt) |
80 dB |
| CEA-2006 Secondary Ratings |
RMS Power @ 2
|
100 Watts x 4 Channel and <1% THD+N |
| RMS Power @ 4
|
200 Watts x 2 Bridged and <1% THD+N |
| THD+Noise (Distortion) (1Watt) |
<0.25% |
Frequency Response
(-3dB) |
20Hz-20kHz |
| Maximum Input Signal |
5V |
| Maximum Sensitivity |
100mV |
| Non-CEA Specifications |
Max Power |
1,200 Watts |
| Low Level Input |
x |
| Hi-Level Input w/ Smart Engage Auto Turn-on |
x |
| RCA Output |
Front/Rear Summed |
| Defeatable Crossover |
Hi,12dB / Low, 12dB @ 40Hz-350Hz |
| Thunder EQ |
0-18dB, Freq. 40Hz |
| Remote Level Control |
Subwoofer (Parallelable) |
| DIMENSIONS |
Width |
14-3/8" |
| Depth |
9-7/8" |
| Height |
2-3/8" |
|
 |
|
|
