TN250/1 Specifications |
| Primary Ratings |
| Power Output |
100 Watts RMS x 1 Channel at 4 Ohms < 1% THD+N |
| Signal-To-Noise Ratio (1 Watt) |
>73 dB |
| Secondary Ratings |
| Power Output |
200 Watts RMS x 1 Channel at 2 Ohms < 1% THD+N |
| THD+N (Distortion) (1 Watt) |
<1% |
| Frequency Response (-3dB) |
20Hz to 85Hz |
| Maximum Input Signal |
4V |
| Maximum Sensitivity |
200mV |
| Dimensions |

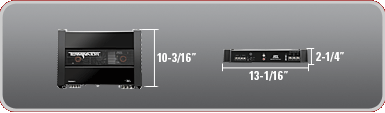

10-3/16" x 13-1/16" x 2-1/4" |
Patented Adaptive Class D Technology
(Patent No: US06753729) |
| Patented Power Supply:
(Patent No: US05598325) |
| Mono Gain Control |
| Crossover |
18dB/Octave @ 85Hz LP |
| Bass Boost |
Switchable 0, 6, or 12 Centered @ 40Hz |
| Smart Engage |
Yes |
