TN400/4 Specifications |
| Primary Ratings |
| Power Output |
45 Watts RMS x 4 Channels at 4 Ohms ≤ 1% THD+N |
| Signal-To-Noise Ratio (1 Watt) |
>78 dB |
| Secondary Ratings |
| Power Output |
75 Watts RMS x 4 Channels at 2 Ohms ≤ 1% THD+N |
| Power Output |
150 Watts RMS x 2 Channels at 4 Ohms ≤ 1% THD+N |
| THD+N (Distortion) (1 Watt) |
<1% |
| Frequency Response (-3dB) |
20Hz to 200Hz |
| Maximum Input Signal |
4V |
| Maximum Sensitivity |
200mV |

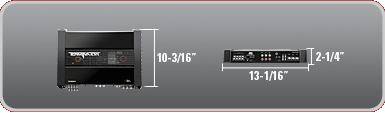

| Dimensions |
10-3/16" x 13-1/16" x 2-1/4" |
Patented Pure N-Channel Technology y
(Patent No: US05631608, US05783970) |
| Patented Power Supply:
(Patent No: US05598325) |
| Stereo Gain Control |
| Crossover |
Defeatable, 18dB/Octave @ 85Hz selectable HP/LP/FR |
| Smart Engage |
Yes |
