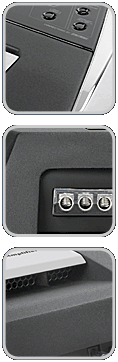

Click for more Images
|
| TA3202 Specifications |
| # of Channels |
2 |
| Minimum Single Channel Impedance |
2 |
| Class |
A/B (Patented Pure N-Channel)
(Pat. No: US05631608, US05783970) |
x |
| Amp Type |
Full Range |
x |
| Power Supply |
Semi Unregulated MOSFET
(Pat. No: US05598325) |
x |
| THD + Noise (1 Watt) |
0.1% |
| Signal-To-Noise Ratio (1 Watt) |
78 dB |
| Overload Protection |
x |
| Thermal Protection |
x |
| Xtant Technology Cooling |
Continuously Variable Fan Speed |
x |
| Connection Terminals |
StreetWires Connectors |
x |
| 14.4VDC Power |
4
|
50W x 2 |
| 2
|
100W x 2 |
| 4 Bridged |
200W |
| INPUT (RCA Connection) |
Low Level |
x |
Hi Level w/ Smart Engage
(Pat. No: US06556683) |
x |
| INPUT SWITCH |
Input Sense 100mV-1V/1V-10V |
x |
| CROSSOVER |
Hi,12dB / Low, 24dB Mono @ 85Hz, Defeatable |
x |
| FUSE RATING |
Total |
30 |
| Quantity x Fuse Value |
1 x 30 |
| DIMENSIONS |
Width |
12-11/16" |
| Depth |
9-5/8" |
| Height |
2-1/2" |
|
 |
|
|
