Car Audio Amplifiers

TA7402 Specifications
# of Channels		2
Minimum Single Channel Impedance		1
Class	A/B (Patented Pure N-Channel) (Pat. No: US05631608, US05783970)	x
Amp Type	Full Range	x
Power Supply	Semi Unregulated MOSFET (Pat. No: US05598325)	x
THD + Noise (1 Watt)		0.1%
Signal-To-Noise Ratio (1 Watt)		75 dB
Overload Protection		x
Thermal Protection		x
Xtant Technology Cooling	Continuously Variable Fan Speed	x
Connection Terminals	StreetWires Connectors	x
14.4VDC Power	4 $Ω$	100W x 2
	2 $Ω$	200W x 2
	1 $Ω$	300W x 2
	4 Bridged	400W
	2 Bridged	600W
INPUT (RCA Connection)	Low Level	x
INPUT (RCA Connection)	Hi Level w/ Smart Engage (Pat. No: US06556683)	x
INPUT SWITCH	Input Sense 100mV-1V/1V-10V	x
GAIN CONTROL	Stereo - 100mV-10V	x
CROSSOVER	Hi,12dB / Low, 24dB Mono @ 40Hz-350Hz, Defeat	x
EQUALIZATION	Quasi Parametric: Boost/Cut +/-12dB, Freq. 30Hz-80Hz	x
EQUALIZATION	ARC: Cut 0-15dB, Freq. 200Hz	x
OTHER FEATURES	Remote Subwoofer Level Control Parallelable	x
FUSE RATING	Total	105
FUSE RATING	Quantity x Fuse Value	3 x 35

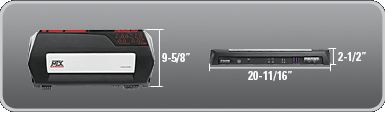

DIMENSIONS	Width	20-11/16"
	Depth	9-5/8"
	Height	2-1/2"
