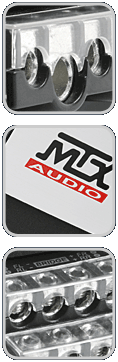

Click for more Images
|
| TA7804 Specifications |
| # of Channels |
4 |
| Minimum Single Channel Impedance |
2 |
| Class |
A/B (Patented Pure N-Channel) (Pat. No: US05631608, US05783970) |
x |
| Amp Type |
Full Range |
x |
| Power Supply |
Semi Unregulated MOSFET
(Pat. No: US05598325) |
x |
| THD + Noise (1 Watt) |
0.25% |
| Signal-To-Noise Ratio (1 Watt) |
75 dB |
| Overload Protection |
x |
| Thermal Protection |
x |
| Xtant Technology Cooling |
Continuously Variable Fan Speed |
x |
| Connection Terminals |
StreetWires Connectors |
x |
| 14.4VDC Power |
4
|
100W x 4 |
| 2
|
200W x 4 |
| 4 Bridged |
400W x 2 |
| 2 Bridged |
800W x 1 |
| INPUT (RCA Connection) |
Low Level |
x |
Hi Level w/ Smart Engage
(Pat. No: US06556683) |
x |
| INPUT SWITCH |
Input Sense 100mV-1V/1V-10V |
x |
| Input Select 2/4 channel |
x |
| GAIN CONTROL |
Stereo - 100mV-10V |
x |
| CROSSOVER |
Hi,12dB / Low, 24dB Mono @ 40Hz-350Hz, Defeat |
x |
| RCA OUTPUT |
Sum, Fr/Rr |
x |
| EQUALIZATION |
ThunderEQ: Boost 0-18dB, Freq. 40Hz |
x |
| ARC: Cut 0-15dB, Freq. 200Hz |
x |
| OTHER FEATURES |
Remote Subwoofer Level Control Parallelable |
x |
| Dual Mono Output |
x |
| FUSE RATING |
Total |
120 |
| Quantity x Fuse Value |
3 x 40 |

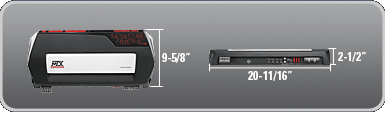

| DIMENSIONS |
Width |
20-11/16" |
| Depth |
9-5/8" |
| Height |
2-1/2" |
|
 |
