| TA91002 Specifications |
| # of Channels |
2 |
| Minimum Single Channel Impedance |
1 |
| Class |
A/B (Patented Pure N-Channel)
(Pat. No: US05631608, US05783970) |
x |
| Amp Type |
Full Range |
x |
| Power Supply |
Semi Unregulated MOSFET (Pat. No: US05598325) |
x |
| THD + Noise (1 Watt) |
0.1% |
| Signal-To-Noise Ratio (1 Watt) |
71 dB |
| Overload Protection |
x |
| Thermal Protection |
x |
| Xtant Technology Cooling |
Continuously Variable Fan Speed |
x |
| Connection Terminals |
StreetWires Connectors |
x |
| 14.4VDC Power |
4
|
250W x 2 |
| 2
|
500W x 2 |
| 1
|
750W x 2 |
| 4 Bridged |
1000W |
| 2 Bridged |
1500W |
| INPUT (RCA Connection) |
Low Level |
x |
| Hi Level w/ Smart Engage (Pat. No: US06556683) |
x |
| INPUT SWITCH |
Input Sense 100mV-1V/1V-10V |
x |
| GAIN CONTROL |
Individual - 100mV-10V |
x |
| CROSSOVER |
Hi,12dB / Low, 24dB Mono @ 40Hz-350Hz, Defeat |
x |
| SubSonic @ 30Hz, 12dB/oct, Defeat |
x |
| EQUALIZATION |
Parametric: Boost/Cut +/-12dB, Freq. 30Hz-80Hz, Q 0.5-4.0 |
x |
| ARC: Cut 0-15dB, Freq. 200Hz |
x |
| OTHER FEATURES |
Remote Subwoofer Level Control Parallelable |
x |
| ByPass Features |
x |

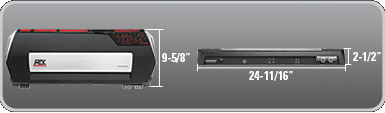

| DIMENSIONS |
Width |
24-11/16" |
| Depth |
9-5/8" |
| Height |
2-1/2" |
|
 |
