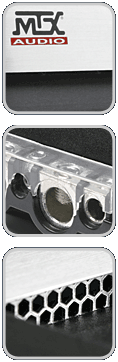

Click for more Images
|
| TA92001 Specifications |
| # of Channels |
1 |
| Minimum Single Channel Impedance |
1 |
| Class |
D (Patented Adaptive Class D)
(Pat. No: US06753729) |
x |
| Amp Type |
Optimized for Subwoofer |
x |
| Power Supply |
Semi Unregulated MOSFET
(Pat. No: US05598325) |
x |
| THD + Noise (1 Watt) |
0.5% |
| Signal-To-Noise Ratio (1 Watt) |
65 dB |
| Overload Protection |
x |
| Thermal Protection |
x |
| Xtant Technology Cooling |
Continuously Variable Fan Speed |
x |
| Connection Terminals |
StreetWires Connectors |
x |
| 14.4VDC Power |
4
|
1000W |
| 2
|
2000W |
| 1
|
3000W |
| 4
(Two Amps Strapped - wattage is combined power from both amps) |
4000W |
| 2
(Two Amps Strapped - wattage is combined power from both amps) |
6000W |
| INPUT (RCA Connection) |
Low Level |
x |
| Hi Level w/ Smart Engage (Pat. No: US06556683) |
x |
| INPUT SWITCH |
Input Sense 100mV-1V/1V-10V |
x |
| GAIN CONTROL |
Mono - 100mV-10V |
x |
| CROSSOVER |
Low @ 40Hz-200Hz, 24dB |
x |
| SubSonic @ 20-50Hz, 12dB/oct |
x |
| EQUALIZATION |
Parametric: Boost/Cut +/-12dB, Freq. 30Hz-80Hz, Q 0.5-4.0 |
x |
| OTHER FEATURES |
Remote Subwoofer Level Control Parallelable |
x |
| Phase: 0 or 180 |
x |
| ByPass Features |
x |

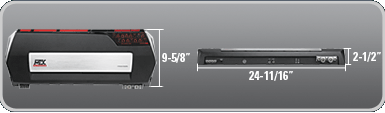

| DIMENSIONS |
Width |
24-11/16" |
| Depth |
9-5/8" |
| Height |
2-1/2" |
|
 |
