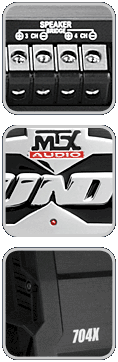

Click for more Images
|
704X Specifications |
| Primary Ratings |
| Power Output: |
70 Watts RMS x 4 Channels at 4 Ohms
< 1% THD+N |
| Signal-to-noise Ratio (1 Watt) |
>75 dB |
| |
| Secondary Ratings |
| Power Output |
105 Watts RMS x 4 Channels at 2 Ohms < 1% THD+N |
| Power Output |
210 Watts RMS x 2 Channels bridged at 4 Ohms < 1% THD+N |
| |
| THD+N (Distortion) (1 Watt) |
<1% |
| Frequency Response (-3dB) |
20Hz to 20kHz |
| Maximum Input Signal |
4V |
| Maximum Sensitivity |
250mV |
| Dimensions |
9-1/8" X 15" X 2-1/4" |
| |
| Stereo Gain Control |
| Crossover |
High, 12dB/Oct; 40Hz to 8000Hz
Low, 24dB/Oct; 40Hz to 5000Hz |
| Smart Engage |
No |
|
 |
|
|
