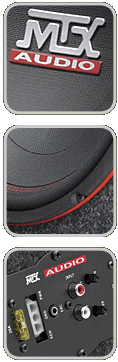

Amplified Road Thunder Loaded Enclosures
The new Amplified Road Thunder loaded enclosures include an on-board, 200 Watt, highly efficient Class D amplifier. The highly efficient amp is optimized for use with the latest subwoofer technology, Road Thunder High-performance subwoofers, which come installed in the enclosure. You get deep, low bass without having to wire in a separate amplifier, and MTX’s Smart Engage™ circuitry eliminates the need to remove the factory head unit during most installs. These enclosures feature a proprietary woofer design utilizing an impedance of .35 ohms for a single woofer, .7 ohm in parallel for dual woofers. With the included EBC (External Bass Control), you can adjust the bass from the driver’s seat.
| Road Thunder Loaded Enclosure Specifications |
| Model |
RT12X2-200 |
| Description |
Amplified Dual 12" Sealed Enclosure |
| Impedance |
n/a |
| Frequency Response |
51-150Hz |
| Power Handling (RMS) |
200W |
| Sensitivity |
n/a |
| Enclosure Height |
14-1/4" |
| Enclosure Width |
30-1/4" |
| Enclosure Depth |
18"BD, 7-7/8"TD |
| Road Thunder Loaded Enclosure Specifications |
| Model |
RT10X2-200 |
| Description |
Amplified Dual 10" Sealed Enclosure |
| Impedance |
n/a |
| Frequency Response |
48-150Hz |
| Power Handling (RMS) |
200W |
| Sensitivity |
n/a |
| Enclosure Height |
20-1/4" |
| Enclosure Width |
24-1/4" |
| Enclosure Depth |
16"BD, 7-1/8"TD |
| Road Thunder Loaded Enclosure Specifications |
| Model |
RT12-200 |
| Description |
Amplified 12" Sealed Enclosure |
| Impedance |
n/a |
| Frequency Response |
63-150Hz |
| Power Handling (RMS) |
200W |
| Sensitivity |
n/a |
| Enclosure Height |
14-1/4" |
| Enclosure Width |
16-1/8" |
| Enclosure Depth |
18"BD, 7-7/8"TD |
| Road Thunder Loaded Enclosure Specifications |
| Model |
RT10-200 |
| Description |
Amplified 10" Sealed Enclosure |
| Impedance |
n/a |
| Frequency Response |
60-150Hz |
| Power Handling (RMS) |
200W |
| Sensitivity |
n/a |
| Enclosure Height |
12-1/4" |
| Enclosure Width |
13" |
| Enclosure Depth |
16"BD, 7-1/8"TD |
Mobile Full Range Enclosures: Follow your own Road
At MTX Audio, we approach mobile enclosures with a passion matched only by the feeling you get when you follow your own road. You get a mobile enclosure that fits your brand new vehicle - perfectly. Our full range loudspeakers and subwoofers are specifically engineered for the enclosure you buy. They feature finely crafted horn-loaded quartz type semiconductor tweeters in the full-range, and solid, high-performance subwoofers for maximum thunder. Each enclosure is covered with aviation grade carpeting to protect your vehicle's interior. The heavy-duty steel grilles protect the subwoofers and are as tough as nails. They have to be because when you are on the road, you don't want to worry about whether your enclosure can take what you give it.
| Road Thunder Loaded Enclosure Specifications |
| Model |
RT10X3D |
| Description |
10" 2Ω Tri-Sub Sealed Loaded Subwoofer Enclosure |
| Impedance |
2Ω |
| Frequency Response |
49-150Hz |
| Power Handling (RMS) |
600W |
| Sensitivity |
90.5dB |
| Enclosure Height |
13-1/4" |
| Enclosure Width |
35-1/4" |
| Enclosure Depth |
15-1/2"BD, 5-3/4"TD |
| Road Thunder Loaded Enclosure Specifications |
| Model |
RT12X2A |
| Description |
12" Dual Loaded Sealed Subwoofer Enclosure |
| Impedance |
4Ω |
| Frequency Response |
48-150Hz |
| Power Handling (RMS) |
400W |
| Sensitivity |
92dB |
| Enclosure Height |
14-1/4" |
| Enclosure Width |
30-1/4" |
| Enclosure Depth |
18"BD, 7-7/8"TD |
| Road Thunder Loaded Enclosure Specifications |
| Model |
RT10X2TA |
| Description |
10" Dual Loaded Sealed Truck Subwoofer Enclosure |
| Impedance |
4Ω |
| Frequency Response |
48-150Hz |
| Power Handling (RMS) |
400W |
| Sensitivity |
91dB |
| Enclosure Height |
15-1/4" |
| Enclosure Width |
44-1/4" |
| Enclosure Depth |
7-3/4"BD, 5-1/8"TD |
| Road Thunder Loaded Enclosure Specifications |
| Model |
RT12A |
| Description |
12" 4Ω Sealed Subwoofer Enclosure |
| Impedance |
4Ω |
| Frequency Response |
35-150Hz |
| Power Handling (RMS) |
200W |
| Sensitivity |
93.5dB |
| Enclosure Height |
14-1/4" |
| Enclosure Width |
16-1/8" |
| Enclosure Depth |
18"BD, 7-7/8"TD |
| Road Thunder Loaded Enclosure Specifications |
| Model |
RT10A |
| Description |
10" 4Ω Sealed Subwoofer Enclosure |
| Impedance |
4Ω |
| Frequency Response |
31-150Hz |
| Power Handling (RMS) |
200W |
| Sensitivity |
91.1dB |
| Enclosure Height |
12-1/4" |
| Enclosure Width |
13" |
| Enclosure Depth |
16"BD, 7-1/8"TD |
| Road Thunder Loaded Enclosure Specifications |
| Model |
TW122 |
| Description |
12" Dual 2-Way Full-Range Wedge |
| Impedance |
4Ω |
| Frequency Response |
40Hz-22kHz |
| Power Handling (RMS) |
150W |
| Sensitivity |
95dB |
| Enclosure Height |
15-3/8" |
| Enclosure Width |
35-1/4" |
| Enclosure Depth |
19-1/4" |
| Road Thunder Loaded Enclosure Specifications |
| Model |
TW102 |
| Description |
10" 2-Way Full-Range Split Box |
| Impedance |
4Ω |
| Frequency Response |
50Hz-22kHz |
| Power Handling (RMS) |
125W |
| Sensitivity |
94dB |
| Enclosure Height |
13-3/8" |
| Enclosure Width |
35-1/4" |
| Enclosure Depth |
14-7/8" |
| Road Thunder Loaded Enclosure Specifications |
| Model |
T515 |
| Description |
15" Single Loaded Sealed
Hatchback Subwoofer Enclosure |
| Impedance |
4Ω |
| Frequency Response |
25-150Hz |
| Power Handling (RMS) |
300W |
| Sensitivity |
91.5dB |
| Enclosure Height |
15-3/4" |
| Enclosure Width |
20-1/4" |
| Enclosure Depth |
23-1/2" |
|
 |
|
|
