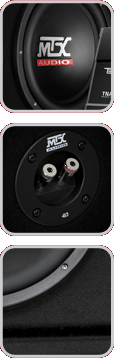

Click For More Images

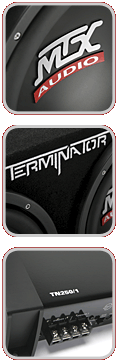

Click for more Images

Quick Install Wiring

StreetWires

The new Terminator, TNP212D amplified bass system, provides all the power you need for a chest pounding audio experience. Combining the sleek looks and power of the Terminator TN250/1 mono block amplifier with an aggressive, sealed enclosure housing two 12" Terminator subwoofers. The Terminator enclosure is ruggedly constructed using 5/8" MDF and aviation grade black carpet with an embroidered Terminator logo. The Terminator subwoofers are capable of handling 200W RMS each and are based on solid construction including 2" voice coils and 48 oz. magnets. The TNP212P will deliver rock solid performance at an unbeatable price.

TNP212D Specifications
Amplifier Specs TN250/1
Primary Ratings
Power Output 100 Watts RMS x 1 Channel at 4 Ohms < 1% THD+N
Signal-To-Noise Ratio (1 Watt) >73 dB
Secondary Ratings
Power Output 200 Watts RMS x 1 Channel at 2 Ohms < 1% THD+N
THD+N (Distortion) (1 Watt) <1%
Frequency Response (-3dB) 20Hz to 85Hz
Maximum Input Signal 4V
Maximum Sensitivity 200mV
Dimensions 10-3/16" x 13-1/16" x 2-1/4"
Patented Adaptive Class D Technology
(Patent No: US06753729)
Patented Power Supply: (Patent No: US05598325)
Mono Gain Control
Crossover 18dB/Octave @ 85Hz LP
Bass Boost Switchable 0, 6, or 12 Centered @ 40Hz
Smart Engage Yes
Enclosure Specs TNE212D
Description Dual 12", Terminator Loaded
Sealed Enclosure
Impedance 2 Ω
Frequency Response (± 3dB) 37 - 150Hz
MAX Power 1200W
Recommended Amp Power (RMS) 600 - 1200W
RMS Power (Watts) 400w
Recommend Amp Power (RMS) 200 - 400W
Enslosure Size 18.75" x 15.75" x 31.75"
