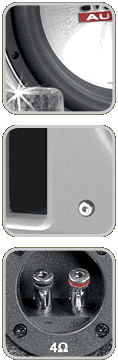

Thunder9500 Enclosures
- Constructed with rugged 3/4" MDF for Bullet Proof Reliability
- Unique Slot Port Design -- provides oversize port area to move massive amounts of air with virtually no vent noise.
- The Thunder 9500 subwoofer is supported internally on a heavy-duty bracing system, for long lasting durability.
- Rear Angle of 80 degrees for universal fit in a wide variety of SUVs, hatchbacks, and trunks.
| SLH-T9515X2-DD Enclosure Specifications |
| |
 |
| Model |
SLH-T9515X2-DD |
| Driver Type |
Thunder9500 |
| Description |
Dual 15", 1 Ω, Vented Enclosure |
| RMS |
2000W |
| Frequency Response (± 3dB) |
35.6-150Hz |
| Enclosure Height |
17.625" |
| Enclosure Width |
41.125" |
| Enclosure Depth |
21.125"BD, 18.125"TD |
| Weight |
216.0 lbs |
| Recommended Amp Power |
1000 - 2000 Wrms |
| SLH-T9512X2-DD Enclosure Specifications |
| |
|
| Model |
SLH-T9512X2-DD |
| Driver Type |
Thunder9500 |
| Description |
Dual 12", 1 Ω, Vented Enclosure |
| RMS |
2000W |
| Frequency Response (± 3dB) |
35.6-150Hz |
| Enclosure Height |
16.000" |
| Enclosure Width |
36.000" |
| Enclosure Depth |
19.625"BD, 16.875"TD |
| Weight |
194.0 lbs |
| Recommended Amp Power |
1000 - 2000 Wrms |
| SLH-T9510X2-DD Enclosure Specifications |
| |
|
| Model |
SLH-T9510X2-DD |
| Driver Type |
Thunder9500 |
| Description |
Dual 10", 1 Ω, Vented Enclosure |
| RMS |
1500W |
| Frequency Response (± 3dB) |
34.2-150Hz |
| Enclosure Height |
14.500" |
| Enclosure Width |
33.000" |
| Enclosure Depth |
19.625"BD, 17.125"TD |
| Weight |
164.0 lbs |
| Recommended Amp Power |
750 - 1500 Wrms |
| T9515D Enclosure Specifications |
| |
|
| Model |
T9515D |
| Driver Type |
Thunder9500 |
| Description |
Single 15", 2 Ω, Vented Enclosure |
| RMS |
1000W |
| Frequency Response (± 3dB) |
31-150Hz |
| Enclosure Height |
17.625" |
| Enclosure Width |
25.125" |
| Enclosure Depth |
19.875"BD, 16.75"TD |
| Weight |
120.0 lbs |
| Recommended Amp Power |
500 - 1000 Wrms |
| T9515A Enclosure Specifications |
| |
|
| Model |
T9515A |
| Driver Type |
Thunder9500 |
| Description |
Single 15", 4 Ω, Vented Enclosure |
| RMS |
1000W |
| Frequency Response (± 3dB) |
30-150Hz |
| Enclosure Height |
17.625" |
| Enclosure Width |
25.125" |
| Enclosure Depth |
19.875"BD, 16.75"TD |
| Weight |
120.0 lbs |
| Recommended Amp Power |
800 - 1000 Wrms |
| T9512D Enclosure Specifications |
| |
|
| Model |
T9512D |
| Driver Type |
Thunder9500 |
| Description |
Single 12", 2 Ω, Vented Enclosure |
| RMS |
1000W |
| Frequency Response (± 3dB) |
27-150Hz |
| Enclosure Height |
16.000" |
| Enclosure Width |
23.125" |
| Enclosure Depth |
18.375"BD, 15.5"TD |
| Weight |
104.0 lbs |
| Recommended Amp Power |
500 - 1000 Wrms |
| T9512A Enclosure Specifications |
| |
|
| Model |
T9512A |
| Driver Type |
Thunder9500 |
| Description |
Single 12", 4 Ω, Vented Enclosure |
| RMS |
1000W |
| Frequency Response (± 3dB) |
28-150Hz |
| Enclosure Height |
16.000" |
| Enclosure Width |
23.125" |
| Enclosure Depth |
18.375"BD, 15.5"TD |
| Weight |
104.0 lbs |
| Recommended Amp Power |
500 - 1000 Wrms |
| T9510D Enclosure Specifications |
| |
|
| Model |
T9510D |
| Driver Type |
Thunder9500 |
| Description |
Single 10", 2 Ω, Vented Enclosure |
| RMS |
750W |
| Frequency Response (± 3dB) |
27-150Hz |
| Enclosure Height |
14.500" |
| Enclosure Width |
20.125" |
| Enclosure Depth |
18.375"BD, 15.75"TD |
| Weight |
90.0 lbs |
| Recommended Amp Power |
375 - 750 Wrms |
| T9510A Enclosure Specifications |
| |
|
| Model |
T9510A |
| Driver Type |
Thunder9500 |
| Description |
Single 10", 4 Ω, Vented Enclosure |
| RMS |
750W |
| Frequency Response (± 3dB) |
28-150Hz |
| Enclosure Height |
14.500" |
| Enclosure Width |
20.125" |
| Enclosure Depth |
18.375"BD, 15.75"TD |
| Weight |
90.0 lbs |
| Recommended Amp Power |
375 - 750 Wrms |
|
 |
|
|
