AN UPGRADE CAN BE AFFORDABLE!

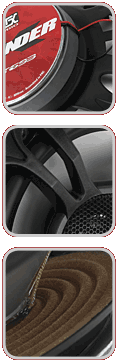

Available in 4 models, X Thunder speakers deliver the sound and reliability that listeners have come to expect from MTX. Poly cones and durable construction provide years of listening pleasure and hard hitting music enjoyment.
X Thunder Speaker Specifications
| XT502 Speaker Specifications |
| |
 |
| Model |
XT502 |
| Description |
5.25" Coaxial |
| Cone |
Polypropylene |
| Tweeter |
13mm Mylar |
| Super Tweeter |
- |
| Midrange |
- |
| Impedance |
4 Ohm |
| Frequency Response |
80Hz-20kHz |
| Power (RMS) |
20W |
| Peak Music Power |
40W |
| Sensitivity @ 2.83V |
88dB |
| Mounting Depth |
2" (50mm) |
| Cut-out Diameter |
4.6" (117mm) |
| Grille |
Yes |
| XT603 Speaker Specifications |
| |
 |
| Model |
XT603 |
| Description |
6.5" Coaxial |
| Cone |
Polypropylene |
| Tweeter |
13mm Mylar |
| Super Tweeter |
Piezo |
| Midrange |
- |
| Impedance |
4 Ohm |
| Frequency Response |
68Hz-20kHz |
| Power (RMS) |
25W |
| Peak Music Power |
50W |
| Sensitivity @ 2.83V |
88dB |
| Mounting Depth |
2.36" (60mm) |
| Cut-out Diameter |
5.16" (131mm) |
| Grille |
Yes |
| XT573 Speaker Specifications |
| |
 |
| Model |
XT573 |
| Description |
5" x 7" (6" x 8") Coaxial |
| Cone |
Polypropylene |
| Tweeter |
13mm Mylar |
| Super Tweeter |
Piezo |
| Midrange |
- |
| Impedance |
4 Ohm |
| Frequency Response |
50Hz-20kHz |
| Power (RMS) |
25W |
| Peak Music Power |
50W |
| Sensitivity @ 2.83V |
89dB |
| Mounting Depth |
2.32" (59mm) |
| Cut-out Diameter |
4.96" x 7.2" (126 x 183mm) |
| Grille |
Yes |
| XT693 Speaker Specifications |
| |
 |
| Model |
XT693 |
| Description |
6" x 9" Triaxial |
| Cone |
Polypropylene |
| Tweeter |
13mm Mylar |
| Super Tweeter |
- |
| Midrange |
2-1/4" Mylar |
| Impedance |
4 Ohm |
| Frequency Response |
50Hz-20kHz |
| Power (RMS) |
42W |
| Peak Music Power |
84W |
| Sensitivity @ 2.83V |
89dB |
| Mounting Depth |
2.95" (75mm) |
| Cut-out Diameter |
6.1" x 8.7" (154 x 222mm) |
| Grille |
Yes |
|
 |
|
|
