DESIGNED TO BE THE BEST
Ever wonder why the world’s greatest subwoofer is the world’s greatest subwoofer? Take a look inside.



THUNDER 9500
THUNDER 8500
THUNDER 7500
  Compare all woofers
  Frame Construction
Die Cast Aluminum
Die Cast Aluminum
Die Cast Aluminum
  Power Handling
1000W
500W
400W
  Xmax
1.00” (25.5mm)
.85” (21.6mm)
.65” (16.5mm)
  Magnet Weight
260 oz
120 oz
93 oz

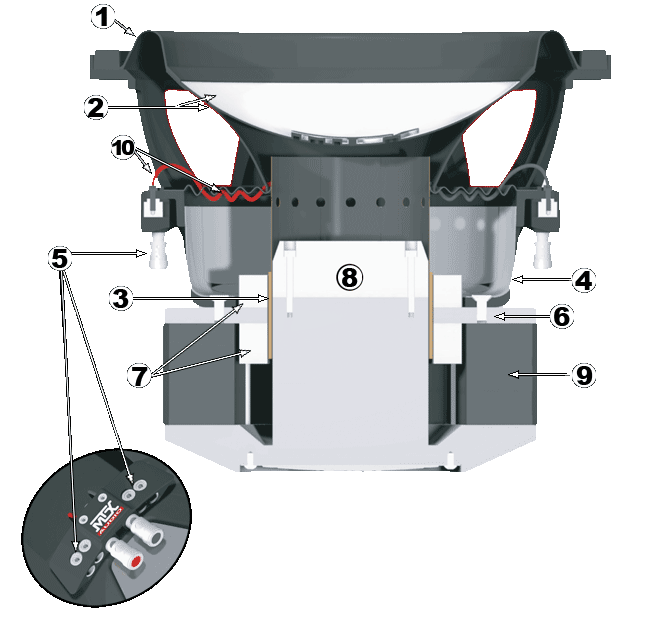

Match to diagram Heat Sink & Front Plate Assembly
·

Match to diagram Shorting Ring & T-Yoke Assembly
·
·

Match to diagram Magnet Boot
·
·
·
Match to diagram Surround Geometry
·
·
·
Match to diagram Machined Plates
·
·
·
Match to diagram Integral Tinsel Lead
·
·
·
Match to diagram Expanded Poly Cone/DustCap
·
·
·
  Stitched Cone
·
·
·
Match to diagram Spider Plateau Venting
·
·
·
  Asymmetrical Linear Drive
·
·
·
  Single or Dual Voice Coil Option
·
·
·
  Custom Designed Enclosure
·
·
·
  Industry Standard Cut Out Pattern
·
·
·
Match to diagram Voice Coil
4.0"
3.0"
2.38”
  Voice Coil Wire Temp Rating
428°F
428°F
428°F
  Voice Coil Material
Aluminum
Aluminum
Aluminum
Match to diagram Terminals
8ga posts +
double set screw
8ga posts +
single set screw
8ga posts
  Price Range
(8", 10", 12", 15" models)
$549.95 - $774.95
$349.95 - $569.95
$199.95 - $314.95
  Recommended Enclosure Size
  Sealed Box (cubic feet)
1.0 - 1.5
1.0 - 1.5
.75 - 1.5
  Vented Box
1.25 - 2.5
1.25 - 2.5
1.0 - 2.0

PDF version of this chart.
