Car Audio Subwoofer - Thunder8500 SuperWoofer

Thunder8515 Subwoofer Specifications

Model	T8515-44	T8515-04
Description	15" Subwoofer	15" Subwoofer
Impedance	Dual 4 $Ω$	4 $Ω$
RMS Power (Watts)	600	600
Rec. RMS Amplifier Power (Watts)	300 - 600	300 - 600
Sensitivity	92.64dB	92.01dB
Voice Coil	3"	3"
Magnet Weight (oz.)	176	176

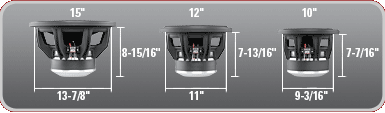

Mounting Depth (inches)	9"	9"
Cut Out Diameter	13-7/8"	13-7/8"
Sealed Enclosure Net Volume	2.0ft³	2.0ft³
Vented Enclosure Net Volume	2.48ft³	2.48ft³
Speaker Displacement	.15ft³	.15ft³
Volume Displacement (SD x XMAX) (in3)	119.38	119.38
Tuning Frequency	32Hz	32Hz

Thunder8512 Subwoofer Specifications

Model	T8512-44	T8512-04
Description	12" Subwoofer	12" Subwoofer
Impedance	Dual 4 $Ω$	4 $Ω$
RMS Power (Watts)	500	500
Rec. RMS Amplifier Power (Watts)	250 - 500	250 - 500
Sensitivity	92.19dB	89.78dB
Voice Coil	3"	3"
Magnet Weight (oz.)	160	160
Mounting Depth (inches)	7-3/4"	7-3/4"
Cut Out Diameter	11"	11"
Sealed Enclosure Net Volume	1.25ft³	1.25ft³
Vented Enclosure Net Volume	2ft³	2ft³
Speaker Displacement	.09ft³	.09ft³
Volume Displacement (SD x XMAX) (in3)	73.61	73.61
Tuning Frequency	34Hz	34Hz

Thunder8510 Subwoofer Specifications

Model	T8510-44	T8510-04
Description	10" Subwoofer	10" Subwoofer
Impedance	Dual 4 $Ω$	4 $Ω$
RMS Power (Watts)	500	500
Rec. RMS Amplifier Power (Watts)	250 - 500	250 - 500
Sensitivity	90.39dB	86.94dB
Voice Coil	3"	3"
Magnet Weight (oz.)	144	144
Mounting Depth (inches)	7-15/16"	7-15/16"
Cut Out Diameter	9-1/8"	9-1/8"
Sealed Enclosure Net Volume	.75ft³	.75ft³
Vented Enclosure Net Volume	1.45ft³	1.45ft³
Speaker Displacement	.07ft³	.07ft³
Volume Displacement (SD x XMAX) (in3)	45.46	45.46
Tuning Frequency	35Hz	35Hz
