MTX Car Audio - Thunder4500 High-Performance subwoofer

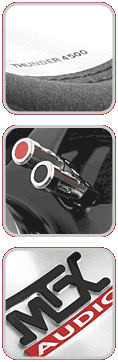

Click For More Images

Click for more Images

TECH DATA REPORTS
T4515-44	T4515-04
T4512-44	T4512-04
T4510-44	T4510-04
T4510-12	T4508-04

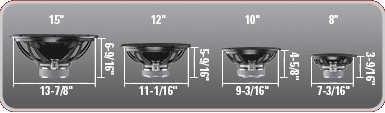

Subwoofer Dimensions

Thunder4515 Subwoofer Specifications
Model	T4515-44	T4515-04
Description	15" Subwoofer	15" Subwoofer
Impedance	Dual 4 $Ω$	4 $Ω$
RMS Power (Watts)	250	250
Rec. RMS Amplifier Power (Watts)	125 - 250	125 - 250
Sensitivity	94.63dB	92.47dB
Voice Coil	2"	2"
Magnet Weight (oz.)	50	50
Mounting Depth	6-9/16"	6-9/16"
Cut Out Diameter	13-7/8"	13-7/8"
Sealed Enclosure Net Volume	1.75ft³	1.75ft³
Vented Enclosure Net Volume	2.48ft³	2.48ft³
Speaker Displacement	.10ft³	.10ft³
Volume Displacement (SD x XMAX) (in3)	52.02	52.02
Tuning Frequency	32Hz	32Hz

Thunder4512 Subwoofer Specifications
Model	T4512-44	T4512-04
Description	12" Subwoofer	12" Subwoofer
Impedance	Dual 4 $Ω$	4 $Ω$
RMS Power (Watts)	225	225
Rec. RMS Amplifier Power (Watts)	112.5 - 225	112.5 - 225
Voice Coil	1.5"	1.5"
Magnet Weight (oz.)	35	35
Mounting Depth	5-9/16"	5-9/16"
Cut Out Diameter	11-1/16"	11-1/16"
Sealed Enclosure Net Volume	1.25ft³	1.25ft³
Vented Enclosure Net Volume	2ft³	2ft³
Speaker Displacement	.05ft³	.05ft³
Tuning Frequency	37Hz	37Hz

Thunder4510 Subwoofer Specifications
Model	T4510-44	T4510-04	T4510-12
Description	10" Subwoofer	10" Subwoofer	10" Subwoofer
Impedance	Dual 4 $Ω$	$4 Ω$	$12 Ω$
RMS Power (Watts)	225	225	225
Rec. RMS Amplifier Power (Watts)	112.5 - 225	$112.5 - 225$	$112.5 - 225$
Sensitivity	93.61dB	90.74dB	86.03dB
Voice Coil	1.5"	1.5"	1.5"
Magnet Weight (oz.)	30	30	30
Mounting Depth	4-5/8"	4-5/8"	4-5/8"
Cut Out Diameter	9-3/16"	9-3/16"	9-3/16"
Sealed Enclosure Net Volume	.75ft³	.75ft³	.75ft³
Vented Enclosure Net Volume	1.45ft³	1.45ft³	1.45ft³
Speaker Displacement	.03ft³	.03ft³	.03ft³
Volume Displacement (SD x XMAX) (in3)	21.8	21.8	21.8
Tuning Frequency	38Hz	38Hz	38Hz

Thunder4508 Subwoofer Specifications
Model	T4508-04
Description	8" Subwoofer
Impedance	$4 Ω$
RMS Power (Watts)	100
Rec. RMS Amplifier Power (Watts)	50 - 100
Sensitivity	89.79dB
Voice Coil	1"
Magnet Weight (oz.)	20
Mounting Depth	3-9/16"
Cut Out Diameter	7-3/16"
Sealed Enclosure Net Volume	.5ft³
Vented Enclosure Net Volume	.78ft³
Speaker Displacement	.01ft³
Volume Displacement (SD x XMAX) (in3)	7.23
Tuning Frequency	38Hz
