MTX Car Audio - Thunder5500 High-Performance subwoofer

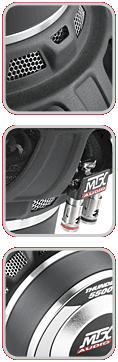

Click For More Images

Click for more Images

TECH DATA REPORTS
T5515-44	T5515-04
T5512-44	T5512-04
T5510-44	T5510-04
T5508-44	T5508-04

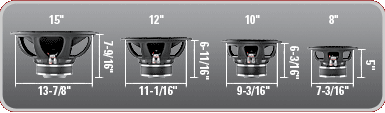

Subwoofer Dimensions

Thunder5515 Subwoofer Specifications
Model	T5515-44	T5515-04
Description	15" Subwoofer	15" Subwoofer
Impedance	Dual 4 $Ω$	4 $Ω$
RMS Power (Watts)	300	300
Rec. RMS Amplifier Power (Watts)	150 - 300	150 - 300
Sensitivity	93.57dB	90.75dB
Voice Coil	2"	2"
Magnet Weight (oz.)	81	81
Mounting Depth	7-9/16"	7-9/16"
Cut Out Diameter	13-7/8"	13-7/8"
Sealed Enclosure Net Volume	1.75ft³	1.75ft³
Vented Enclosure Net Volume	2.48ft³	2.48ft³
Volume Displacement (SD x XMAX) (in3)	71.68	71.68
Tuning Frequency	38Hz	38Hz

Thunder5512 Subwoofer Specifications
Model	T5512-44	T5512-04
Description	12" Subwoofer	12" Subwoofer
Impedance	Dual 4 $Ω$	4 $Ω$
RMS Power (Watts)	300	300
Rec. RMS Amplifier Power (Watts)	150 - 300	150 - 300
Voice Coil	1.75"	1.75"
Magnet Weight (oz.)	70	70
Mounting Depth	6-11/16"	6-11/16"
Cut Out Diameter	11-1/16"	11-1/16"
Sealed Enclosure Net Volume	1.25ft³	1.25ft³
Vented Enclosure Net Volume	2ft³	2ft³
Volume Displacement (SD x XMAX) (in3)	.07ft³	.07ft³
Tuning Frequency	38Hz	38Hz

Thunder5510 Subwoofer Specifications
Model	T5510-44	T5510-04
Description	10" Subwoofer	10" Subwoofer
Impedance	Dual 4 $Ω$	$4 Ω$
RMS Power (Watts)	300	300
Rec. RMS Amplifier Power (Watts)	150 - 300	150 - 300
Sensitivity	90.83dB	88.14dB
Voice Coil	1.75"	1.75"
Magnet Weight (oz.)	60	60
Mounting Depth	6-3/16"	6-3/16"
Cut Out Diameter	9-3/16"	9-3/16"
Sealed Enclosure Net Volume	.75ft³	.75ft³
Vented Enclosure Net Volume	1.45ft³	1.45ft³
Volume Displacement (SD x XMAX) (in3)	31.87	31.87
Tuning Frequency	38Hz	38Hz

Thunder5508 Subwoofer Specifications
Model	T5508-44	T5508-04
Description	8" Subwoofer	8" Subwoofer
Impedance	Dual 4 $Ω$	4 $Ω$
RMS Power (Watts)	200	200
Rec. RMS Amplifier Power (Watts)	$100 - 200$	100 - 200
Sensitivity	86.42dB	86.50dB
Voice Coil	1.5"	1.5"
Magnet Weight (oz.)	42	42
Mounting Depth	5"	5"
Cut Out Diameter	7-3/16"	7-3/16"
Sealed Enclosure Net Volume	.5ft³	.5ft³
Vented Enclosure Net Volume	.78ft³	.78ft³
Volume Displacement (SD x XMAX) (in3)	9.95	13.02
Tuning Frequency	38Hz	38Hz
