The TD series amplifiers are designed to bring big power in a small footprint. Available in two size mono blocks and a single 4 channel, TD series amplifiers offer excellent system flexibility at a great price. Featuring surface mount design that resists vibration and an extruded aluminum heat sink that dissipates heat effectively, these amps have everything you need to make your system bang.

Mono-Block

4-Channel

Model:

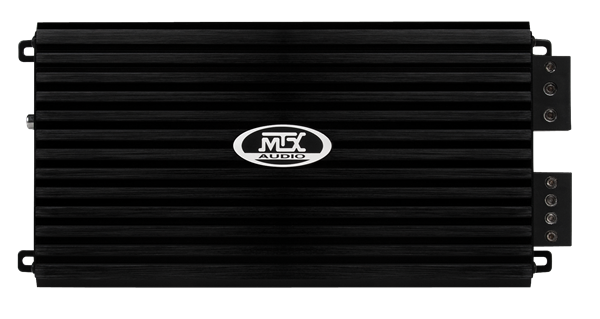

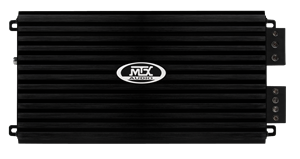

TD1000.1D

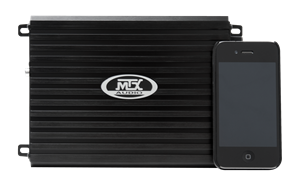

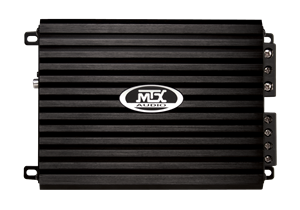

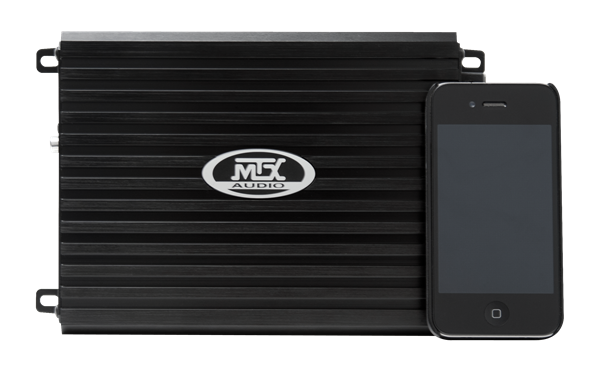

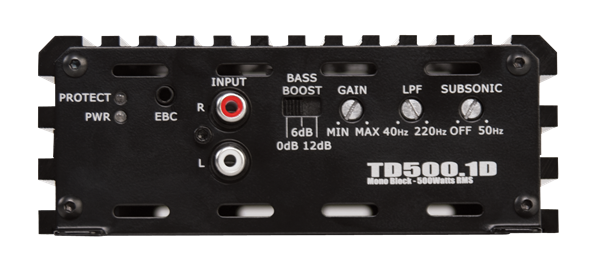

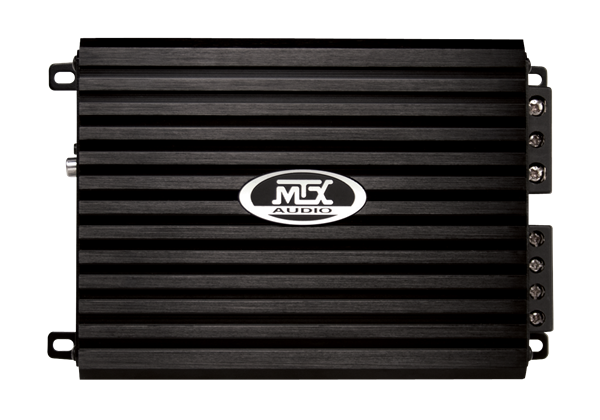

TD500.1D

Topology	Class D	Class D
4Ω RMS Power Output	350W x 1 Channel	300W x 1 Channel
Signal to Noise Ratio	80dB	80dB
2Ω RMS Power Output	600W x 1 Channel	500W x 1 Channel
1Ω RMS Power Output	1000W x 1 Channel
Frequency Response	10Hz to 220Hz	10Hz to 220Hz
Crossover	Variable Low @ 40Hz to 220Hz, 12dB/Oct	Variable Low @ 40Hz to 220Hz, 12dB/Oct
Maximum Sensitivity	200mV	200mV
Subsonic Filter	10Hz to 50Hz, 12dB/Oct, Variable	10Hz to 50Hz, 12dB/Oct, Variable
Maximum Input Signal	5V	5V
Bass Boost	0, 6, 12dB Switchable	0, 6, 12dB Switchable
Width	5 1/2" (13.97 cm)	5 1/2" (13.97 cm)
Height	2 1/8" (5.4 cm)	2 1/8" (5.4 cm)
Length	10 5/16" (26.19 cm)	7 1/4" (18.42 cm)
Recommended StreetWires Amp Kit	ZN3K-04 or ZN3KI-04	ZN3K-04 or ZN3KI-04

Model:

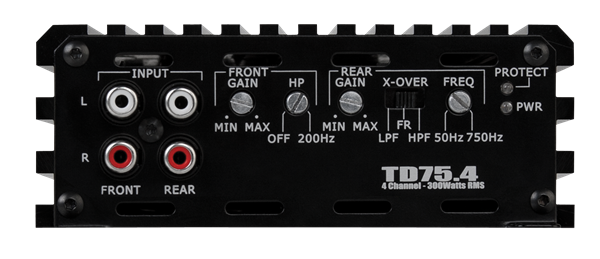

TD75.4

Topology	Class A/B
4Ω RMS Power Output	75W x 4 Channels
Signal to Noise Ratio	80dB
2Ω RMS Power Output	100W x 4 Channels
Frequency Response	15Hz to 25kHz
Crossover	Variable LPF 50Hz to 750Hz (Rear), Variable HPF 10Hz-200Hz (Front), Variable HPF 50Hz-750Hz (Rear), 12dB/Oct
Maximum Sensitivity	200mV
Maximum Input Signal	5V
Width	5 1/2" (13.97 cm)
Height	2 1/8" (5.4 cm)
Length	10" (25.4 cm)
Recommended StreetWires Amp Kit	ZN3K-04 or ZN3KI-04
