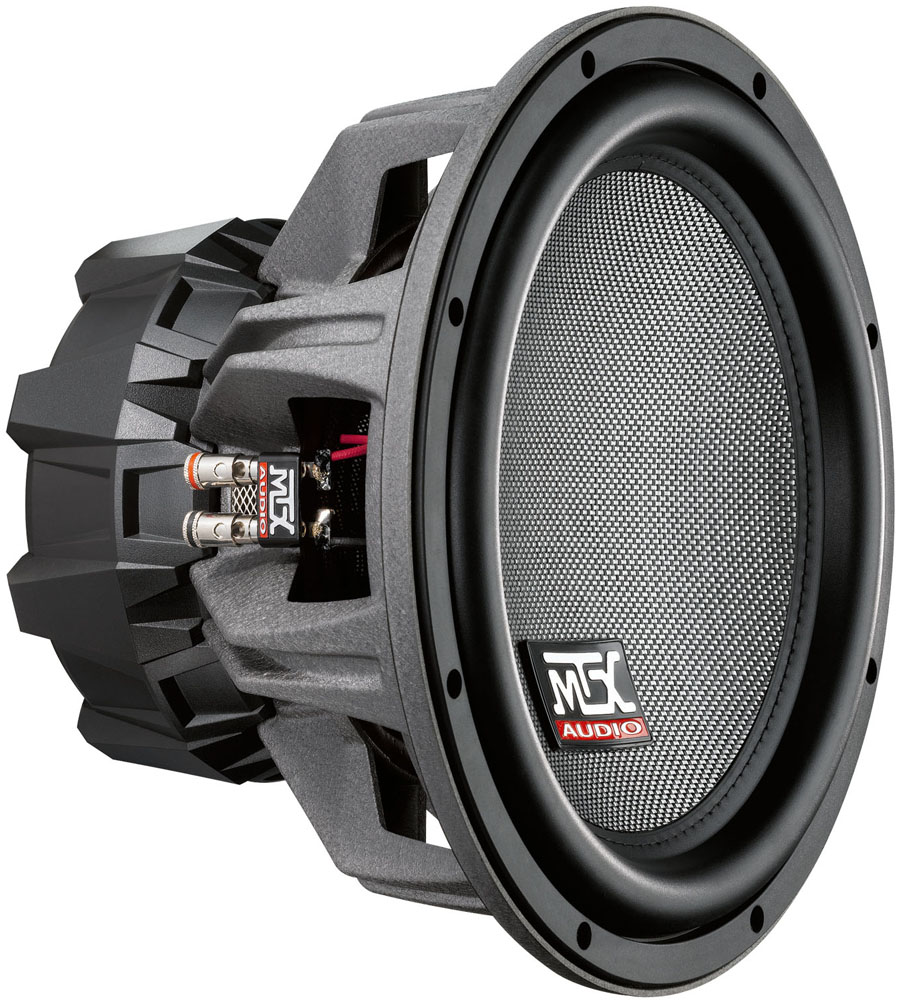

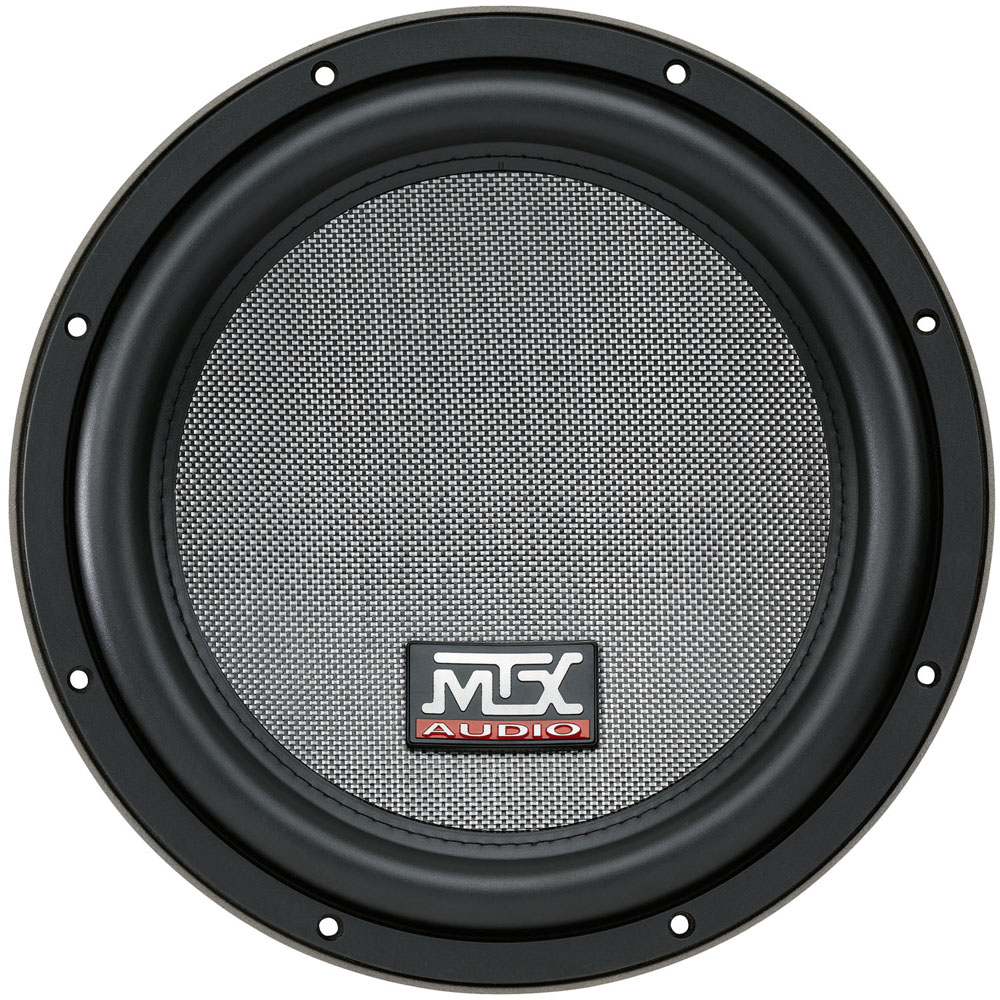

T8000 Series T810-22 10" 400W RMS Dual 2 Ohm Subwoofer

10 Inch T8000 Series Car Subwoofer
SKU: T810-22
Manufacturer: MTX Audio

The T810-22 is a 10 inch diameter, dual voice coil, 2 ohm car subwoofer that is born from a long history of high performance subwoofers.

The T810-22 features innovative design characteristics like the mechanical cooling process, Spider Plateau Venting, and Asymmetrical Linear Drive System that reduces distortion and improves sound quality. The T810-22 additionally uses advanced construction materials like a cast aluminum basket and glass fiber cone for optimum weight to stiffness ratio.

The T810-22 is ideally used in an audio system where sound quality is more important than bass level.

Speaker Impedance
Spider Plateau Venting Mechanically Targets Cooler Air at the Voice Coil
Asymmetrical Linear Drive System Utilizes an Extended Pole Piece and Progressive Spider to Ensure Linear Motion
Cast Aluminum Basket Reduces Resonance and Distortion
Glass Fiber Cone Has Optimum Stiffness-to-Weight Ratio for Sensitiviy
428 Degree Voil Coil Winding Endures Harshest ConditionsDuring Play
RMS Power (Watts) 400
Recommended Amp Power (RMS) 200 - 400
Peak Power (Watts) 800
Frequency Response 39Hz - 200Hz
Sensitivity (1W/1M) 83.8dB
Voice Coil 2.4" (6.1 cm)
Magnet Weight 93 oz.
Mounting Depth 7.13"
Cut Out Diameter 9.23"
Volume Displacement (cu in) 33.56 cu in
Sealed Enclosure Net Volume 0.75 cu ft
Vented Enclosure Net Volume 1.50 cu ft
Owners Manual OM-T810-22.pdf
50Hz Test Tone 50Hz.mp3
