SuperWoofer 95 Series 9515-44 15" 1500W RMS Dual 4 Ohm

Car Subwoofers:

The 95 Superwoofer

Unmatched performance... simply the best.

SKU: 9515-44
Availability: Out of stock
Customers rate this product:
(2)
5.0 2
$899.95
$100.00
$799.95
Qty:
Share this product:

Coming 4th Quarter, 2014

For over 10 years... the MTX 95 name has been synonymous with unmatched SPL output and legendary performance. The new 95 builds on that legacy with new technologies that take this SuperWoofer to levels never before acheived. This subwoofer is designed to produce bass, plain and simple. It is ideal for competitors looking to take their systems to the next level, for those wanting the best sounding subwoofer available for their primo ride, and for everyday enthusiasts that want a "live concert" happening in their cars instead of that boring stock audio experience.

MTX 95 Series Car Superwoofer

The New, Unmatched Series 95

This is not some off the shelf part added to make the 95 "new and improved". The new 95 series has been under development for over two years so that this new version would live up to the name it proudly wears. MTX engineers went back to the drawing board to make the 95 Series bigger and better than the now famous 9500 version. This meant building the sub to handle more power with better materials to provide superior accuracy and cooling, while at the same time improving SPL output and sound quality from our already high standards.

Why It's The Best

  • Conservatively rated at 1500 Watts
  • Cast Aluminum Basket that Reduces Resonance and Improves Sound Quality
  • Inverted Apex Surround with 1.25" Xmax Maximizing SPL Output
  • High Efficiency Glass Fiber Cone for accurate reproduction
  • 4" Aluminum Voice Coil
  • 3-Layer Thermal Management Reduces distortion at High Output
    • Spider Plateau Venting Mechanical Cooling Technology
    • Internal Voice Coil Heatsink
    • Integrated T-Yoke Heatsink
  • 8 AWG Compression Terminals

Inverted Apex Surround

Creates higher volume displacement, higher SPL and less distortion.

Triple Thermal Management

Spider Plateau Venting & Radial Ribbed T-Yoke let you play hard and long..

Internal Voice Coil Heatsink

Further dissipates heat and decreases distortion.

95 Series Rugged Precision

The 95 series uses a new cast aluminum basket that delivers exceptional strength in containing the oversized magnet and subwoofer motor structure as well as reducing resonance improving overall sound quality. The new Inverted Apex Surround replaces the older style high roll surround. This new surround design increases effective surface area of the cone by using half the width of the old style surround without sacrificing any excursion. In fact the new 95 has an Xmax of 1.25". Couple that incredible excursion with increased surface diameter and the result is exponentially increased SPL output.

MTX Inverted Apex Surround Animation

MTX Inverted Apex Surround

A glass fiber cone which offers excellent stiffness to weight ratio is used to lower weght and increase sensitivity creating higher SPL using lower power. Each unit features a progressive layered spider that helps ensure linear movement of the subwoofer thereby reducing distortion. The spider also protects the integrated tinsel leads and because of its construction requires no break in period meaning the subwoofer can handle full power as soon as it is installed. The voice coil has a 4" diameter and utilizes high temperature aluminum wire designed to withstand high current over long periods of time ensuring the 95 is ready to play at all times.

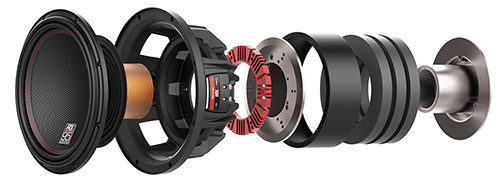

95 Exploded View

A three layer thermal management design incorporates multiple means of cooling the voice coil so that it plays distortion free even at high output. Spider Plateau Venting is a mechanical cooling process that circulates hot air for cool air at the voice coil as the subwoofer continuously cycles. An integrated voice coil heatsink helps reduce voice coil temperature, dissipating it through its mass and out away from the voice coil. Finally an integrated t-yoke heat sink on the backplate absorbs heat from the voice coil and radiates it to the back of the subwoofer away from the voice coil.

This 15" model features a dual 4Ω voice coil configuration and is capable of handling 1500W RMS power.


Subwoofer Wiring Calculator

Learn how to properly wire your subwoofers with this easy subwoofer wiring diagram tool.

Select # Of Woofers:

Choose Impedance To Match Amp:

Inverted Apex Surround with 1.25" Xmax - Maximizes SPL
3-Layer Thermal Management - Supercooled for continuous high output without distortion
High Efficiency Glass Fiber Cone
4" Aluminum Voice Coil
Cast Aluminum Basket
8 AWG Compression Terminals
Subwoofer Size 15"
RMS Power (Watts) 1500
Peak Power (Watts) 3000
Impedance Dual 4Ω
Frequency Response 19Hz - 100Hz
Sensitivity (1W/1M) 84.6dB
Volume Displacement (cu in) 173.7
Xmax 1.25 in
Mounting Depth 10-1/4" (260mm)
Cut Out Diameter 13-7/8" (352.4mm)
Sealed Enclosure Net Volume 2.0 cu ft
Vented Enclosure Net Volume 2.4 - 3.4 cu ft
Tech Data Sheet T/S Parameters 9515-44 Tech Data Sheet.pdf
50Hz Frequency Test Tone 50Hzmp3.zip
