DCM TFE200 Dual 6.5" 3-Way 200W RMS 8 Ohm Tower Speaker

Availability: In stock
Customers rate this product:
Share this product:

The legend continues. The TimeFrame Series has been the signature series speaker from DCM for over 30 years. This is the last production run of these incredible TimeFrame TFE200 speakers and quantities are limited, so act now to take advantage of these amazing speakers that will change the way you listen to music and movies forever.

Everyone wants to get a movie theater or concert experience in their home. There are many types of speakers that can improve the quality of sound you are listening and then there are those that truly change how you hear music and movies. The DCM TimeFrame 200 is one of those speakers. Its innovative design and attention to detail enable it to deliver unbeatable performance in any application.
Key Features
  • Kevlar Cone Midrange Speaker
  • Dual Glass Fiber Cone Woofers
  • Teteron Dome Tweeter
  • Internally Braced MDF Cabinet with 1" Front Baffle
  • Bi-Amp Capability
  • Nickel Plated 5-Way Binding Posts
  • Perforated Steel Grille
  • Feet with Adjustable or Removable Carpet Spikes

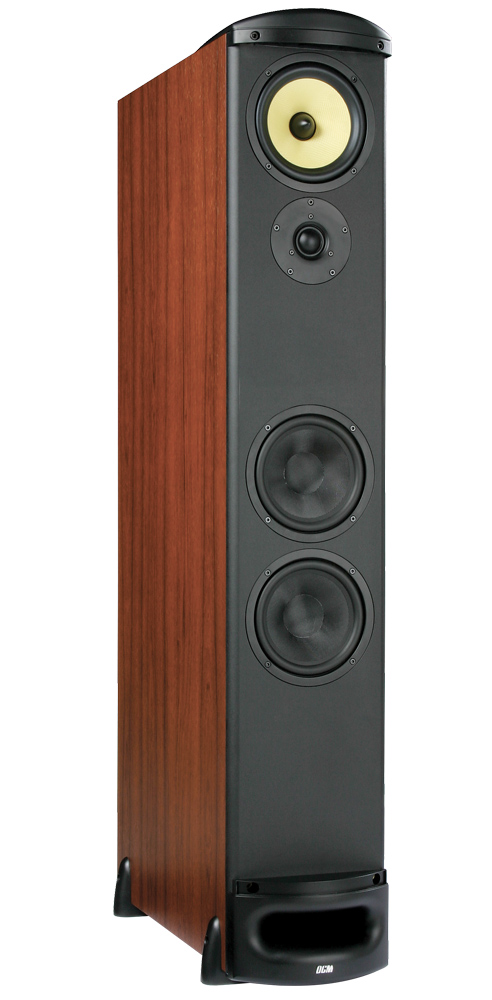

The DCM TFE200 is a 3-way tower speaker that is capable of delivering up to 200 watts RMS and has an impedance of 6Ω. The beauty of the TFE200 begins with the cabinet construction. DCM uses a high quality 3/4" medium density fiberboard (MDF) design for the enclosure. This durable material is exceptionally strong and reduces resonance in the enclosure so you only hear true, high-fidelity sound with minimum distortion. The front baffle is a full 1" MDF piece that protects the speakers and ensures the ultimate in sound quality.

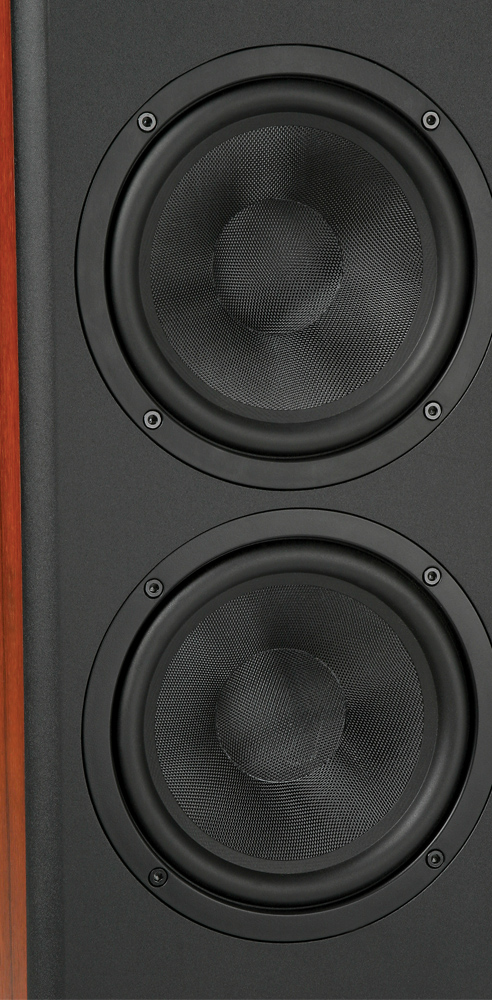

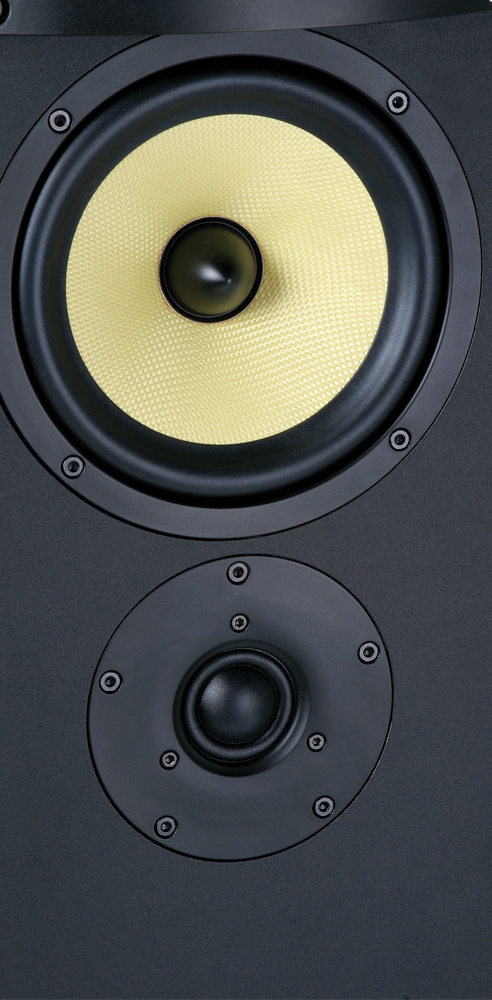

The unit features a dual 6.5" woofer, single 6.5" midrange driver, and 30mm tweeter design. The dual 6.5" woofers incorporate glass fiber cones that have excellent stiffness-to-weight ratio enabling them to deliver ultra-low frequency sound reproduction from a cabinet speaker. The 6.5" midrange driver uses a Kevlar cone that is durable and designed to reproduce frequencies otherwise lost with inferior speakers. The 30mm Teteron dome tweeter is designed to deliver crystal clear highs including vocals that bring music and movies to life.

TFE200 Wiring Examples

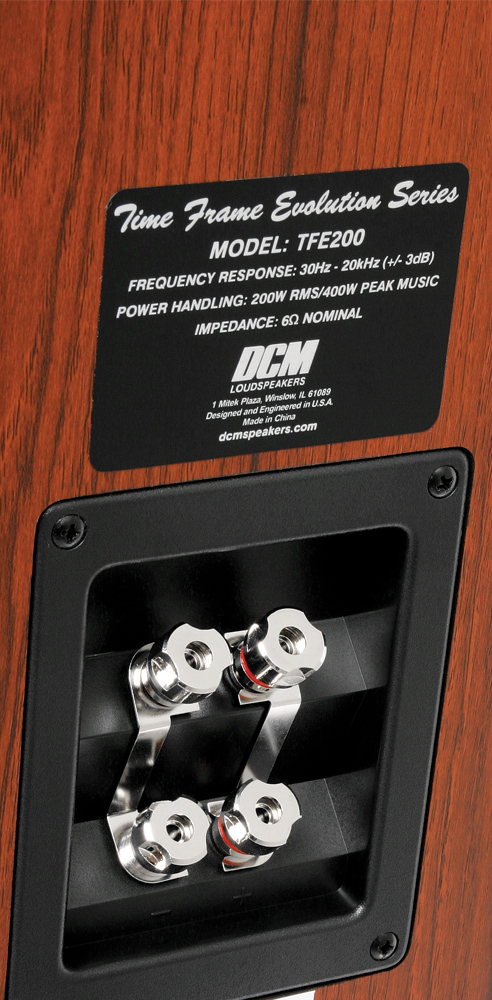

The high power handling of the TFE200, 200-watts RMS, can be properly harnessed by taking advantage of its bi-amp capability. The terminals on the back of the speaker are nickel plated binding posts and when you first unpackage these speakers you will notice a jumper linking the upper and lower terminals. In this mode, a single speaker connection will power the speaker perfectly for surround sound systems, but when removed you can connect the front channel to one set of terminals and the rear channel to the lower and take advantage of all the power in an all channel stereo application.

Woofer Dual 6.5" Glass Fiber
Midrange 6.5" Kevlar
Tweeter 30mm Teteron Dome
RMS Power (Watts) 200
Peak Power (Watts) 400
Frequency Response 30Hz - 20kHz
Sensitivity 89dB
Height 45-11/16" (116.05cm)
Width 9-1/2" (24.13cm)
Depth 20-7/8" (53.02cm)
Weight 73 lbs (160.6kg)
Owners Manual TFESeriesManual(1).pdf
