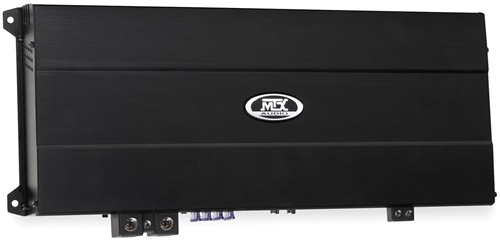

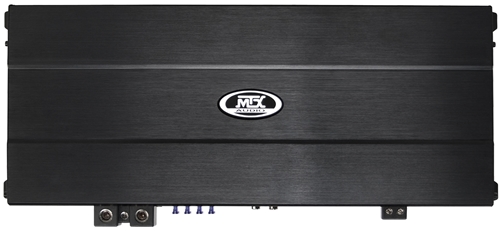

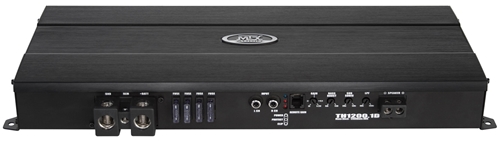

TH Series TH1200.1D 1200W RMS Mono Block Class D Amplifier

1200W RMS 1 Ohm Stable Mono Block Class D Amplifier
SKU: TH1200.1D
Customers rate this product:
(3)
6.3 3
$529.95
$99.98
$429.97
Qty:
Share this product:

TH Series amplifiers were designed with over 25 years of amplifier experience to exceed your expectations. The TH1200.1 is an excellent choice for any enthusiast thinking about adding a subwoofer or subwoofers to their vehicle.

Key Features

  • Patented Adaptive Class D Technology
  • Patented Smart Engage Auto Turn On
  • Surface Mount Design
  • Dual Sided Fiberglass Printed Circuit Board
  • Convection Cooled Design

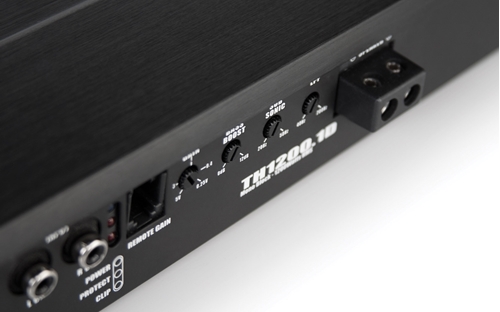

The TH1200.1D is a mono block amplifier that is capable of delivering up to 1200-watts RMS power into a 1Ω speaker load. This unit features several technologies that have been proven over time to deliver exceptional sound quality. The TH1200.1D includes a patent power supply, patented Adaptive Class D design that increases sound quality by eliminating RF interference generated by the MOSFET power supply, and Smart Engage auto turn on technology that eliminates the need to run a remote wire to activate the amplifer during installation saving time and possible damage to the dashboard. This model also features a 24dB/oct low pass filter that increases sound quality by reducing unwanted frequencies more effectively, a variable bass boost from 0-12 dB at 40Hz, and a variable subsonic filter for use in vented subwoofer enclosure applications.

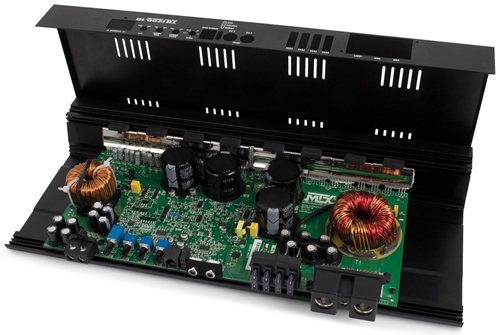

TH1200.1D Top OpenThe TH1200.1D also incorporates Intelligent Surface Mount Design Technology which utilizes smaller parts and separates the circuit board into localized zones eliminating interference and improving sound quality. The dual layer circuit board has more copper traces than single sided boards and is able to more efficiently transfer signal across the board with less loss. A clip light is included making it easy to set the amplifier's gain control to the source unit.

Patented Class D Technology

Reduces external noise for premium sound quality.

Intelligent Surface Mount Technology

Cutting edge parts eliminate interference and resist vibrations on circuit board

Smart Engage

Patented auto turn-on circuit makes installation easy.

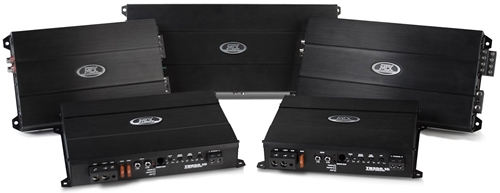

Also available in 650-Watt and 350-Watt models.

StreetWires 20% Off

Patented Adaptive Class D Technology for Optimal Efficiency
Patented Smart Engage Auto Turn On
Surface Mount Design for Resistance to Vibration
Dual Sided Fiberglass Printed Circuit Board
Convection Cooled Design
Includes External Bass Control
Small Footprint for Easy Installation
Description Mono Block
RMS Power Output (Watts) 1200
4 Ohm RMS Power Output 400W x 1 Channel
Signal-to-noise Ratio (1Watt) 75dB
2 Ohm RMS Power Output 800W x 1 Channel
1 Ohm RMS Power Output 1200W x 1 Channel
Topology Class D
THD+N (Distortion) (1 Watt) <1%
Frequency Response 20Hz - 200Hz
Crossover Variable Low @40Hz to 200Hz, 24dB/Oct
Crossover 20Hz to 50Hz,12dB/Oct, Variable
Bass Boost +12dB @ 40Hz
Max Sensitivity 250mV
Max Input Signal 5V
Height 7.06"
Width 17.25"
Depth 2.13"
Recommended StreetWires Amp Kit ZN5K-00 OR ZN3K-00
Owners Manual MTX004237 TH1200.1D.pdf
50Hz Frequency Test Tone 50Hzmp3.zip
50Hz Test Tone 50Hz.mp3
