SKU: 3512-04S
Sold Individually

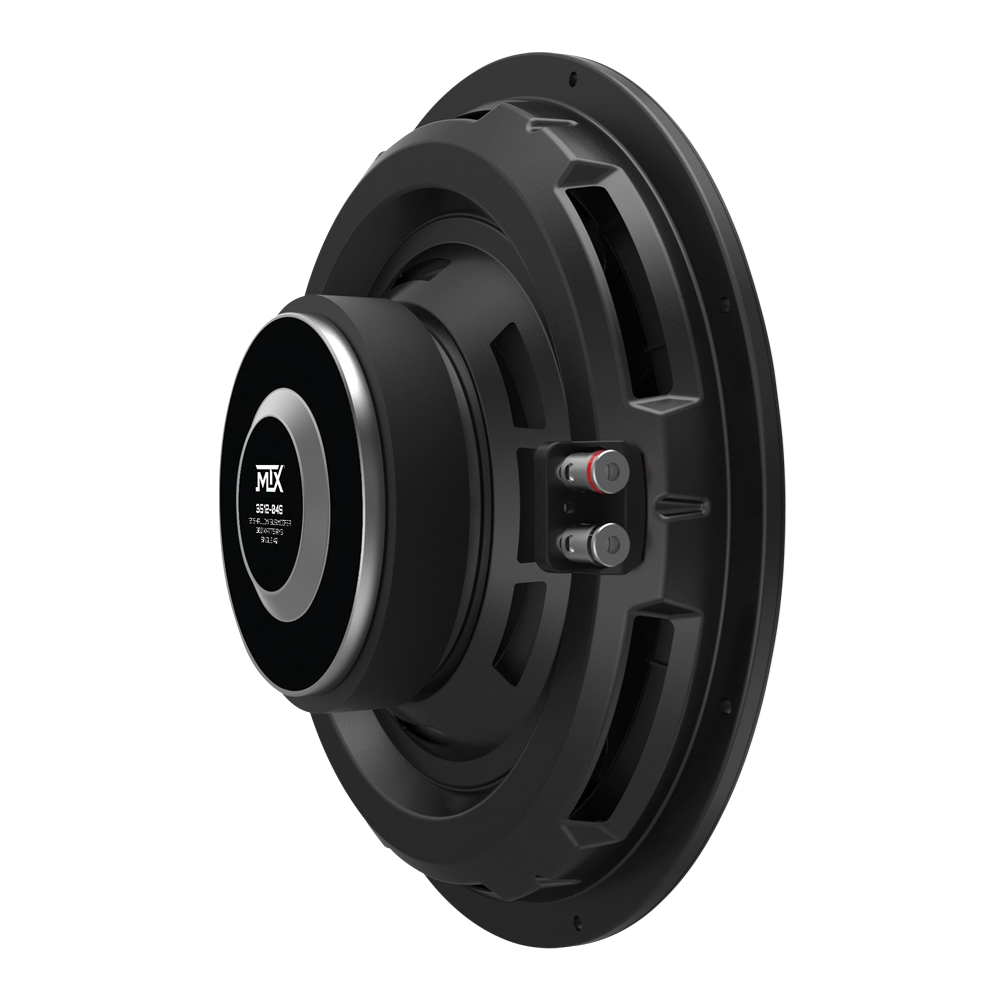

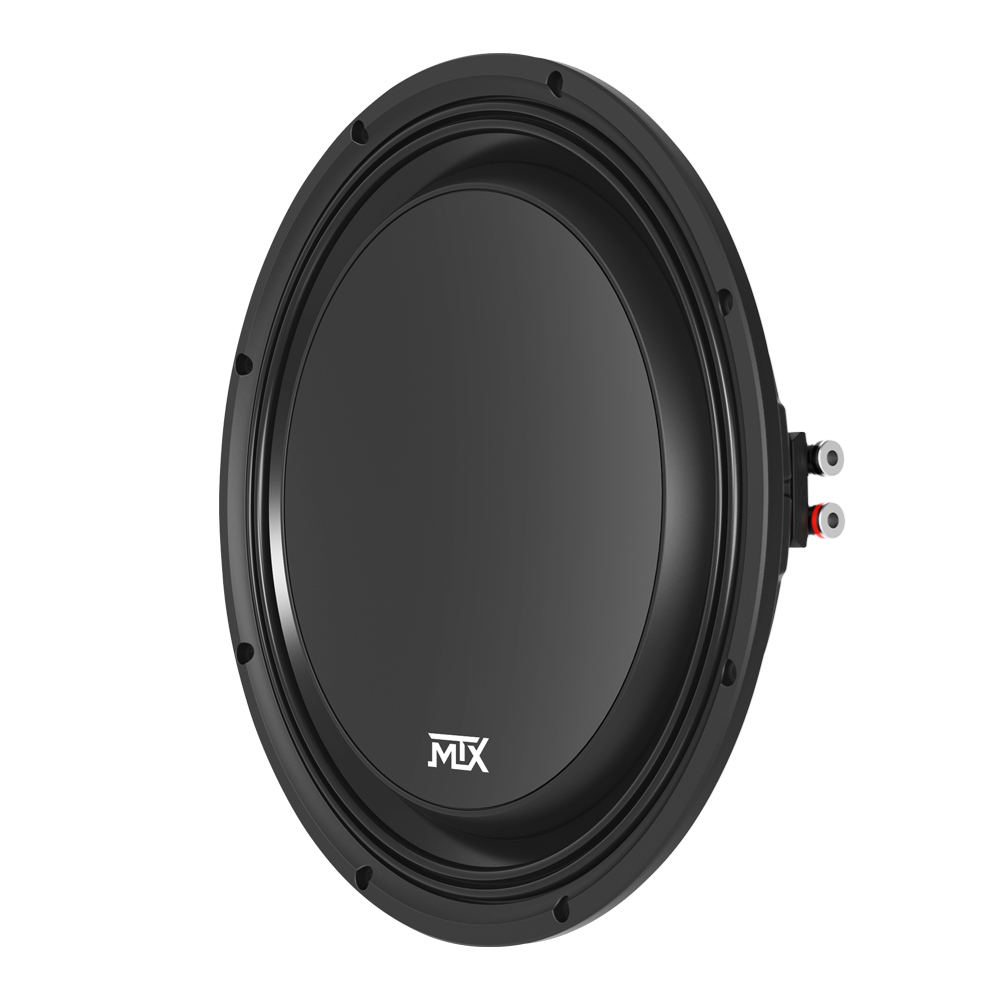

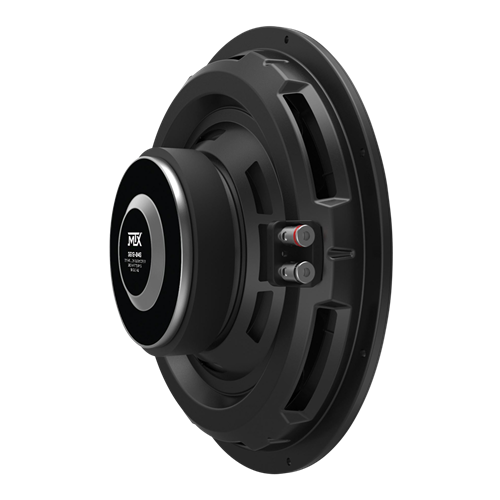

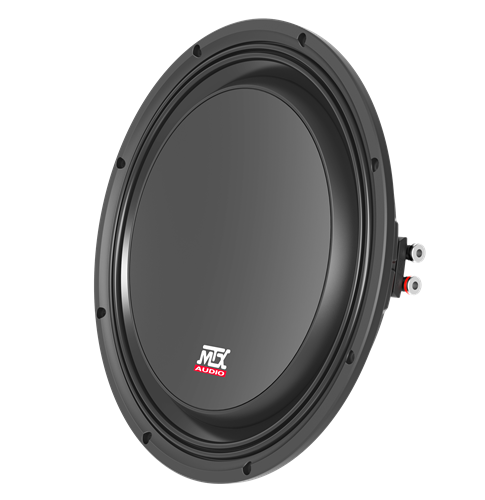

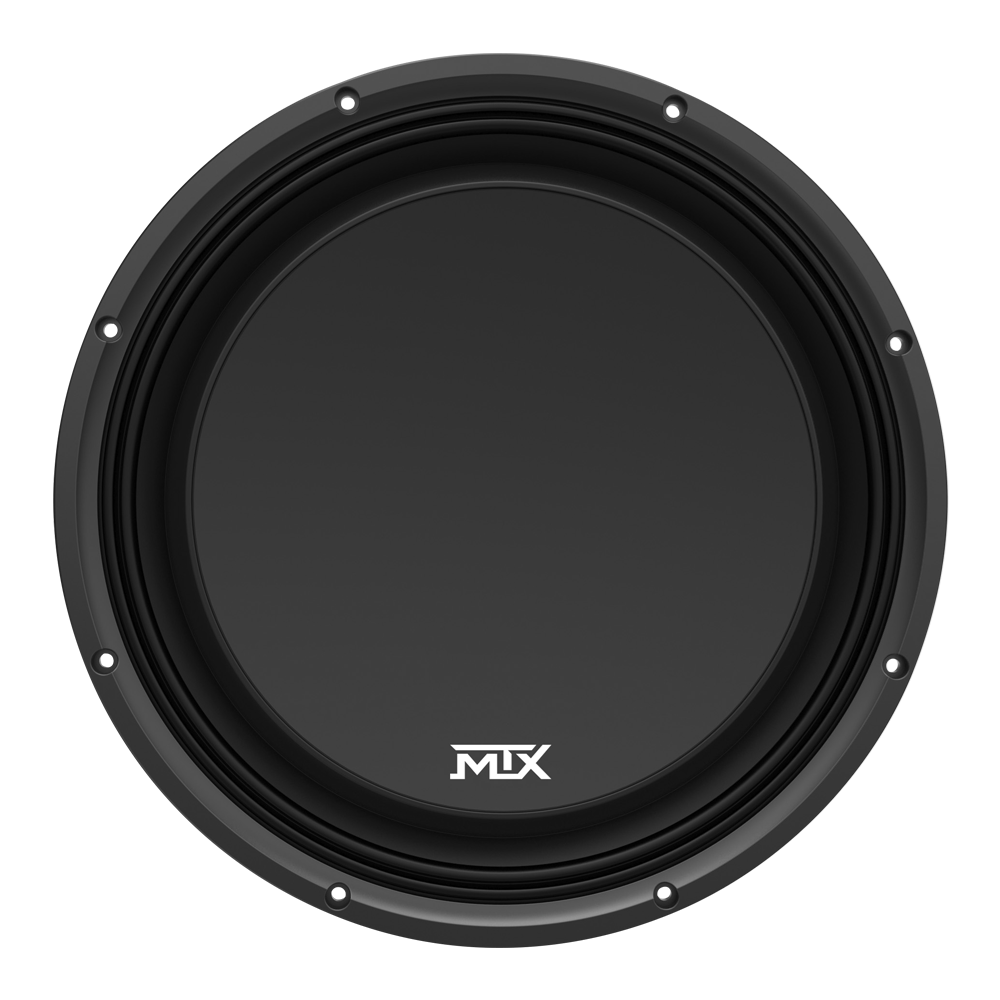

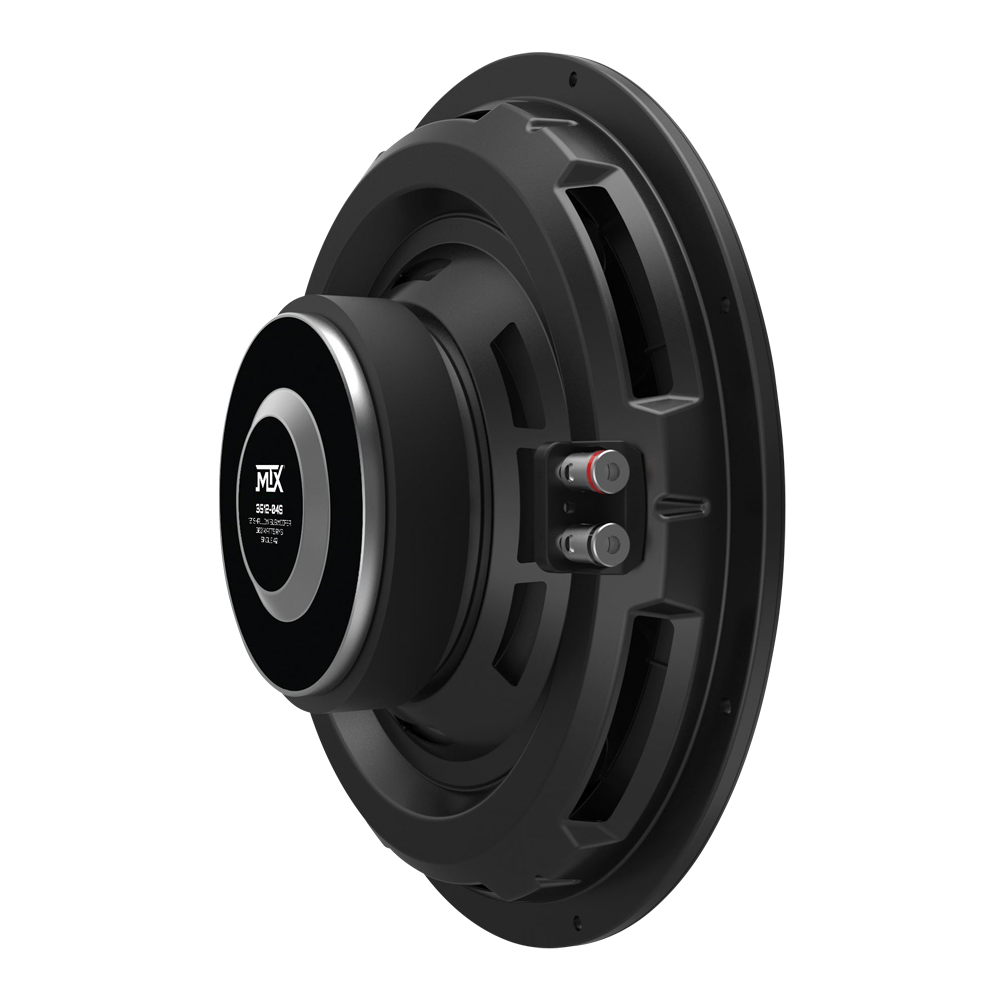

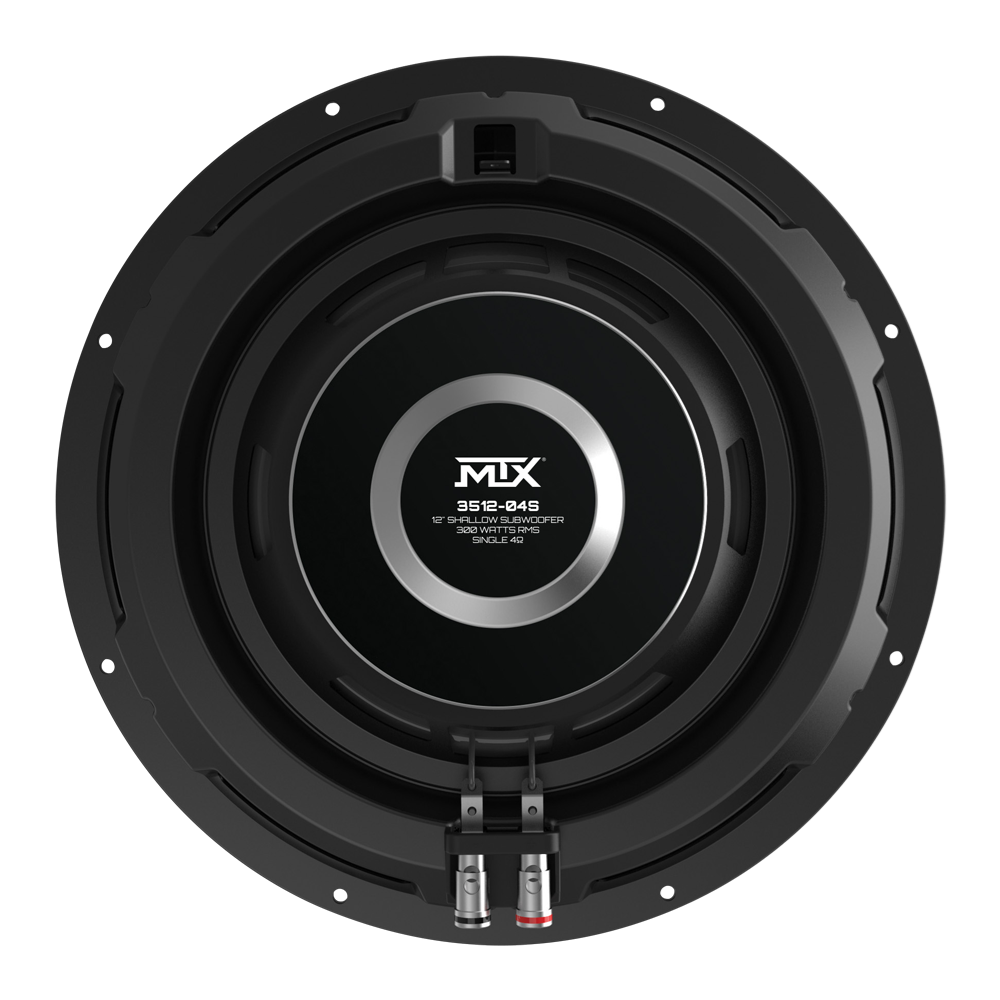

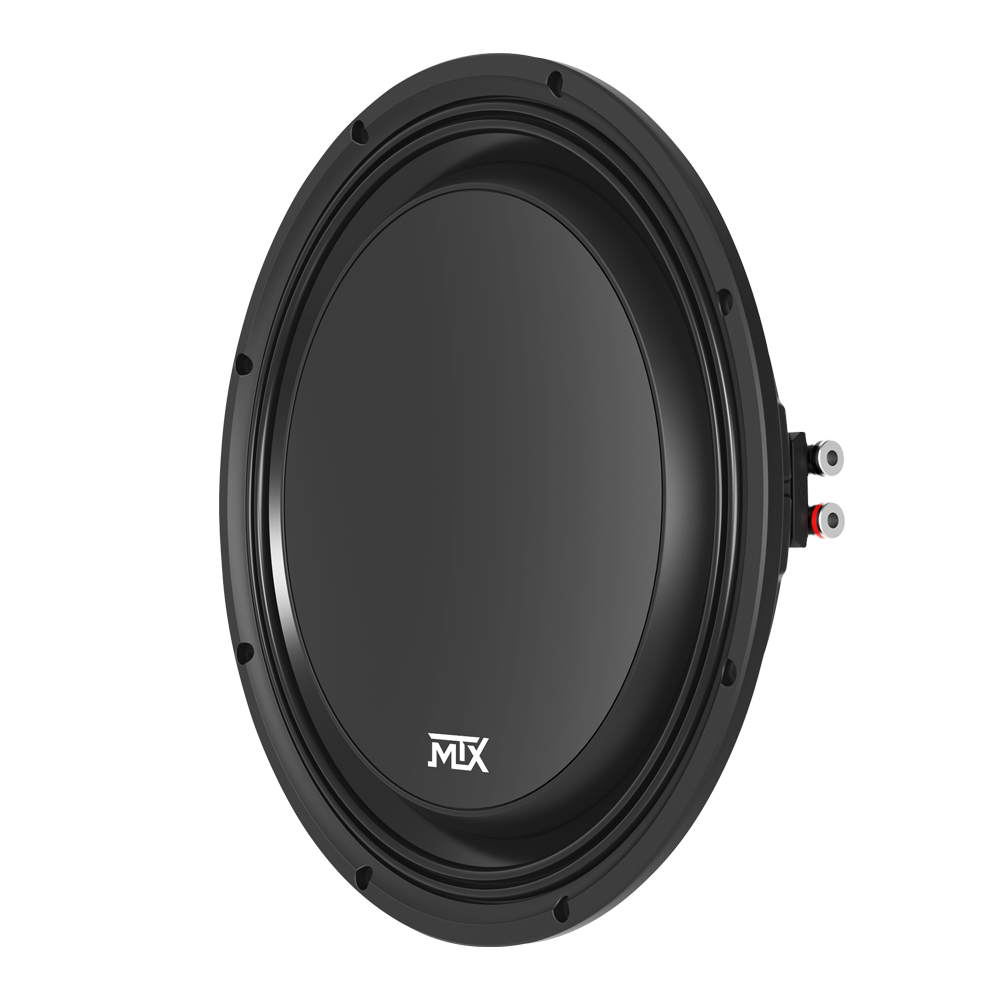

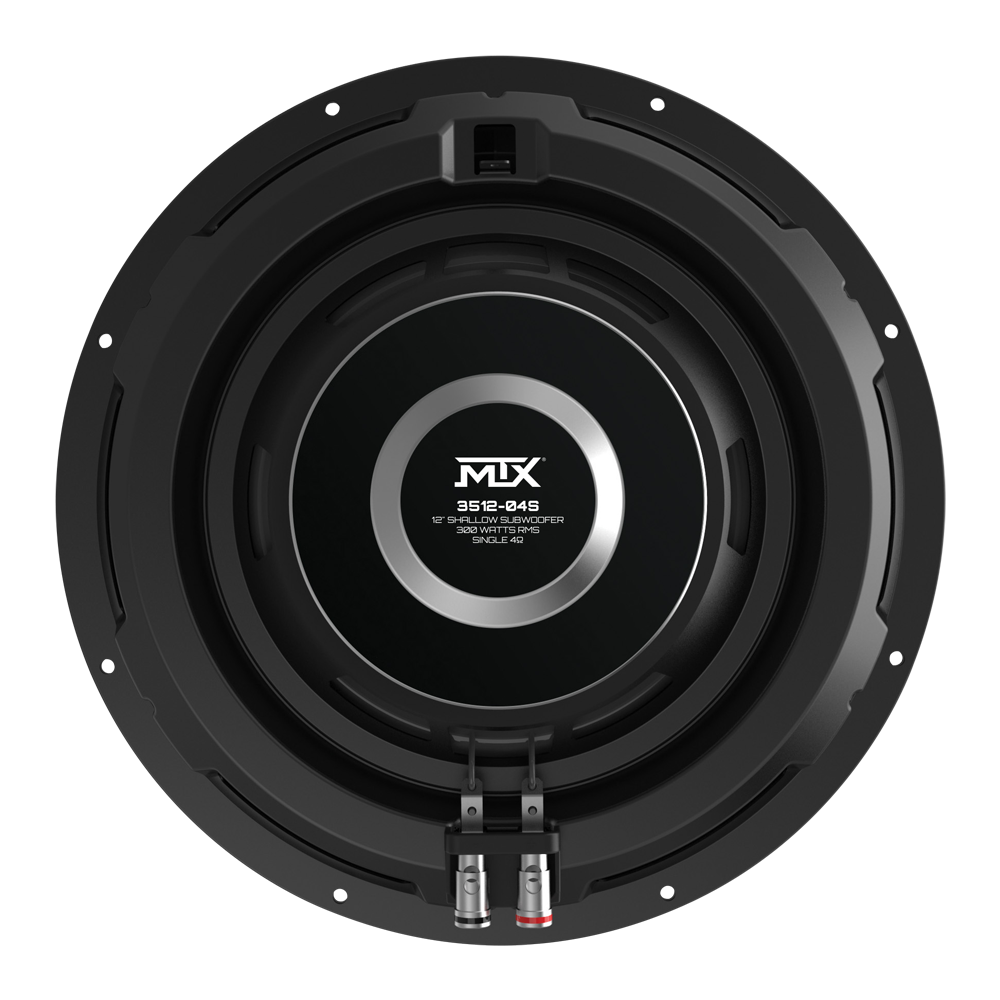

12" 300-Watt RMS 4Ω Car Audio Shallow Subwoofer

Availability: In stock
$189.95 MSRP
$169.95

Extra Space Bass

The 35 Series shallow subwoofers utilize technologies found in other MTX subwoofers to deliver exceptional bass in a variety of applications. Its shallow mount design make it perfect for tight spaces where you still need bass.

The 3512-04S is a 12" single voice coil, 4Ω, 300-watt shallow mount Car Audio Subwoofer designed to deliver outstanding SPL and sound quality in an affordable combination of state-of-the-art MTX technologies.

Ask an expert Find a location
3512-04S Subwoofer

More Than You Expect

The 3512-04S is the ideal subwoofer for audio enthusiasts that don't want to sacrifice space in their vehicle, but still want their sound to bump. Designed for sealed enclosures, this subwoofer is perfectly deployed in pick up trucks, sports cars, or any daily driver that has a trunk full of life's stuff. A great value, this subwoofer continues the MTX tradition of getting More Than Xpected.

3512-04S Subwoofer

The MTX Inverted Apex Surround

This subwoofer features a new Inverted Apex surround that increases surface area allowing for more air movement and higher SPL, and a progressive suspension that lowers distortion resulting in improvLow profileed sound quality. This subwoofer also incorporates Spider Plateau Venting which is a mechanical cooling process that targets cool air at the voice coil effectively managing the temperature for long term performance.

3512-04S Subwoofer

Great For Upgrades

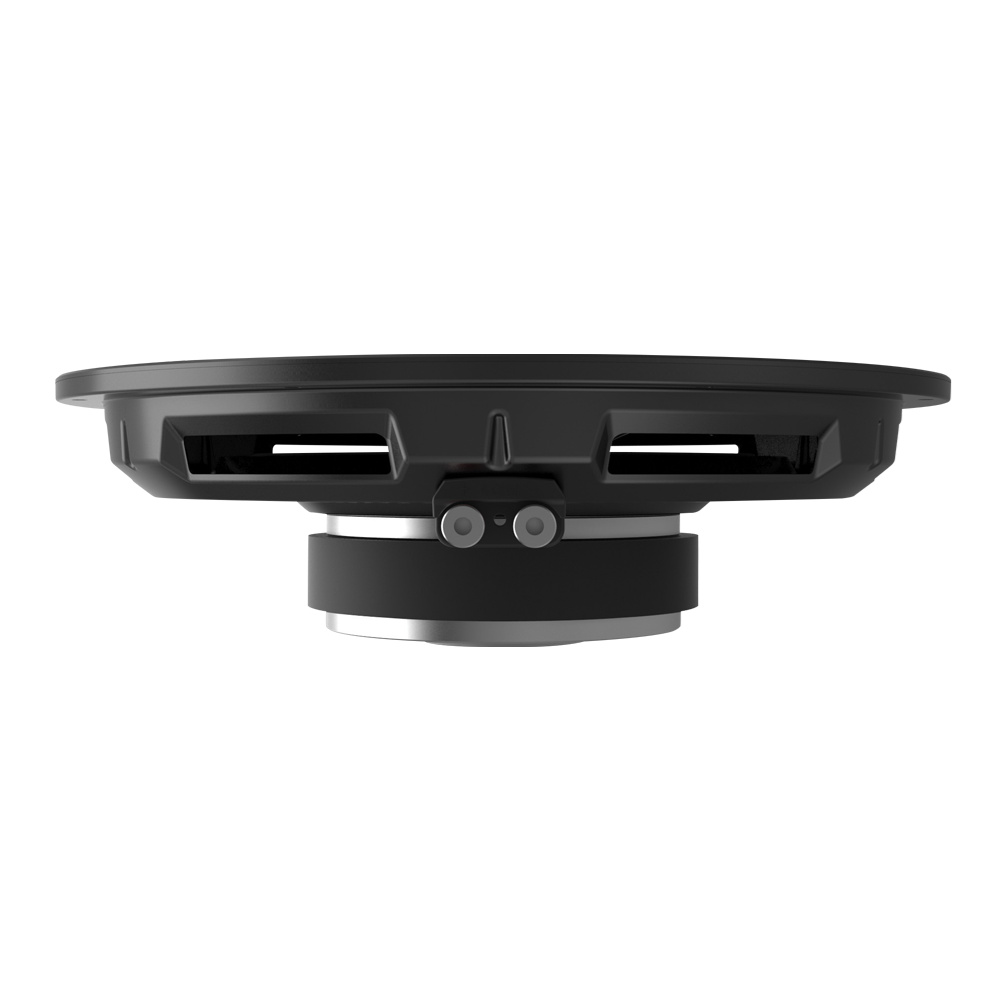

35 Series subwoofers are ideal for improving the sound in any vehicle. Their low profile does not require a large enclosure so they are perfect for most vehicles.

Subwoofer Wiring Calculator

Learn how to properly wire your subwoofers with this easy subwoofer wiring diagram tool.

Select # Of Woofers:

Choose Impedance To Match Amp:

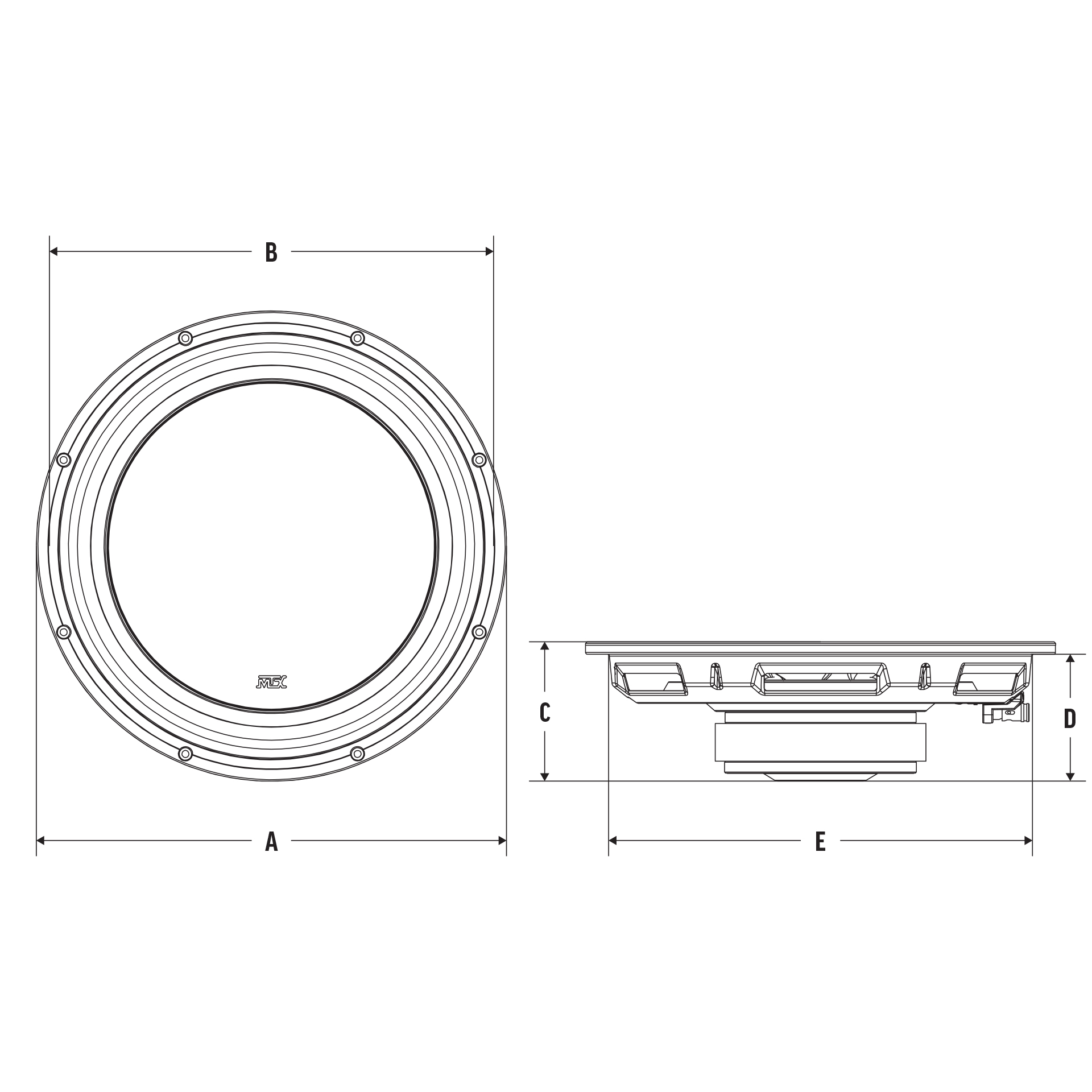

Dimensions & Details

Dimensions

  • A - Total Diameter:       12 ⅜" (314.30mm)
  • B - Driver Diameter:     10 ¹¹⁄₁₆" (271.50mm)
  • C - Total Depth:             3 ¹¹⁄₁₆" (93.70mm)
  • D - Mounting Depth:    3 ¼" (82.60mm)
  • E - Cut Out Diameter:    11 ⅛" (282.60mm)

What's in the Box

  • Subwoofer
  • Technical Data Sheet

Features

• 12-inch Shallow Mount 4Ω Subwoofer
• 300 Watt RMS Power Handling
• Inverted Apex Surround
• Spider Plateau Venting
• 8 AWG Compression Terminals
• 3.375 inch Mounting Depth

SPECIFICATIONS

  • Recommended Amp Power (RMS): 150 - 300
  • Frequency Response: 23Hz - 130Hz
  • Impedance: 4Ω
  • Sensitivity: 84.4db (1W/1m)
  • Voice Coil: 2" (5.08 cm)
  • Magnet Weight: 44 oz
  • Mounting Depth: 3.375" (8.57cm)
  • Cut Out Diameter: 11.125" (28.26cm)
  • Volume Displacement (cu in): 35.74 cu in
  • Sealed Enclosure Net Volume: .8 cu ft
  • Warranty Period: 24 months from date of purchase
