MTX 704X 420W RMS 4-Channel Class A/B Amplifier

Archive Products

No longer in production

420W RMS 2 Ohm Stable 4-Channel Class A/B Full Range Amplifier
Availability: Out of stock
SKU: 704X
Sold Individually
Share this MTX page...

The XThunder 704X is a 4-channel designed to power coaxial or component speakers in any vehicle application. This unit features a full range, class A/B design that allows it to deliver exceptional sound quality.

Key Features:

  • Anodized Aluminum Top Cover
  • Class A/B Topology
  • Set Screw Terminals
  • High and Low Pass Crossover
  • Line and Speaker Level Inputs

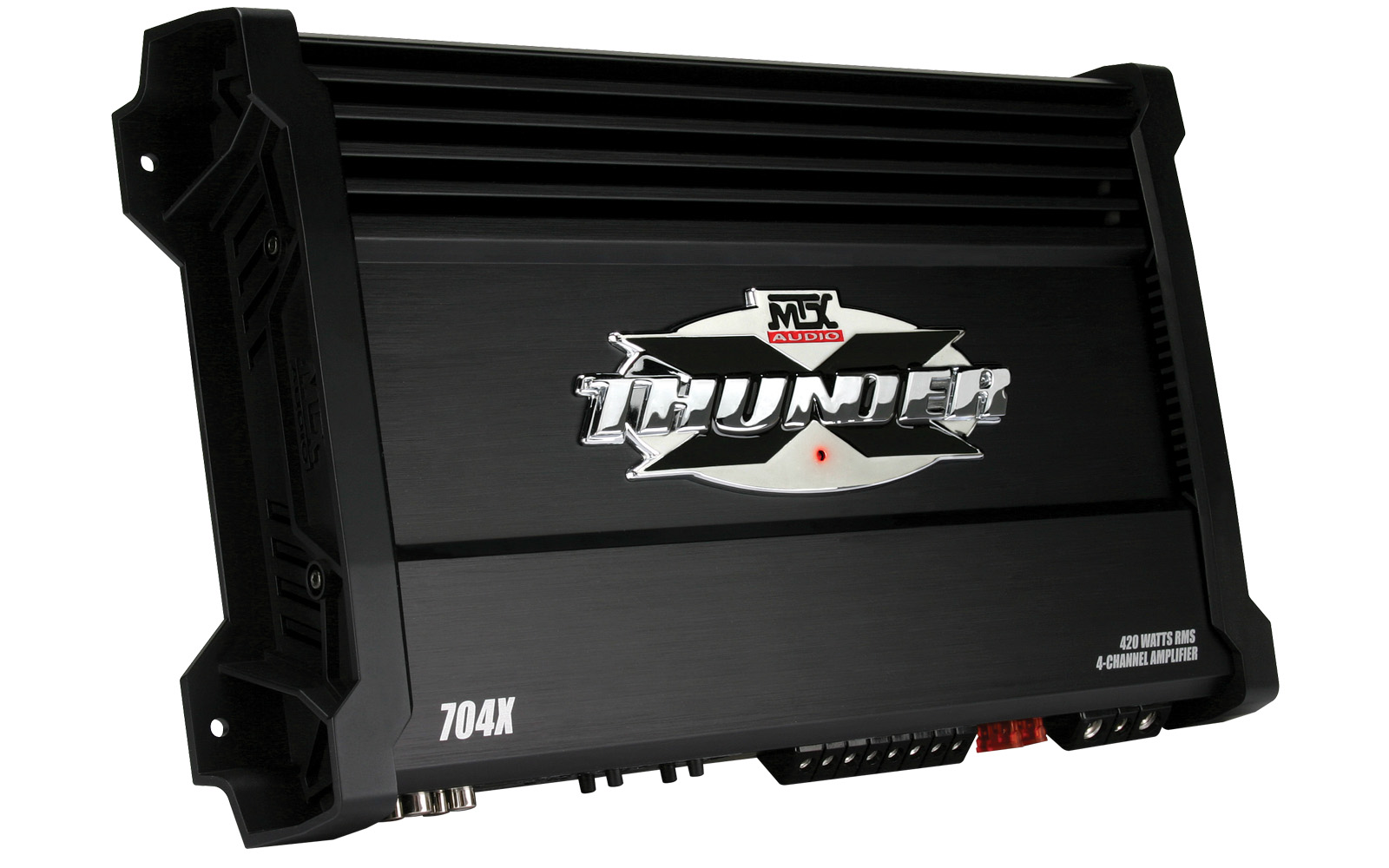

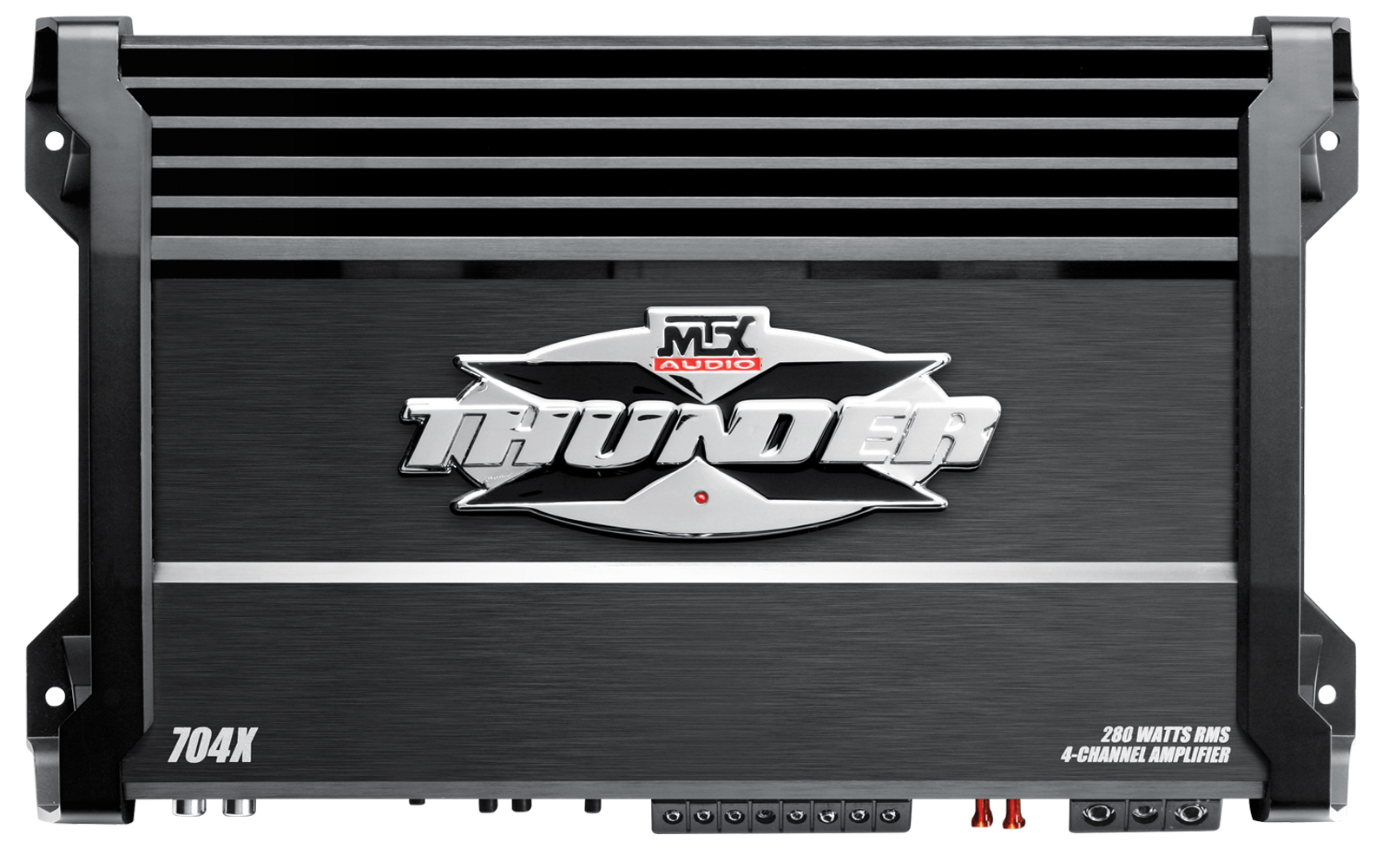

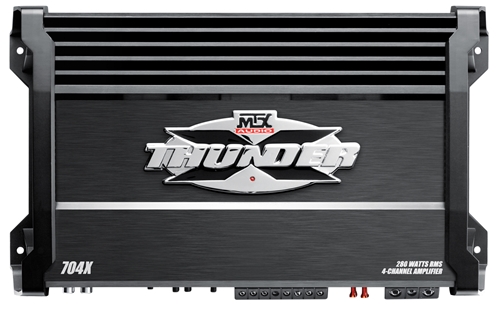

The XThunder 704X offers high end fit and finish that is designed to bring a great look and great sound to your installation. The unit features an anodized aluminum top cover that not only looks good but efficiently dissipates heat away from critical components ensuring the amplifier plays loud and long when you need it to. Each channel is capable of outputting 70-watts RMS power at 4Ω or 105-watts RMS power at 2Ω. Additionally the rear channels can be bridged to drive a 4Ω subwoofer with 210-watts RMS power.

704X DetailThe class A/B topology has long been considered the standard for sound quality and the 704X delivers with crystal clear sound, even at high volumes. The unit includes both a high pass and low pass filter so that your speakers play only the frequencies they are supposed to without overworking. The unit can easily connect to factory or aftermarket radios using either the high level or speaker level inputs to get signal from the source to the amplifier.

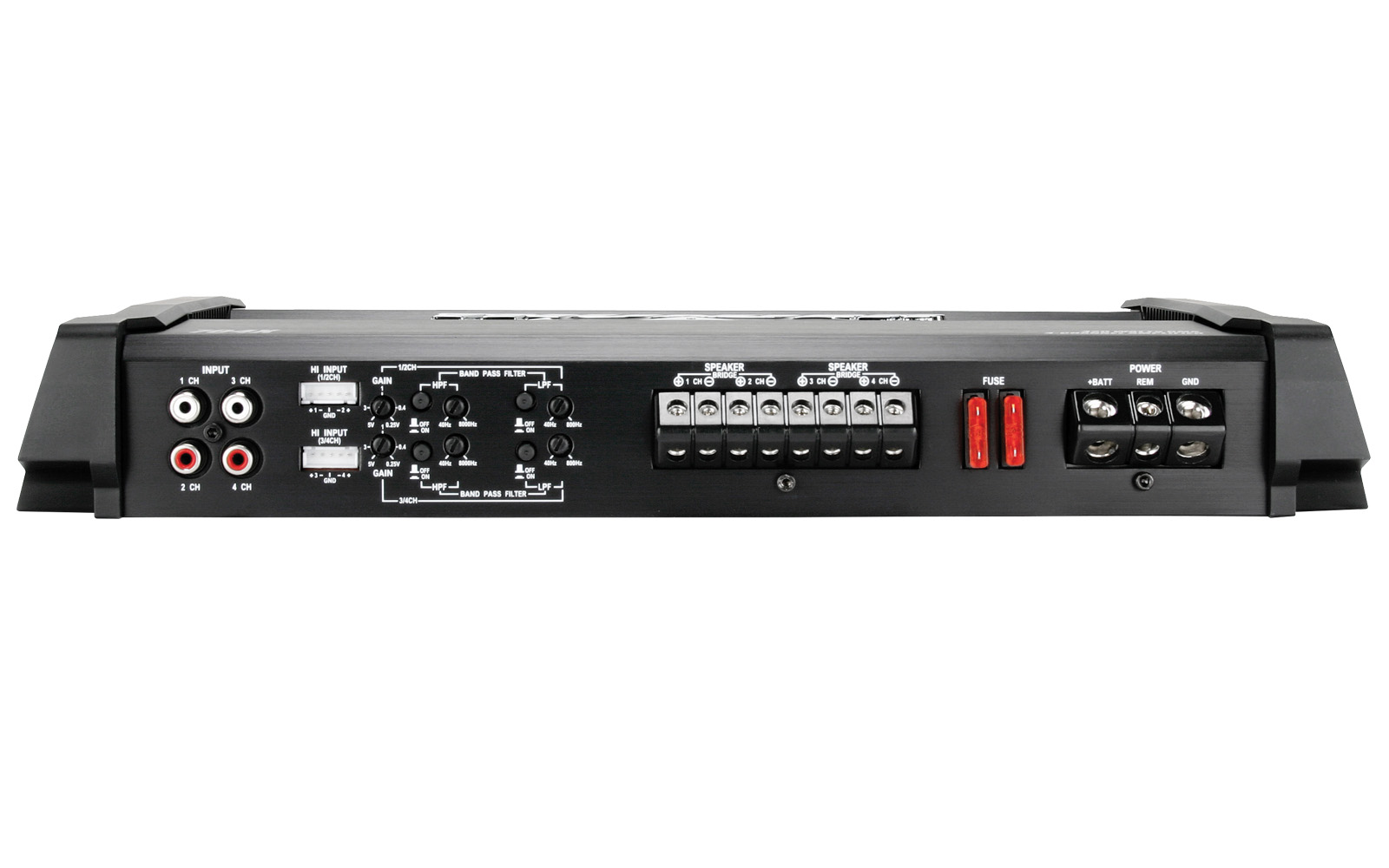

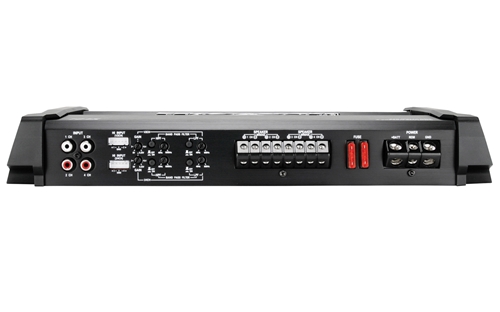

The unit's terminal blocks use set screw type connectors to ensure maximum signal transfer of both power and output. A set screw connector eliminates the need for a spade or slide connector and offers the best security for maintaining wire integrity within the block. Overall the XThunder 704X delivers great sound and high power at an unbeatable price that offers great value and peace of mind.

  • Anodized Aluminum Top Cover
  • Class A/B Topology
  • Set Screw Terminals
  • High and Low Pass Crossover
  • Line and Speaker Level Inputs
Tech Specs
Total Peak Power 850 Watts
4 Ohm RMS Power Output 70W x 4 Channels
2 Ohm RMS Power Output 105W x 4 Channels
1 Ohm RMS Power Output NA
Signal to Noise Ratio >75 dB
Topology Class A/B
THD <1%
Frequency Response 20Hz - 20kHz
Crossover High, 12dB/Oct; 40Hz to 8000Hz Low, 24dB/Oct; 40Hz to 5000Hz
Max Sensitivity 250mV
Maximum Input Signal 4V
Height 9.125"
Width 15"
Depth 2.25"
Support Files
1kHzmp3 Download
504x_704x_InstallSheet (1 page) View |  Download
