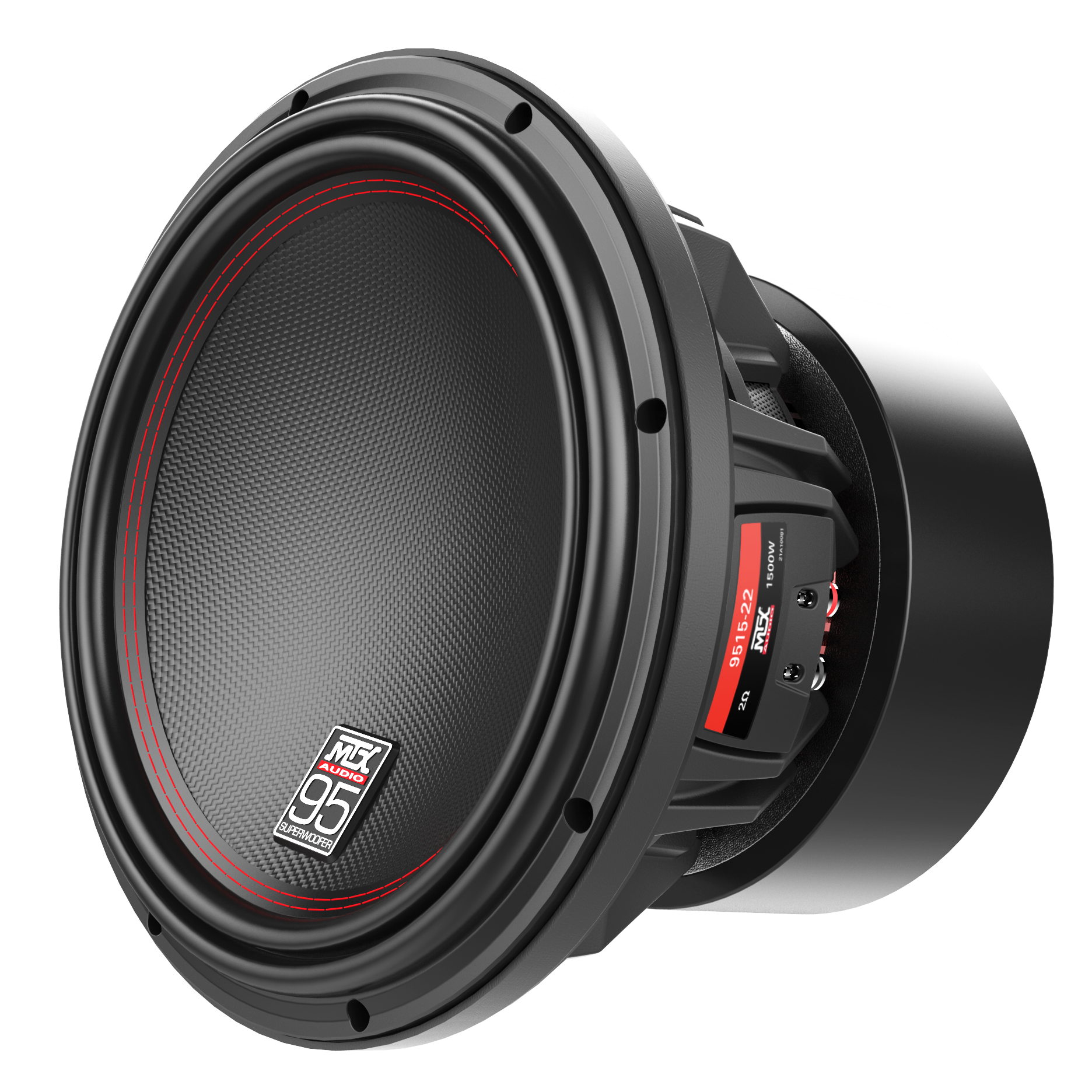

95 Series 9515-22 15 inch 1500W RMS Dual 2Ω Car Audio Subwoofer

Legendary Output

The Game Changer

MTX 95 Series Subwoofer Logo

Introducing the baddest subwoofer available for years to come.

THE NEW 95

For over 10 years, the MTX 95 name has been synonymous with unmatched SPL output and legendary performance. The new 95 builds on that legacy with new technologies that take this Subwoofer to levels never before acheived. This subwoofer is designed to produce bass, plain and simple.

The Next Level

It is ideal for competitors looking to take their systems to the next level, for those wanting the best sounding subwoofer available for their primo ride, and for everyday enthusiasts that want a "live concert" happening in their cars instead of that boring stock audio experience.

This 15" model features a dual 2Ω voice coil configuration and is capable of handling 1500W RMS power.

Availability: In stock
SKU: 9515-22
$999.95
$100.00
$899.95
Share this MTX page...

Inverted Apex Surround

Creates higher volume displacement, higher SPL and less distortion.

Triple Thermal Management

Spider Plateau Venting & Radial Ribbed T-Yoke let you play hard and long..

Internal Voice Coil Heatsink

Further dissipates heat and decreases distortion.



The New, Unmatched Series 95

This is not some off the shelf part added to make the 95 "new and improved". The new 95 series has been under development for over two years so that this new version would live up to the name it proudly wears. MTX engineers went back to the drawing board to make the 95 Series bigger and better than the now famous 9500 version. MTX 95 Series Car Superwoofer This meant building the sub to handle more power with better materials to provide superior accuracy and cooling, while at the same time improving SPL output and sound quality from our already high standards.

95 Series - Why It's The Best

  • Conservatively rated at 1500 Watts
  • Cast Aluminum Basket that Reduces Resonance and Improves Sound Quality
  • Inverted Apex Surround with 1.25" Xmax Maximizing SPL Output
  • High Efficiency Glass Fiber Cone for accurate reproduction
  • 4" Aluminum Voice Coil
  • 3-Layer Thermal Management Reduces distortion at High Output
    • Spider Plateau Venting Mechanical Cooling Technology
    • Internal Voice Coil Heatsink
    • Integrated T-Yoke Heatsink
  • 8 AWG Compression Terminals

95 Series Rugged Precision

The 95 series uses a new cast aluminum basket that delivers exceptional strength in containing the oversized magnet and subwoofer motor structure as well as reducing resonance improving overall sound quality. The new Inverted Apex Surround replaces the older style high roll surround. This new surround design increases effective surface area of the cone by using half the width of the old style surround without sacrificing any excursion. In fact the new 95 has an Xmax of 1.25". Couple that incredible excursion with increased surface diameter and the result is exponentially increased SPL output.

Built For Accurate SPL

A glass fiber cone which offers excellent stiffness to weight ratio is used to lower weght and increase sensitivity creating higher SPL using lower power. Each unit features a progressive layered spider that helps ensure linear movement of the subwoofer thereby reducing distortion. The spider also protects the integrated tinsel leads and because of its construction requires no break in period meaning the subwoofer can handle full power as soon as it is installed. The voice coil has a 4" diameter and utilizes high temperature aluminum wire designed to withstand high current over long periods of time ensuring the 95 is ready to play at all times.

95 Exploded View

Designed For Long And Hard Play

Bring It On!

A three layer thermal management design incorporates multiple means of cooling the voice coil so that it plays distortion free even at high output. Spider Plateau Venting is a mechanical cooling process that circulates hot air for cool air at the voice coil as the subwoofer continuously cycles. An integrated voice coil heatsink helps reduce voice coil temperature, dissipating it through its mass and out away from the voice coil. Finally an integrated t-yoke heat sink on the backplate absorbs heat from the voice coil and radiates it to the back of the subwoofer away from the voice coil.




MTX 9515 - The Game Changer

Subwoofer Wiring Calculator

Learn how to properly wire your subwoofers with this easy subwoofer wiring diagram tool.

Select # Of Woofers:

Choose Impedance To Match Amp:


Features
  • Inverted Apex Surround with 1.25" Xmax
  • 3-Layer Thermal Management
  • High Efficiency Glass Fiber Cone
  • 4" Aluminum Voice Coil
  • Cast Aluminum Basket
  • 8 AWG Compression Terminals
Tech Specs
RMS Power (Watts) 1500
Peak Power (Watts) 3000
Sensitivity 84.9dB
Volume Displacement (cu in) 173.7
Mounting Depth 10-1/4 in
Cut Out Diameter 13-7/8 in
Sealed Enclosure Net Volume 2.0 cu ft
Vented Enclosure Net Volume 2.4 - 3.4 cu ft
Frequency Response 17Hz - 100Hz
Xmax 1.25"
Support Files
Data Sheet 9515-22 Tech Data Sheet (2 pages) View |  Download
50Hzmp3 Download
