SKU: ADZ502W
Sold In Pairs

MUSICA ADZ502W 5.25 inch 2-Way In-Wall Add A Zone Speaker Kit

MUSICA ADZ502W 5.25" 2-Way In-Wall Add A Zone Speaker Kit

Easy DIY Install

The ADZ502W is an easy to install package that delivers incredible sound to bedrooms, offices, playrooms, kitchens, and any other room where a second audio zone is needed. This DIY kit enables you to install 2 in wall speakers remotely in any room in your house.

Ask an expert Find a location

Distribute Your Audio

Rich Sound Filling Every Room

Everything You Need

Installtion kit for two speakers included

Versatile Application

Works in distributed audio systems as well as home theater

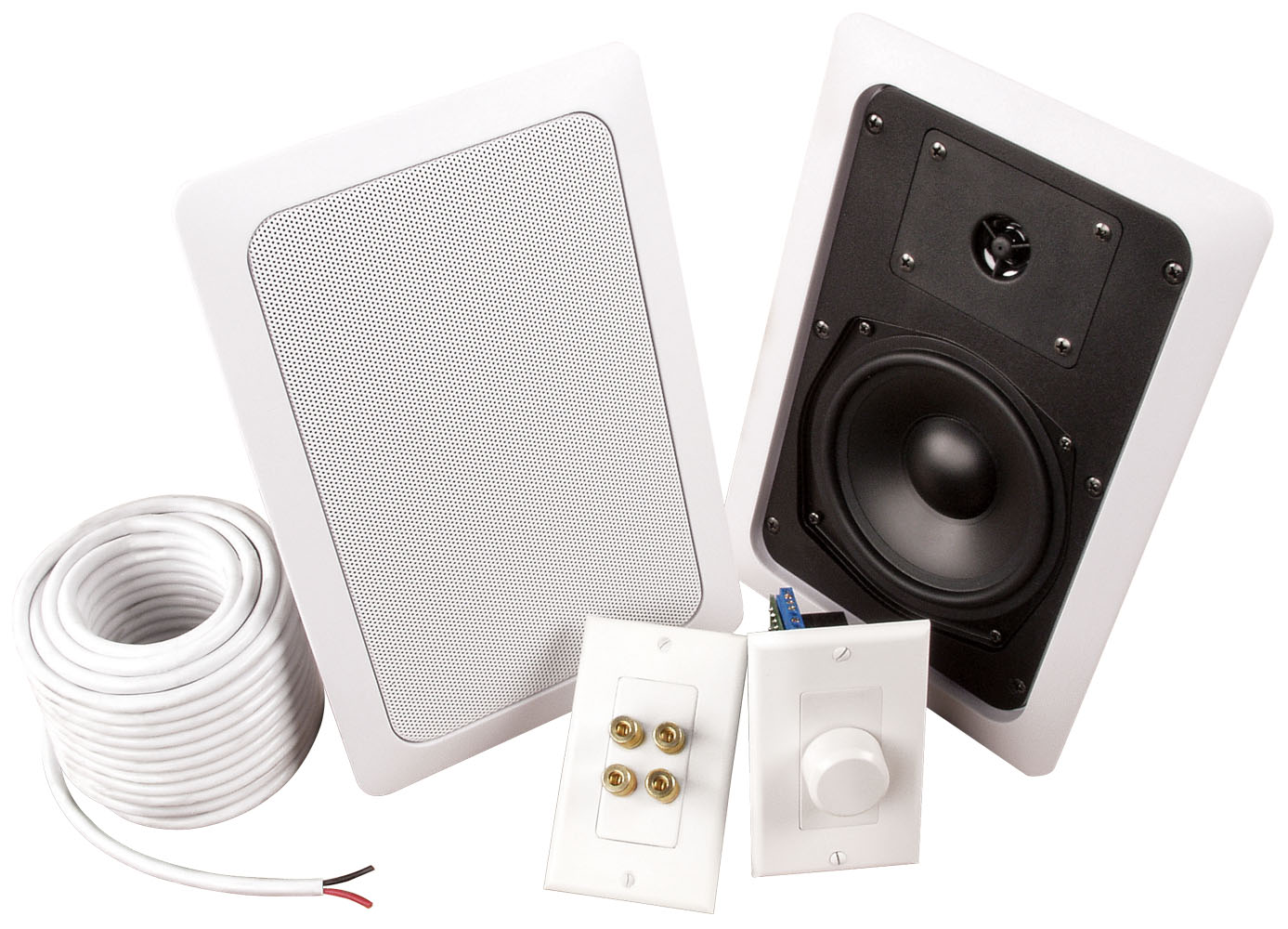

Complete Installation Kit

The ADZ502W is an all in one kit that includes everything you would need to install a second speaker zone in any room where in-wall speakers are desired.

Many people want to add a second zone to their existing audio system. Wireless or bluetooth speakers generally require a separate source than your main receiver, while direct connected speakers deliver high quality sound and utilize your existing source unit allowing you to listen to the same source material if desired. The additional benefit of in-wall speakers is that they are out of sight and blend in with the room, no speaker boxes on the floor or taking up space on shelves. Installing in-wall speakers is also easier than you might think and the ADZ502W includes all the parts you need to install them yourself.

ADZ502W Key Features

  • Dual (2) MUSICA502W In-Wall Speakers

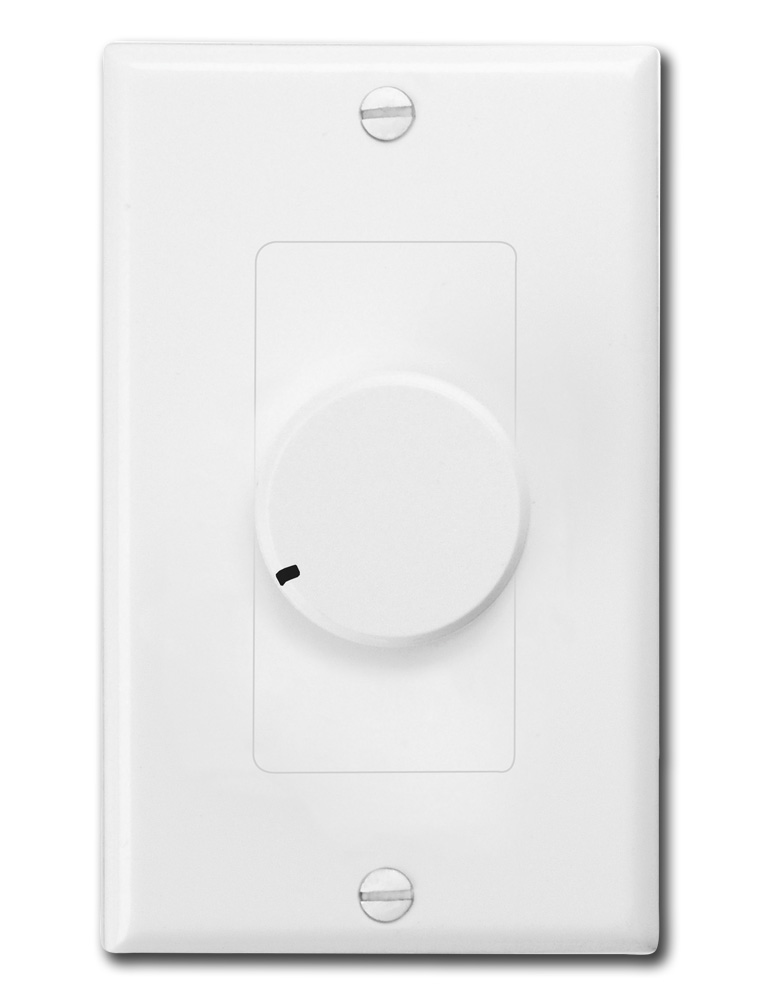

  • MUSICAVC50Z Rotary Impedance Matching Volume Control
  • Designed to Allow Easy Installation of In Wall Distributed 8-ohm systems
  • Includes (2) Ceiling or In Wall Speaker Systems, (1) 50-Watt Impedance Matching Volume Control, and 100' of 16-2 Speaker Wire
  • Ideal small office or home systems using standard 8-ohm consumer style receivers
  • 100ft of 16 AWG Speaker Wire
  • Wall Plate with Speaker Connections

Versatile Solutuions For Any Installation

Easy Setup

This kit includes two Musica 5.25" in-wall speakers that feature polypropylene woofers and soft dome tweeters to deliver exceptional sound quality. They are easy to install using a dog-leg mounting bracket that easily attaches itself to drywall. Additionally, they include an aluminum grille and paint shield that allows them to be easily painted without damaging the speakers.

The kit also includes 100 feet of speaker wire that is generally more than enough to wire the speakers to the included wall plate, speaker volume knob, and source receiver. The included volume control fits a standard one gang wall enclosure and includes a Decora style wall plate. The knob adjusts the volume from the remote location and is impedance matching allowing it to work with a variety of speakers and amplifiers.

The ADZ502W is an easy to install package that delivers incredible sound to bedrooms, offices, playrooms, kitchens, and any other room where a second audio zone is needed.

Dimensions & Details

SPECIFICATIONS

  • Frequency Response: 53Hz - 20kHz (-3dB)
  • Mounting Depth: 2.375" (6.03cm)
  • Cut Out Diameter: 9.625" x 6.188" (24.45cm x 15.72cm)
  • Maximum Ceiling Thickness: 1.375" (3.50cm)
  • Frequency Response: 53Hz - 20kHz
  • Power Taps: 8 ohms nominal
  • Speaker Type: In Wall
  • Dispersion: 90┬░
  • Sensitivity: 84dB
  • Height: 11" (27.94 cm)
  • Width: 7 1/2" (19.05 cm)
  • Depth: 2 11/16" (6.83 cm)
  • Shipping Weight: 14.00 lbs (6.35 kgs)
