SKU: ADZ612C
Sold In Pairs

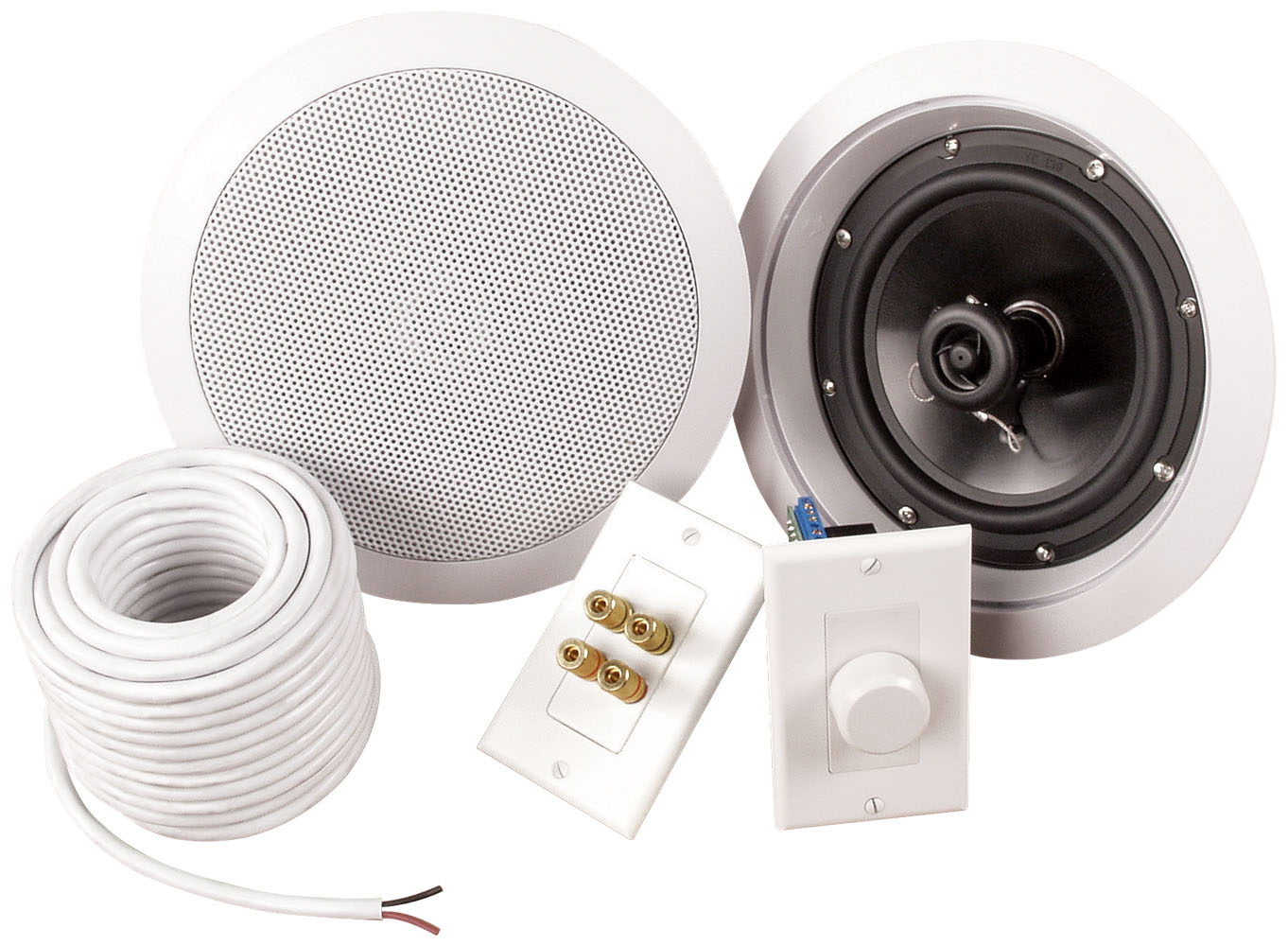

MUSICA ADZ612C 6.5 inch 2-Way In-Ceiling Add A Zone Speaker Kit

MUSICA ADZ612C 6.5" 2-Way In-Ceiling Add A Zone Speaker Kit

Easy DIY Install

The ADZ612C is an easy to install package that delivers incredible sound to bedrooms, offices, playrooms, kitchens, and any other room where a second audio zone is needed. This DIY kit enables you to install 2 in wall speakers remotely in any room in your house.

    104.50
    Share this MTX page...

    Distribute Your Audio

    Rich Sound Filling Every Room

    Everything You Need

    Installtion kit for two speakers included

    Versatile Application

    Works in distributed audio systems as well as home theater



    Complete Installation Kit

    The ADZ612C is an all in one kit that includes everything you would need to install a second speaker zone in any room where in-ceiling speakers are desired.

    Many people want to add a second zone to their existing audio system. Wireless or bluetooth speakers generally require a separate source than your main receiver, while direct connected speakers deliver high quality sound and utilize your existing source unit allowing you to listen to the same source material if desired. The additional benefit of in-wall speakers is that they are out of sight and blend in with the room, no speaker boxes on the floor or taking up space on shelves. Installing in-ceiling speakers is also easier than you might think and the ADZ612C includes all the parts you need to install them yourself.

    ADZ612C Key Features

    • Dual (2) MUSICA612C In-Ceiling Speakers
    • MUSICAVC50Z Rotary Impedance Matching Volume Control
    • Designed to Allow Easy Installation of In Wall Distributed 8-ohm systems
    • Includes (2) Ceiling or In Wall Speaker Systems, (1) 50-Watt Impedance Matching Volume Control, and 100' of 16-2 Speaker Wire
    • Ideal small office or home systems using standard 8-ohm consumer style receivers
    • 100ft of 16 AWG Speaker Wire
    • Wall Plate with Speaker Connections

    Versatile Solutuions For Any Installation

    Easy Setup

    This kit includes two Musica 6.5" in-ceiling speakers that feature polypropylene woofers and soft dome tweeters to deliver exceptional sound quality. They are easy to install using a dog-leg mounting bracket that easily attaches itself to drywall. Additionally, they include an aluminum grille and paint shield that allows them to be easily painted without damaging the speakers.

    The kit also includes 100 feet of speaker wire that is generally more than enough to wire the speakers to the included wall plate, speaker volume knob, and source receiver. The included volume control fits a standard one gang wall enclosure and includes a Decora style wall plate. The knob adjusts the volume from the remote location and is impedance matching allowing it to work with a variety of speakers and amplifiers.

    The ADZ612C is an easy to install package that delivers incredible sound to bedrooms, offices, playrooms, kitchens, and any other room where a second audio zone is needed.

    FEATURES
    • Dual (2) MUSICA612C In-Ceiling Speakers
    • Designed to Allow Easy Installation of In Ceiling Distributed 8-ohm Systems
    • MUSICAVC50Z Rotary Impedance Matching Volume Control
    • Designed to Allow Easy Installation of In Wall Distributed 8-ohm systems
    • Includes (2) Ceiling or In Wall Speaker Systems, (1) 50-Watt Impedance Matching Volume Control, and 100' of 16-2 Speaker Wire
    • Ideal small office or home systems using standard 8-ohm consumer style receivers
    • 100ft of 16 AWG Speaker Wire
    • Wall Plate with Speaker Connections
    SPECIFICATIONS
    Frequency Response 63Hz-20kHz (-3dB)
    Mounting Depth 2.875" (7.30cm)
    Cut Out Diameter 7.69" (19.53cm)
    Maximum Ceiling Thickness 1.25"-1.5" (.32cm-3.81cm)
    Frequency Response 50Hz - 20kHz
    Power Taps 8 ohms nominal
    Speaker Type In Ceiling
    Dispersion 90°
    Sensitivity 85dB
    Height 120 1/16" (30.64 cm)
    Width 8 5/8" (21.91 cm)
    Shipping Weight 13.50 lbs (6.12 kgs)
    SUPPORT FILES
    add_a_zone (8 pages) View | Download
