DCM TFE630LCR 6.5 inch 100W RMS Angled In-Ceiling Loudspeaker

Custom DCM In-Ceiling Speakers

DCM Architectural Ceiling Speaker

Rich, deep music throughout your home

High end design delivers exceptional high fidelity sound quality and imaging

Availability: In stock
Sold Individually
Share this MTX page...

    The TFE630LCR is an in-ceiling speaker that is real world tuned for superior sound quality. The TFE630LCR is a 6.5" Kevlar woofer for when a small but powerful speaker is needed. It presents the same brilliant performance as a left, center, or right channel speaker in either a multi-channel or 2-channel installation. The TFE630LCR has improved imaging from any mounting position with a 15º angled baffle, pivoting bridge mounted tweeter, room boundary compensation, and three positions of tweeter level control. The angled baffle and pivoting tweeter help adjust the dispersion to better suit the TFE630LCR's placement in response to the listener's position. The Room Boundary EQ eliminates unwanted boosts in low frequencies, known as a corner loading effect, when mounting within two feet of a corner. The PTC protected tweeter can also be adjusted to -2, 0, or +2dB to further the imaging potential. The flexibility these engineering feats provide makes the TFE630LCR a premier choice when value, space, and sound quality are all concerns.

    As a part of DCM's highly acclaimed TimeFrame Evolution series, TFE630LCRs offer lifelike performance and sonic accuracy normally reserved for much higher priced speakers. They feature DCM's own One Voice technology, meaning they are family tuned to all models in the TimeFrame Evolution and TimePiece series. With each model featuring same engineering traits and voicing, combining in-ceiling and cabinet speakers into a fluid multi-channel system is finally possible without sacrificing sound quality.

    Kevlar Cone with Rubber Surround
    Specifically Designed as a LCR (Left, Center or Right) Speaker

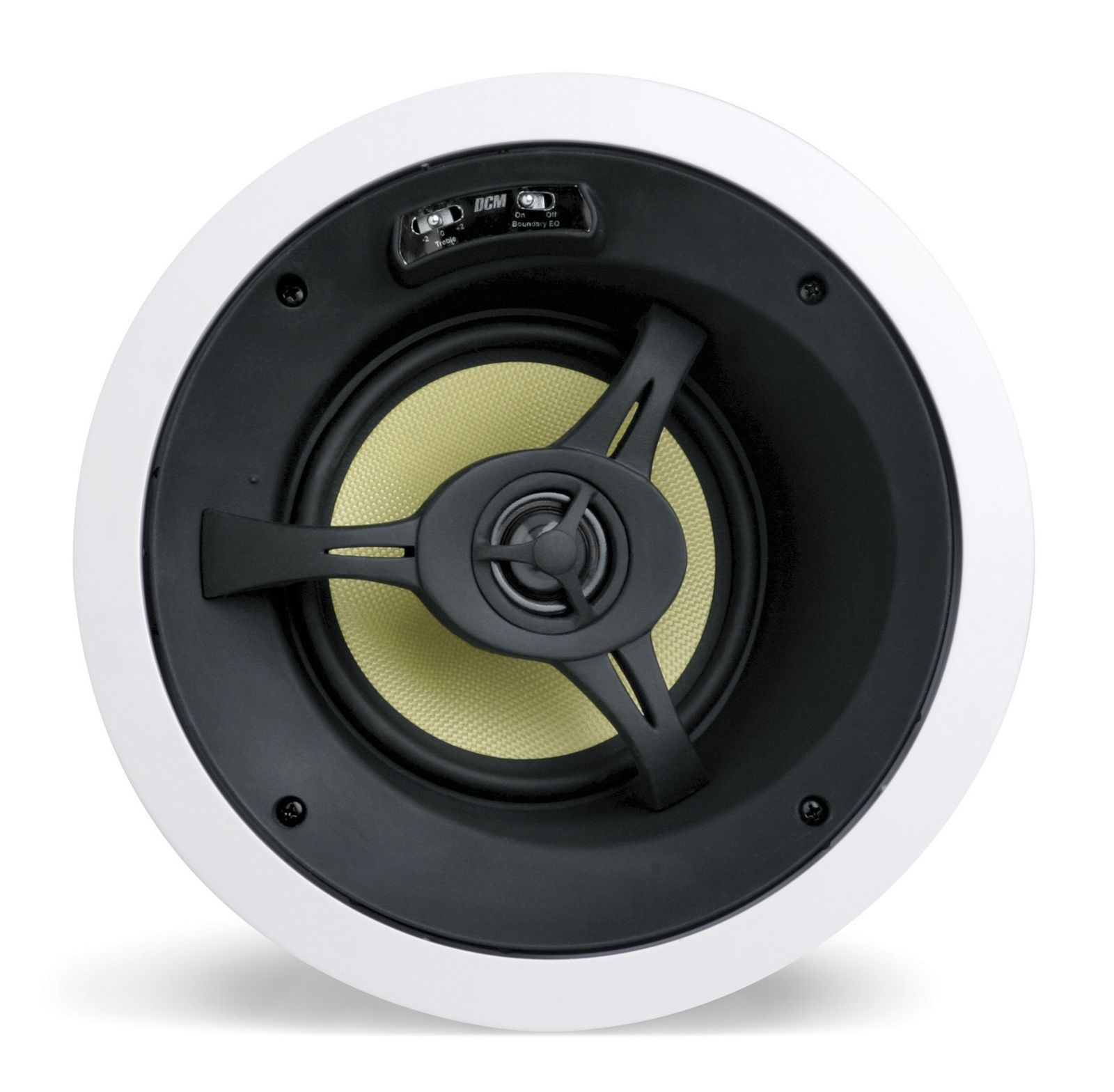

    15 Degree Angled Baffle for Improved Imaging from Any Mounting Location
    Pivoting Bridge Mounted 30MM Teteron Dome Tweeter
    Three Position Tweeter Level Control -2, 0, +2 dB
    Adjustable Room Boundary EQ 0dB, -3 dB
    Swivel Style Mounting Wings
    One Voice Technology
    Nickel-Plated Compression Terminals

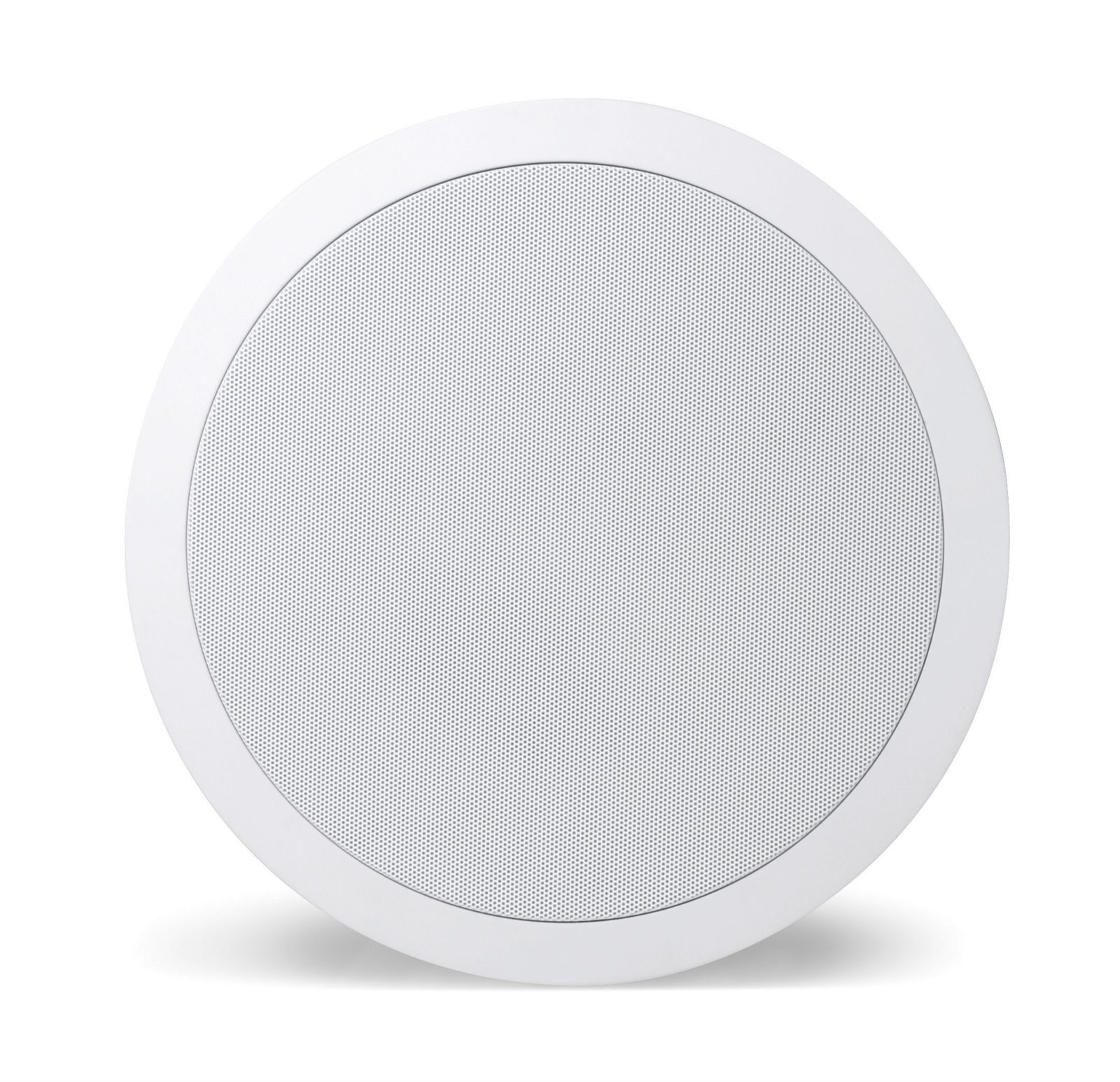

    Paintable Fine Mesh Steel Grilles
    Debris Resistant Basket
    Tech Specs
    Woofer Single 6.5" Kevlar
    Tweeter 30 mm Teteron Dome
    RMS Power (Watts) 100
    Peak Music Power (Watts) 200
    Frequency Response 45Hz - 20kHz
    Sensitivity 87dB
    Mounting Depth 5 " (12.7 cm)
    Cut Out Diameter 9.5" (24.13 cm)
    Support Files
    TFE630LCR Cut Out (1 page) View | Download
