SKU: TP525C
Sold Individually

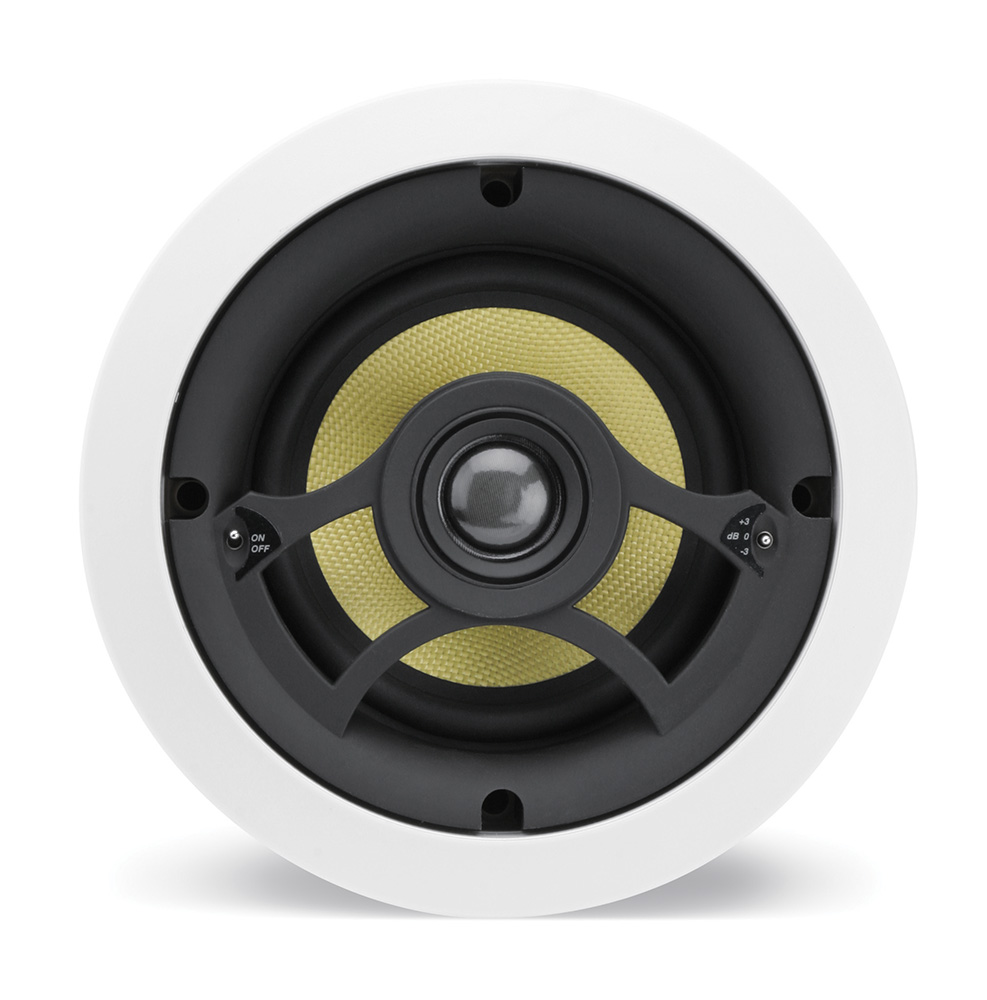

DCM TP525C 5.25 inch 2-Way 80W RMS 8 Ohm In-Ceiling Speaker

5.25" 2-Way 80W RMS 8 Ohm In-Ceiling Speaker

Smaller Rooms

For smaller rooms, this 5 ¼" in-ceiling speaker offers just the right fit and fill. Same great performance as larger models, the TP525C is virtually invisible thanks to a smaller size and very narrow footprint.

    Availability: In stock
    199.95
    Share this MTX page...

    TimePiece Series

    Featuring DCM's One Voice technology for perfect compatibility

    High Performance Audio

    Dynamic range and deep, rich tone

    Convenient And Hidden

    Easy installation and hidden surround sound

    Unnoticeable Custom Speakers

    Custom speakers are a great way to add surround sound to any room and to increase the value of your home. The advantage of in-ceiling speakers is that you get fantastic sound without losing any floor space to cabinets or speaker stands. The units can be painted to match the ceiling and are virtually unnoticeable while still producing exceptional sound.

    TP525C Key Features

    • Aimable swivel tweeter
    • 18dB/octave highpass, 12dB /octave lowpass crossover
    • Tweeter overload protection circuit
    • Neodymium tweeter magnet
    • Kevlar woofer cone material w/rubber surround
    • High temperature woofer and tweeter voice coil wire
    • Dual inputs: Binding posts accept up to 8 gauge wire, Removable Phoenix style connectors for easy Wiring
    • Mylar highpass capacitors with polypropylene shunt capacitors
    • Aluminum grille material
    • Front mounted Tweeter Level Control
    • Front mounted Boundary Equalization Control

    Smaller Rooms

    For smaller rooms, this 5 ¼" in-ceiling speaker offers just the right fit and fill. Same great performance as larger models, the TP525C is virtually invisible thanks to a smaller size and very narrow footprint.

    Realistic Home Theater Experience

    The DCM TimePiece Series

    DCM's TimePiece line of in-wall and in-ceiling models complement the already successful series of TimePiece cabinets, with identical driver material and tooling to maintain precise voice matching and accurate sonic signatures in every model. They feature high power handling, adjustable level settings, improved frequency response, and larger pivoting tweeters for imaging control and dynamic system control.

    TP525C is sold as a single unit.

    FEATURES
    • Kevlar Woofers
    • 25mm Pivoting Dome Tweeter
    • Heavy Duty Nickel Plated Binding Posts and Removable Phoenix Style Connectors
    • Tweeter Overload Protection Circuit
    • 18dB/Octave High-pass and 12dB/Oct Low-pass Crossover
    • Collared Dog Leg Mounts
    • High Temperature Woofer and Tweeter Voice Coil Wire
    • Debris Resistant Baskets
    • Front mounted Tweeter Level Control
    • Aluminum Grille
    SPECIFICATIONS
    Woofer 5.25" Glass Fiber
    Tweeter Pivoting 25mm Teteron Dome
    Peak Power (Watts) 80
    Peak Power (Watts) 160
    Impedance
    Frequency Response 54Hz - 20kHz
    Sensitivity 86dB
    Cut Out Diameter 6 1/2"
    Mounting Depth 3 3/4"
    SUPPORT FILES
    AW0011271 (6 pages) View | Download
