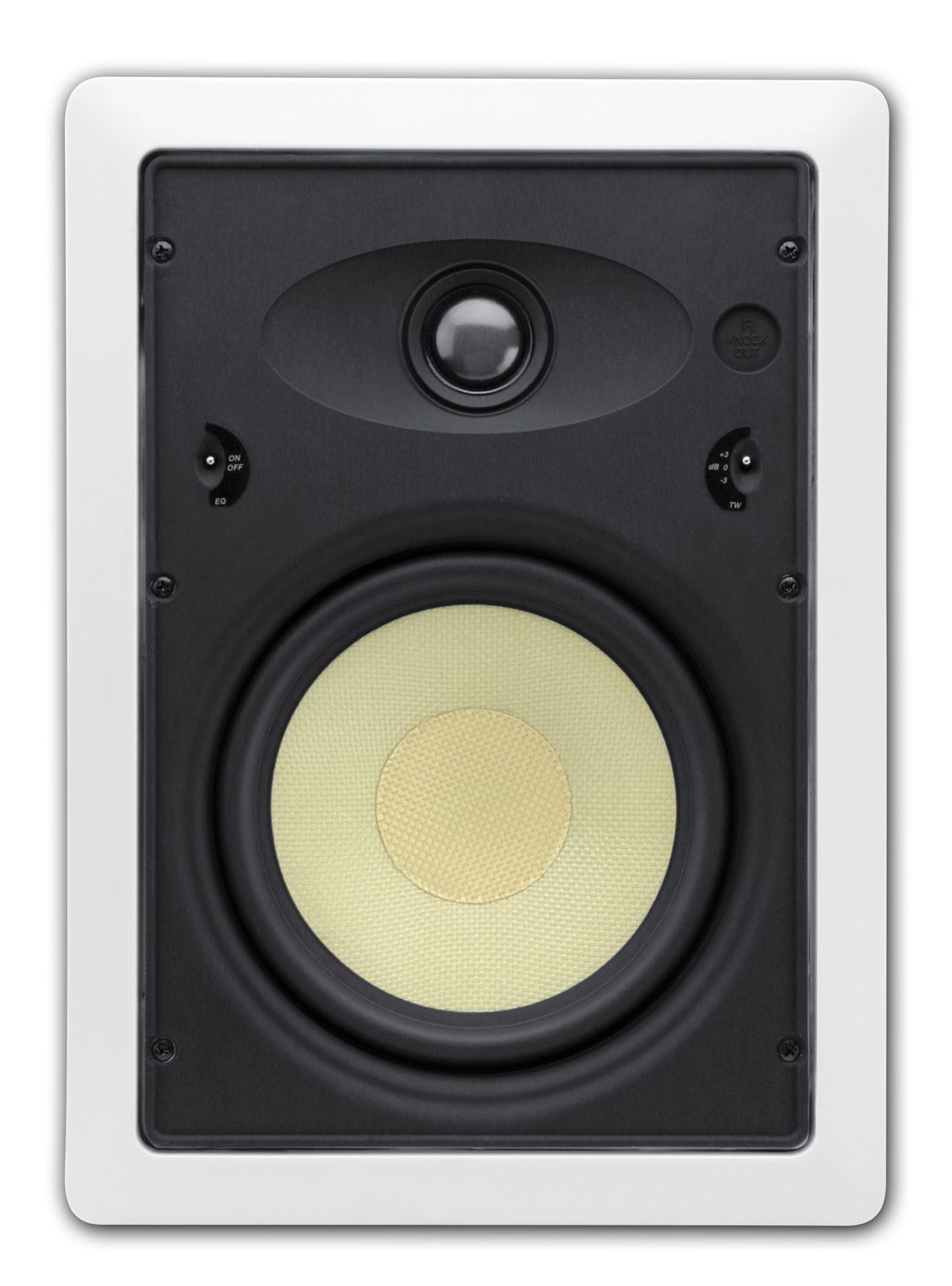

DCM TP625W 6.5 inch 2-Way 90W RMS 8 Ohm In-Wall Loudspeaker

Custom DCM In-Wall Speakers

TP625W In-Wall Loudspeaker

Built-in audiophile sound throughout your home

6.5" 2-Way 90W RMS 8 Ohm In-Wall Loudspeaker

Flexible Built-in Speaker

The TP625W is a nice addition to improve your sound system in any room or home theater. Superior off-axis performance creates flexibility and quality from anywhere they can be installed and the narrow footprint and paintable grille improve your décor.

Availability: In stock
SKU: TP625W
$279.95
$100.00
$179.95
Share this MTX page...

TimePiece Series

Featuring DCM's One Voice technology for perfect compatibility

High Performance Audio

Dynamic range and deep, rich tone

Convenient And Hidden

Easy installation and hidden surround sound

Unnoticeable Custom Speakers

Custom speakers are a great way to add surround sound to any room and to increase the value of your home. The advantage of in-ceiling speakers is that you get fantastic sound without losing any floor space to cabinets or speaker stands. The units can be painted to match the ceiling and are virtually unnoticeable while still producing exceptional sound.

TP625W Key Features

  • Aimable swivel tweeter
  • 18dB/octave highpass, 12dB /octave lowpass crossover
  • Tweeter overload protection circuit
  • Neodymium tweeter magnet
  • Kevlar woofer cone material w/rubber surround
  • High temperature woofer and tweeter voice coil wire
  • Dual inputs: Binding posts accept up to 8 gauge wire, Removable Phoenix style connectors for easy Wiring
  • Mylar highpass capacitors with polypropylene shunt capacitors
  • Aluminum grille material
  • Front mounted Tweeter Level Control
  • Front mounted Boundary Equalization Control

The TP625W is a nice addition to improve your sound system in any room or home theater. Superior off-axis performance creates flexibility and quality from anywhere they can be installed and the narrow footprint and paintable grille improve your décor.

Realistic Home Theater Experience

The DCM TimePiece Series

DCM's TimePiece line of in-wall and in-ceiling models complement the already successful series of TimePiece cabinets, with identical driver material and tooling to maintain precise voice matching and accurate sonic signatures in every model. They feature high power handling, adjustable level settings, improved frequency response, and larger pivoting tweeters for imaging control and dynamic system control.

TP625W is sold as a single unit.

Tech Specs
Woofer 6.5" Glass Fiber
Tweeter Pivoting 25mm Teteron Dome
RMS Power (Watts) 90
Peak Power (Watts) 180
Frequency Response 55Hz - 20kHz
Sensitivity 87.8dB
Dimensions 12" x 8 5/8"
Cut Out Size 10 13/16" x 7 7/16"
Mounting Depth 3 7/16"
