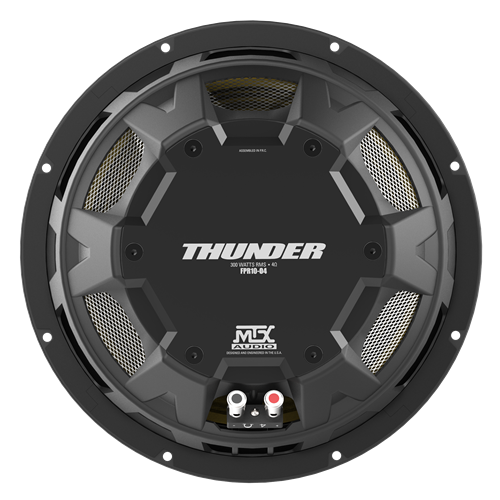

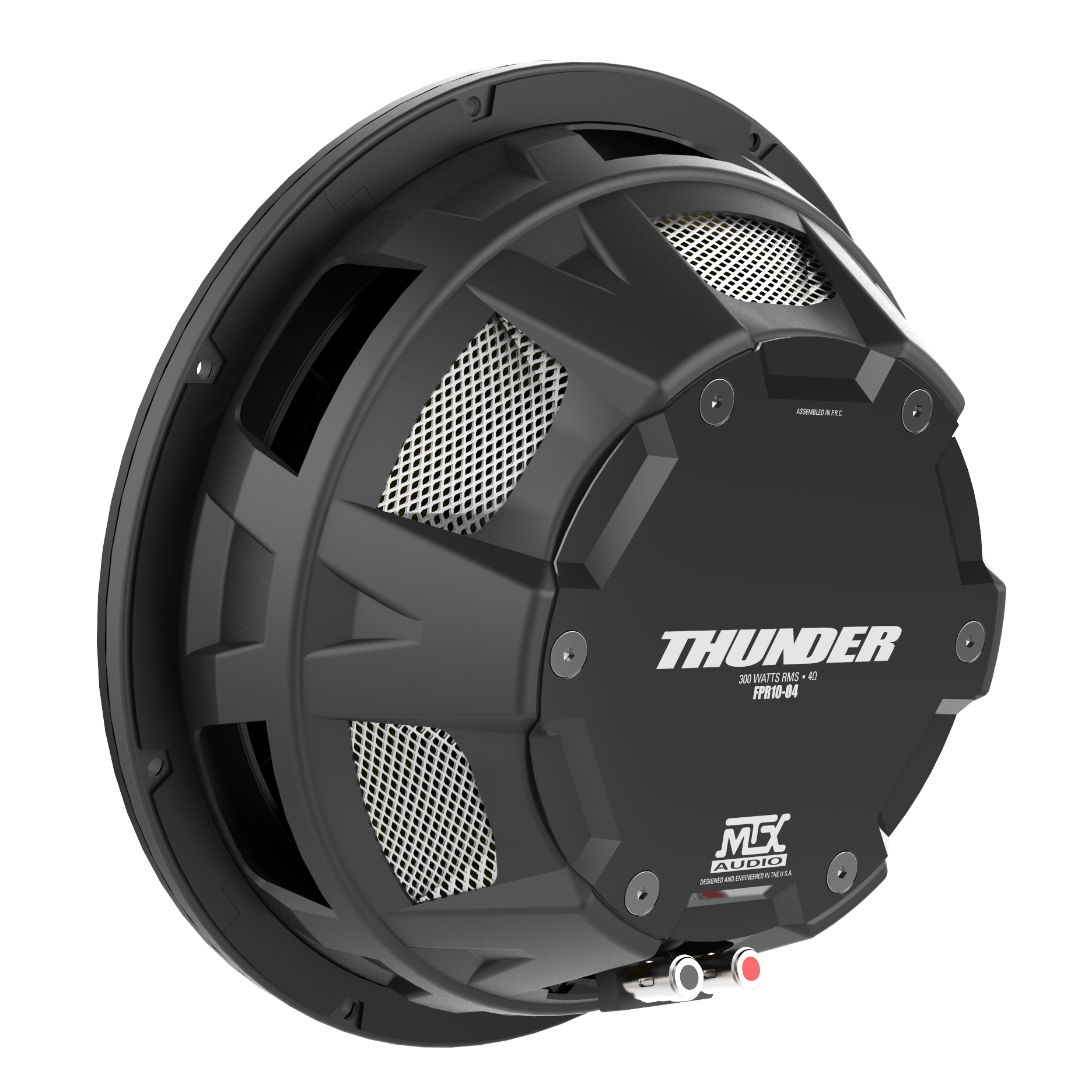

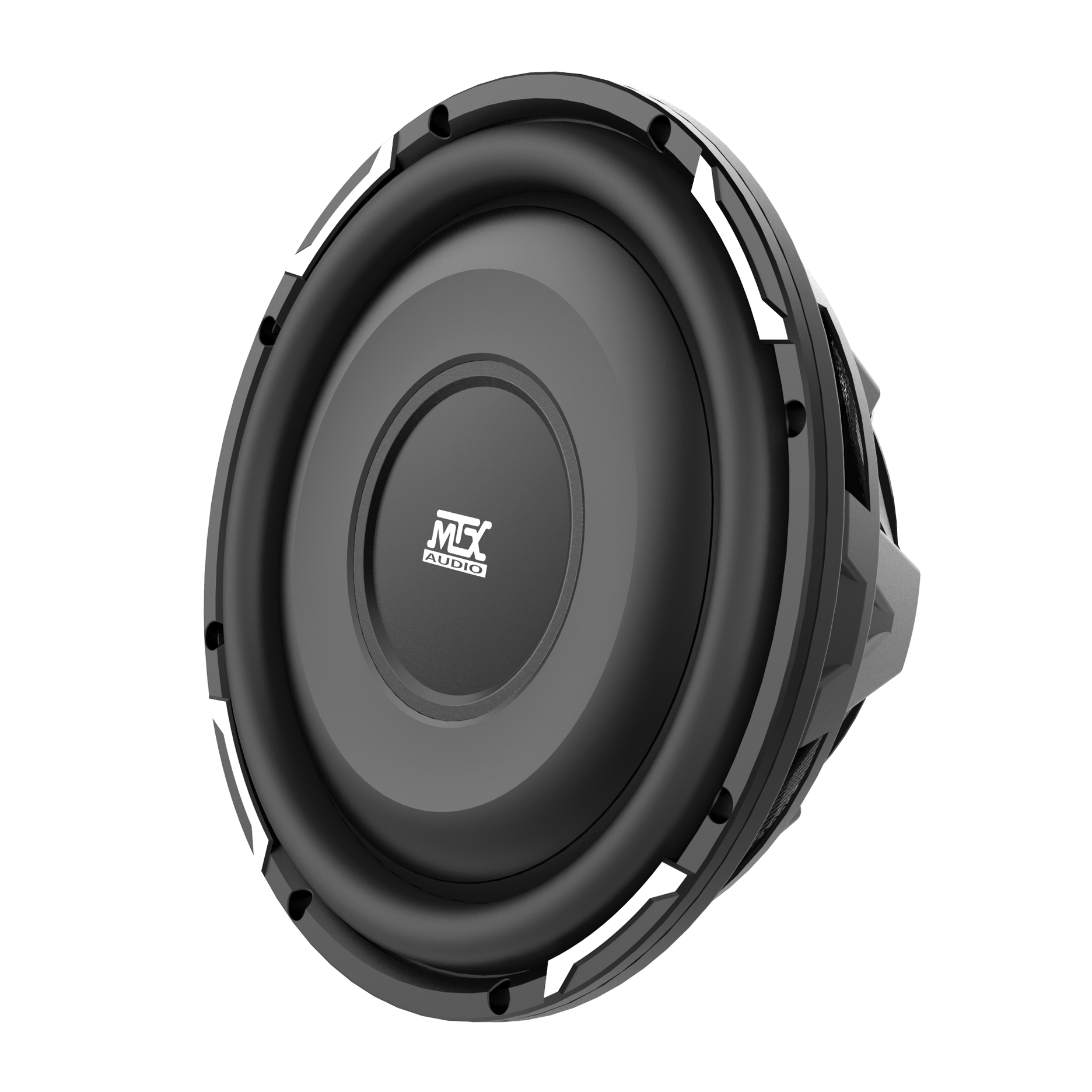

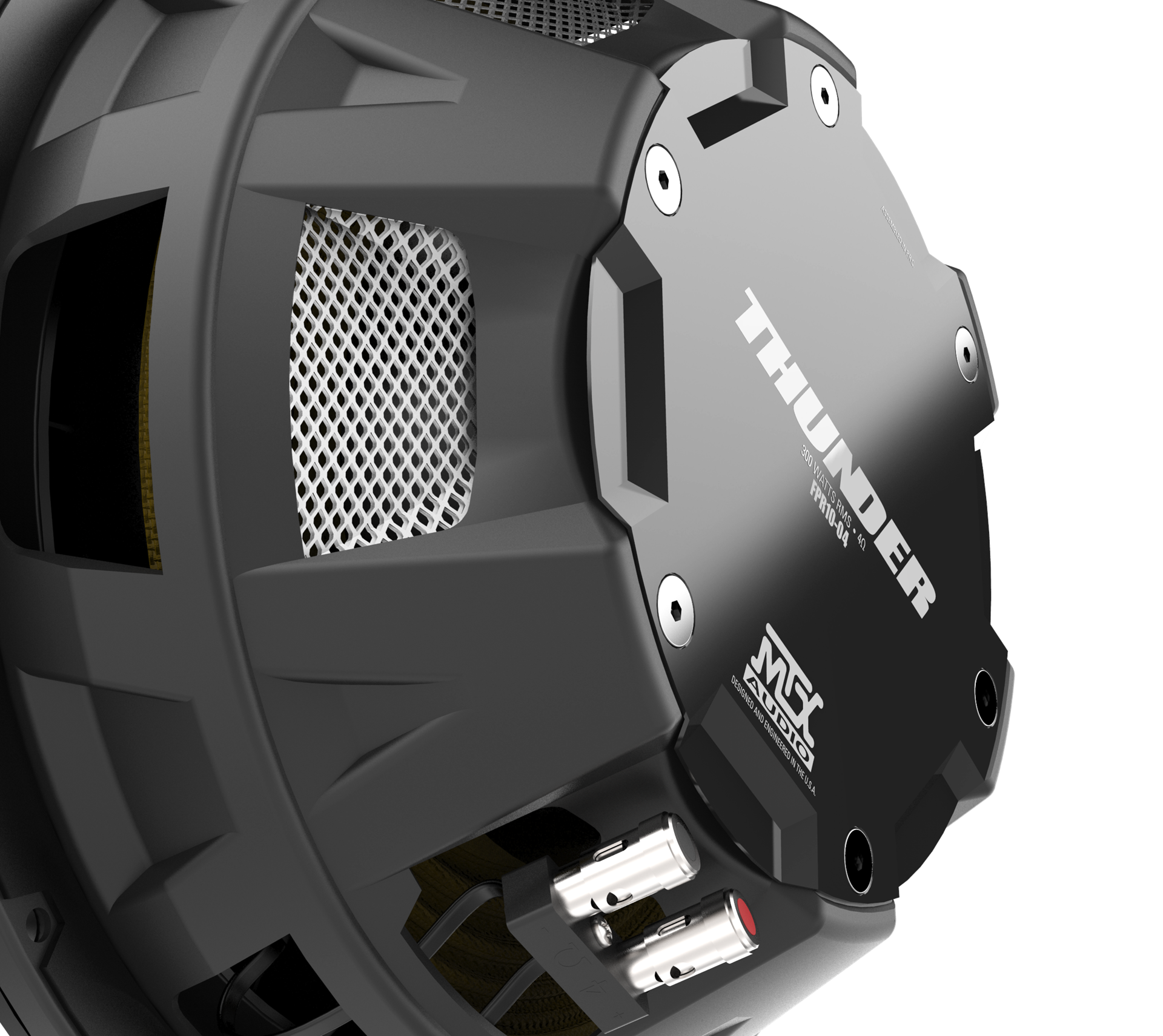

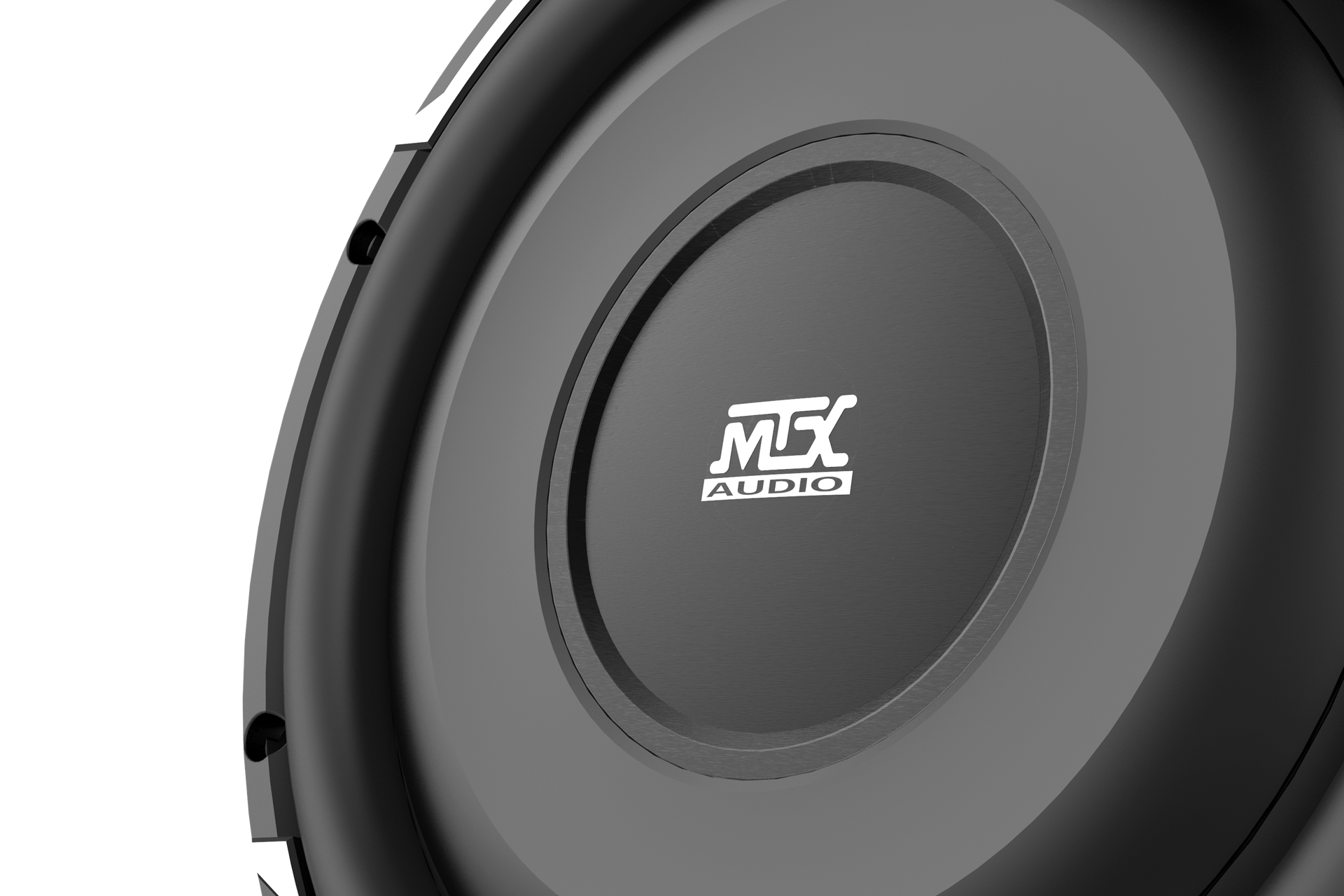

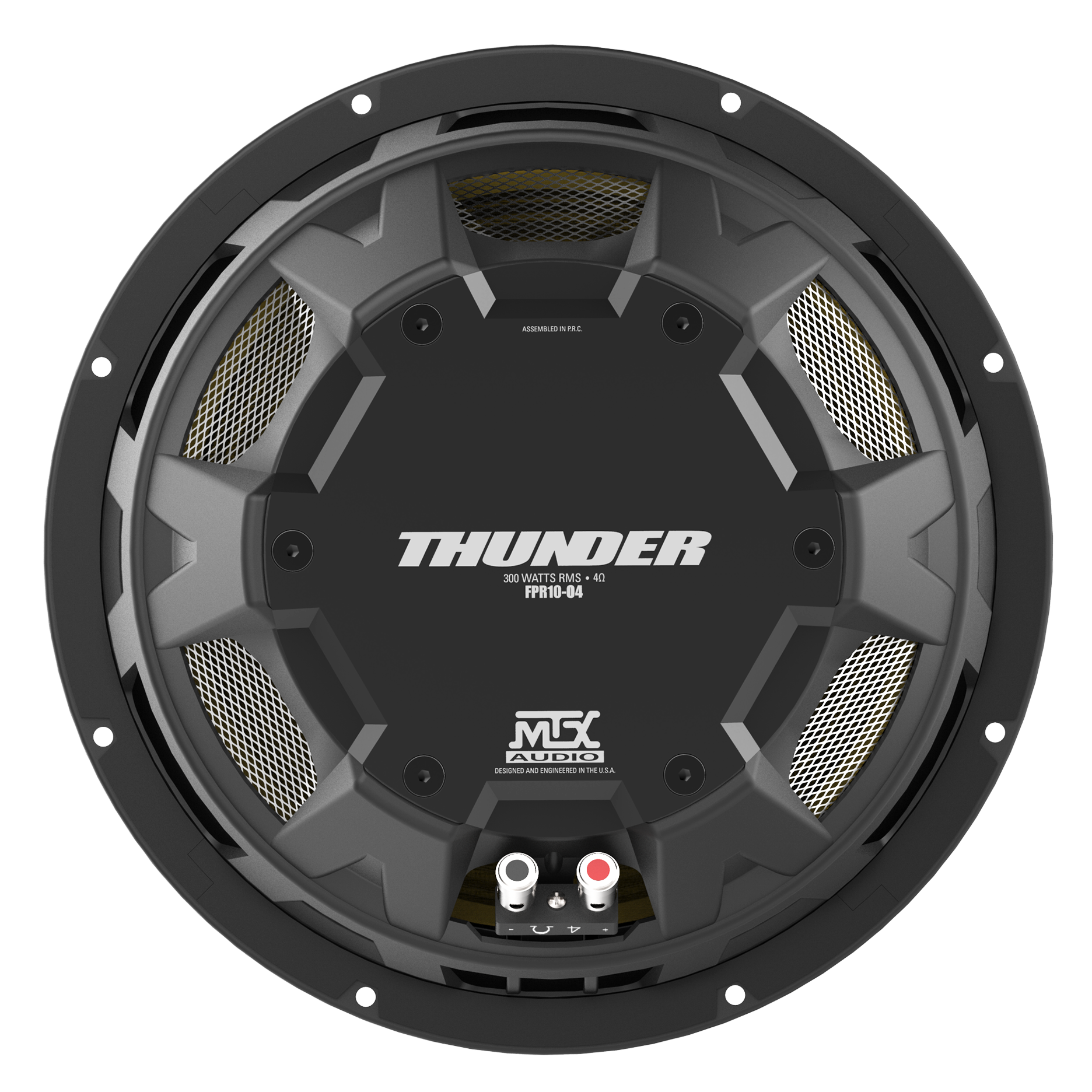

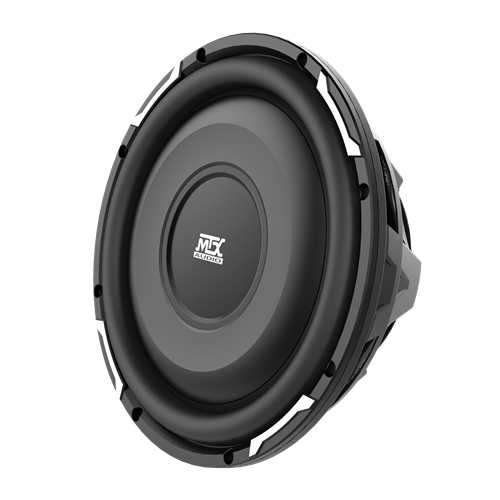

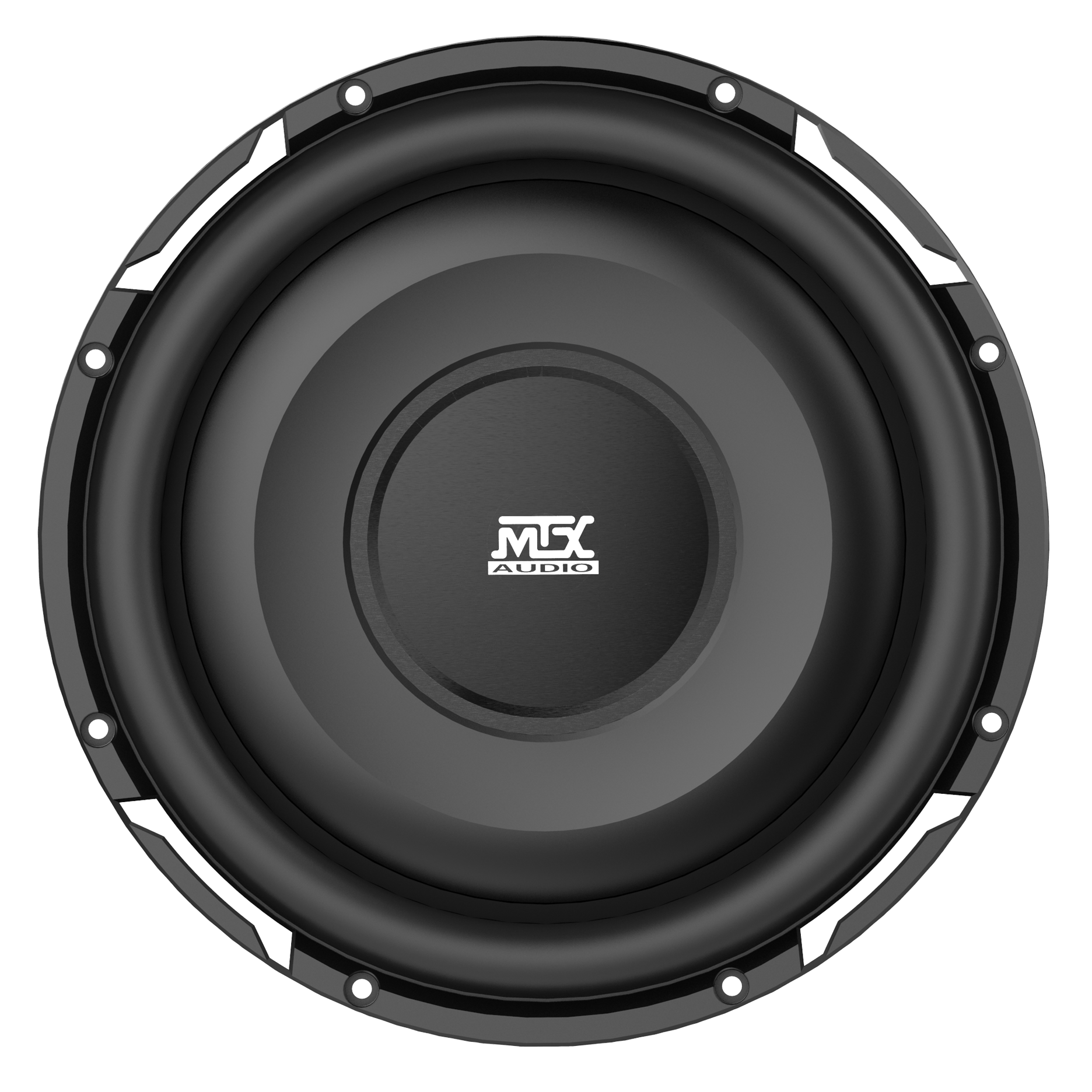

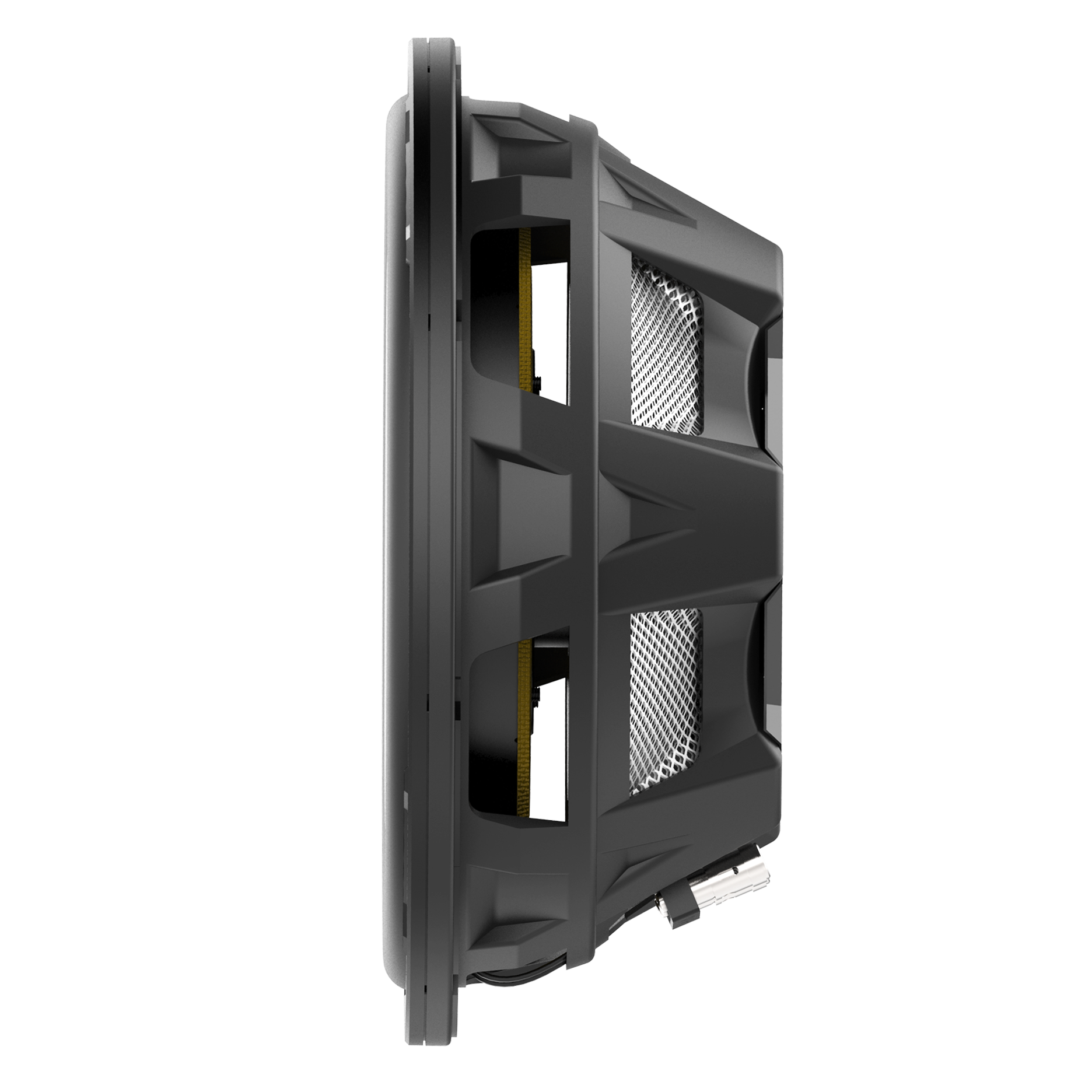

FPR Series FPR10-04 10 inch 300W RMS 4Ω Shallow Mount Car Audio Subwoofer

Patented Technology

Shallow Mount Design, Full Size Performance

MTX FPR Subwoofer Slice View PatentedMany vehicles today have limited space...

Having a large Car Audio Subwoofer enclosure to get the bass you want may not fit your ride. Limited space has traditionally meant limited subwoofer options for those who want loud, clear music. Not anymore!

The FPR10-04 Shallow Sub

The FPR10-04 is a 10 inch, 300 watt RMS, 4 Ohm, shallow mount Car Audio Subwoofer that rivals any full-size ten inch on the market. This shallow sub provides real MTX THUNDER© !

Patented Technology Spider Plateau Venting

SKU: FPR10-04
Sold Individually
229.95
50.00
179.95
Share this MTX page...

    Flat Piston Design

    Connects cone to spider, allowing further cone travel and higher distortion free SPL.

    Spider Plateau Ventiing

    Cone always moves linear, preventing distortion.

    Uncompromised Subwoofer

    Powerful bass performance with frequency response as low as 22Hz.

    Patented Design

    US Patent #8,452,042


    MTX FPR Shallow Car Audio Subwoofer

    FPR Sub In Shallow Enclosure
    (Enclosure not included)

    Engineered for Better Sound

    The FPR Series shallow mount subwoofers are designed to deliver true, hard-rocking subwoofer bass in a form that has a mounting depth of 3.325". MTX engineers recognized that there are scenarios where you just can't fit a full-size subwoofer behind the seat in a pickup truck, in convertibles, in the trunk with golf bags, strollers, or whatever other assorted goodies we grab for the drive.

    Or maybe you want to custom mount your subs into some odd-shaped console. The FPR shallow depth often makes the difference.

    Other shallow mount subwoofers in the market are not able to deliver full, rich subwoofer performance.They are often made more like midbass drivers, unable to play those powerful low notes that make owning a subwoofer fun.

    The result of this research is the patented One Piece Spider Cone Assembly design that delivers true subwoofer performance in an ultra compact design.

    WHAT OUR CUSTOMERS SAY!

    "i will admit i was leery at first but what the heck i could send the sub back if i did not like it.......well its not going back i'm keeping it plus working on getting one more.........it blew my mind the sound that can come from something as compact as this i have a single cab Z71 fits perfect and i'm 6ft i still have ALL my leg room.....a new be leaver"

    Timothy, 8/20/2013 - FPR Review

    MTX FPR Car Audio Subwoofer Spider Venting

    The Design

    The FPR is a patented and unique in that the cone is attached directly to the spider. This design allows the spider to better control the cone movement especially its one way motion, Xmax. The angled design of the basket allows the cone to travel farther than a conventional subwoofer which would be limited by the spider's connection to the basket. Additionally, the cone utilizes a curved design where it connects to the surround. This not only advantageous as it more easily connects to the spider but it also increases the surface diameter of the cone. The increased Xmax and surface diameter gained as a result of the design allow the subwoofer to move more air and generate higher SPL.

    FPR Series: Why Its The Best

    • Patented Shallow Design
      • Increased excursion
      • Superior volume displacement
    • Optimized for Sealed Enclosures
    • 0.60 cu ft Air Space Required
    • 300W-400W RMS Power

    Thermal Management

    The FPR subwoofer uses two design elements to regulate the high temperatures generated at the voice coil. Like other MTX subwoofers the FPR series uses the mechanical cooling process, Spider Plateau Venting, to continually circulate air to the voice coil eliminating distortion resulting from excessive temperatures. Additionally, the aluminum dustcap in the cone connects directly to the voice coil and transfers heat away from the voice coil further ensuring reliability and sound quality.

    Subwoofer Wiring Calculator

    Learn how to properly wire your subwoofers with this easy subwoofer wiring diagram tool.

    Select # Of Woofers:

    Choose Impedance To Match Amp:


    Features
    Patented Flat Piston Design
    True Subwoofer Low Frequency Performance
    Spider Plateau Venting Mechanical Cooling Process Targets Cool Air at the Voice Coil
    Extended Xmax for Increased Volume Displacement
    High Roll Surround Increases Surface Diameter for Greater Volume Displacement
    Tech Specs
    RMS Power (Watts) 300
    Recommended Amp Power (RMS) 150 - 300
    Peak Power (Watts) 600
    Frequency Response 28Hz - 150Hz
    Impedance
    Sensitivity 82.0dB
    Voice Coil 1.75" (4.45 cm)
    Magnet Weight 53 oz.
    Mounting Depth 3.325"
    Cut Out Diameter 9.125"
    Volume Displacement (cu in) 29.84 cu in
    Sealed Enclosure Net Volume 0.6 cu ft
    Vented Enclosure Net Volume Not Recommended
    Support Files
    Data Sheet FPR10-04 Tech Data Sheet (2 pages) View | Download
    50Hzmp3 Download
