H Series H615W 6.5 inch 40W RMS 8 Ohm In-Wall Loudspeaker Pair

Custom In-Wall Speakers

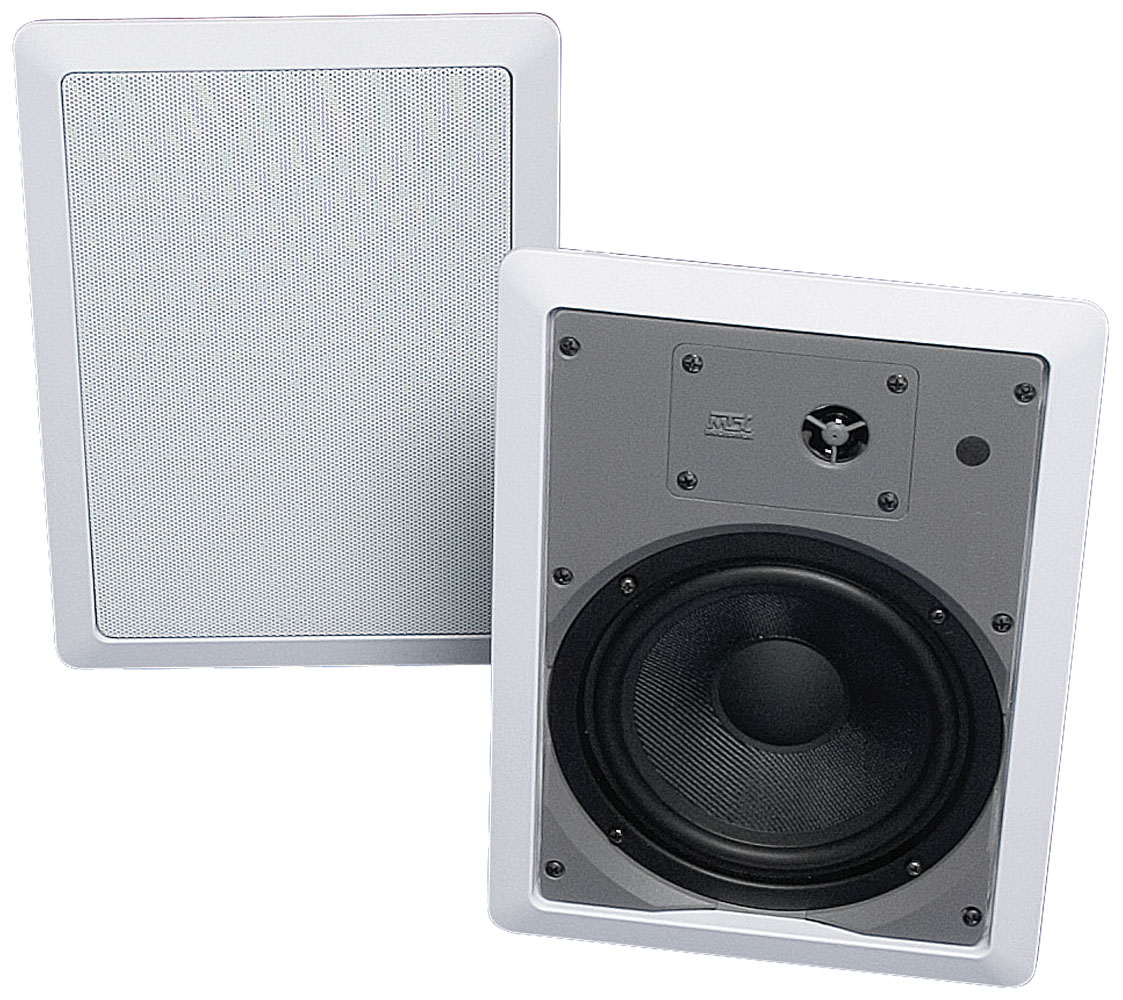

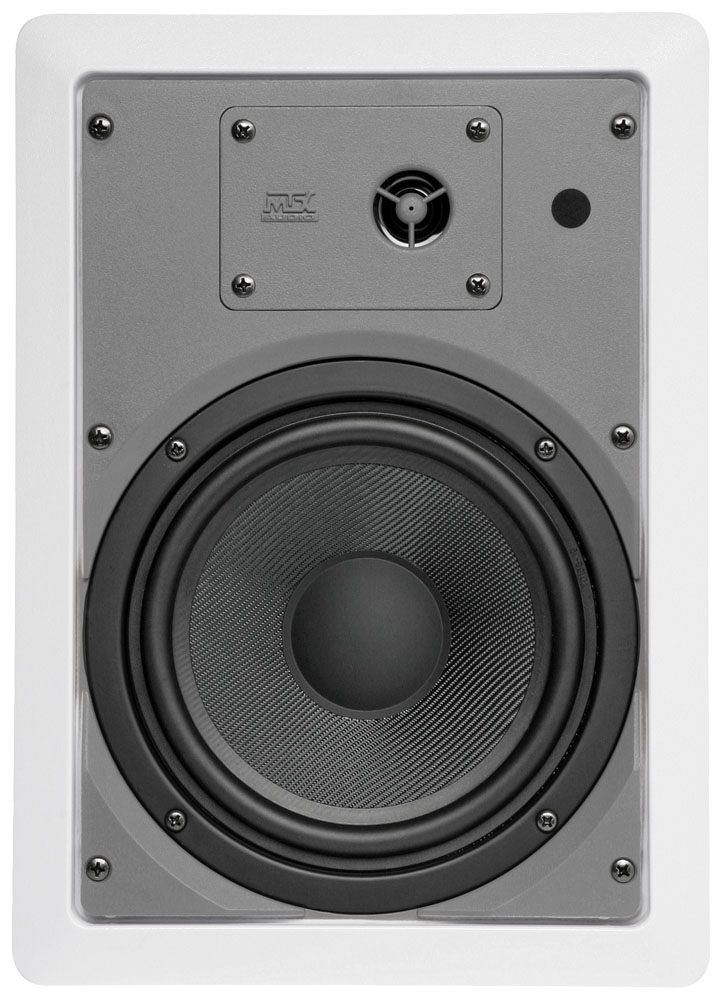

H615W In-Wall Loudspeaker Pair

Deep, rich sound from your walls

6.5" 40W RMS 8 Ohm In-Wall Loudspeaker Pair

Blueprint Series

The MTX H615W is part of the Blueprint Series designed for use in home theater and distributed audio applications. These easy to install in-wall speakers provide an unmatched level of clarity for movies, television, and music.

Availability: In stock
SKU: H615W
$219.95
$69.98
$149.97
Share this MTX page...

Blueprint Series Speakers

DCM high fidelity audio components in a built in solution

High Performance Audio

Dynamic range and deep, rich tone

Convenient And Hidden

Easy installation and hidden surround sound

Blueprint Series

The MTX H615W is part of the Blueprint Series designed for use in home theater and distributed audio applications. These easy to install in-wall speakers provide an unmatched level of clarity for movies, television, and music.

H615W Key Features

  • Glass Fiber Woofers
  • Cloth Dome Tweeters
  • 2nd Order Crossover Networks
  • Pivoting Tweeters

Audiophile Components

The H615W features a 6.5" woofer and 1" tweeter designed to deliver exceptional sound. The woofer is constructed using glass fiber that offers an excellent stiffness to weight ratio that makes it very effective in moving efficiently while maximizing power. The cloth dome tweeter is capable of delivering the softest notes in the high frequency range so vocals sound crisp and clear without distortion.

Versatile Solutuions For Any Installation

Easy Installation

The H615W is easy to install with its dog leg mounting that allow it to be easily installed into most drywall sizes. The unit includes a paint shield that allows the aluminum grilles to be painted easily without damaging the speaker itself. The compression terminals allow making connections to speaker wire quick and easy with an extremely close connection so you never have to worry about a wire coming loose.

Our 30 day money back guarantee and a 10 year speaker warranty make the H615W an excellent choice for anyone looking to add in-wall speakers to their home whether it be for home theater or distributed audio in a bedroom, kitchen, or office.

Features
  • Glass Fiber Woofer
  • Cloth Dome Tweeter
  • PTC Tweeter Protection
  • Dog Leg Mounting System
Tech Specs
Woofer Single 6.5" Glass Fiber
Tweeter 1/2" Balanced Dome
RMS Power (Watts) 40
Peak Power (Watts) 80
Frequency Response 50Hz - 20kHz
Sensitivity 86dB
Mounting Depth 3 1/16" (7.78 cm)
Cut Out Diameter 10 3/4" x 7 3/8" (273mm x 187mm)
Support Files
H615W Owners Manual (8 pages) View |  Download
