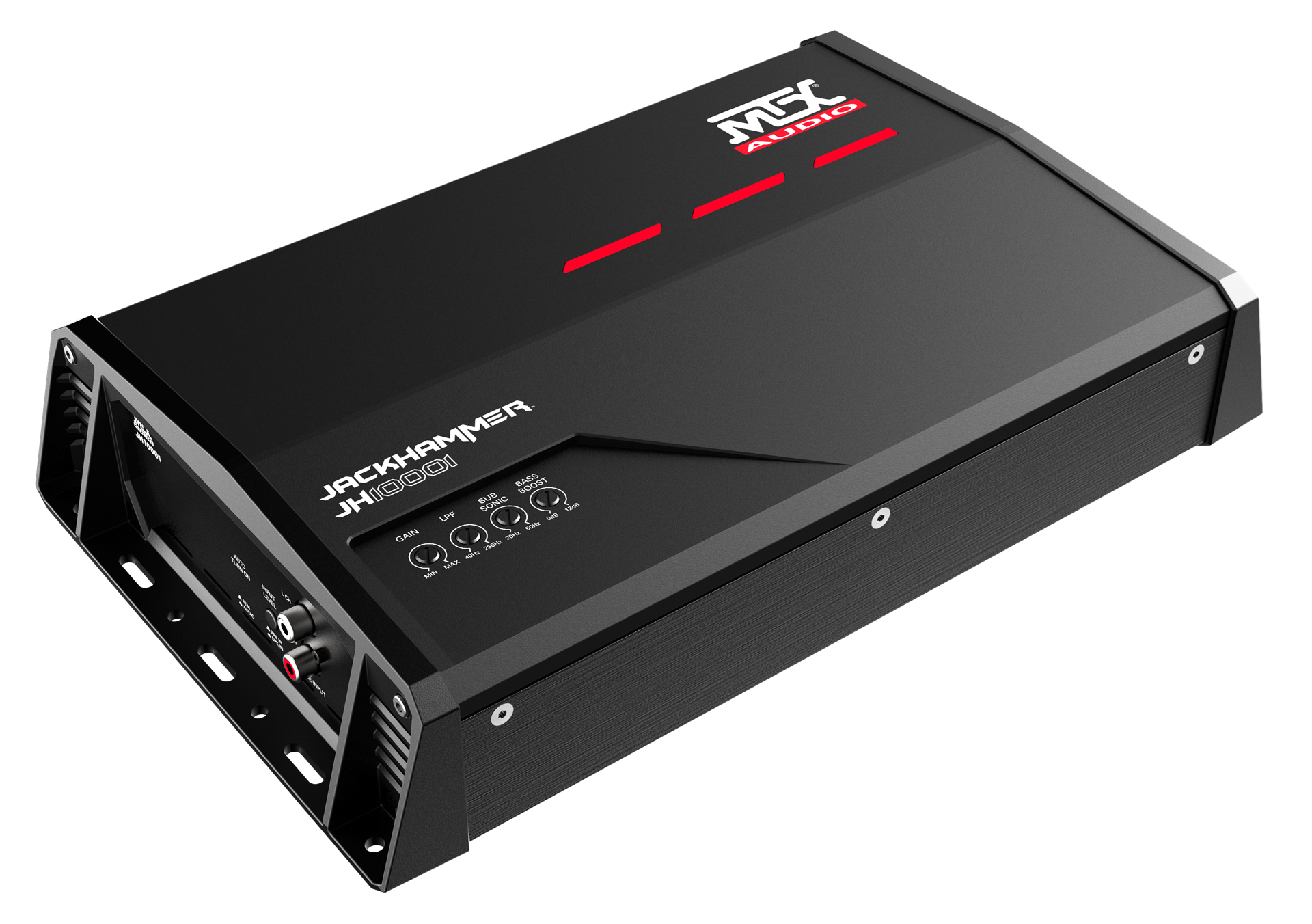

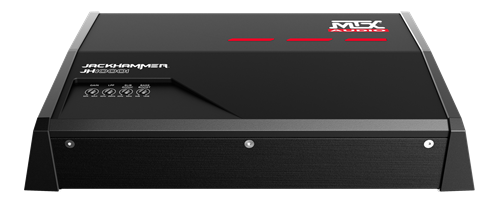

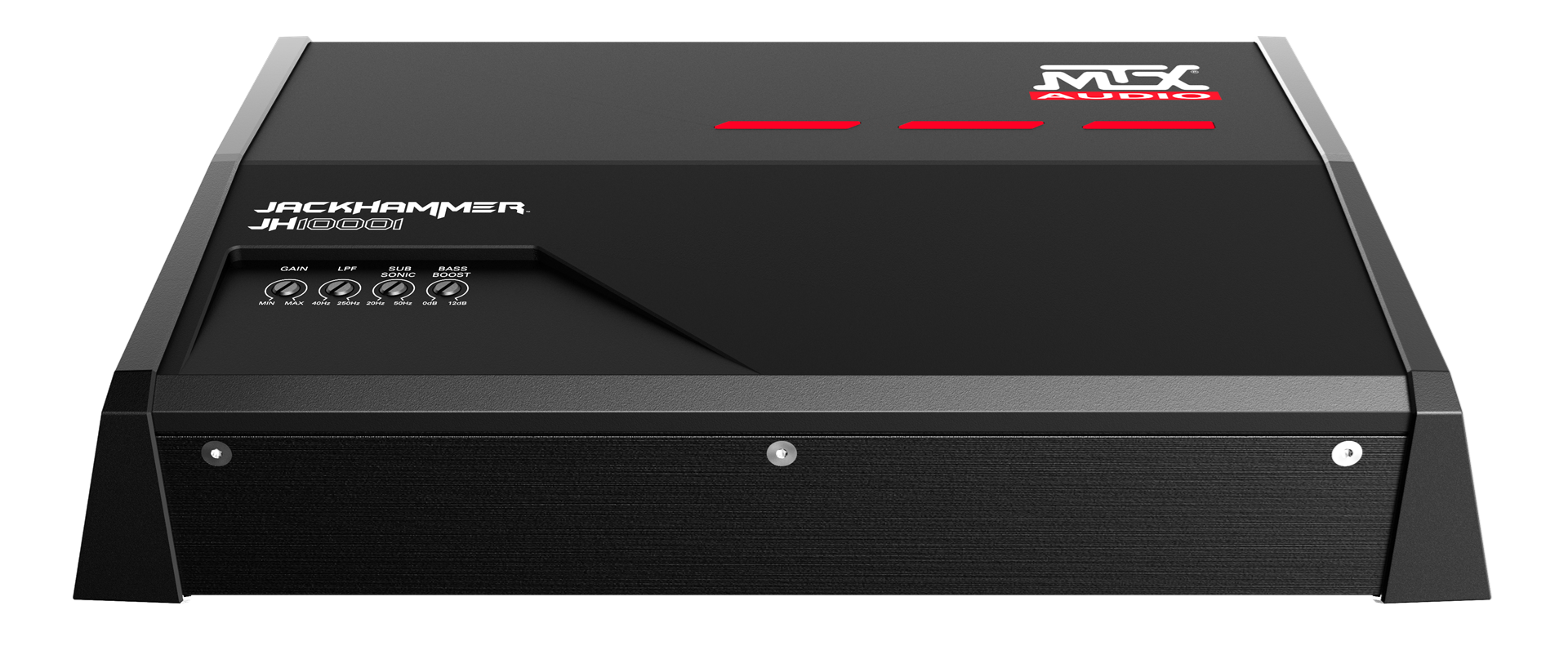

Jackhammer 1000W Mono Block Amplifier

Availability: In stock

$479.95 MSRP

$439.95

Built for Bass

The JH10001 is made for bass with its high efficiency Class D design. Built to produce up to 1000 watts at a 1 ohm load, this mono amplifier will make your woofers pound, rattle your windows and let everyone know you're running MTX power.

Ask an expert Find a location

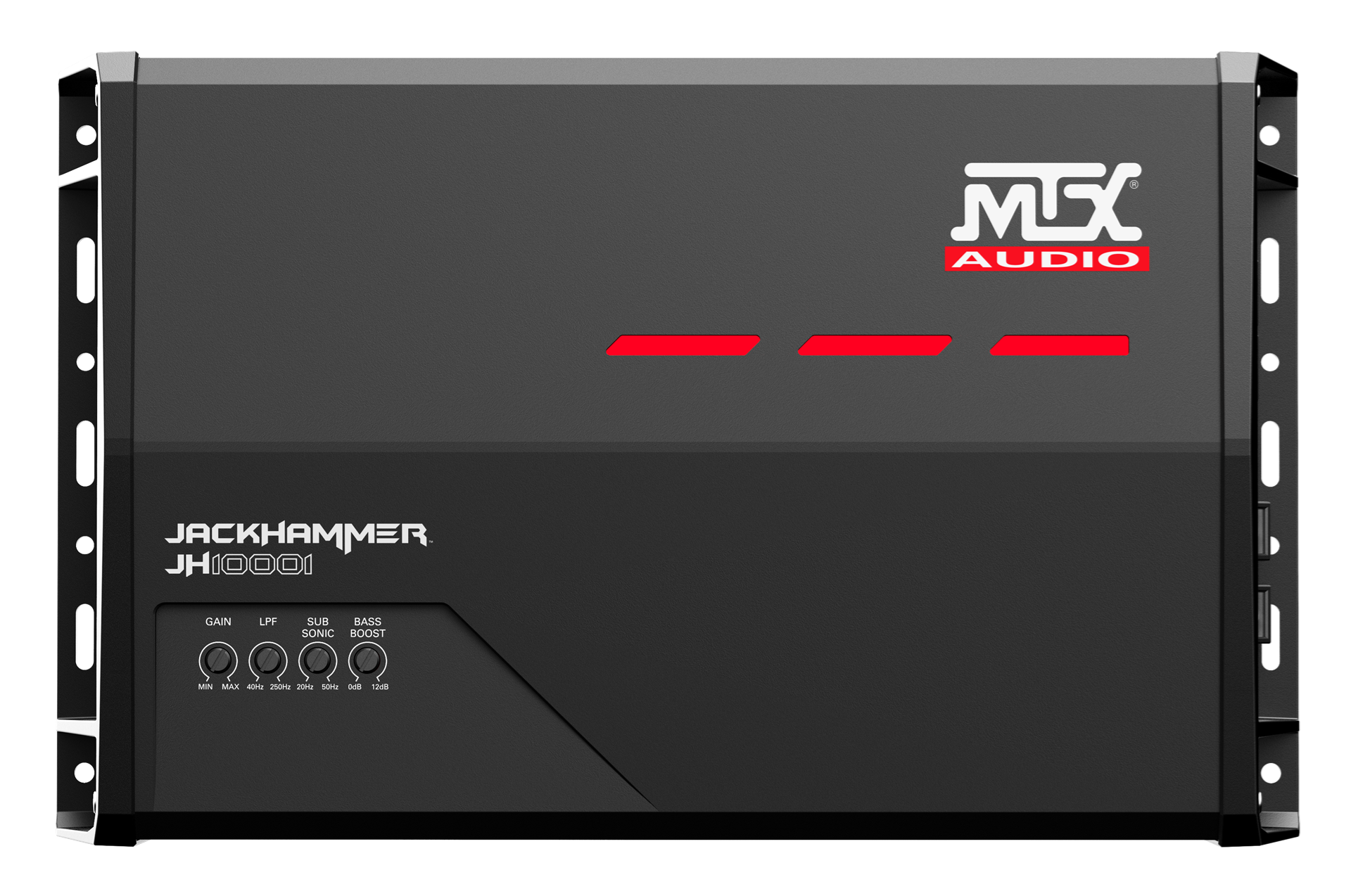

Easy Access Controls

Accessing the fully adjustable gain, low pass filter, subsonic filter and bass boost from the front panel allows for easy adjustment after the unit is installed. This layout is simple and elegant, giving the JH10001 a sophisticated look with the convenience of easy accessibility.

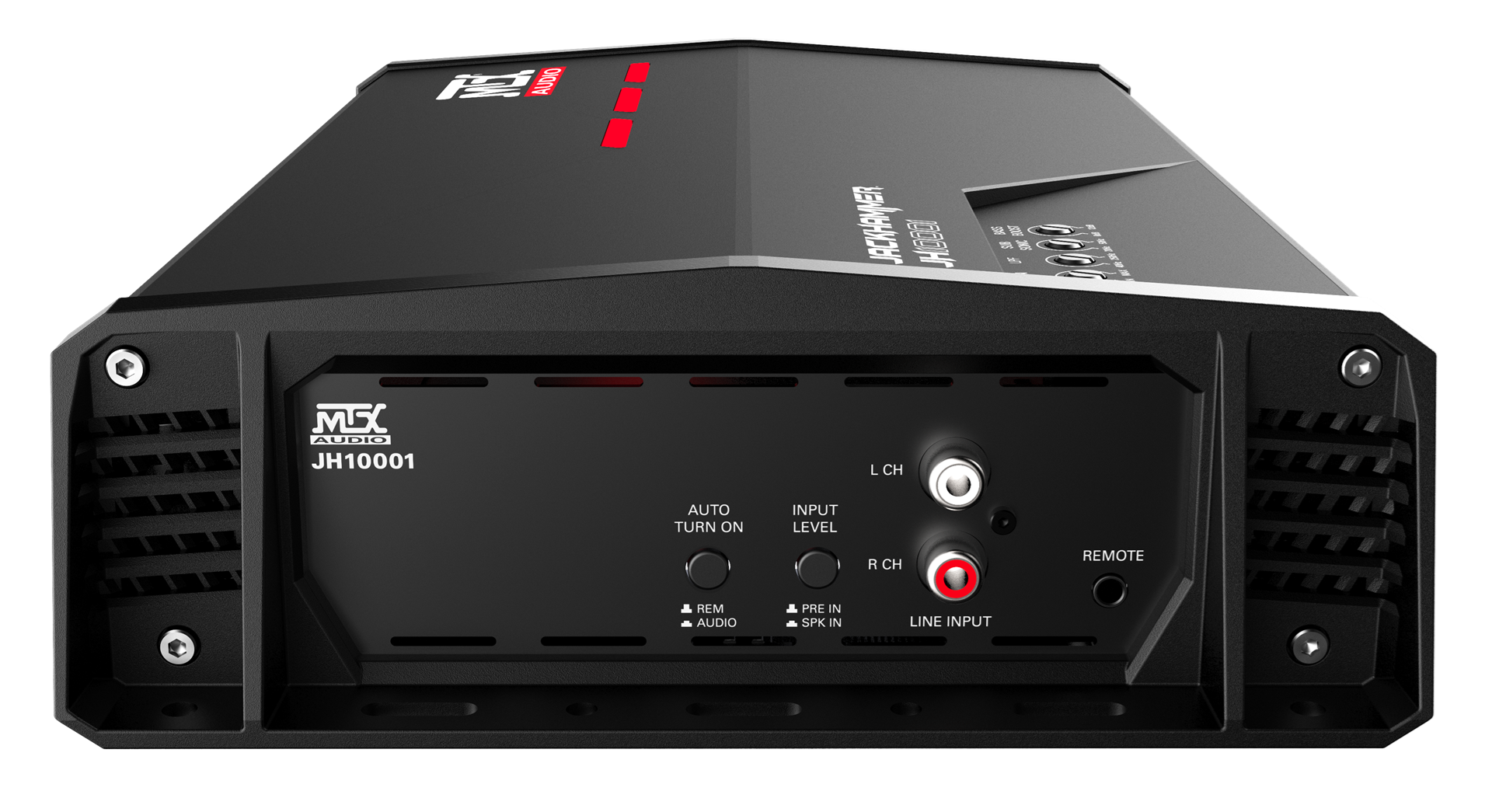

Only What You Need

The JH10001 is designed for one thing, bringing the power to whatever subwoofers you hook it up to. The input section features high quality RCAs for easy connection to after market head units or processors. The Input Level selection is either Pre or Spk In so it can also be used with factory radios that don't have RCA outputs. The Auto Turn On feature is selectable, enabling the unit to turn on when it senses signal, eliminating the need to run a remote wire, or it can be turned on using a remote wire, the choice is yours.

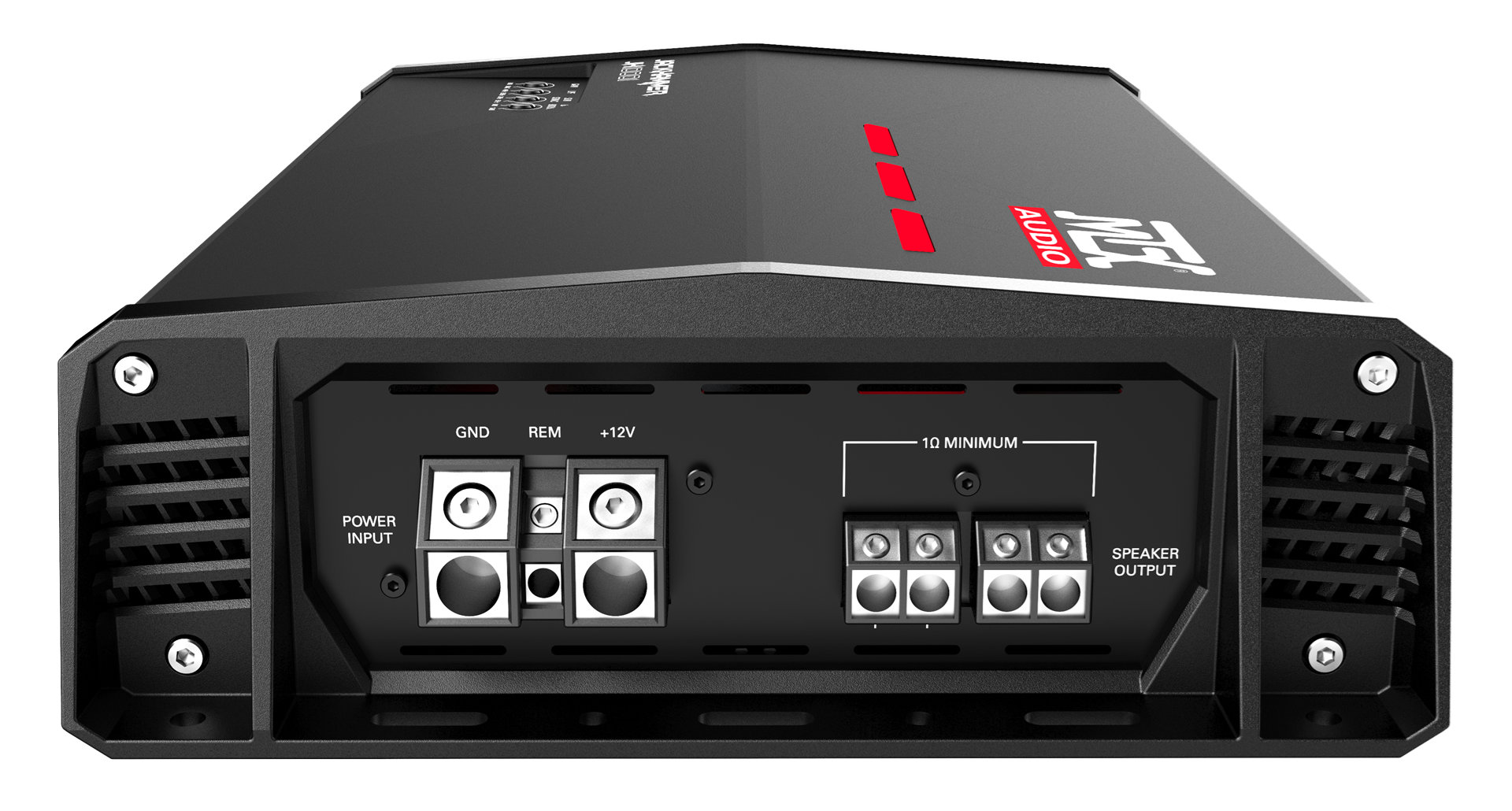

High Quality Power and Speaker Connections

The JH10001 can accept up to a standard 4-gauge power and ground wire for optimal performance. The speaker terminals can accept up to 12-gauge speaker. The speaker connection terminal has two sets of positive and negative terminals for easy wiring, the JH10001 can play loads down to 1Ω. Both sets of connectors use set screw style fittings that ensure proper connection and continual signal transfer.

Dimensions & Details

Dimensions

A - Length:

12.24" (311mm)
B - Width:

7.61" (193.4mm)
C - Depth:

2.57" (65.2mm)

SPECIFICATIONS

Description: Mono Block
Topology: Class D
4Ω RMS Power Output: 450W x 1 Channel
2Ω RMS Power Output: 775W x 1 Channel
1Ω RMS Power Output: 1100W x 1 Channel
THD: <1%
Signal to Noise Ratio: 68dB
Frequency Response: 20Hz - 250Hz
Crossover: 40Hz to 250Hz, 12dB/Oct
Subsonic Filter: 20Hz to 50Hz, 12dB/Oct
Bass Boost: 0 - 12dB @ 45Hz
Maximum Input Signal: 10V
Height: 2.57" (65.2mm)
Width: 7.61" (193.4mm)
Depth: 12.24" (311mm)
Warranty Period: 24 months from date of purchase

Downloads

Owners Manual - JackHammer Series Amplifier Owners Manual (36 pages)

View | Download
