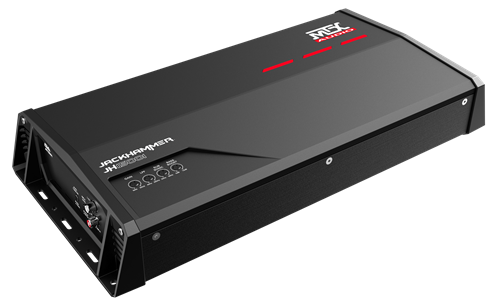

Jackhammer 1500W Mono Block Amplifier

Built for Bass

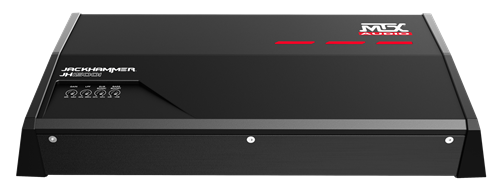

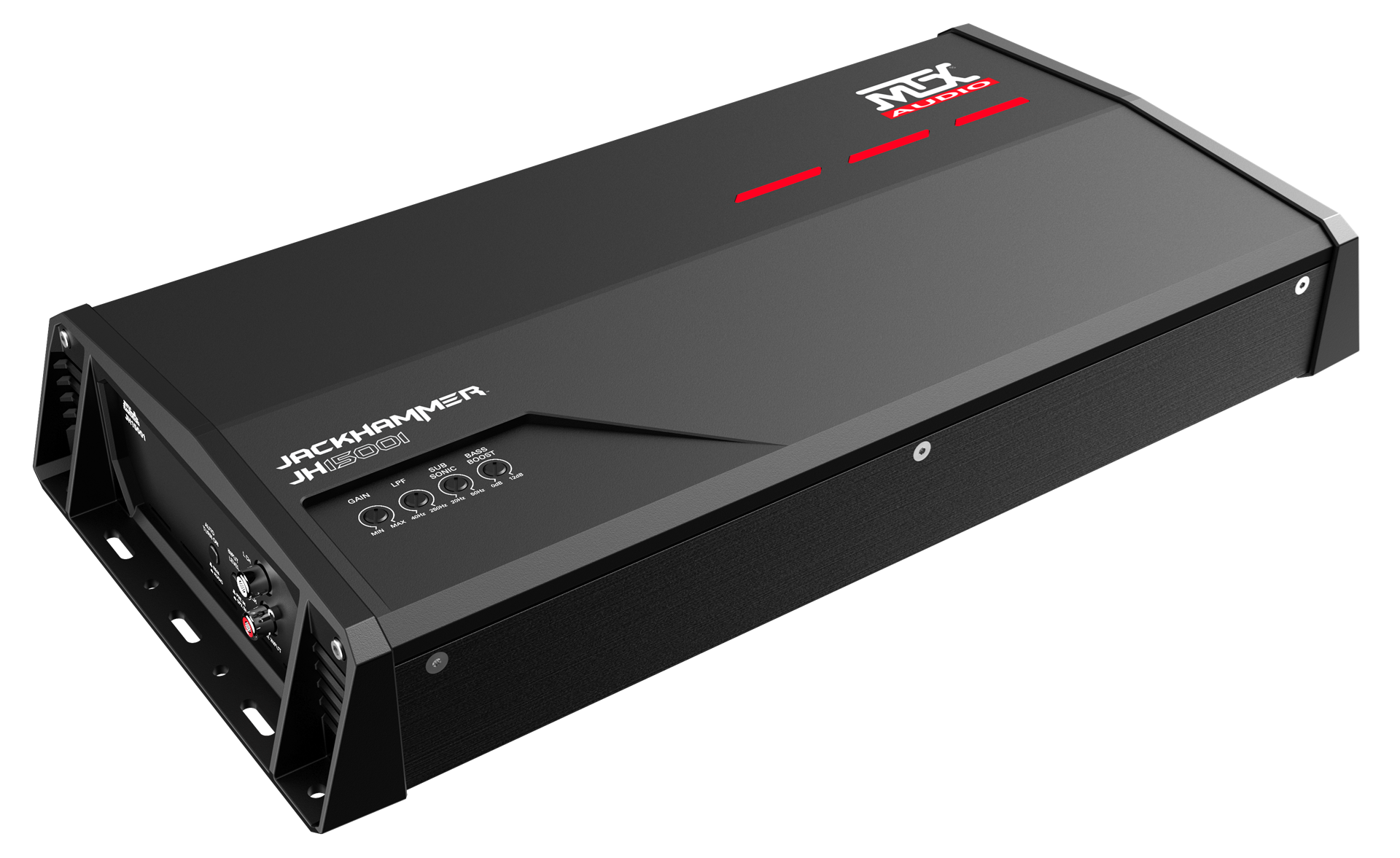

The JH15001 is made for bass with its high efficiency Class D design. Built to produce up to 1500 watts at a 1 ohm load, this mono amplifier will make your woofers pound, rattle your windows and let everyone know you're running MTX power.

Ask an expert Find a location

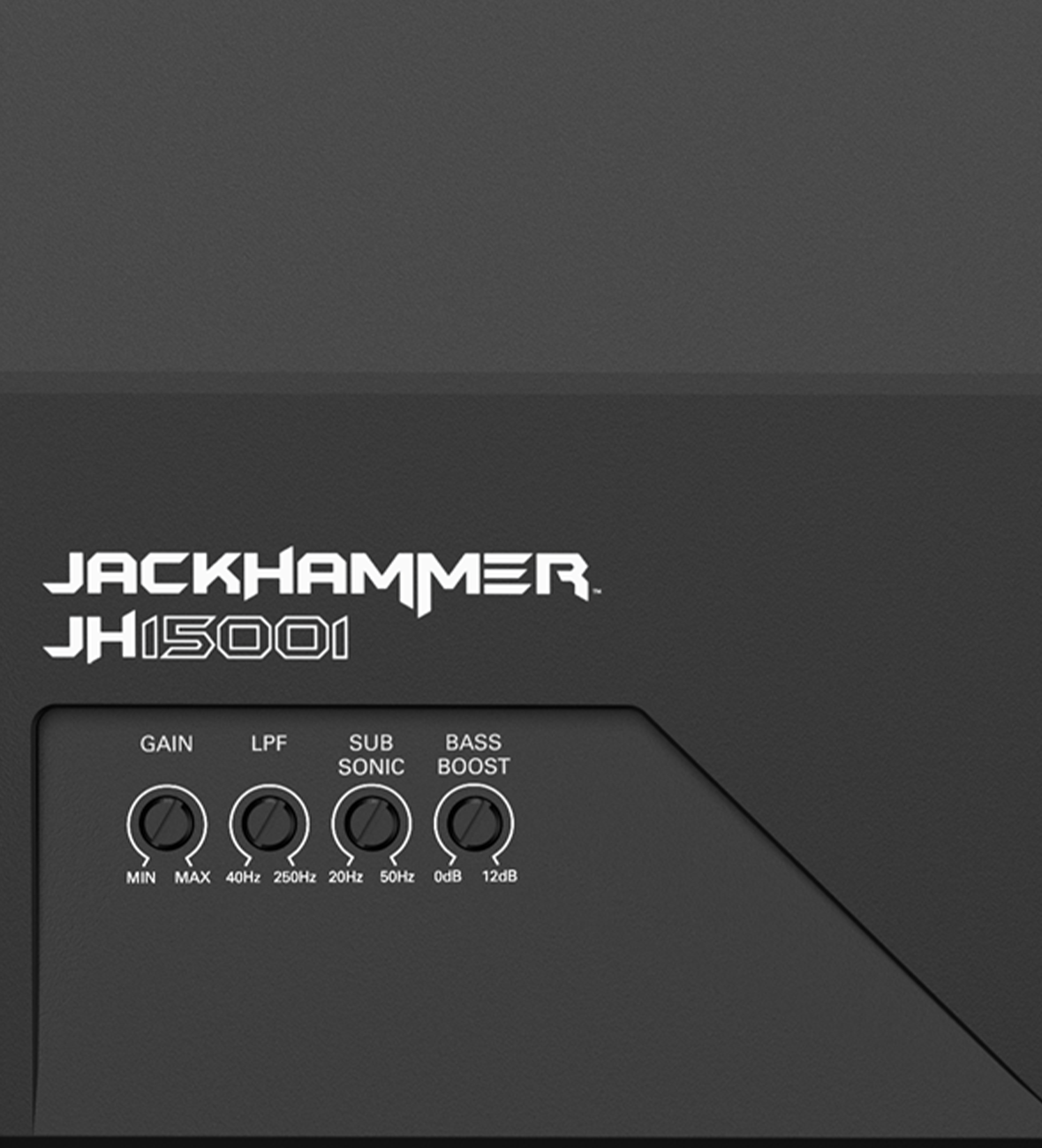

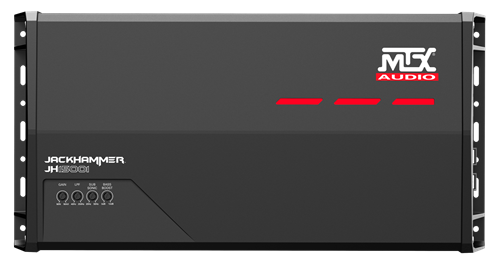

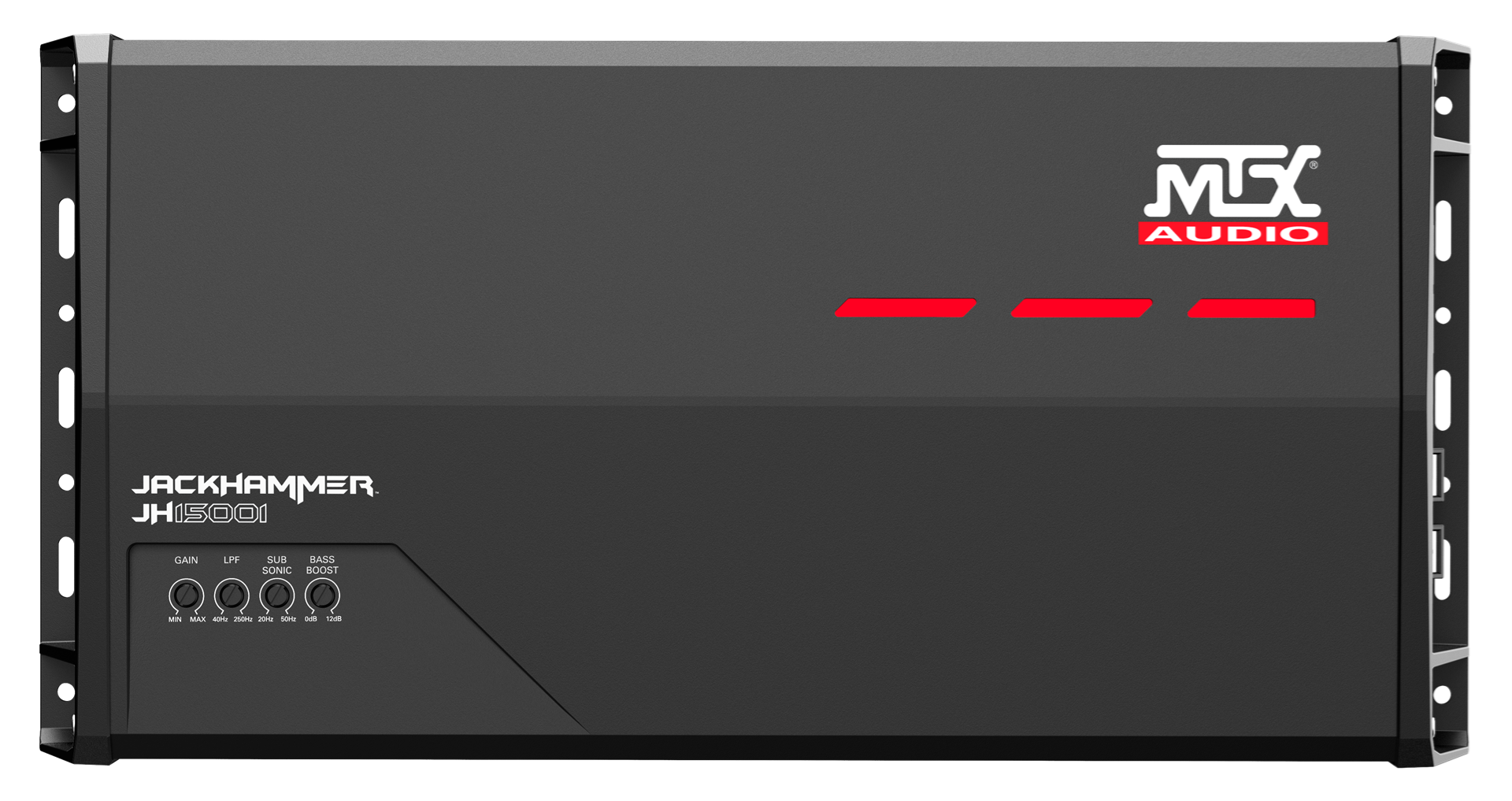

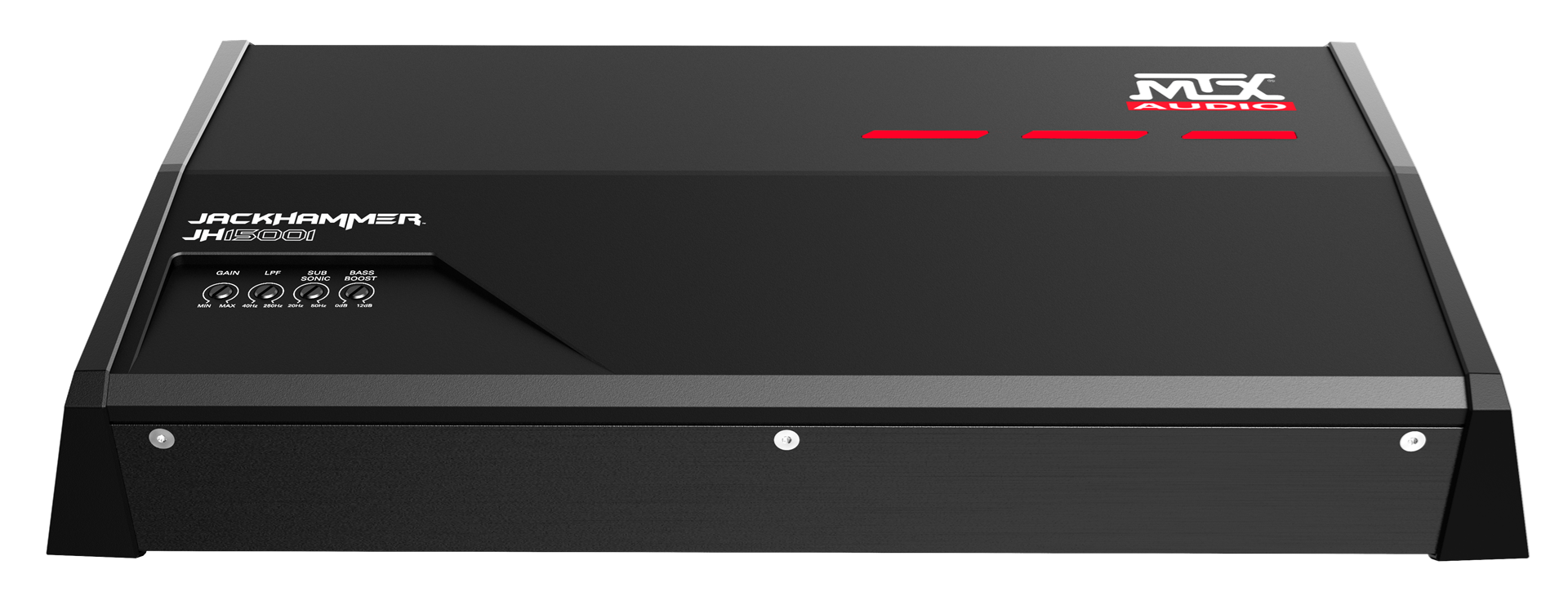

Easy Access Controls

Accessing the fully adjustable gain, low pass filter, subsonic filter and bass boost from the front panel allows for easy adjustment after the unit is installed. This layout is simple and elegant, giving the JH15001 a sophisticated look with the convenience of easy accessibility.

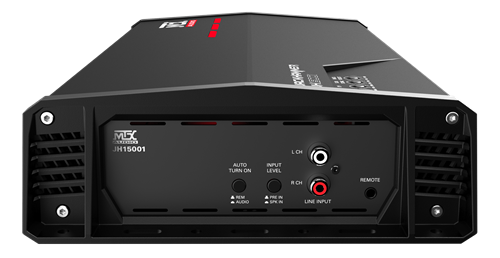

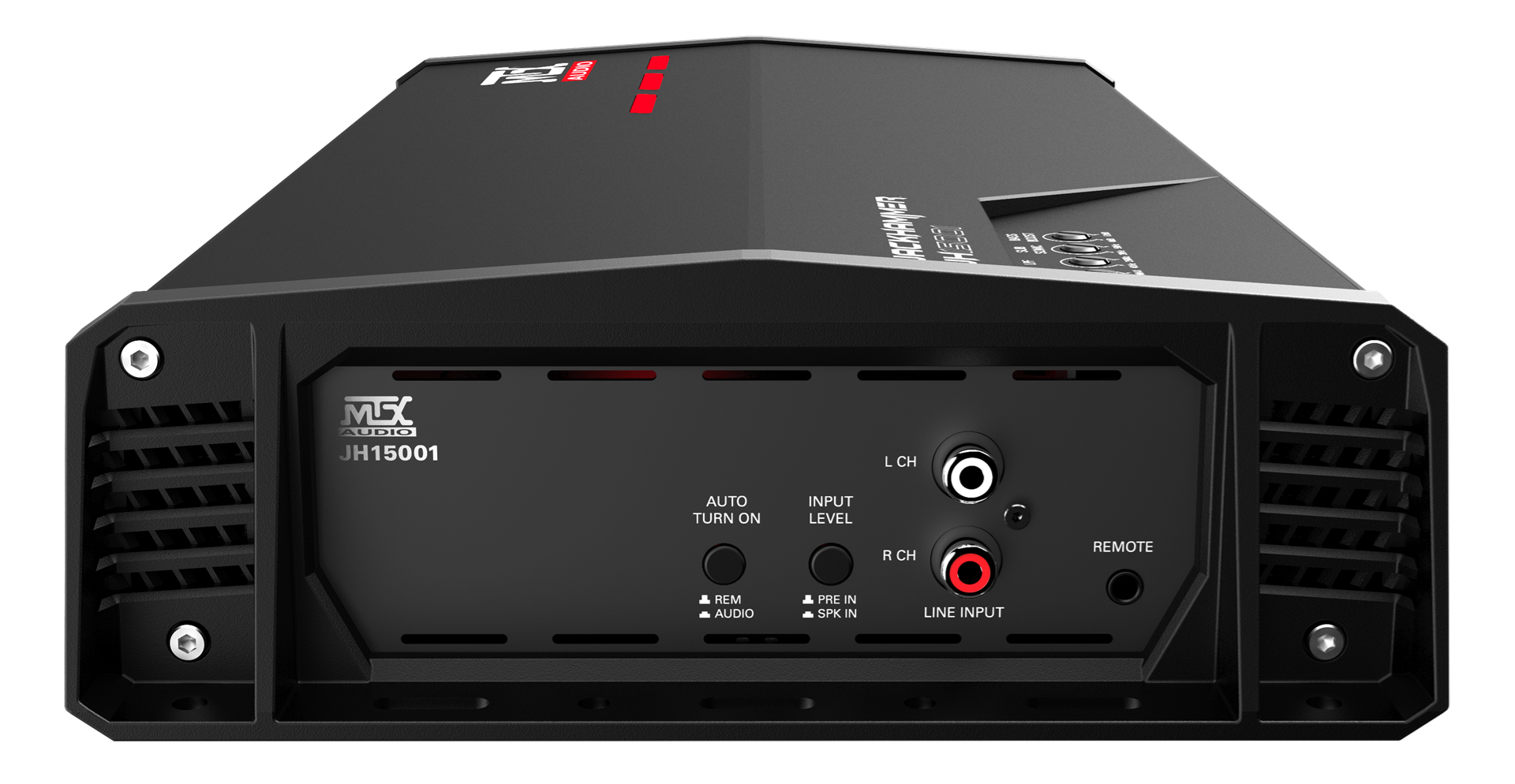

Only What You Need

The JH15001 is designed for one thing, bringing the power to whatever subwoofers you hook it up to. The input section features high quality RCAs for easy connection to after market head units or processors. The Input Level selection is either Pre or Spk In so it can also be used with factory radios that don't have RCA outputs. The Auto Turn On feature is selectable, enabling the unit to turn on when it senses signal, eliminating the need to run a remote wire, or it can be turned on using a remote wire, the choice is yours.

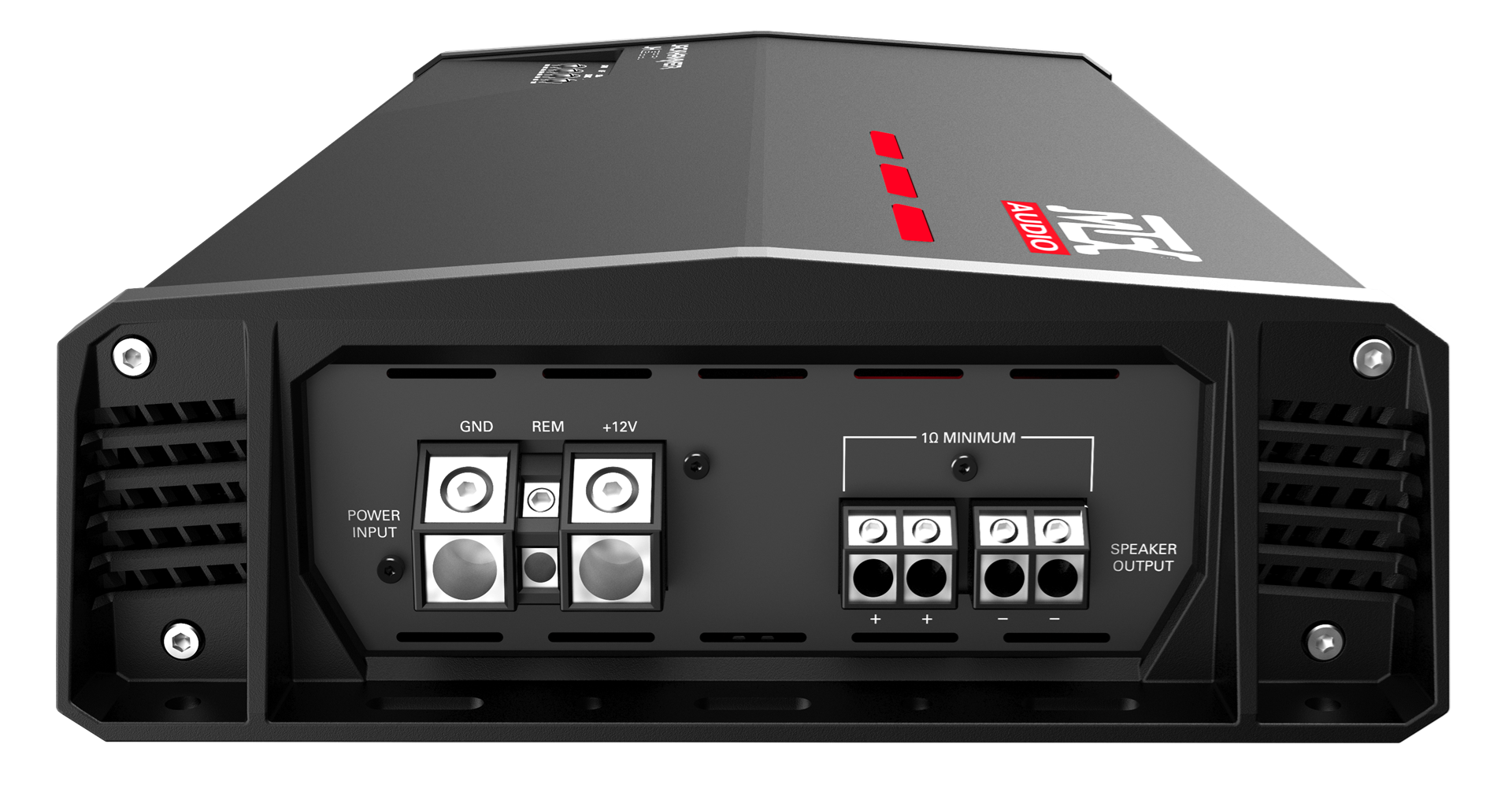

High Quality Power and Speaker Connections

The JH15001 can accept up to a standard 4-gauge power and ground wire for optimal performance. The speaker terminals can accept up to 12-gauge speaker. The speaker connection terminal has two sets of positive and negative terminals for easy wiring, the JH15001 can play loads down to 1Ω. Both sets of connectors use set screw style fittings that ensure proper connection and continual signal transfer.

Dimensions & Details

Dimensions

A - Length:

15.28" (388mm)
B - Width:

7.61" (193.4mm)
C - Depth:

2.57" (65.2mm)

Features

Variable Subsonic Filter - A variable low frequency, high pass filter designed to block potentially damaging bass frequencies
Top Mount Controls - Provides for Easy Adjustment of the Amplifier Once Installed
Variable Crossovers - Allow Fine Tuning Your System Output
Selectable Turn On Input - Allows the Use of a Remote Turn On Signal or Audio Signal to Turn On the Amplifier
Selectable Input Signal - Allows You to use traditional RCA Signals or Tie Directly to Factory Speaker Outputs
Remote Bass Knob - Included With the Amplifier, This Knob Gives You Remote Level Control Over the Output of Your Bass

SPECIFICATIONS

Description: Mono Block
Topology: Class D
4Ω RMS Power Output: 650W x 1 Channel
2Ω RMS Power Output: 1100W x 1 Channel
1Ω RMS Power Output: 1650W x 1 Channel
THD: <1%
Signal to Noise Ratio: 70dB
Frequency Response: 20Hz - 250Hz
Crossover: 40Hz to 250Hz, 12dB/Oct
Subsonic Filter: 20Hz to 50Hz, 12dB/Oct
Bass Boost: 0 - 12dB @ 45Hz
Maximum Input Signal: 10V
Height: 2.57" (65.2mm)
Width: 7.61" (193.4mm)
Depth: 15.28" (388mm)
Warranty Period: 24 months from date of purchase

Downloads

Owners Manual - JackHammer Series Amplifier Owners Manual (36 pages)

View | Download

Returns & Warranty

30-Day Money-Back Guarantee

At MTX Audio, we are serious about sound®. Therefore, if you are not "blown away" with your purchase, for any reason, you can return any items purchased directly from MTX.com that are complete and like new within 30 days. Products purchased from authorized MTX retailers must be returned through that same retailer. Products purchased through non-authorized MTX retailers may not be returned.

About Returns

Warranty Information

The warranty for JH15001 is 24 months from the date of purchase.

MTX products purchased in the USA from an authorized MTX dealer are guaranteed against defects in material and workmanship for the period of time specified below, the warranty period begins the day the product is purchased by the end user. This warranty is limited to the original retail purchaser of product and extends only to products purchased from authorized MTX resellers. Product found to be defective during that period will be repaired or replaced by MTX at no charge.

About Our Warranty
