SKU: MUSICASS6
Sold Individually

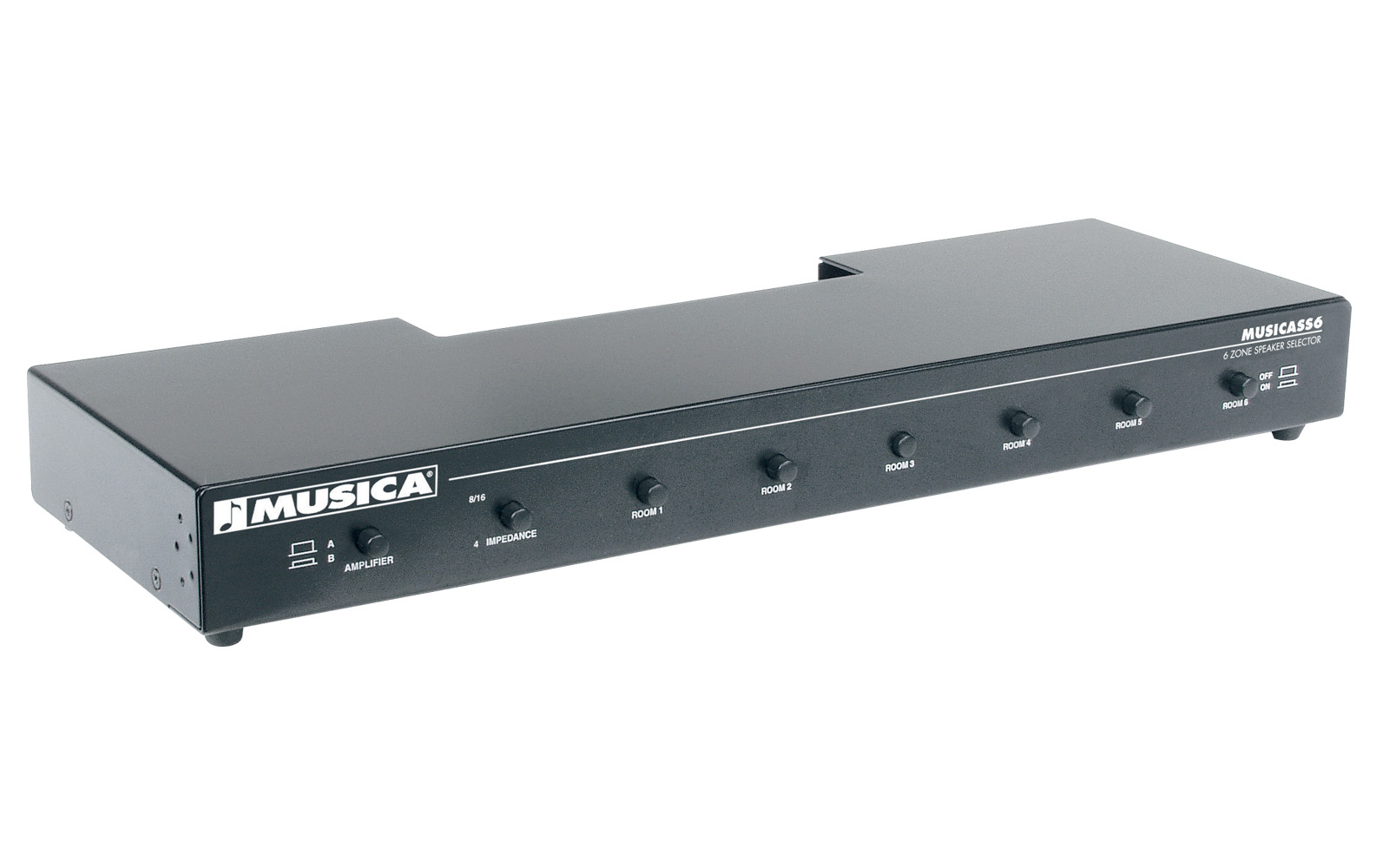

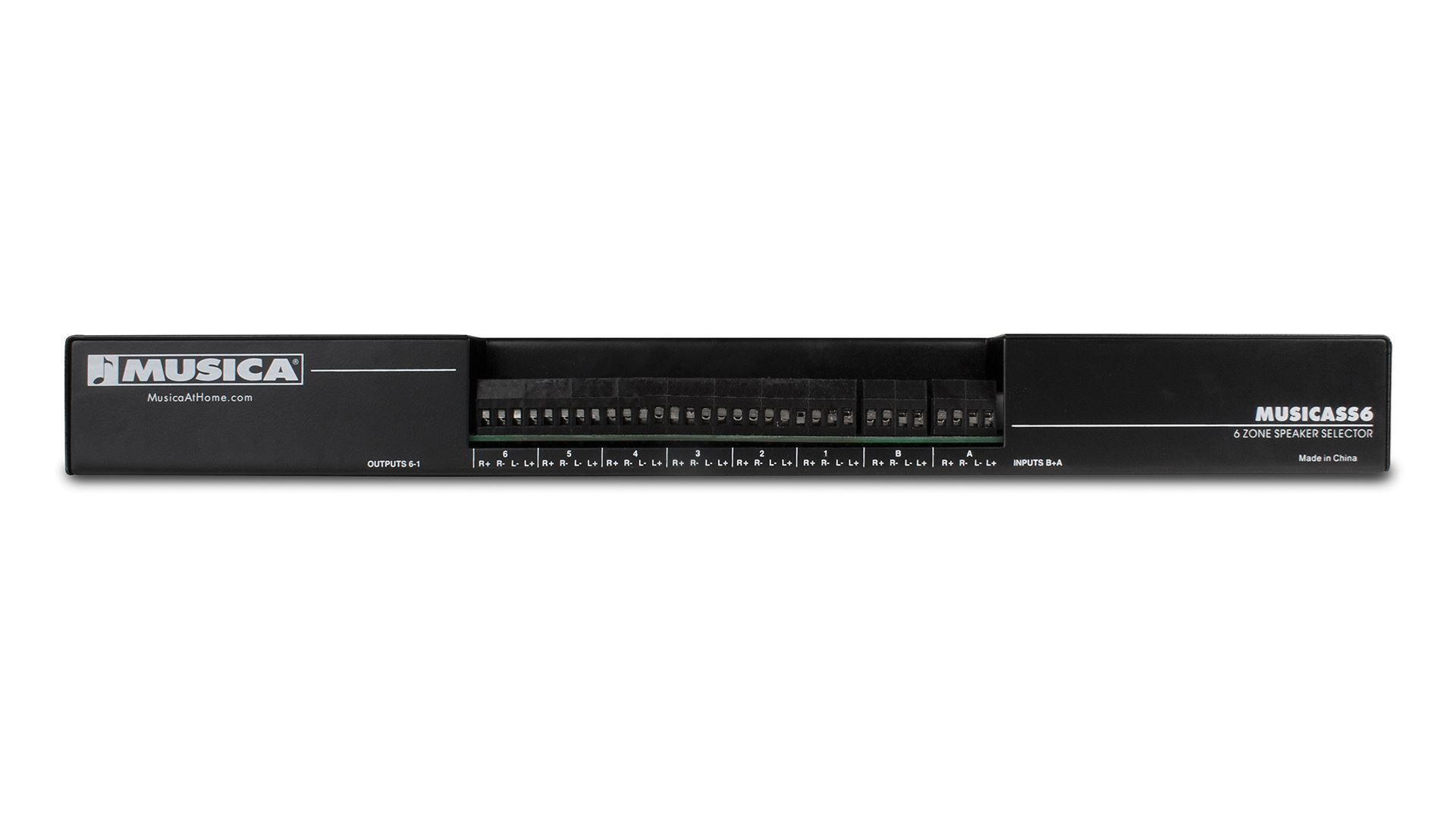

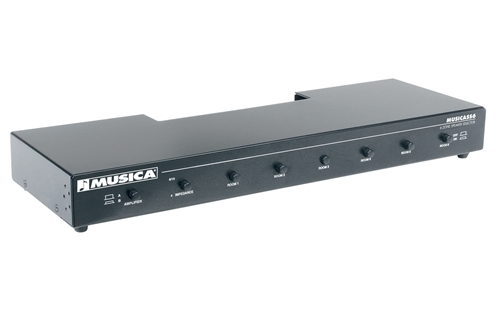

MUSICASS6 6-Position Speaker Selector

Select what speakers you want to listen to throughout your home.

    Availability: In stock
    229.95
    110.00
    119.95
    Share this MTX page...

    The MUSICASS6 speaker selector is the ideal accessory for any home owner using a distributed audio system. This low profile accessory can be easily mounted on a shelf, in a closet, or any other convenient location. The unit features automatic impedance matching ensuring that all speakers in the system, whether 8Ω, 16Ω, or 4Ω, can function with the unit as well as push button power On and Off capability. The unit allows the user to control up to six separate speaker pairs by selecting them to be On or Off. Perfect for sending your audio source to the garage or patio without having to have additional electronics in each location. Each speaker pair output is capable of handling up to 40 watts of RMS power from the amplifier.

    FEATURES
    • Automatic impedance-matching and on/off push-button control
    • Dual-Amplified Source Switching Capability
    • Control of Six Speaker Pairs in Multi-Room or Surround Sound Applications
    • Compact, Low-depth Size is Perfect for Shelf or Rack Mounting. 19" Rack mounting brackets included.
    • Impedance Protection Circuit
    • Left and Right Channels are Completely Isolated for Protected Operation
    • Euro-style Screw Terminals accept 12 to 24 gauge Wire
    • Push Button On/Off Controls for Each Connection
    • Separate On/Off Controls for Each Loudspeaker Pair, and One A/B Source Selector Switch for Overall System Control
    • Power Handling: 40 Watts RMS/ 120 Watts Peak Music Power
    SPECIFICATIONS
    Power Handling 40 Watts RMS
    Wiring Format 12 to 24 AWG
    Height 1 5/8" (4.13 cm)
    Width 17" (43.18 cm)
    Depth 5 7/8" (14.92 cm)

    SUPPORT FILES
    MusicaSS6 (1 page) View | Download
