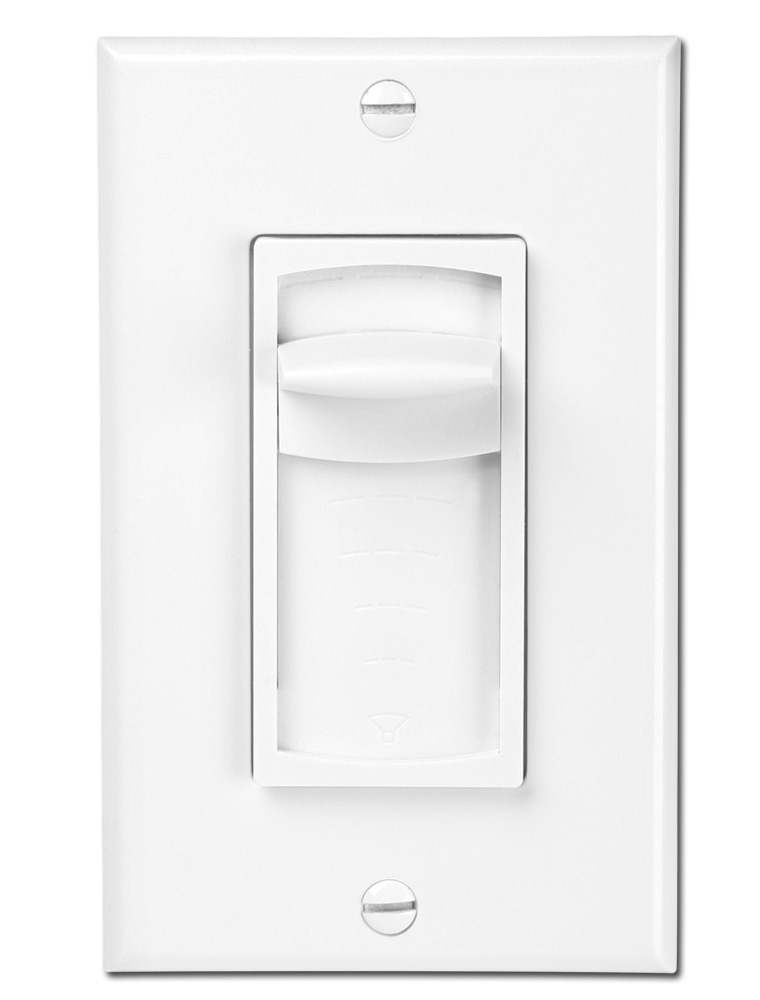

MUSICAVC-70ZS 8Ω Stereo Volume Control

Control the volume of local speakers anywhere in the house

The MUSICAVC-70ZS volume control provides clear, distortion free stereo music reproduction when one or multiple speaker pairs are powered by a single amplifier. MUSICAVC-70ZS is an 8Ω device with a decora-style wall plate supplied in three colors to match virtually any decor. Frequency response is 20Hz - 20kHz (-3dB, -0).

The slim control slider projects a mere 7/16” for unobtrusive yet functional operation. Assemblies measure 2 9/16” deep and mount into a standard 18 cu. in E.O. Box (by others). Each volume control is supplied with matching plastic parts in white, ivory, and almond. These parts are the plate and slider/trim piece. The volume control can be changed to the color of your choice by changing out both plastic parts.

FEATURES

Provides Precision Level Control with Slider Attenuation
70 Watt Rating Achieves Clear, Stereo Music Reproduction in 8 Ohm Applications
Impedance-Matching Capability of 2X, 4X and 8X Provides Flexibility in System Design
Low Profile Styling is a Favorite of Architects and Designers
1X Setting Allows Use as a Standard 8 Ohm Non-Impedance Matching Volume Control
Decora-Style Plate Supplied in White, Ivory, and Almond

SPECIFICATIONS

Power Handling	70 Watts RMS
Frequency Response	20Hz - 20kHz
Dimensions
Height	4 1/8" (10.48 cm)
Width	1 7/25" (3.25 cm)
Depth	2 9/16" (6.51 cm)

SUPPORT FILES

musicavc70zs (2 pages)

View | Download
