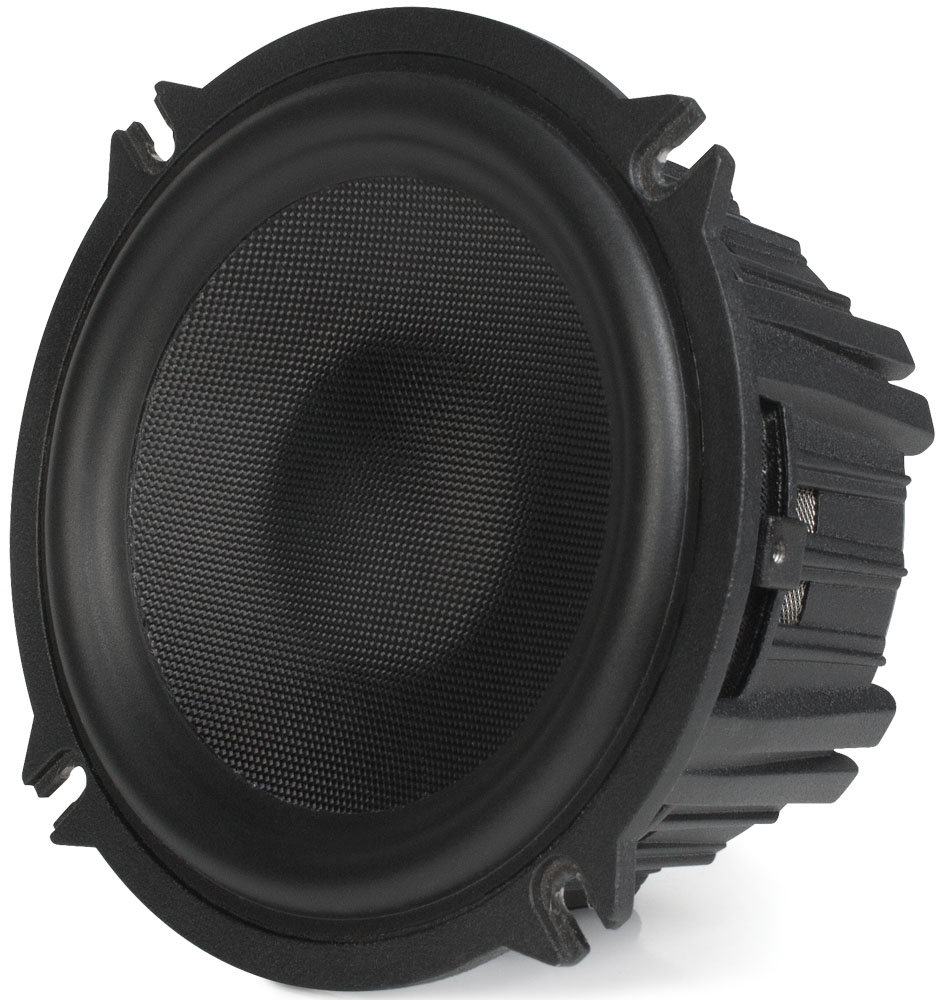

Signature Series SS5 5.25 inch 125W RMS 2-Way Component Speaker Pair

Car Speakers

5.25" Audiophile Grade Component Speakers

MTX Signature Speaker Crossover

Signature Crossover

The Signature Series is a speaker pair that sets itself apart from other full range speakers. They are designed and engineered to deliver precise sound reproduction and exceptional imaging to provide the perfect listening stage in any vehicle.

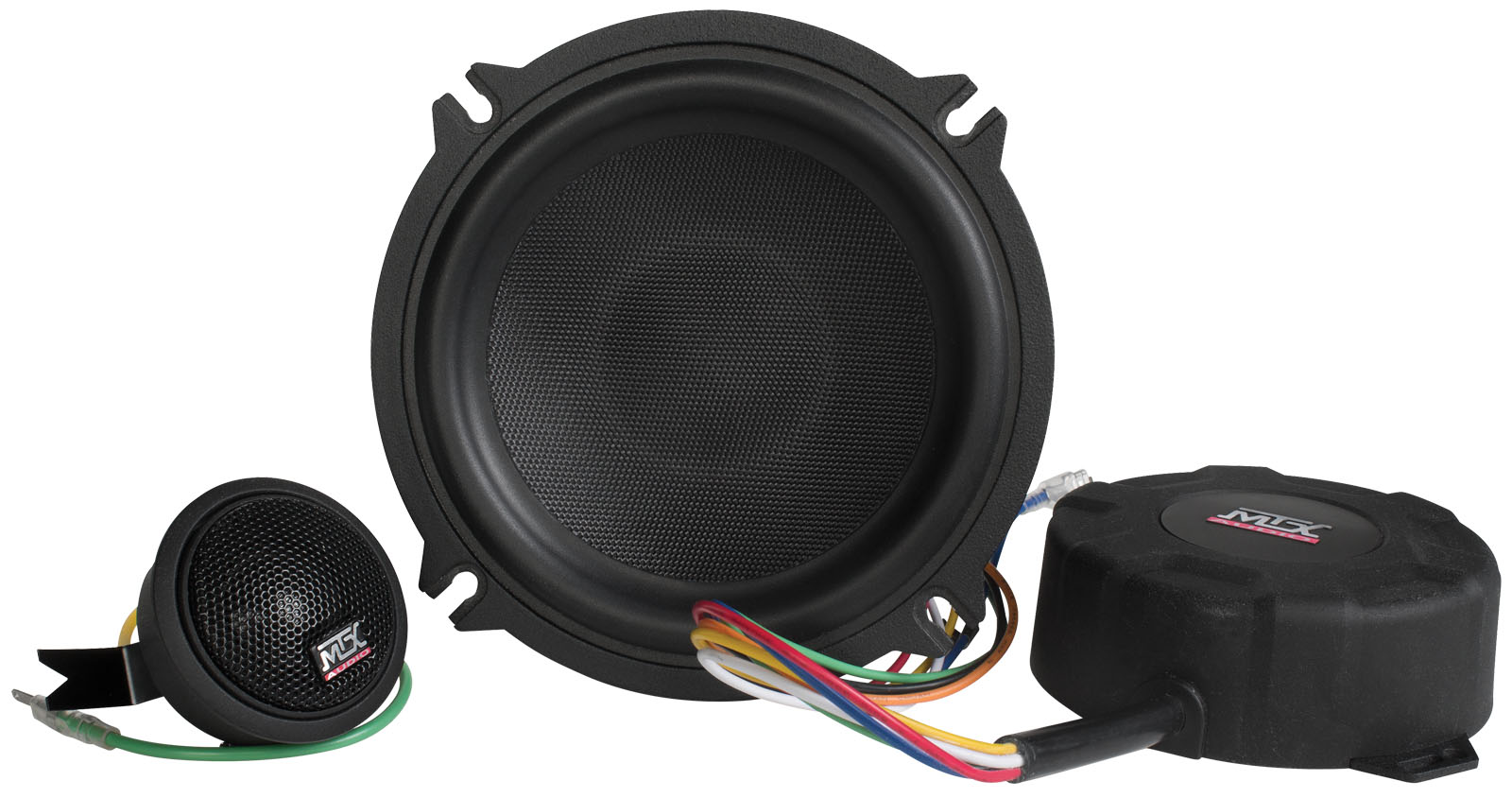

The SS5 is a 5.25" component speaker pair with tweeters that has 4Ω impedance and is capable of handling up to 125 watts RMS power.

The included crossover uses a very small form factor allowing it to be mounted virtually anywhere.

Availability: In stock
SKU: SS5
$599.95
$100.00
$499.95
Share this MTX page...

Incredible Sound

Deliver precise sound reproduction and exceptional imaging.

High End Precision

Glass fiber cone, cast aluminum basket and Teteron tweeter designed for SQ systems.

Compact Crossover

Small form factor can be mounted anywhere. Prewired for easy connection.



Loyd's Signature

High end design, audiophile quality sound, and unique mounting options make the Signature Speakers an excellent choice for sound quality enthusiasts. We can go on all day telling you why we are the best and why you should use MTX audio, but you already know. Loyd Ivey, the Founder of MTX, is the GodFather of audio and has been in the Audio World for over 40 Years. Loyd has always been "Serious About Sound", designing many world class speakers... but here he even put his signature on these high performance components.

We introduce to you the Signature Series Speakers that not only look amazing, but sound so clean and clear that you will never believe a speaker could have such technology and love of music designed into a speaker . Loyd puts his experience and knowledge into every one of his Audio Creations, but he has combined it all into the "Signature Series".

If you want to BE LOUD, BE HEARD, and BE SEEN then let Loyd Ivey start your party!

Full Range Speakers

Every vehicle has full range speakers, the drivers that produce the majority of the sound you hear when listening to music in your car. Surprisingly there is a huge difference in the sound quality that one speaker can deliver versus another. The Signature Series is a speaker pair that sets itself apart from other full range speakers. They are designed and engineered to deliver precise sound reproduction and exceptional imaging to provide the perfect listening stage in any vehicle.

MTX SS7 Signature SpeakersSS5 Key Features

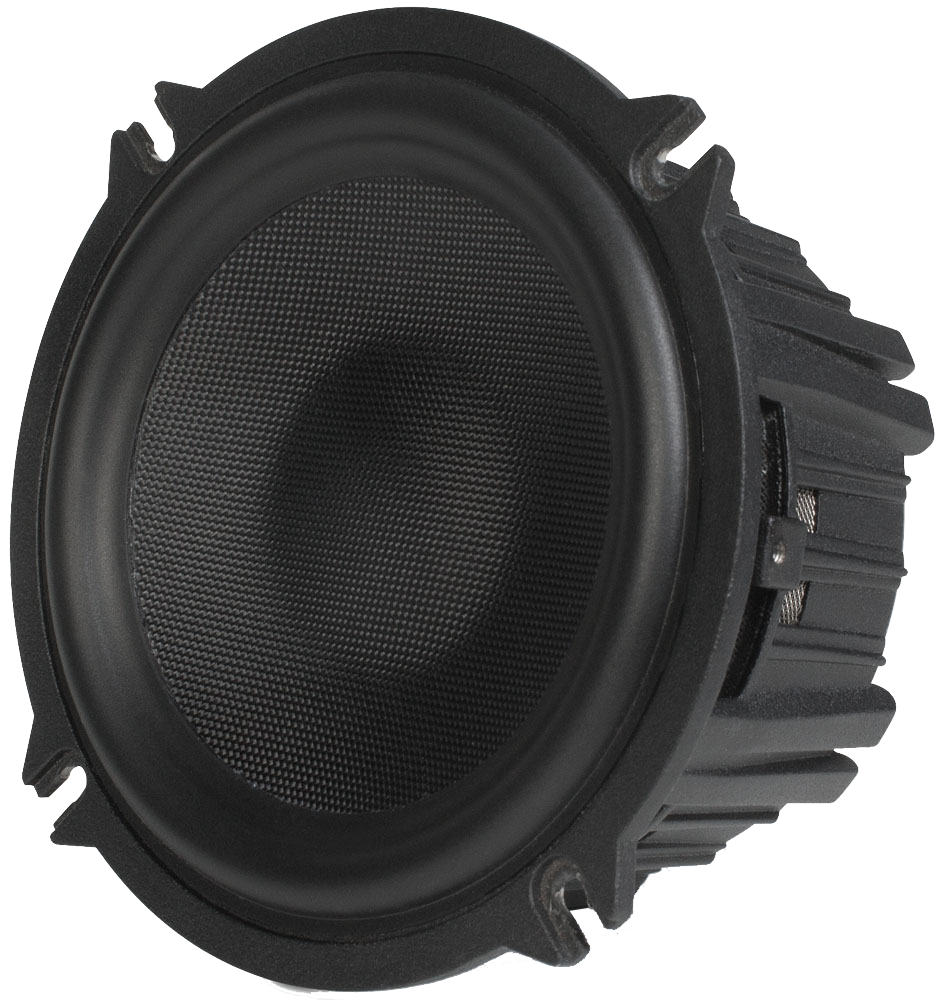

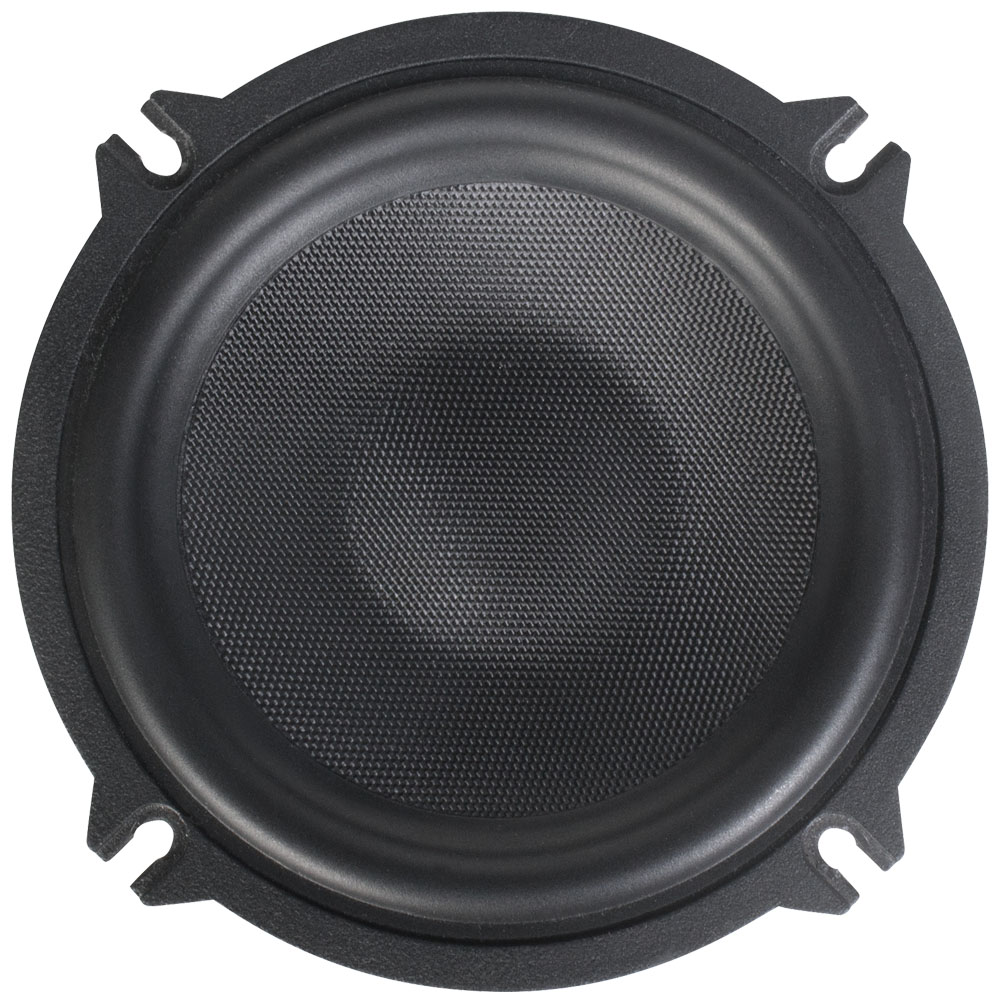

  • High Efficiency Glass Fiber Cone
  • Cast Aluminum Basket
  • 1.5" High Temperature Voice Coil
  • Teteron Tweeter
  • Easy Install Crossover

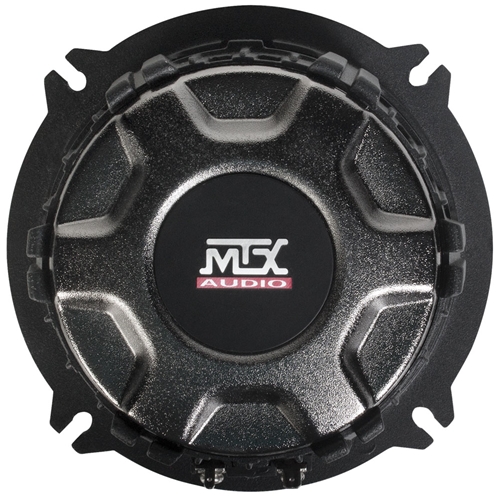

High End Precision

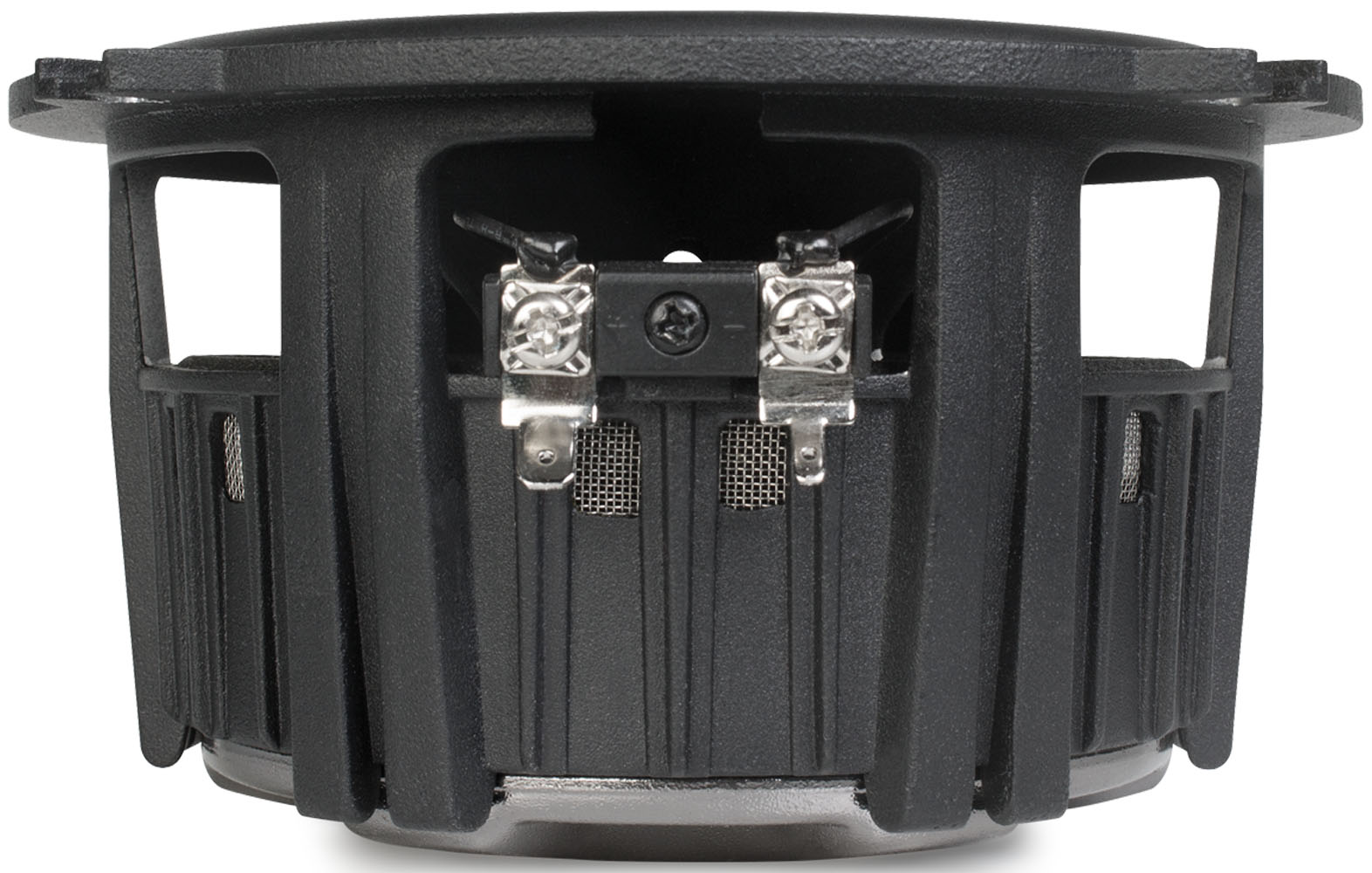

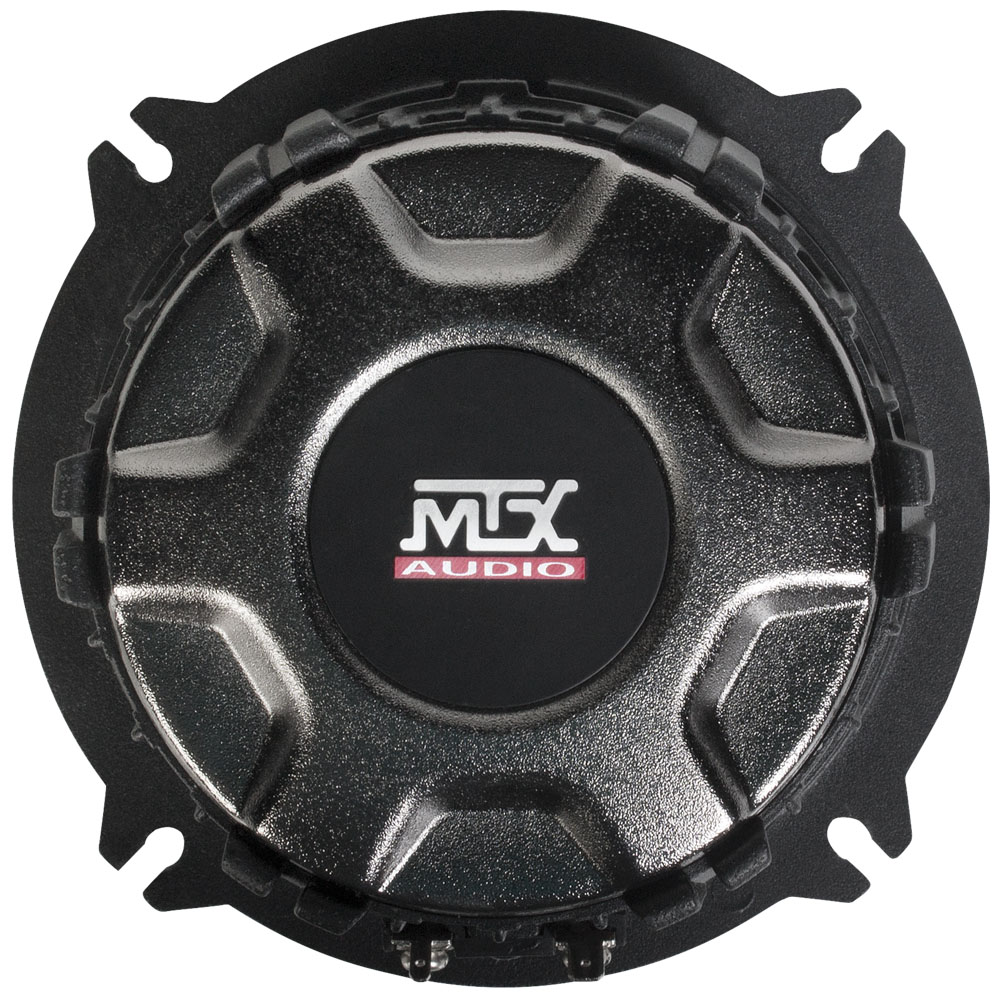

The quality found in these speakers starts with their construction. From the basket to the voice coil to the cone, these speakers use the highest end materials, after all you can't expect great sound from inferior materials. The cast aluminum basket not only reduces resonance created from reverberation of the sound waves in the mounting space, but it also does double duty as a heat sink absorbing hot air generated in the voice coil and moving away from the motor structure. The glass fiber cone has an excellent stiffness to weight ratio enabling them to produce high output on lower power.

WHAT OUR CUSTOMERS SAY!

...It's the best innovation

Guest - 7/17/2014 - SS7


Teteron Tweeter

The teteron tweeter is designed to deliver high quality, high frequency sound reproduction wherever it is mounted. Additionally, teteron is water resistant so they can be confidently mounted in door panels or A pillars without fear of damage from moisture. A 1.5" voice coil is able to handle high power efficiently and reduces distortion at high levels for crisp, clear sound even at high levels.

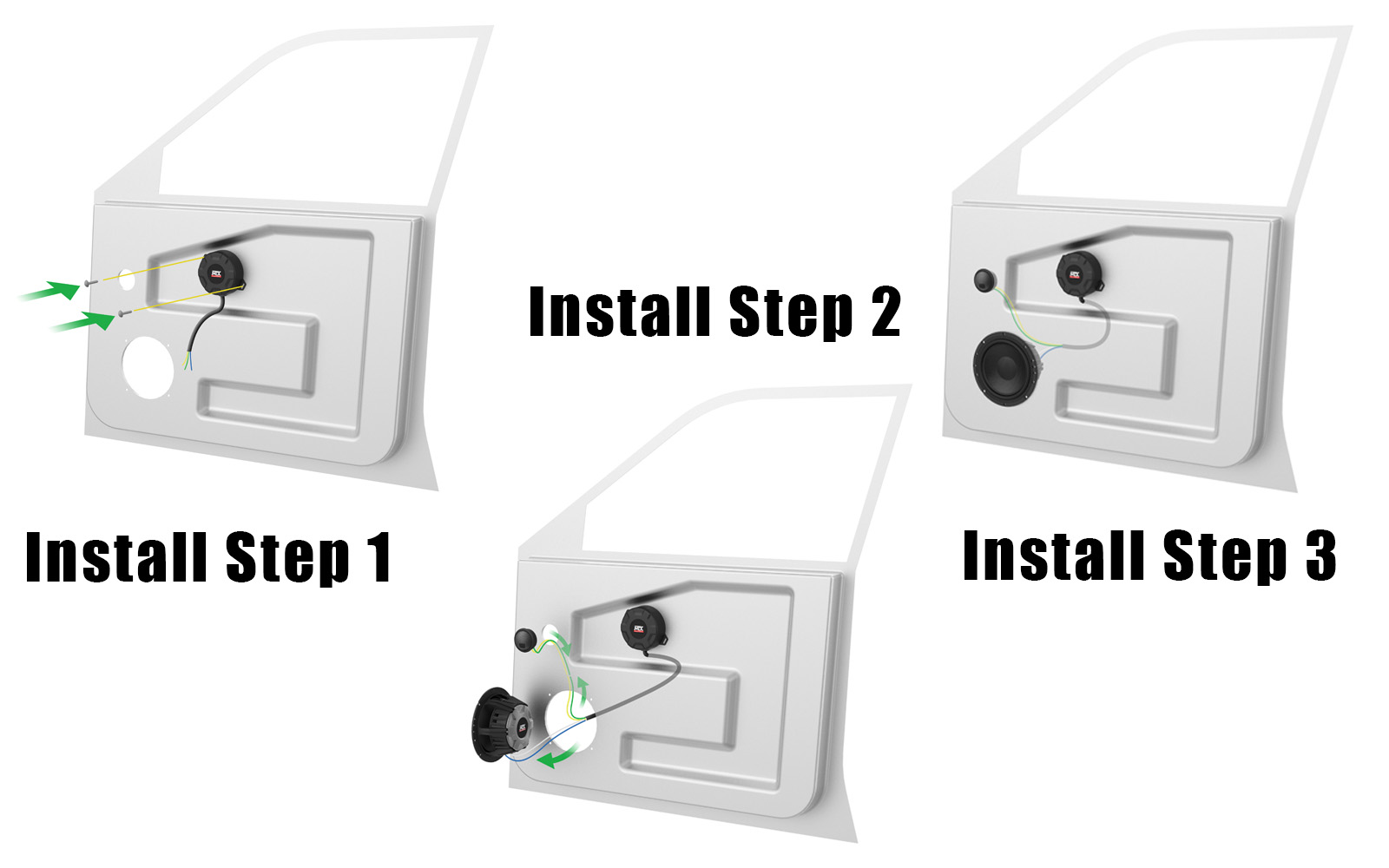

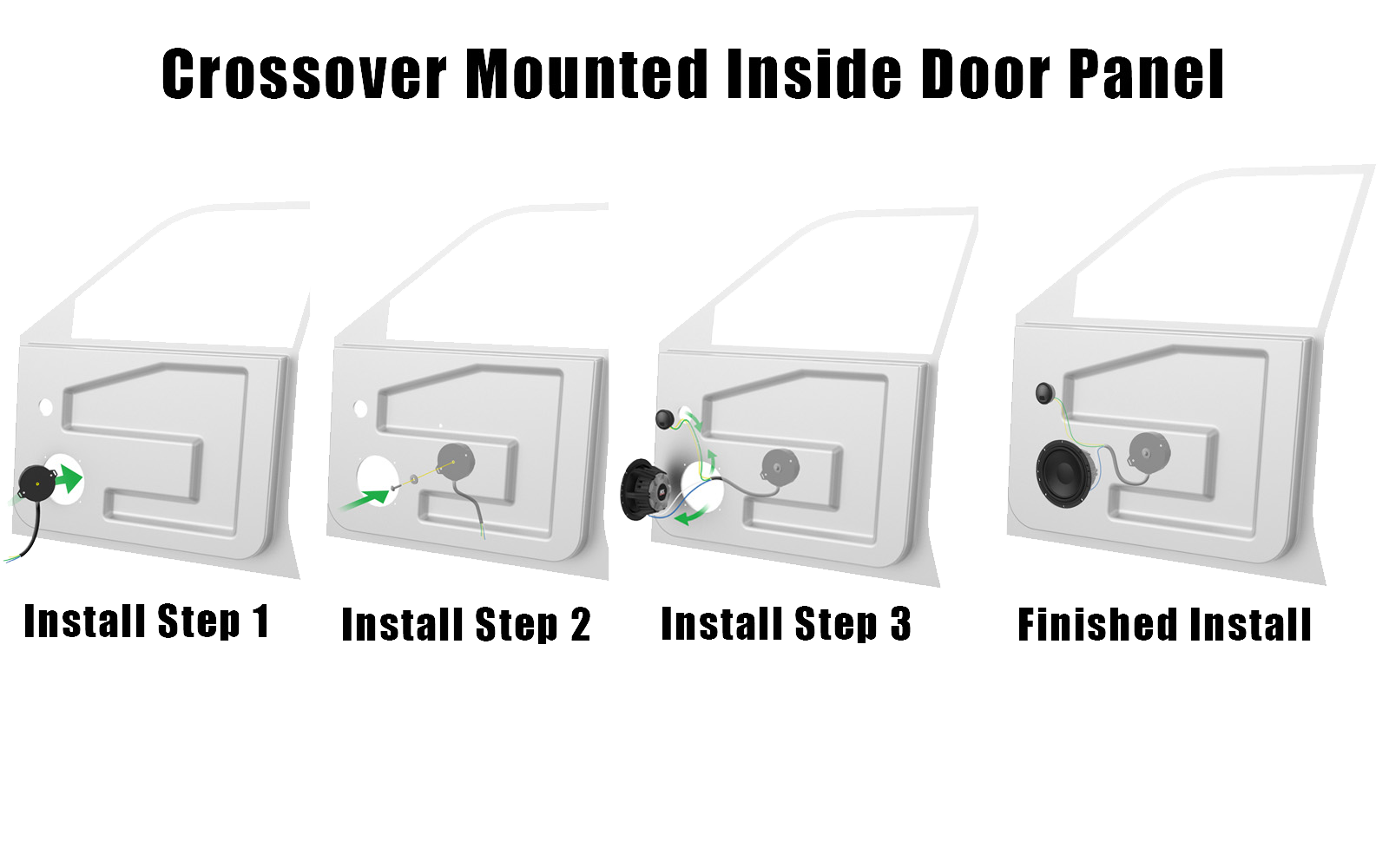

MTX Signature Series Speaker Crossover Mounted Inside Door Panel

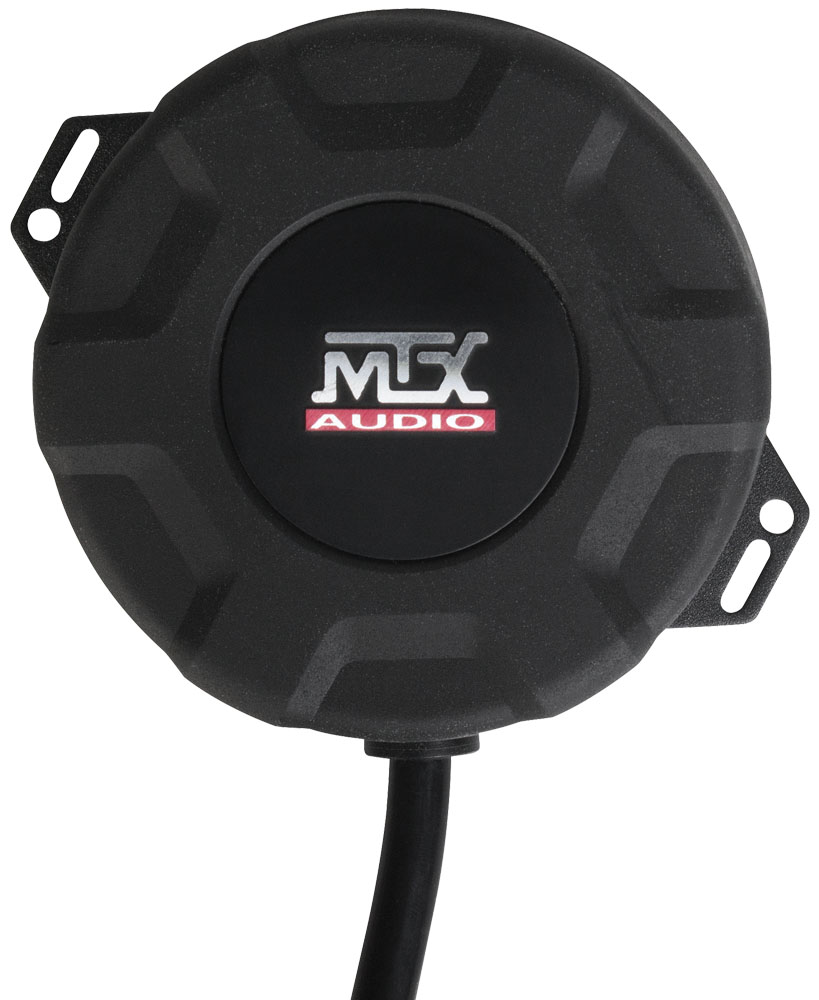

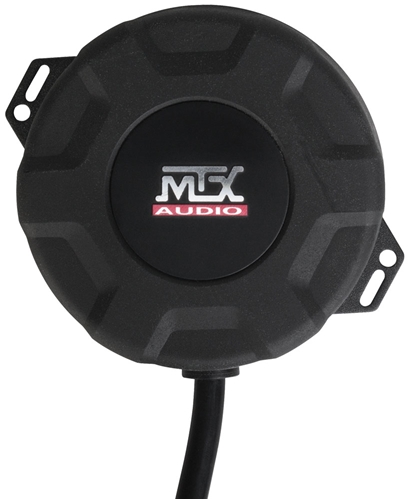

Compact Crossover Mounts Anywhere

The included crossover uses a very small form factor allowing it to be mounted virtually anywhere. The crossover is prewired for easy connection to both the woofer and the tweeter cutting down on installation time. The crossover features multiple external mounting locations where screws or zip ties can be used to secure it in place. Additionally, the unit features a threaded rear insert allowing for blind mounting of the crossover behind a door panel where it is out of the way.

The SS5 is a 5.25" component speaker pair that has 4Ω impedance and is capable of handling up to 125 watts RMS power. Get ready to rock...

Features
  • High Efficiency Glass Fiber Cone
  • Cast Aluminum Basket
  • 1.5" High Temperature Voice Coil
  • Easy Install Crossover
  • Teteron Tweeter
Tech Specs
RMS Power (Watts) 125
Impedance
Peak Power (Watts) 250
Frequency Response 40Hz - 30kHz
Sensitivity 84.9dB
Cone Material Glass Fiber
Voice Coil 1.5"

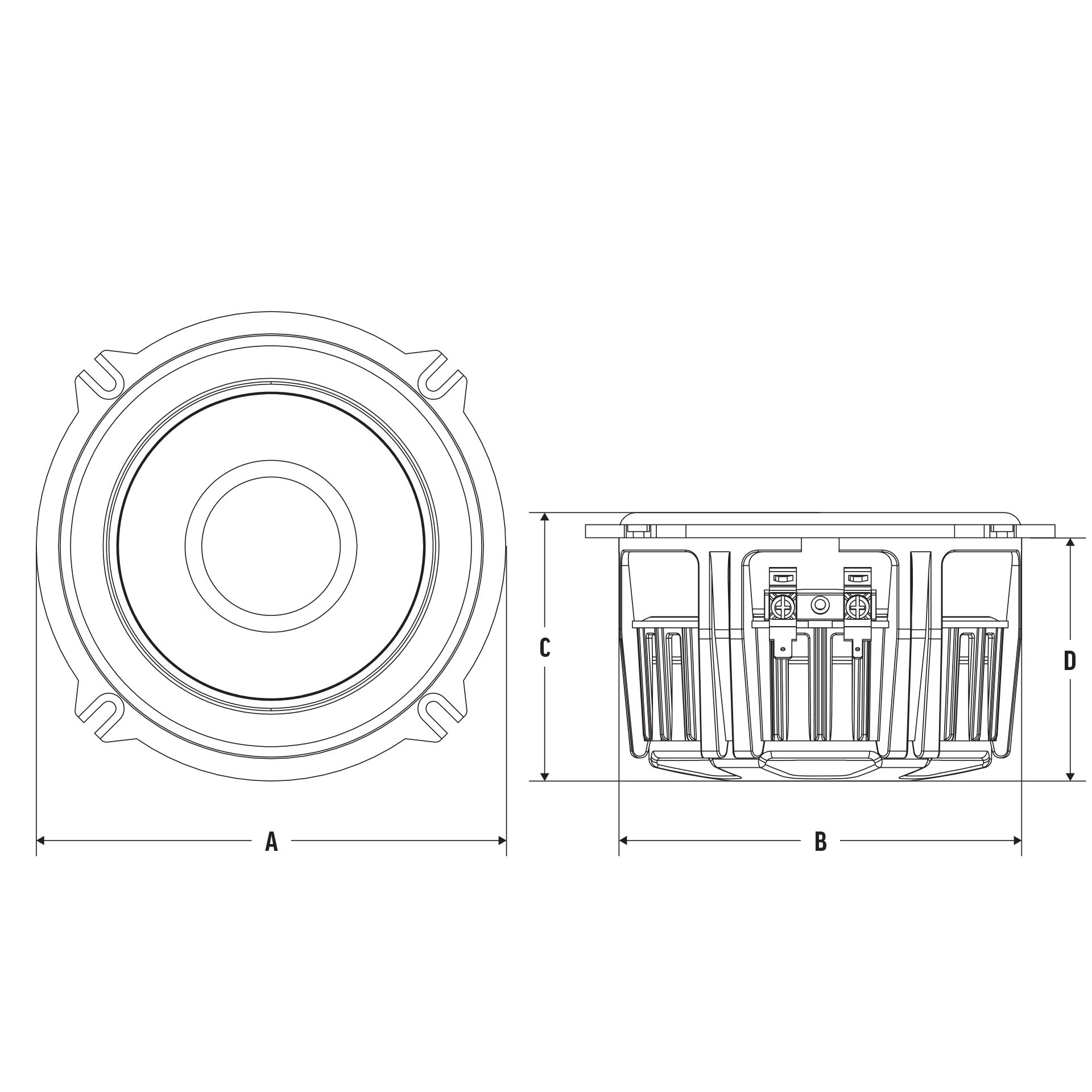

Woofer Mounting Depth 2.83"
Woofer Cut Out Diameter 4.63"
Tweeter Mounting Depth 1"
Tweeter Cut-out Diameter 1.88"
Tweeter Mounting Options Flush, Surface, Angle
Crossover 2kHz, 12dB/Oct, HP/LP
Adjustable Tweeter Level 0, -3dB
