TC3001 MTX 300 watt RMS Mono Car Amplifier

Archive Products

TC3001 MTX 300W Mono Car Amplifier

No longer in production

TC3001 MTX 300 watt RMS Mono Car Amplifier

SKU: TC3001
Sold Individually
199.95
100.00
99.95
Share this MTX page...
    TC3001 Specifications
    # of Channels 1
    Class (Patented Adaptive Class D) (Pat. No: US06753729) x
    Amp Type Optimized for Subwoofer x
    CEA-2006 Primary Ratings RMS Power @ 4 Ω 150 Watts x 1 Channel and <1% THD+N
    Signal-To-Noise Ratio
    (1 Watt)
    75 dB
    CEA-2006 Secondary Ratings RMS Power @ 2 Ω 300 Watts x 1 Channel and <1% THD+N
    THD+Noise (Distortion) (1Watt) <0.25%
    Frequency Response
    (-3dB)
    20Hz-200Hz
    Maximum Input Signal 5V
    Maximum Sensitivity 100mV
    Non-CEA Specifications Max Power 900 Watts
    Low Level Input x
    Hi-Level Input w/ Smart Engage Auto Turn-on x
    Low-Pass Crossover 40Hz-200Hz, 24dB
    SubSonic Filter 30Hz, 12dB/oct
    Thunder EQ 0-18dB, Freq. 40Hz
    Remote Level Control Subwoofer(Parallelable)

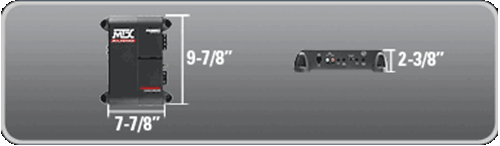

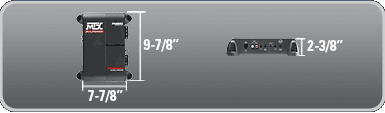

    DIMENSIONS Width 7-7/8"
    Depth 9-7/8"
    Height 2-3/8"
    Support Files
    Owners Manual MTX_TC_ClassD (17 pages) View | Download
