DCM TFE2630LCR Dual 6.5 inch 2-Way 150W RMS 8 Ohm In-Wall LCR Loudspeaker

Home Audio - Custom DCM In-Wall Speakers

TFE2630LCR In-Wall LCR Loudspeaker

Built-in audiophile sound throughout your home

Dual 6.5" 2-Way 150W RMS 8 Ohm In-Wall LCR Loudspeaker

Enhanced Imaging And Rich Sound

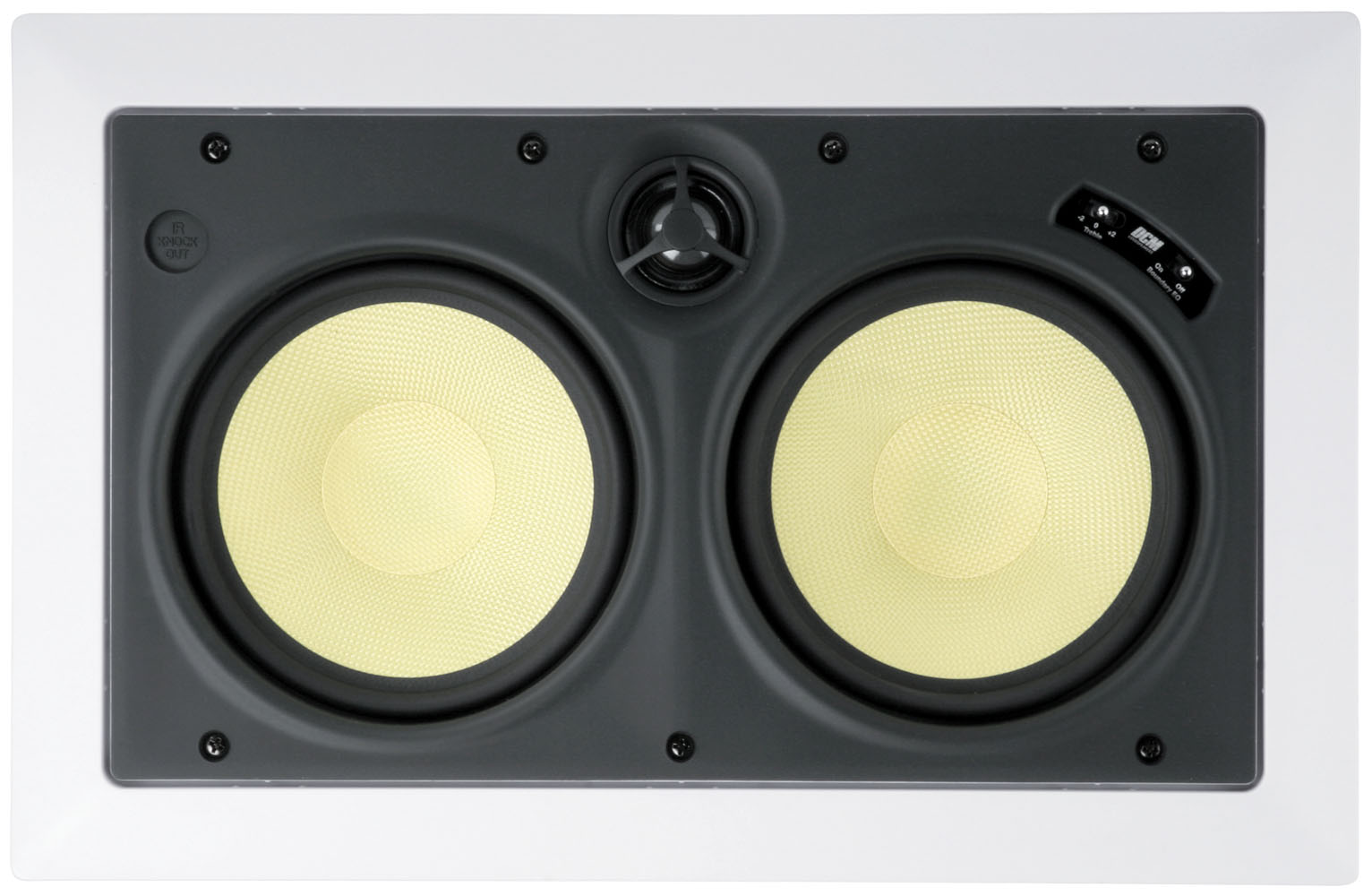

Two 6.5" Kevlar woofers, a 30mm Teteron dome tweeter and a neodymium magnet make this speaker rock. Enhanced imaging from a myriad of mounting locations, this TimeFrame Evolution in-wall features adjustable tweeter level control and room boundary compensation.

SKU: TFE2630LCR
$449.95
Share this MTX page...

TimeFrame Evolution Series

Featuring DCM's One Voice technology for perfect compatibility

High Performance Audio

Dynamic range and deep, rich tone

Convenient And Hidden

Easy installation and hidden surround sound

DCM's "One Voice"

Enhanced by DCM's unique One Voice technology, the TFE2630LCRs are a part of the premier TimeFrame Evolution series. Voice characteristics and engineering in all the models of both the TimeFrame Evolution and TimePiece series of loudspeakers are matched to provide full, rich sound no matter which models are being used together. It is finally possible to combine in-ceiling, cabinets, and specialty speakers into a fluid multi-channel system without sacrificing sound quality.

TFE2630LCR Key Features

  • Kevlar Cones with Rubber Surrounds
  • Specifically Designed for Use as a LCR (Left, Center, or Right) Speaker
  • 30MM Teteron Dome Tweeter
  • Three Position Tweeter Level Control, -2, 0, +2
  • Adjustable Room Boundary EQ 0dB, 3dB
  • One Voice Technology
  • Video Shielded
  • IR Remote Knockout
  • Swivel Style Mounting Wings
  • Nickel-Plated Compression Terminals

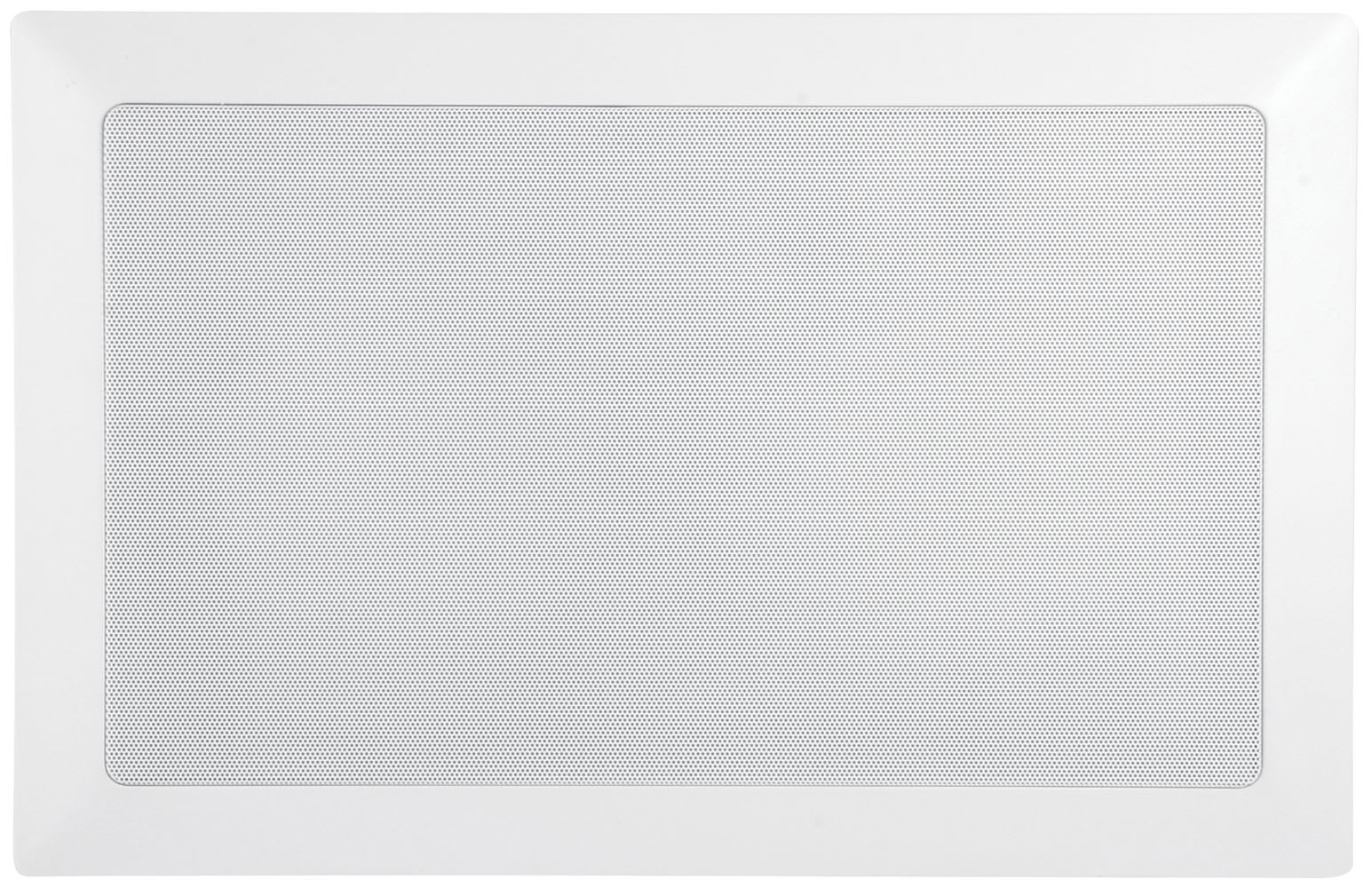

  • Paintable Fine Mesh Grilles
  • Debris Resistant Basket

Realistic Home Theater Experience

Real World Tuned

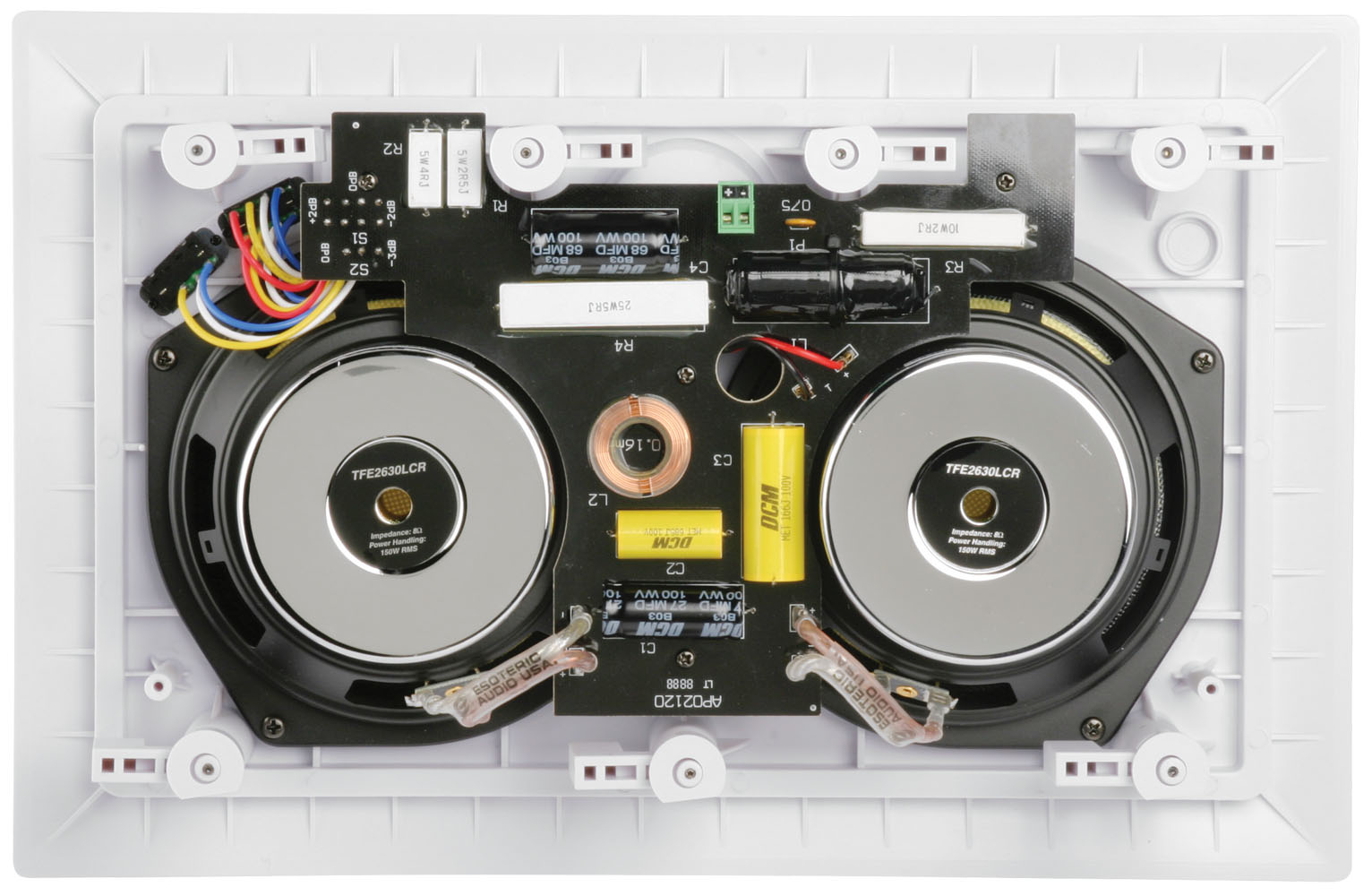

Engineered for high-quality materials and features, the TFE2630LCR is real world tuned for superior performance in countless situations. Its driver array consists of two 6.5" Kevlar woofers, complete with rubber surrounds, and a 30mm Teteron dome tweeter with a neodymium magnet. For enhanced imaging from a myriad of mounting locations, this TimeFrame Evolution in-wall features adjustable tweeter level control and room boundary compensation. While the 3 settings for the tweeter (-2dB, 0dB, +2dB) help adjust the balance with the lower frequencies, the Room Boundary EQ eliminates unwanted low frequencies boosts in corner installations.

Features
  • Kevlar Cones with Rubber Surrounds
  • Specifically Designed for Use as a LCR (Left, Center, or Right) Speaker
  • 30MM Teteron Dome Tweeter
  • Three Position Tweeter Level Control, -2, 0, +2
  • Adjustable Room Boundary EQ 0dB, 3dB
  • One Voice Technology
  • Video Shielded
  • IR Remote Knockout
  • Swivel Style Mounting Wings
  • Nickel-Plated Compression Terminals
  • Paintable Fine Mesh Grilles
  • Debris Resistant Basket
Tech Specs
Woofer Dual 6.5" Kevlar
Tweeter 30 mm Teteron Dome
RMS Power (Watts) 150
Peak Music Power (Watts) 300
Frequency Response 40Hz - 20kHz
Sensitivity 90dB
Height 10 1/2" (26.67 cm)
Width 16 1/4" (41.28 cm)
Depth 4" (10.16 cm)
Mounting Depth 3 5/8" (9.21 cm)
Cut Out Size 8 5/8" x 14 3/8"
Support Files
TFE2630LCR Cut Out (1 page) View |  Download
