SKU: TH1400.5

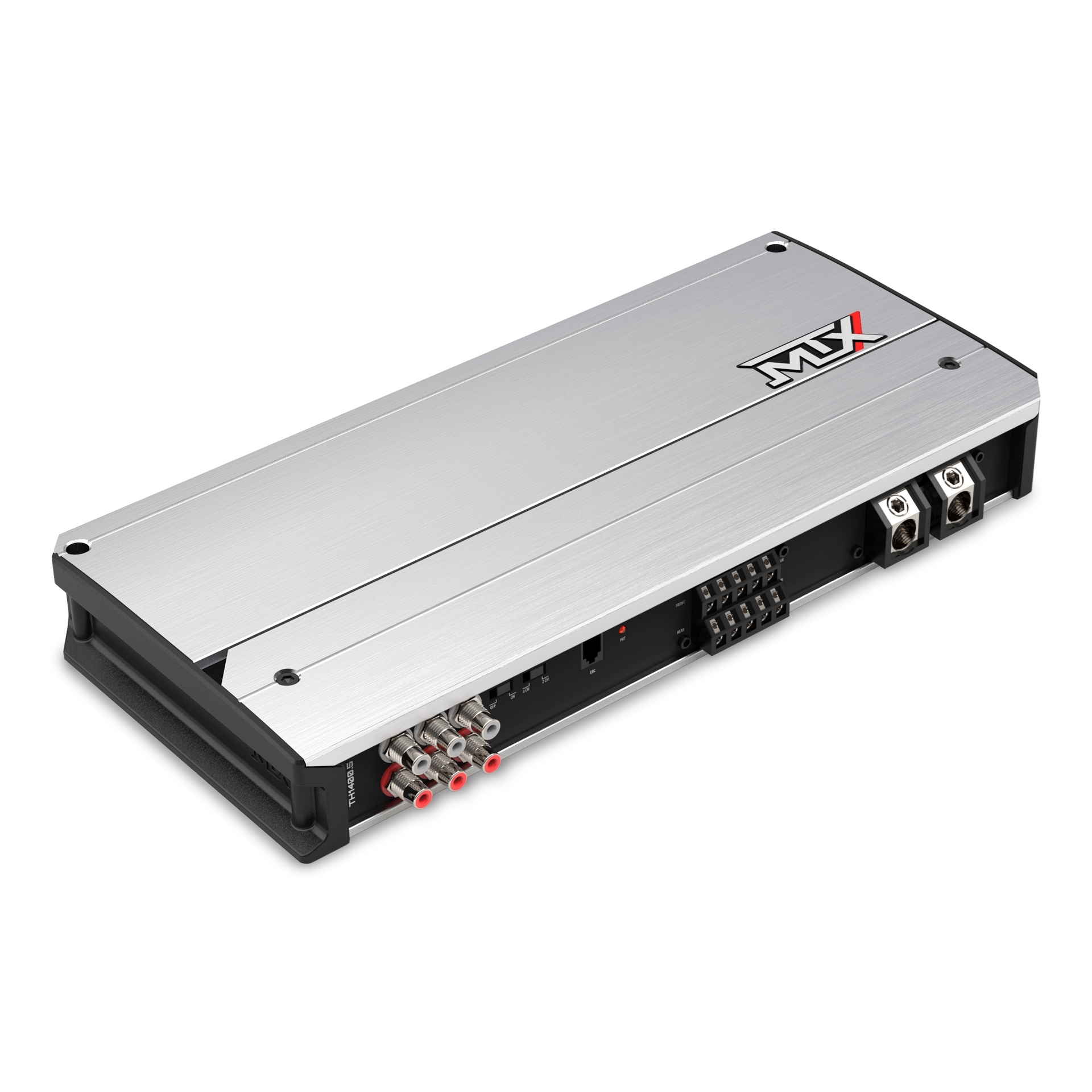

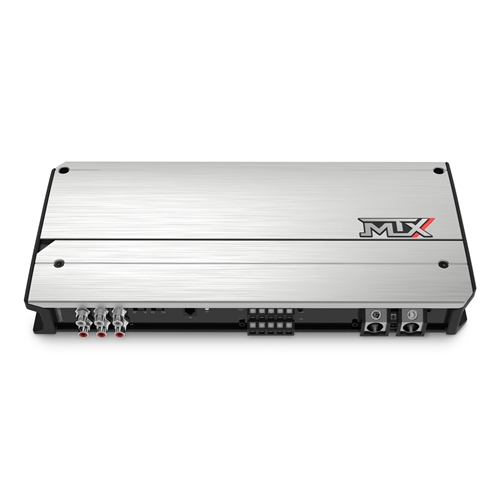

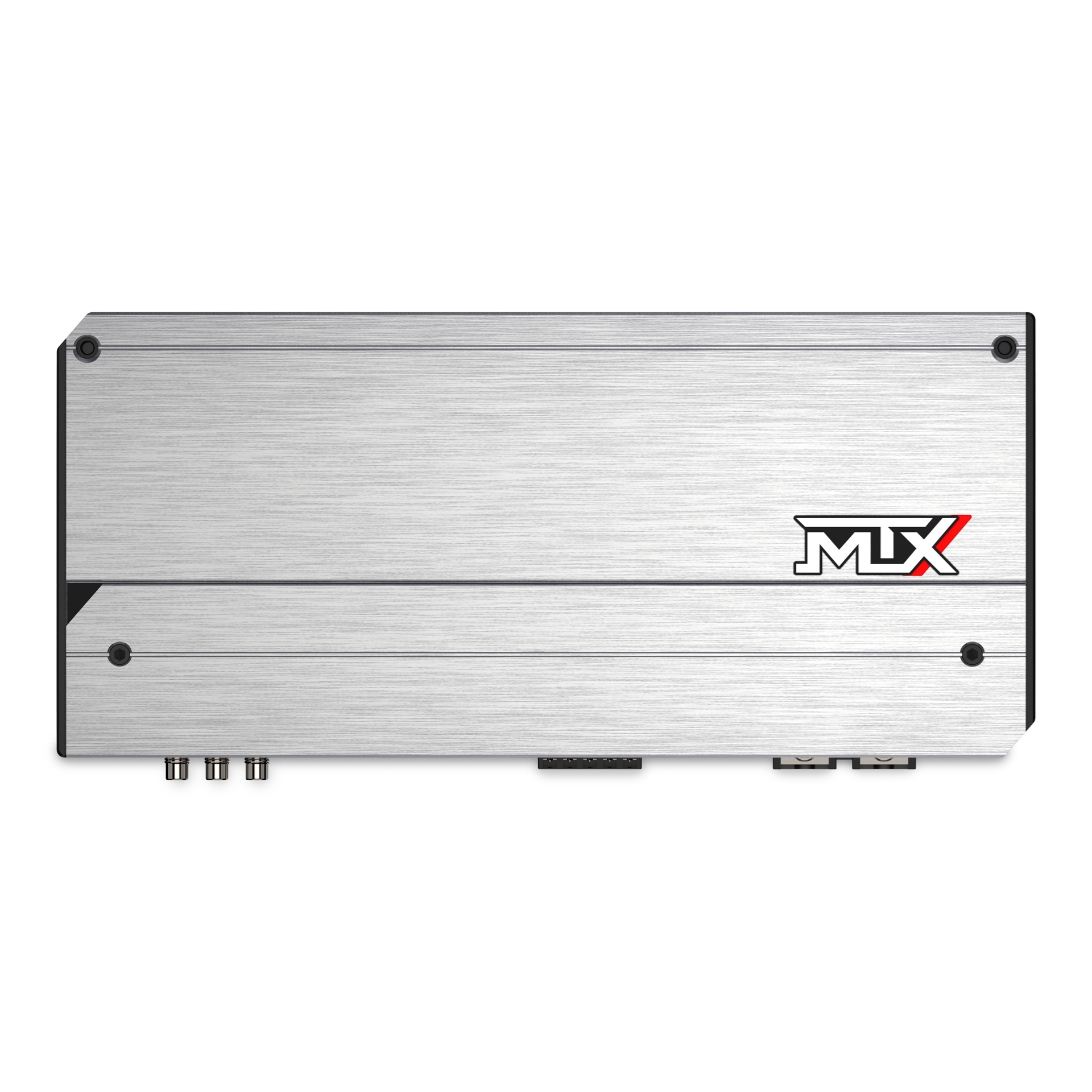

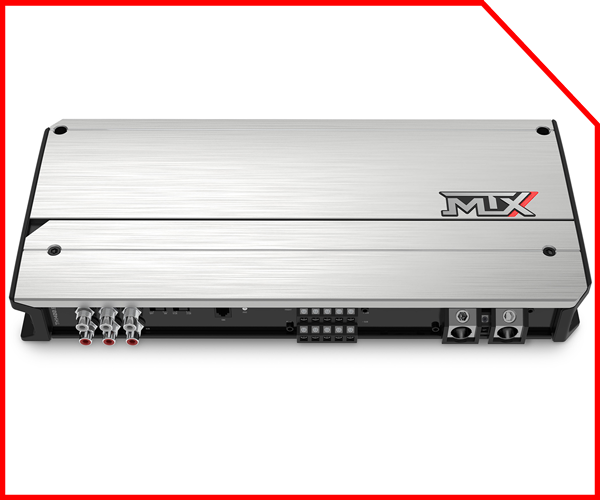

THUNDER 1400-Watt RMS Class-D 5-Channel Amplifier

Availability: In stock

$949.95 MSRP

$849.95

One Amp for your Entire System

The TH1400.5 five-channel amplifier from MTX powers your entire car audio system with full-range clarity and deep, rich bass. Designed with dedicated channels for both speakers and a subwoofer, this compact amp delivers powerful, efficient performance and precise sound control for any setup. With its compact size, advanced protection features, and included bass control remote, it’s the perfect all-in-one solution for audiophiles.

Ask an expert Find a location

Complete Audio Power in One System

The TH1400.5 THUNDER amplifier is the perfect blend of versatility and performance. With four full-range channels delivering up to 100W RMS each at 2Ω, plus a subwoofer channel capable of 800W RMS at a phenomenal 1Ω load, you will have more than enough power for whatever you want to listen to. Whether it’s crisp highs, rich mids, or booming bass, the TH1400.5 ensures every note hits perfectly.

Custom Sound, Simplified

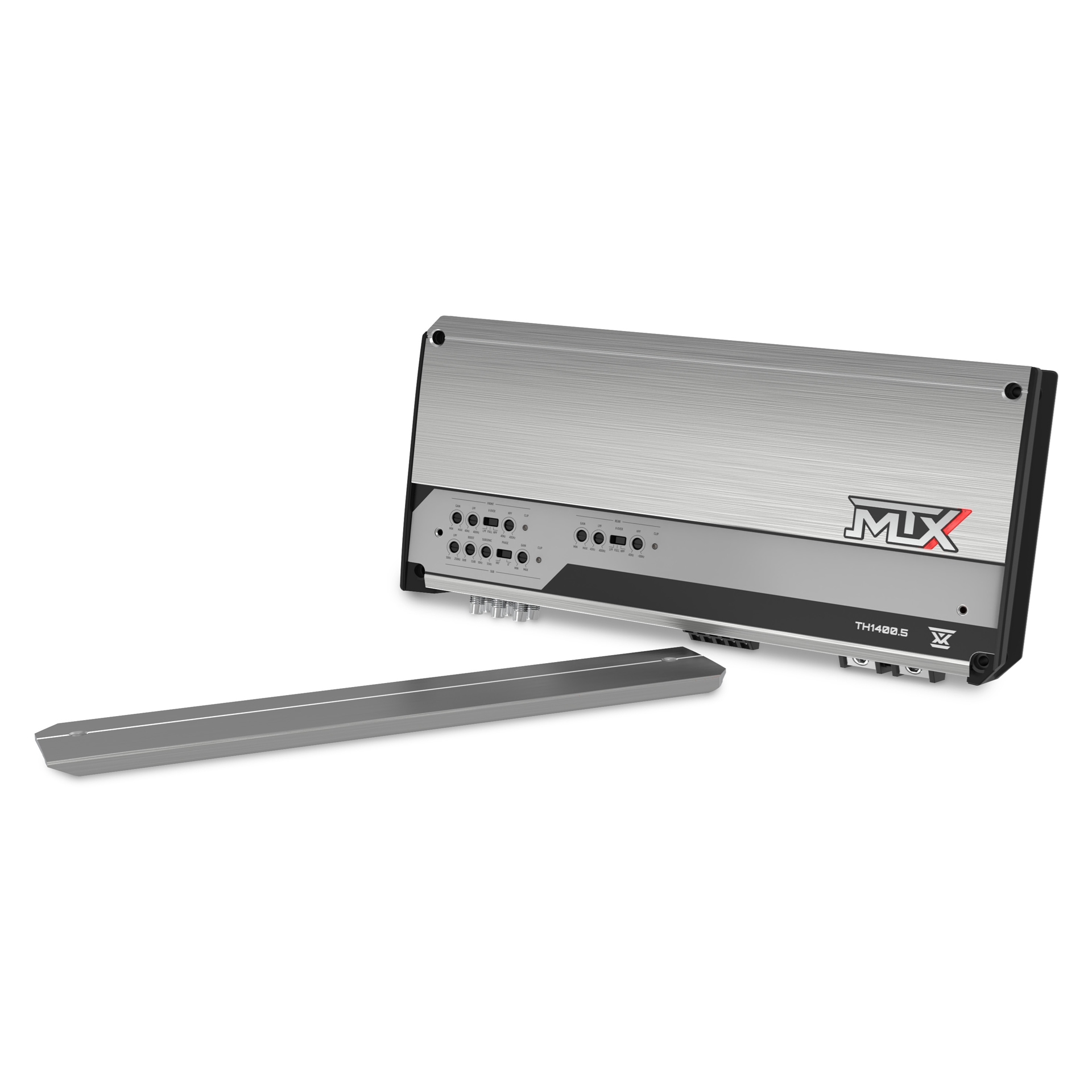

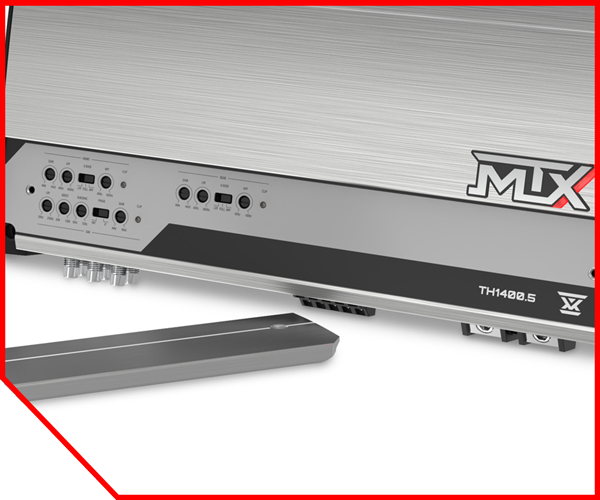

Take complete control of your sound with fully adjustable gain, crossover, and bass boost settings. Hidden under a sleek panel cover, these controls let you fine-tune every detail of your audio while maintaining a clean and stylish look. The included external bass control remote puts subwoofer adjustments right at your fingertips for quick, on-the-go tweaks.

Efficient and Reliable Performance

Built with Class-D efficiency, the TH1400.5 minimizes heat and power consumption without sacrificing output. Advanced protection circuits and an LED status indicator keep your system running smoothly, alerting you to any potential issues so you can enjoy uninterrupted music on every drive.

Big Power in a Compact Design

Despite its impressive power, the TH1400.5 boasts a compact footprint that fits easily into tight installation spaces. The stylish chassis complements any vehicle interior, combining form and function to elevate your audio system both visually and sonically. The Dyno Certificate included will ensure that your amplifier potential exceeds the rated amount and gives you the power you deserve.

Dimensions & Details

Dimensions

A - Length:

14 ¹⁄₂” (367mm)
B - Width:

7” (176mm)
C - Depth:

2” (50mm)
Weight:

9.06Lbs (4.11Kg)

Videos

MTX Thunder TH1400.5 Amplifier DYNO

Features

1400 Watts RMS Power Output
Four Full-Range Channels and One Mono Subwoofer Channel
High-Efficiency Class-D Circuit Design
Adjustable Gain, Crossover, and Bass Boost Controls
Hidden Control Panel for a Clean Look
Included External Bass Control Remote
Power and Protection LED Status Indicator
Thermal, Short, and Over/Under Voltage Protection
High-Quality Tiffany-Style RCA Input
10V High-Level Audio Input Compatibility
Clip Detection Light for Tuning Optimization
Surface Mount Component Technology

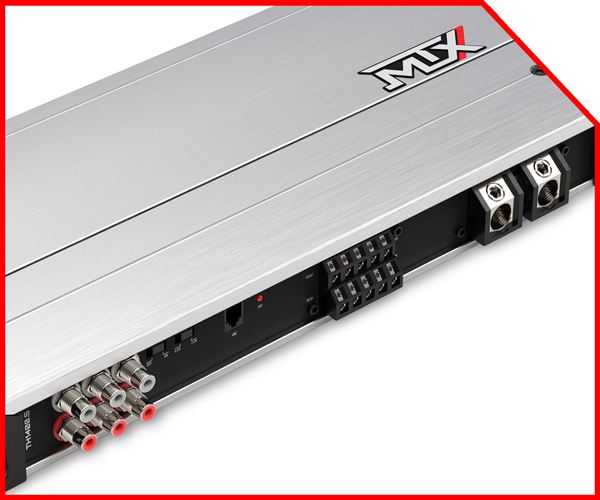

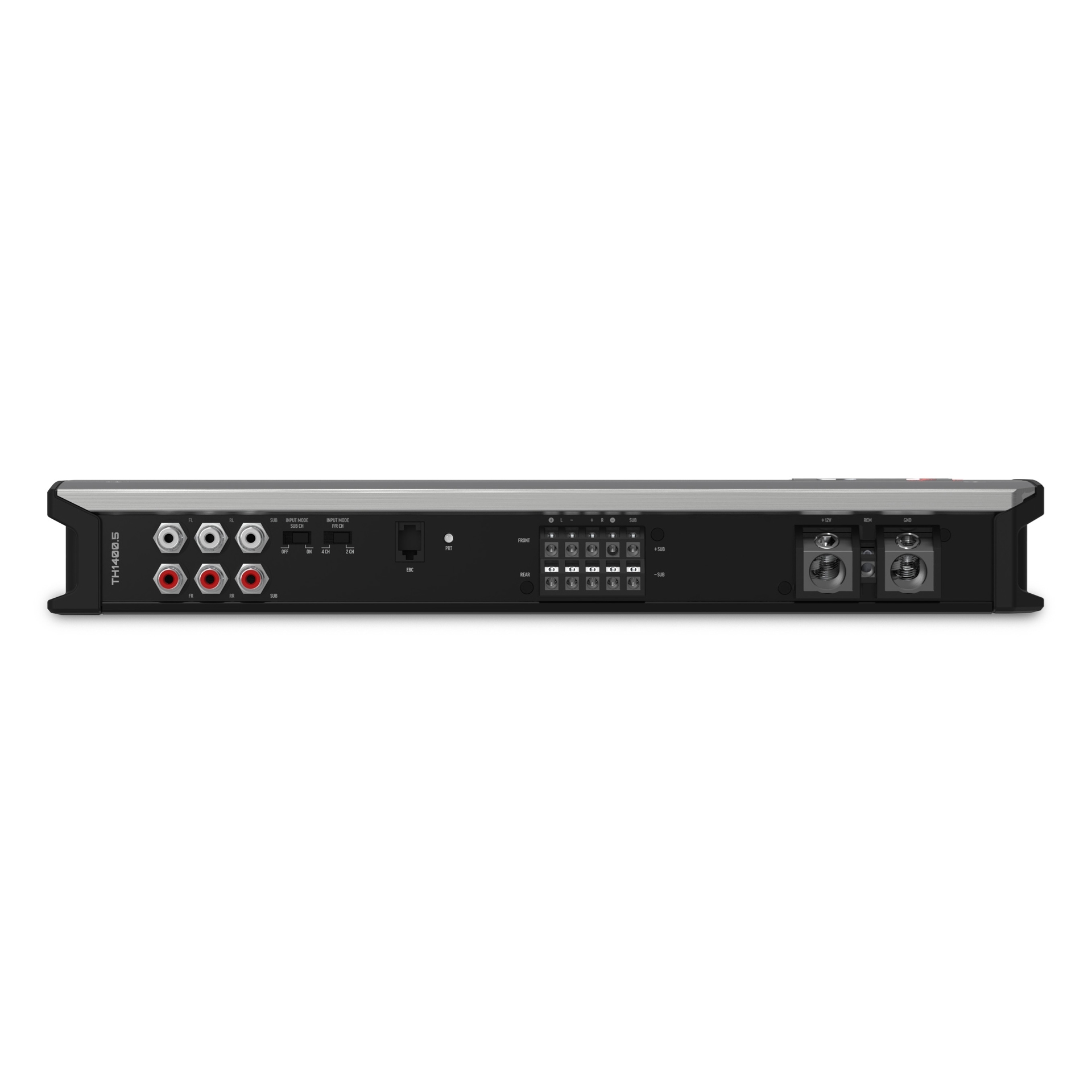

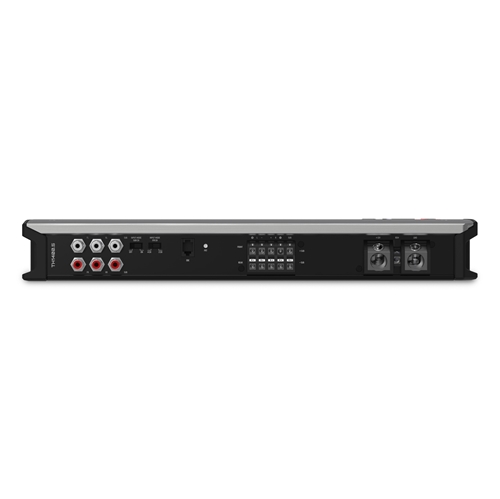

Direct Insert Power and Speaker Terminals
Dyno Power Rating Certificate

Ratings

CEA2006D compliant
RECOMMENDED FUSE RATING: 150A - 200A

CTA-2006-D Continuous Power Output:

150W RMS x 4 @ 2Ω, 1kHz + 800W RMS x 1@ 1Ω, 50Hz, ≤1% THD+N

150W RMS x 4 @ 2Ω, 1kHz + 500W RMS x 1@ 2Ω, 50Hz, ≤1% THD+N

150W RMS x 4 @ 2Ω, 1kHz + 300W RMS x 1@ 4Ω, 50Hz, ≤1% THD+N

100W RMS x 4 @ 4Ω, 1kHz + 800W RMS x 1 @ 1Ω, 50Hz, ≤1% THD+N

100W RMS x 4 @ 4Ω, 1kHz + 500W RMS x 1 @ 2Ω, 50Hz, ≤1% THD+N

100W RMS x 4 @ 4Ω, 1kHz + 300W RMS x 1 @ 4Ω, 50Hz, ≤1% THD+N

300W RMS x 2 Bridged @ 4Ω, 1kHz + 800W RMS x 1@ 1Ω, 50Hz, ≤1% THD+N

300W RMS x 2 Bridged @ 4Ω, 1kHz + 500W RMS x 1@ 2Ω, 50Hz, ≤1% THD+N

300W RMS x 2 Bridged @ 4Ω, 1kHz + 300W RMS x 1@ 4Ω, 50Hz, ≤1% THD+N

List of CTA-2006-D Certified 12 Volt Amplifiers

SPECIFICATIONS

Description: 5-Channel
Topology: Class D
4Ω RMS Power Output: 100W x 4 Channels + 300W
2Ω RMS Power Output: 150W x 4 Channels + 500W
4Ω RMS Bridged Power Output: 300W x 2 Channels (1/2/3/4)
1Ω RMS Power Output: 800W (Sub Only)
THD: < 0.4%
Signal to Noise Ratio: > 95dB
Frequency Response: 20Hz - 20KHz (Ch1-4) 20Hz - 250Hz (Sub)
Crossover: 40Hz - 400Hz (CH1-4) 50Hz - 250Hz (Sub)
Subsonic Filter: 10Hz - 55Hz (Sub)
Maximum Input Signal: 10V
Warranty Period: 24 months from date of purchase
