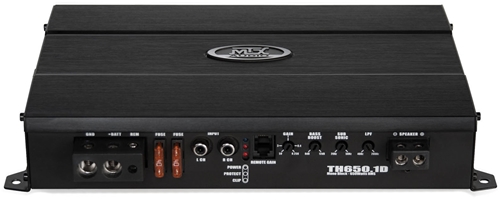

TH Series TH650.1D 650W RMS Mono Block Class D Amplifier

Archive Products

The TH650.1 Amplifier

Power and Performance

MTX TH650 Amplifier Logo

Adding A Sub?

TH Series amplifiers were designed with over 25 years of amplifier experience to exceed your expectations. The TH650.1 is an excellent choice for any enthusiast thinking about adding a subwoofer or subwoofers to their vehicle.

650 Watts Of Raw Power

The TH650.1D is a mono block amplifier that is capable of delivering up to 650-watts RMS power into a 1Ω speaker load.

SKU: TH650.1D
$299.95
$49.98
$249.97
Share this MTX page...

Patented Class D Technology

Reduces external noise for premium sound quality.

Intelligent Surface Mount Technology

Cutting edge parts eliminate interference and resist vibrations on circuit board

Smart Engage

Patented auto turn-on circuit makes installation easy.

TH1200.1D Top Open

TH1200.1D With Top Open Shown

TH650 Key Features

  • Patented Adaptive Class D Technology
  • Patented Smart Engage Auto Turn On
  • Surface Mount Design
  • Dual Sided Fiberglass Printed Circuit Board
  • Convection Cooled Design

650 Watts Of Raw Power

The TH650.1D is a mono block amplifier that is capable of delivering up to 650-watts RMS power into a 1Ω speaker load. This unit features several technologies that have been proven over time to deliver exceptional sound quality. The TH650.1D includes a patent power supply, patented Adaptive Class D design that increases sound quality by eliminating RF interference generated by the MOSFET power supply, and Smart Engage auto turn on technology that eliminates the need to run a remote wire to activate the amplifer during installation saving time and possible damage to the dashboard.

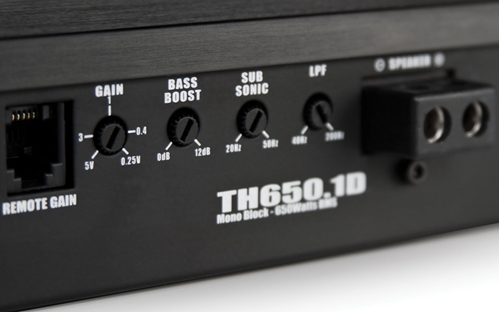

This model also features a 24dB/oct low pass filter that increases sound quality by reducing unwanted frequencies more effectively, a variable bass boost from 0-12 dB at 40Hz, and a variable subsonic filter for use in vented subwoofer enclosure applications.

WHAT OUR CUSTOMERS SAY!

Well im very picki when it comes to car audio system , in the past ive had a truck equiped mtx amps both for spkrs and subs olso had a 12" dual subwoofer box and that thing hit so hard it was unbeliabable ...not to mention my door spkrs ...i would recomend mtx products to anyone ..cant go wrong ..MTX IS THE BEST....

samuel 3/13/2013 TH1200

This amp will surprise you. This should drive any 8", just about every 10", and quite a few 12" subs well. Running a 1 ohm stable operation has this amp running barely warm to the touch hours into a play session. Plenty of features and adjustments for anything you should need, included bass control dials in bass level just right, clean sounding power output, compact and clean design, and the level of versatility this amp offers makes it hard to beat.

Matt 11/1/2013 TH350

Fine Craftmanship

The TH650.1D also incorporates Intelligent Surface Mount Design Technology which utilizes smaller parts and separates the circuit board into localized zones eliminating interference and improving sound quality. The dual layer circuit board has more copper traces than single sided boards and is able to more efficiently transfer signal across the board with less loss. A clip light is included making it easy to set the amplifier's gain control to the source unit.

Also available in 1200-Watt and 350-Watt models.

And Remember The Amp Kit...

Now discounted when purchased with this amplifier

StreetWires 20% Off

Features
  • Patented Adaptive Class D Technology for Optimal Efficiency
  • Patented Smart Engage Auto Turn On
  • Surface Mount Design for Resistance to Vibration
  • Dual Sided Fiberglass Printed Circuit Board
  • Convection Cooled Design
  • Includes External Bass Control
  • Small Footprint for Easy Installation
Tech Specs
Description Mono Block
RMS Power (Watts) 650
4 Ohm RMS Power Output 250W x 1 Channel
Signal to Noise Ratio 75dB
2 Ohm RMS Power Output 400W x 1 Channel
1 Ohm RMS Power Output 650W x 1 Channel
Topology Class D
THD <1%
Frequency Response 20Hz - 200Hz
Crossover Variable Low @ 40Hz to 200Hz, 24dB/Oct
Subsonic Filter 20Hz to 50Hz,12dB/Oct, Variable
Bass Boost +12dB @ 40Hz
Max Sensitivity 250mV
Maximum Input Signal 5V
Height 7.06"
Width 11.38"
Depth 2.13"
Recommended StreetWires Amp Kit ZN5K-04 OR ZN3K-04
Support Files
MTX004237 TH650.1D (20 pages) View |  Download
50Hzmp3 Download
50Hz Download
