TH Series TH90.2 180W RMS 2-Channel Class A/B Amplifier

Car Audio Amplifiers

The TH90.2 Amplifier

Great Deals on Car Audio Amplifiers

MTX TH650 Amplifier Logo

Two Exceptional Channels

The TH90.2 amplifier is a 2-channel class A/B full range amplifier designed to exceed your expectation for how an amplifier should perform.

This amp is designed to power up to 180 watts of speakers into a 2 ohm load.

Availability: In stock
SKU: TH90.2
Sold Individually
169.95
20.00
149.95
Share this MTX page...
    TH1200.1D Top Open

    TH1200.1D With Top Open Shown

    Two Channels Of Power

    The TH90.2 amplifier is a 2-channel class A/B full range amplifier designed to exceed your expectation for how an amplifier should perform.

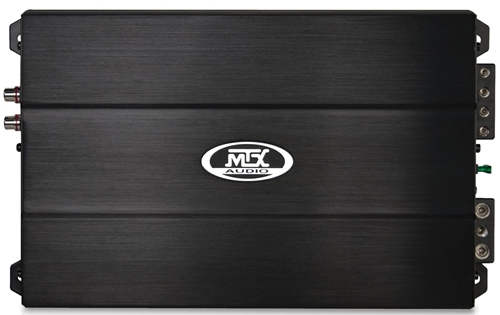

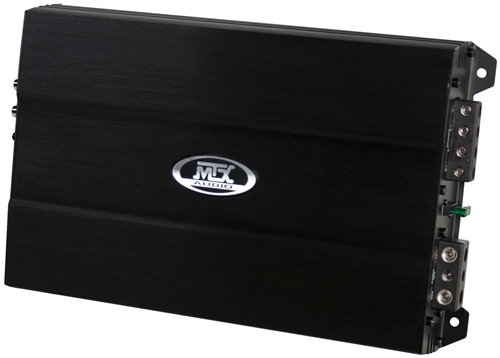

    Featuring anodized aluminum top covers and subtle MTX badging, these amplifiers incorporate high end materials with convection cooling functionality. Each TH Series amplifier is designed to perform to the highest standard and has undergone rigorous quality testing to ensure this standard is met. This amp is designed to power up to 180 watts of speakers into a 2 ohm load.

    TH90.2 Key Features

    • Anodized Aluminum Top Cover
    • Variable High and Low Pass Crossovers
    • High Level Inputs

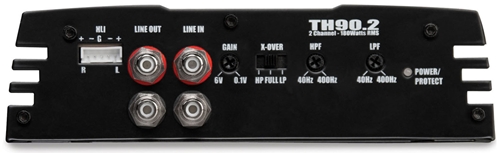

    The TH90.2 includes both high and low level inputs so it can be easily connected to any system as well as a full range, high pass, or low pass selectable crossover.

    WHAT OUR CUSTOMERS SAY!

    Well im very picki when it comes to car audio system , in the past ive had a truck equiped mtx amps both for spkrs and subs olso had a 12" dual subwoofer box and that thing hit so hard it was unbeliabable ...not to mention my door spkrs ...i would recomend mtx products to anyone ..cant go wrong ..MTX IS THE BEST....

    samuel 3/13/2013 TH1200

    This amp will surprise you. This should drive any 8", just about every 10", and quite a few 12" subs well. Running a 1 ohm stable operation has this amp running barely warm to the touch hours into a play session. Plenty of features and adjustments for anything you should need, included bass control dials in bass level just right, clean sounding power output, compact and clean design, and the level of versatility this amp offers makes it hard to beat.

    Matt 11/1/2013 TH350



    Features
    Anodized Aluminum Top Cover
    Variable High and Low Pass Crossovers
    High Level Inputs
    Tech Specs
    Description 2-Channel
    Total Peak Power 360 Watts
    2 Ohm RMS Power Output 90W x 2 Channels
    4 Ohm RMS Power Output 60W x 2 Channels
    1 Ohm RMS Power Output N/A
    Bridged RMS Power 180W x 1 @ 4 Ohms
    Signal to Noise Ratio >80dB
    Topology Class A/B
    THD <1%
    Frequency Response 20Hz - 30kHz
    Crossover Variable High, 12dB/Oct; 40Hz to 400Hz; Variable Low, 12dB/Oct; 40Hz to 400Hz
    Subsonic Filter NA
    Max Sensitivity 100mV
    Maximum Input Signal 6V
    Height 7.06"
    Width 12.2"
    Depth 2.13"
    Recommended StreetWires Amp Kit ZN5K-04 OR ZN3K-04
    Support Files
    MTX004237 TH90.2 (20 pages) View | Download
