Sold Individually

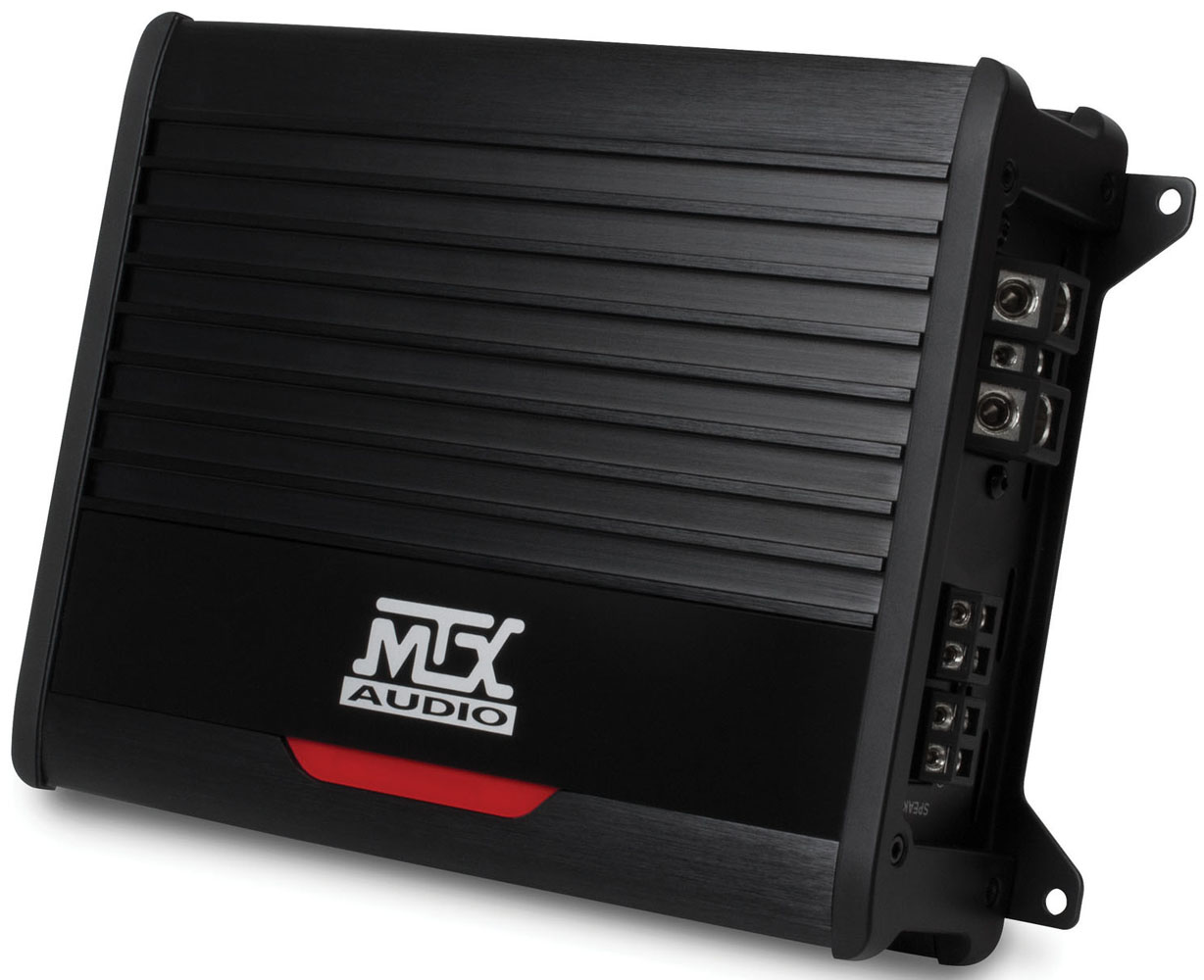

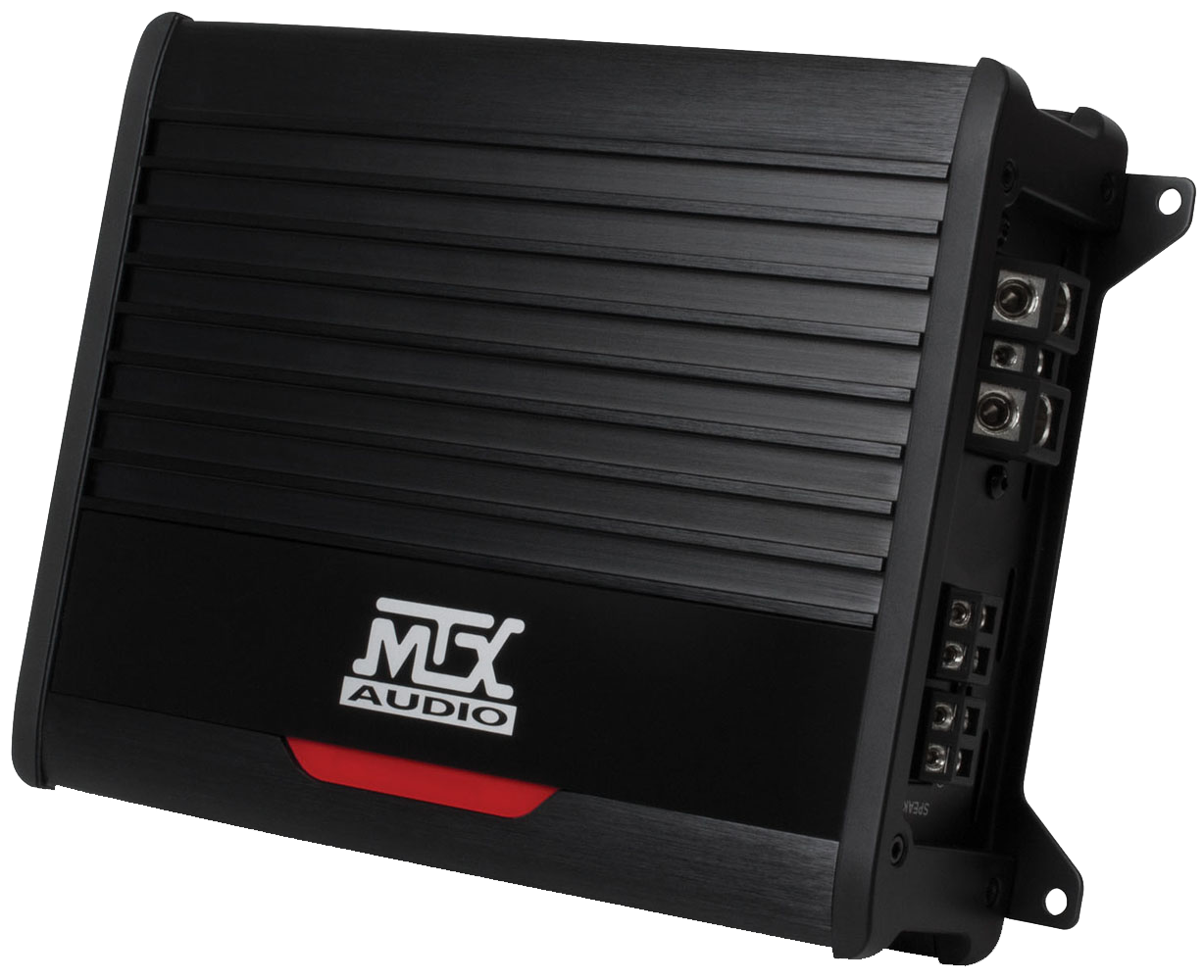

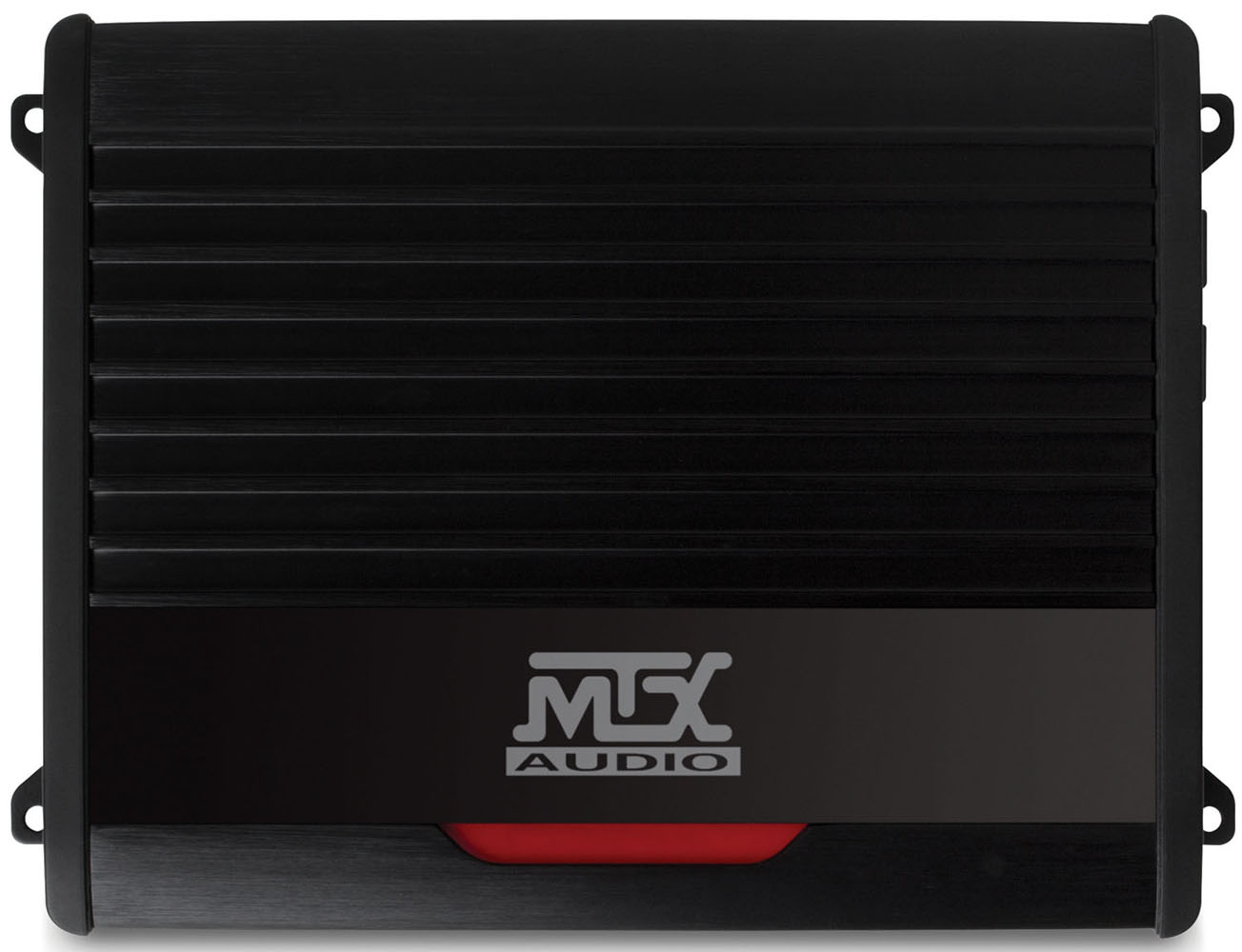

500-Watt RMS Mono Block Class D Amplifier

MTX THUNDER..A name synonymous with car audio for over 20 years has a reputation for power, performance, and reliability. The THUNDER amplifier line has seen numerous technological advancements throughout its life and continues to be one of the most recognized and sought after products in the car audio world today.

The MTX THUNDER500.1 mono block amplifier is the product of many of those advancements making it perfect for that “Bass in your face” attitude.

  • 2-Ohm Stable
  • Class D
    Availability: In stock
    Share this MTX page...

    Surface Mount Design

    Resists vibration for reliability under the harshest conditions

    Small Footprint

    Easy install in any vehicle, anywhere

    Variable Crossover

    Tune a wide range of speakers to perfection

    Extruded Heatsink

    Keeps the amplifier cool without a fan

    Made for Power, Built for Bass

    The THUNDER500.1 is a high powered 500-watt RMS amplifier designed to be installed in almost any vehicle due to its small chassis size. Its power capability makes it a perfect choice for running single or multi-woofer sound systems without worrying about compromising bass output or quality.


    Like what Thomas said this is also the best amp I have purchased in a long time. I went from a cea compliant 1200 watts rms @ 1ohm amp to this small little powerful beast and i must say this thing 1000 watts at 1 ohm beats my old 1200 watt rms amp by far and the bass quality running it at 1 ohm is truly amazing!! and it gets warm but not hot and that's normal. this amp made me want to get into system building for a hobby all over again thank you mtx!!

    Charles 6/10

    I have been a dedicated Rockford Fosgate amp user since 1992. I recently purchased an MTX 500 watt mono block and in the words of Rapunzel, "I am never going back." MTX beats RF on price, specs, customer service and warranty. I wish I had found out about MTX years ago.

    eric 8/7

    Wow! This amp has plenty of sharp clean pop on the bass end and clean crisp highs. This brand was recommended by a installation tech at a store that did not sell MTX. This is after a Soundstream Rubicon amp last three months and needed to be sent back twice for repairs. There is no comparison in the sound quality with the MTX high years ahead! ...Did I say 'Wow"?!

    Gilbert 10/19

    Technologically Advanced

    This amp features a high-efficiency Class D circuit design chosen for its ability to produce high output power while minimizing power loss to heat build-up. It’s this capability that makes it perfect for driving woofers to their limits and delivering that vehicle shaking bass you want.

    It’s not just the circuit type that makes this amp tick, but also the parts used and how they are installed. We use surface mount technology to help create the compact design of the amplifier and improve its reliability and resistance to vibration. High grade components are chosen for the quality and to ensure the amplifier delivers maximum power output when you need it.

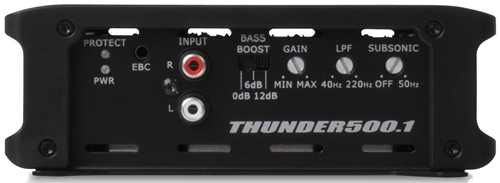

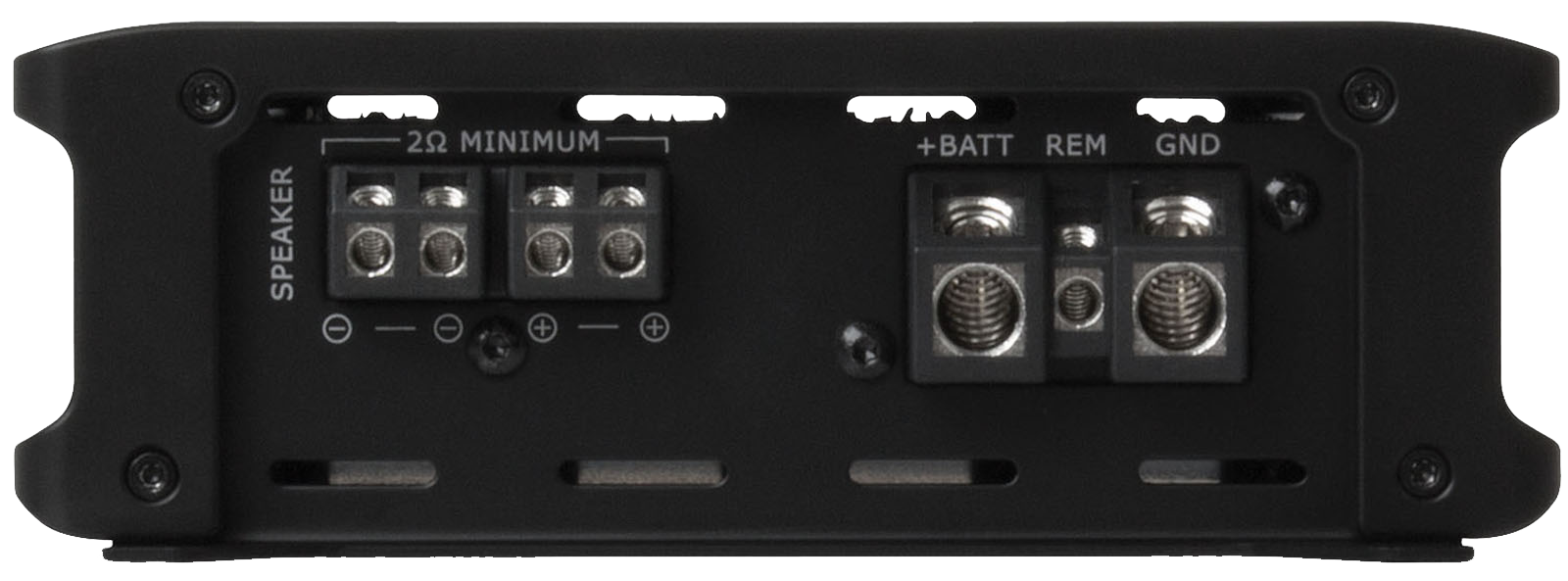

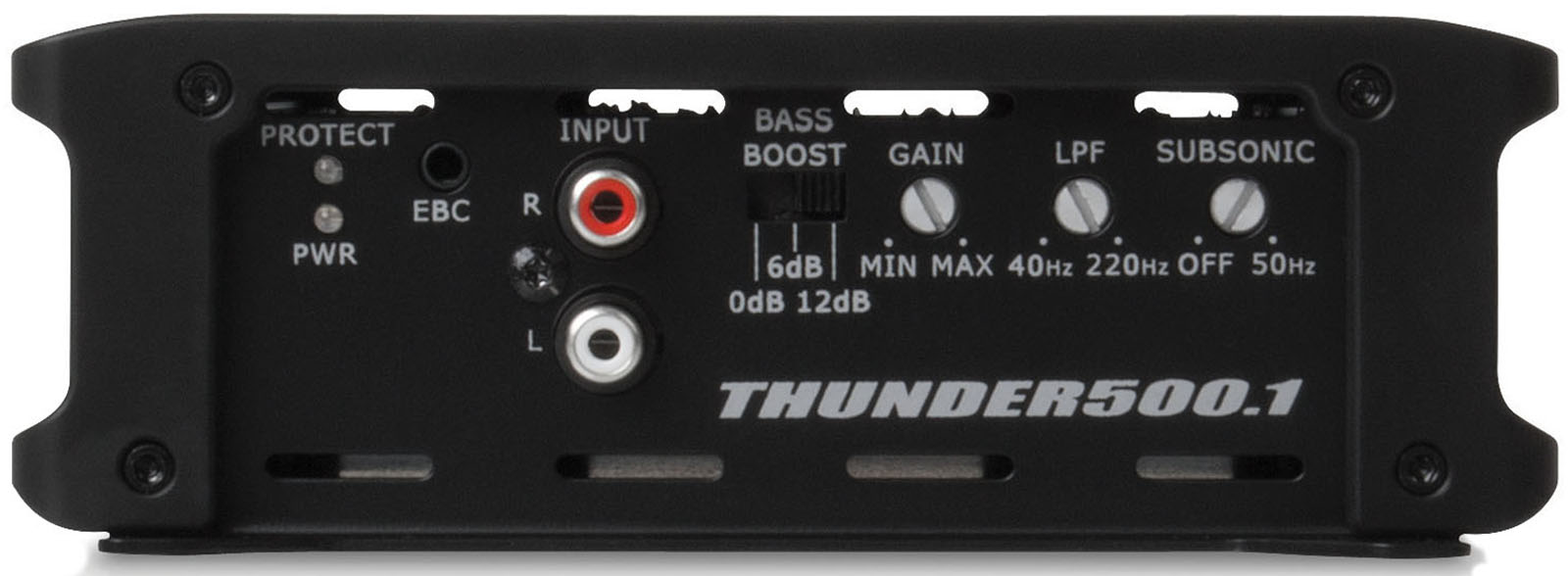

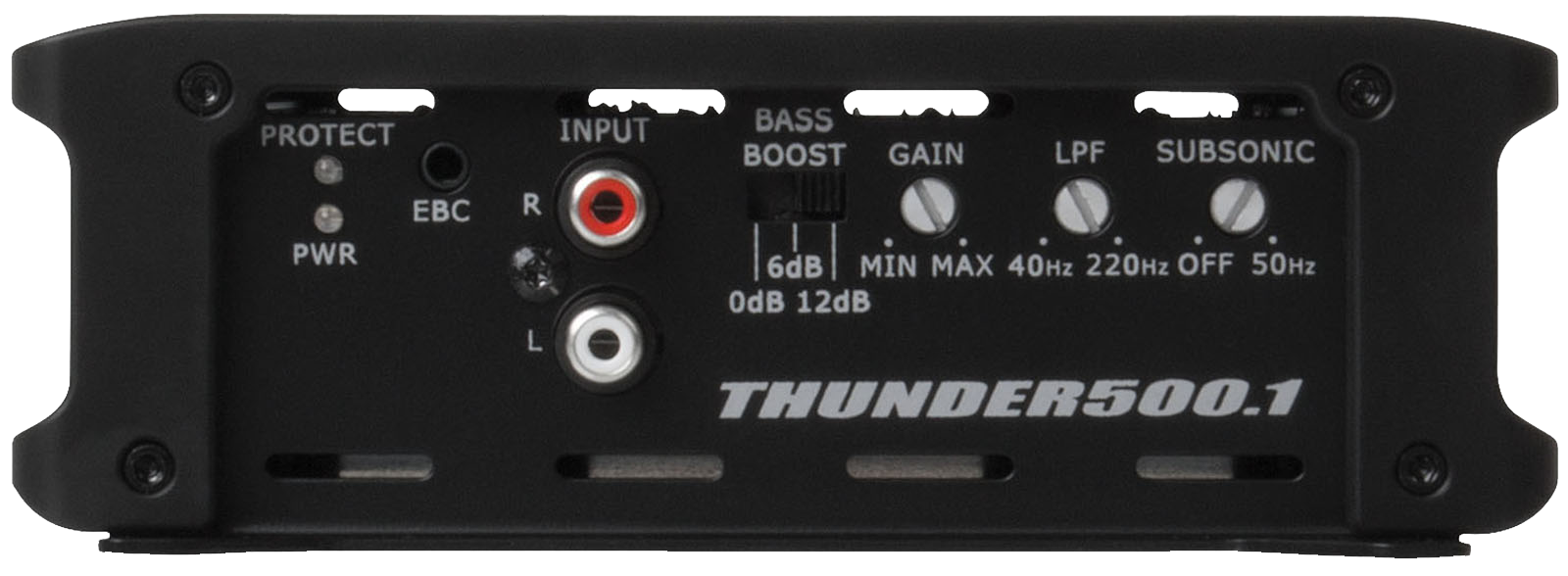

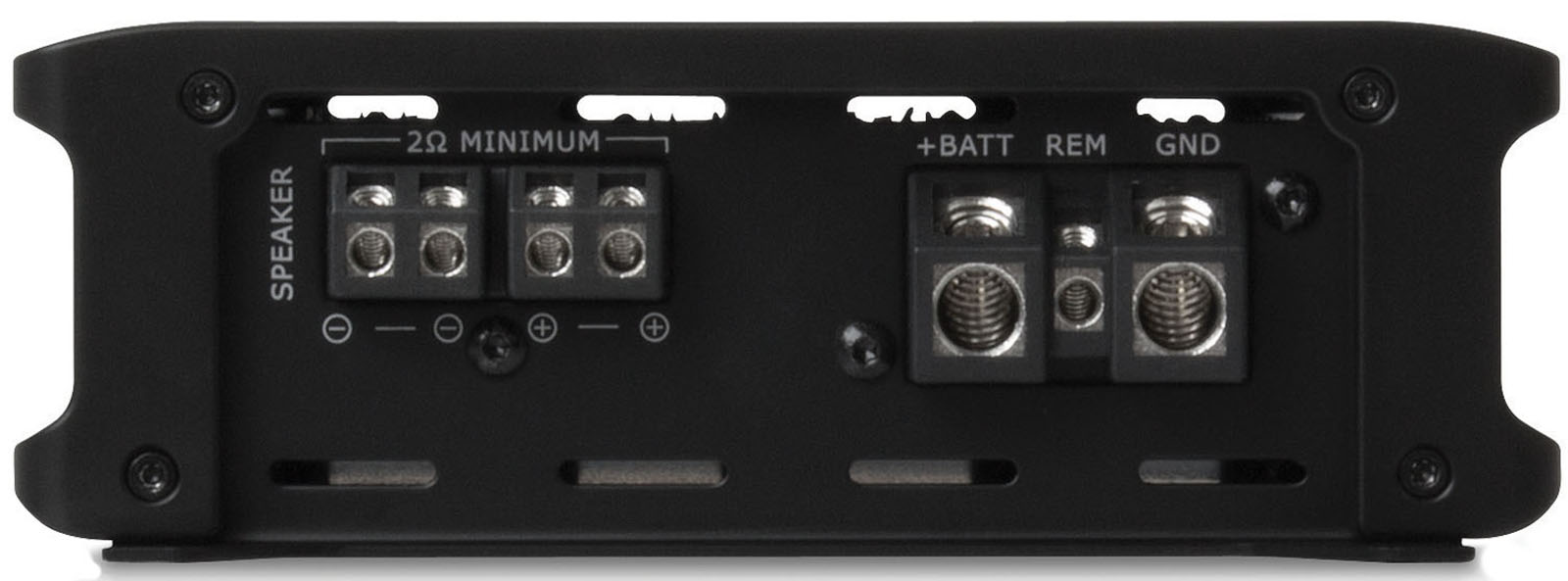

    In addition to the circuit design, we’ve also added the features you need to fine tune your system sound such as the built-in variable low pass crossover, selectable bass boost circuit and variable subsonic filter. Additionally, we know how important the speaker and power connections are to a properly working sound system. This is why we use set-screw style terminals to provide the most secure connection possible which minimizes any power loss while delivering all the power to the amplifier and to the speakers.

    Remember The Amp Kit

    Remember, you cannot install an amplifier without an amplifier kit. MTX recommends using a ZN5K-04 or ZN5K-08 to power the THUNDER500.1.

    How to Properly Set Your Amplifier's Gain

    • Compact Design - The small footprint chassis allows for installation in space challenged vehicles

    • Selectable Bass Boost - Selectable 0, 6, or 12dB bass boost centered @ 50Hz

    • Variable Butterworth Crossover - a 12dB/Oct crossover that allows you to set the frequency your speakers will play down or up to

    • Variable Subsonic Filter - A variable low frequency, high pass filter designed to block potentially damaging bass frequencies

    • Triple Protection Circuitry - Thermal, DC Offset, and Short Circuit Protection circuitry ensures the amplifier will protect itself in the event of a problem

    • Extruded Aluminum Heat Sink - The custom heat sink design maximizes heat transfer away from the circuitry protecting the amplifier

    • Surface Mount PCB Design - Decreases chassis size, improves layout efficiency and increases vibration resistance without sacrificing performance or sound.

    Description Mono Block
    Peak Power (Watts) 500
    4 Ohm RMS Power Output 300W x 1 Channel
    Signal to Noise Ratio 80dB
    2 Ohm RMS Power Output 500W x 1 Channel
    1Ω RMS Power Output NA
    Topology Class D
    THD <1%
    Frequency Response 10Hz - 220Hz
    Crossover Variable Low @ 40Hz to 220Hz 12dB/Oct
    Subsonic Filter 10Hz to 50Hz 12dB/Oct Variable
    Bass Boost 0 6 12dB Switchable
    Max Sensitivity 200mV
    Maximum Input Signal 5V
    Height 6.3"
    Width 8.94"
    Depth 2.25"
    Owners Manual MTX004553 THUNDER Series Owners Manual (32 pages) View | Download
    50Hzmp3 Download
