SKU: TPHOMEKIT1
Sold Individually

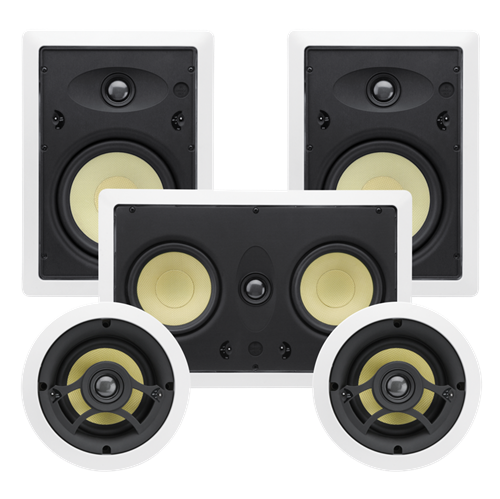

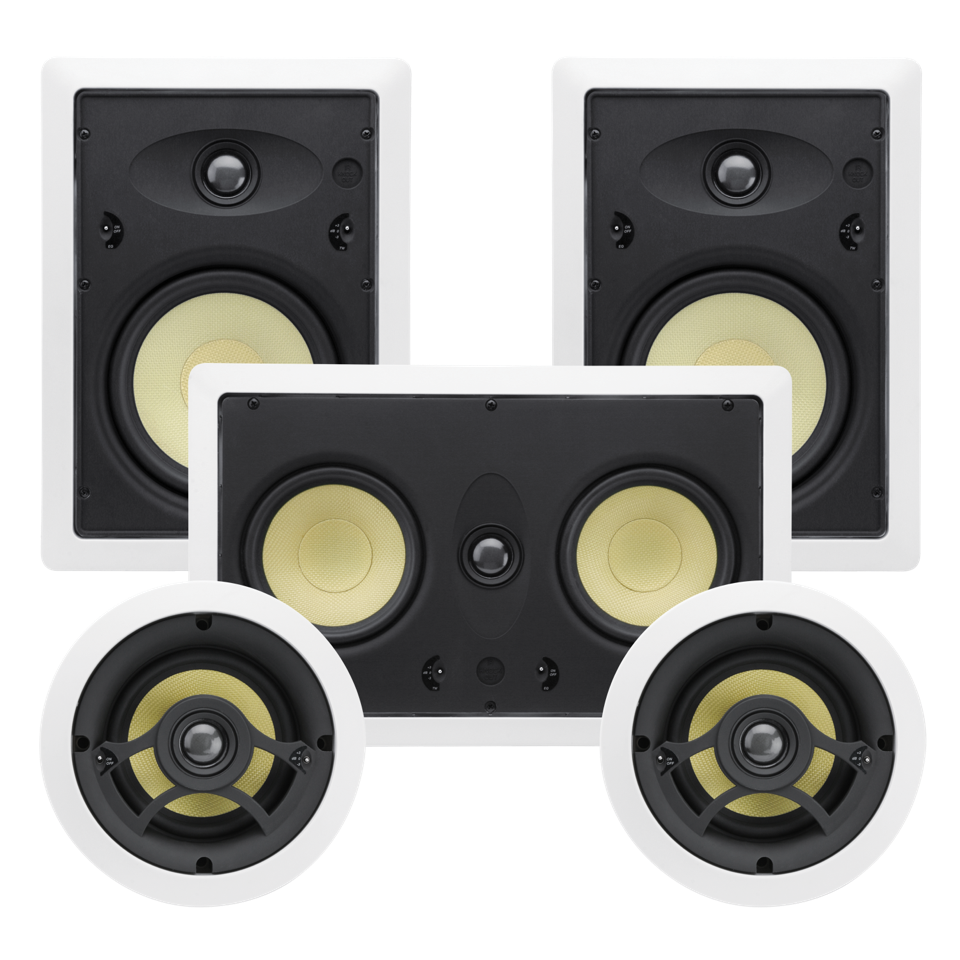

TPHOMEKIT1 DCM Built-In Home Theater Package

The TP Series Built-In Home Theater Package #1

Includes:

  • Dual 5.25" In Wall LCR Speaker System
  • 6.5" 2-Way 90W RMS 8 Ohm In-Wall Speaker
  • 5.25" 2-Way 80W RMS 8 Ohm In-Ceiling Speaker

Center Speaker Compliment

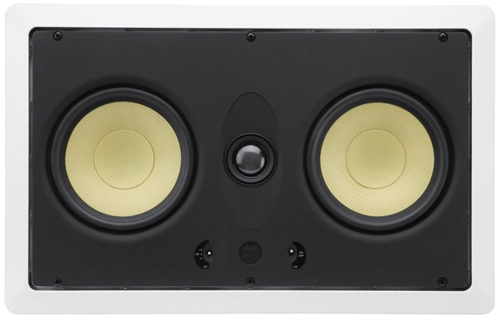

The TP2525LCR is an ideal speaker to subtly add a center channel to more powerful left/right configurations. Significantly increases dialogue clarity unobtrusively and is magnetically shielded to preserve video display integrity.

Flexible Built-in Speaker

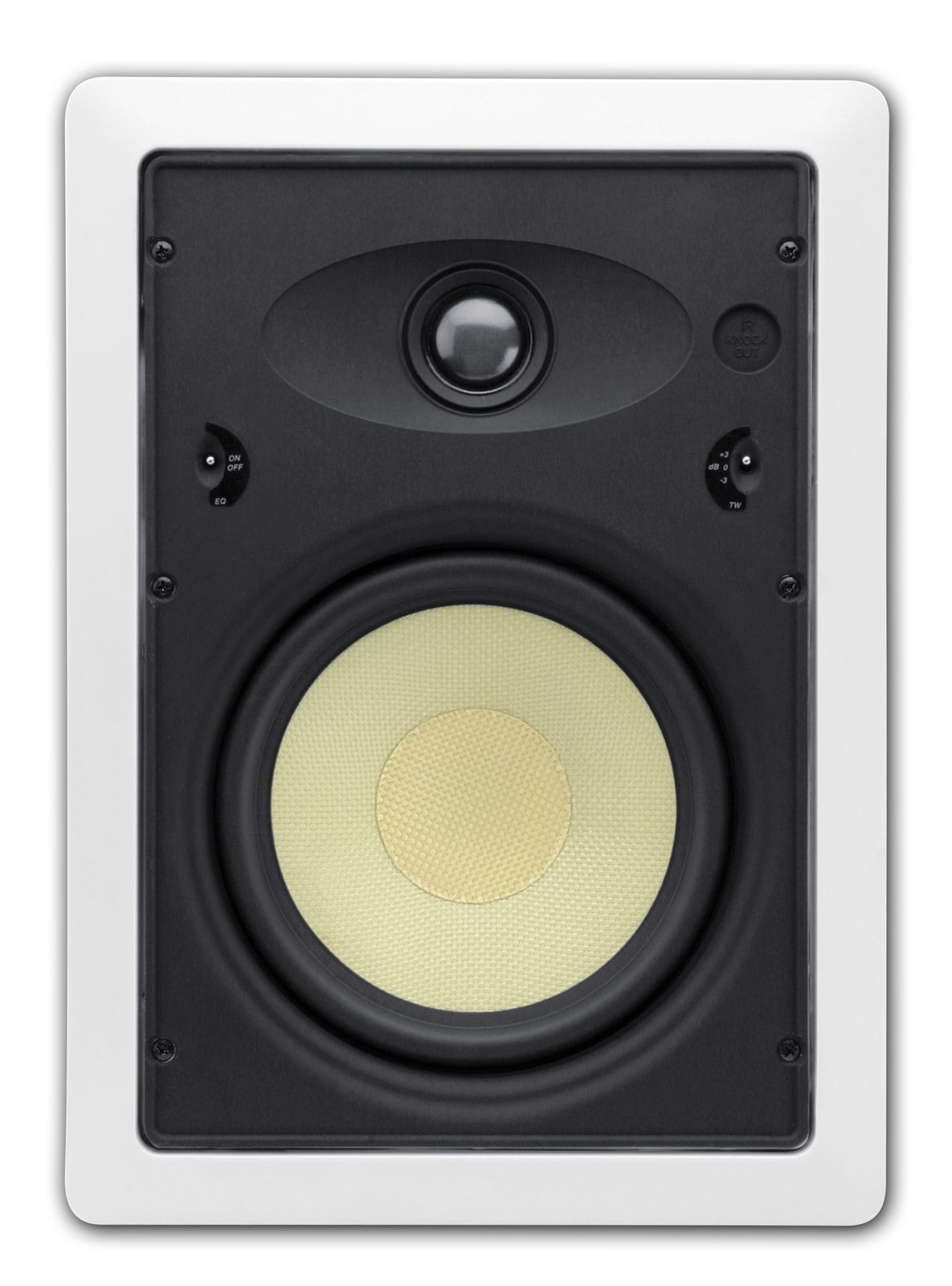

The TP625W is a nice addition to improve your sound system in any room or home theater. Superior off-axis performance creates flexibility and quality from anywhere they can be installed and the narrow footprint and paintable grille improve your décor.

    *
    *
    *
    1,259.75
    Share this MTX page...

    TimePiece Series

    Featuring DCM's One Voice technology for perfect compatibility

    High Performance Audio

    Dynamic range and deep, rich tone

    Convenient And Hidden

    Easy installation and hidden surround sound

    Center Speaker Compliment

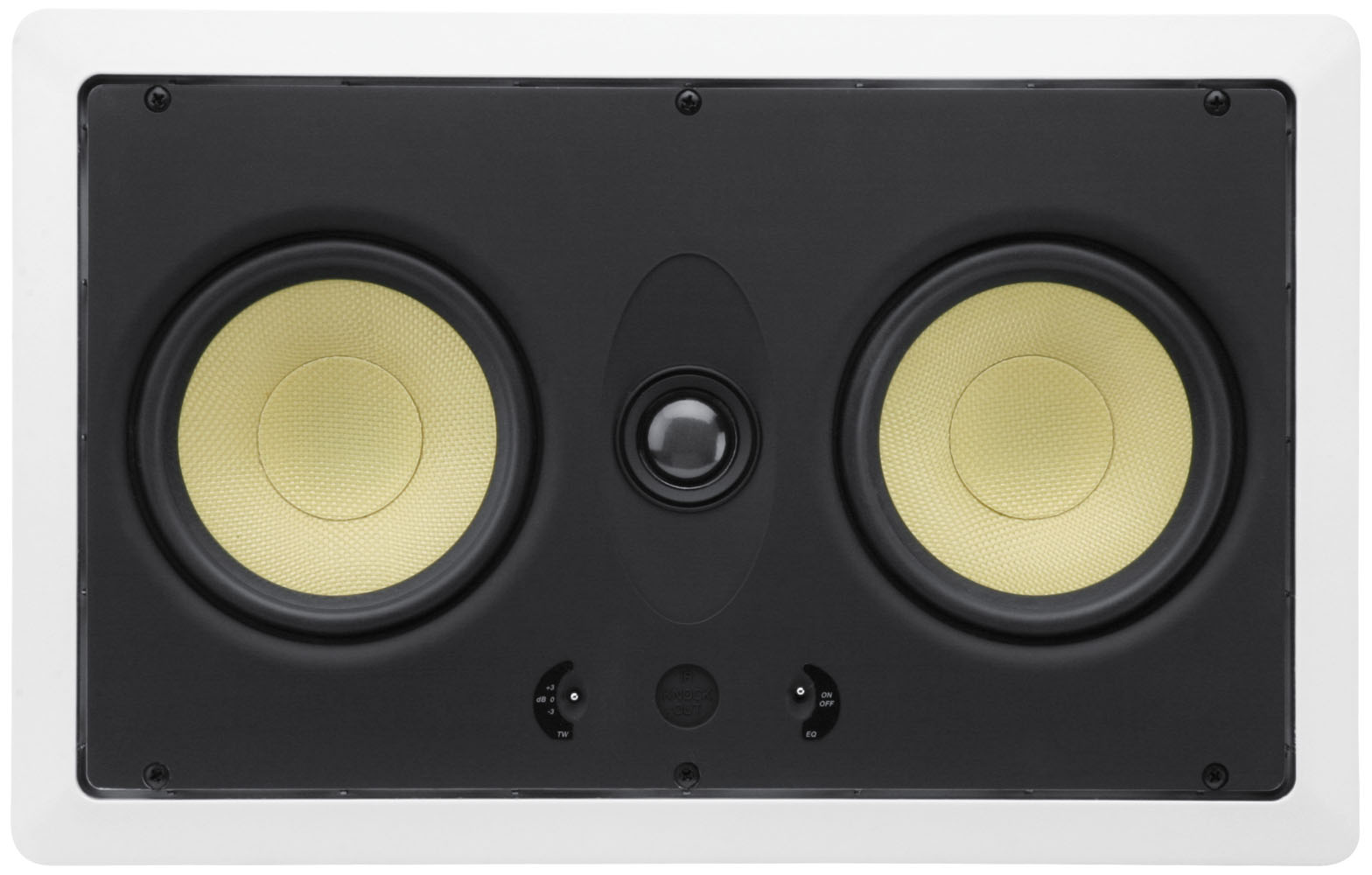

    The TP2525LCR is an ideal speaker to subtly add a center channel to more powerful left/right configurations or use as mirrored imaged pairs in complete custom setups. Significantly increases dialogue clarity unobtrusively and is magnetically shielded to preserve video display integrity.

    TP2525LCR Key Features

    • Magnetically Shielded
    • One Voice Technology Allows for Use with Cabinet Speakers Without Sacrificing Sound Quality

    Unnoticeable Custom Speakers

    Custom speakers are a great way to add surround sound to any room and to increase the value of your home. The advantage of in-ceiling speakers is that you get fantastic sound without losing any floor space to cabinets or speaker stands. The units can be painted to match the ceiling and are virtually unnoticeable while still producing exceptional sound.

    TP625W Key Features

    • Aimable swivel tweeter
    • 18dB/octave highpass, 12dB /octave lowpass crossover
    • Tweeter overload protection circuit
    • Neodymium tweeter magnet
    • Kevlar woofer cone material w/rubber surround
    • High temperature woofer and tweeter voice coil wire
    • Dual inputs: Binding posts accept up to 8 gauge wire, Removable Phoenix style connectors for easy Wiring
    • Mylar highpass capacitors with polypropylene shunt capacitors
    • Aluminum grille material
    • Front mounted Tweeter Level Control
    • Front mounted Boundary Equalization Control

    The TP625W is a nice addition to improve your sound system in any room or home theater. Superior off-axis performance creates flexibility and quality from anywhere they can be installed and the narrow footprint and paintable grille improve your décor.

    TP525C Key Features

    • Aimable swivel tweeter
    • 18dB/octave highpass, 12dB /octave lowpass crossover
    • Tweeter overload protection circuit
    • Neodymium tweeter magnet
    • Kevlar woofer cone material w/rubber surround
    • High temperature woofer and tweeter voice coil wire
    • Dual inputs: Binding posts accept up to 8 gauge wire, Removable Phoenix style connectors for easy Wiring
    • Mylar highpass capacitors with polypropylene shunt capacitors
    • Aluminum grille material
    • Front mounted Tweeter Level Control
    • Front mounted Boundary Equalization Control

    Smaller Rooms

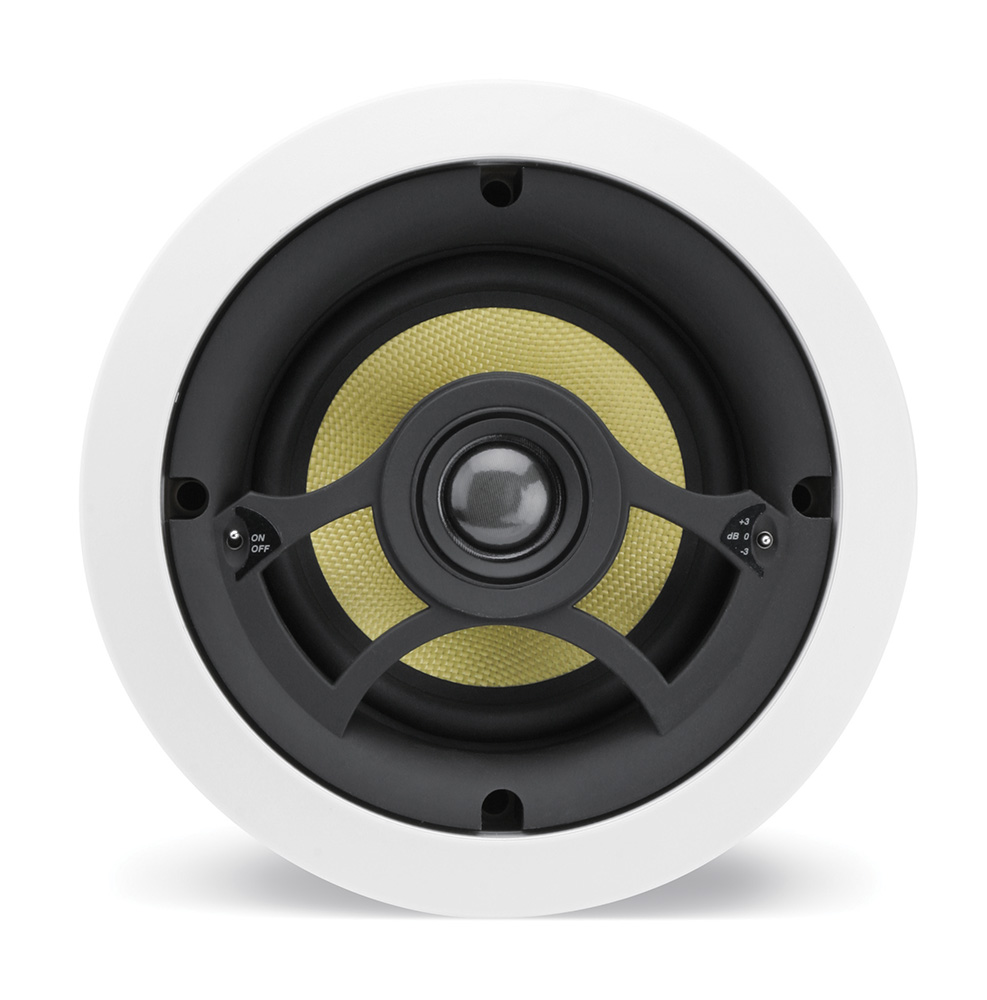

    For smaller rooms, this 5 ¼" in-ceiling speaker offers just the right fit and fill. Same great performance as larger models, the TP525C is virtually invisible thanks to a smaller size and very narrow footprint.

    Realistic Home Theater Experience

    DCM TimePiece Series

    DCM's TimePiece line of in-wall and in-ceiling models complement the already successful series of TimePiece cabinets, with identical driver material and tooling to maintain precise voice matching and accurate sonic signatures in every model. They feature high power handling, adjustable level settings, improved frequency response, and larger pivoting tweeters for imaging control and dynamic system control.

    FEATURES
    • TP2525LCR:
    • Magnetically Shielded
    • One Voice Technology Allows for Use with Cabinet Speakers Without Sacrificing Sound Quality
    • TP625W:
    • Aimable swivel tweeter
    • 18dB/octave highpass, 12dB /octave lowpass crossover
    • Tweeter Overload Protection Circuit
    • Neodymium tweeter magnet
    • Kevlar woofer cone material w/rubber surround
    • High Temperature Woofer and Tweeter Voice Coil Wire
    • Dual inputs: Binding posts accept up to 8 gauge wire, Removable Phoenix style connectors for easy Wiring
    • Mylar highpass capacitors with polypropylene shunt capacitors
    • Aluminum grille material
    • Front mounted Tweeter Level Control
    • Front mounted Boundary Equalization Control
    • TP525C:
    • Kevlar Woofers
    • 25mm Pivoting Dome Tweeter
    • Heavy Duty Nickel Plated Binding Posts and Removable Phoenix Style Connectors
    • 18dB/Octave High-pass and 12dB/Oct Low-pass Crossover
    • Collared Dog Leg Mounts
    • Debris Resistant Baskets
    • Aluminum Grille
    SPECIFICATIONS
    Woofer Dual 5.25" Kevlar
    Tweeter 25 mm Teteron Dome
    RMS Power (Watts) 100
    Frequency Response 51Hz - 20kHz
    Sensitivity 88dB
    Height 9 13/16" (24.92 cm)
    Width 15 1/2" (39.37 cm)
    Depth 4" (10.16 cm)
    Mounting Depth 3 3/16" (8.1 cm)
    Cut Out Size 8 9/16" x 14 1/4"

    SUPPORT FILES
    Timepiece Series Owners Manual (6 pages) View | Download
