XTHUNDER1200.1 1200W RMS Mono Block Class D Amplifier

Car Amplifiers

Perfect Power for Unbeatable Bass

Big Power for Big Systems

MTX XThunder 1200 Watt AmplifierThunder Power

The XTHUNDER1200.1 is the latest evolution of the Thunder amplifier series that MTX Audio made famous almost 20 years ago. These amplifiers are designed to deliver extreme power to the most demanding systems whether they be subwoofers or full range speakers.

The XTHUNDER1200.1 mono block amp is designed to power one or more gigantic subwoofers with energy enough to hit every note hard and distortion free.

Class D Topology 1Ω Stable Strappable

Availability: In stock
SKU: XTHUNDER1200.1
Sold Individually
649.95
549.95
439.96
Share this MTX page...

    The XTHUNDER1200.1 utilizes highly efficient class D amplifier topology to ensure excellent thermal management under the harshest conditions. Capable of delivering 1200W RMS power into a 1Ω load, the XTHUNDER1200.1 is ideally suited to power MTX SuperWoofers and large, multiple subwoofer deployments.

    Using high end materials and a dedication to precision workmanship, the XTHUNDER Series deliver exceptional sound quality and performance.

    MTX XThunder1200 Car Subwoofer Amplifier

    Built To Drive BIG Sub Systems

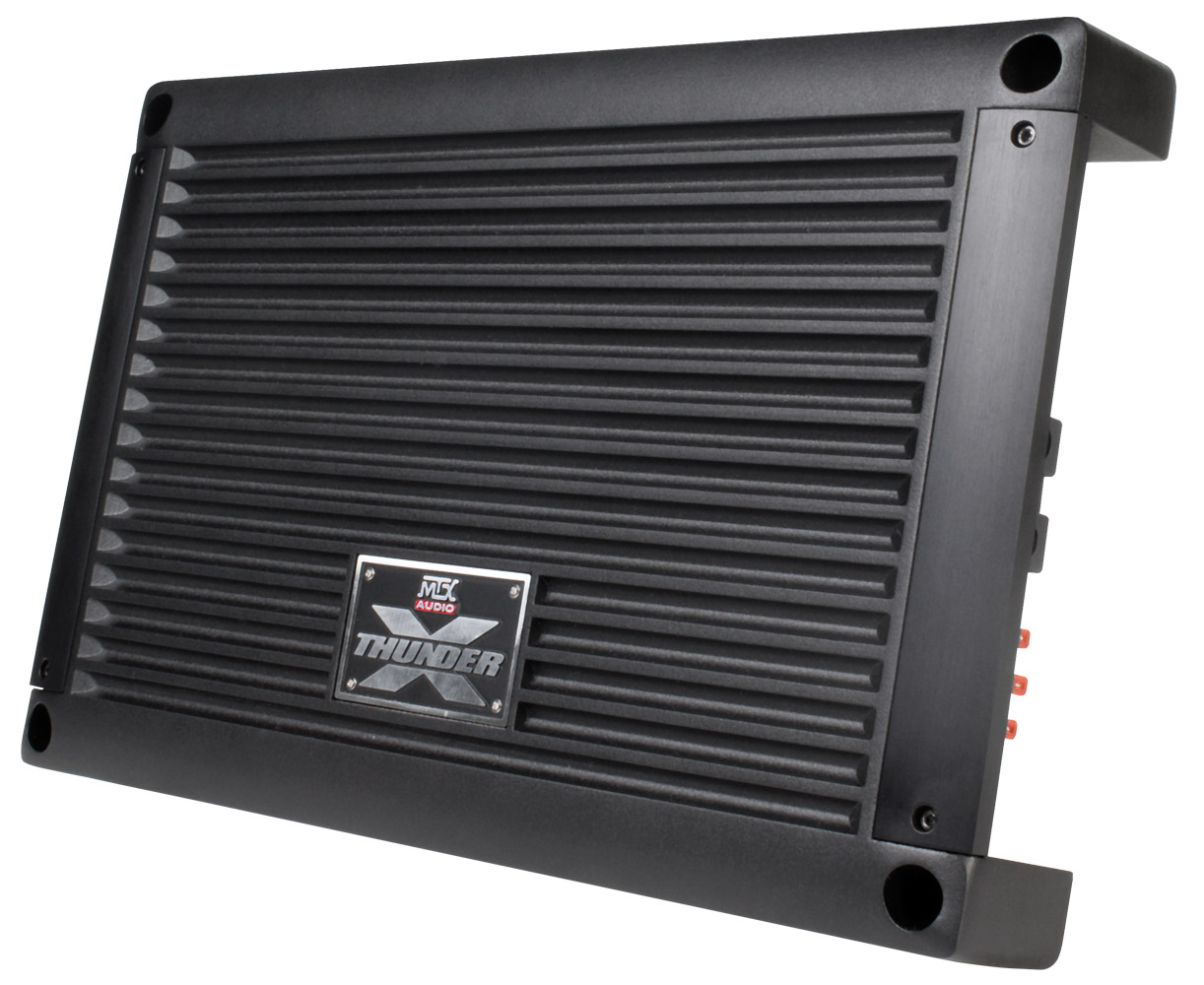

    The unit features a dual sided circuit board wiith increased copper traces that maximize electrical transfer and minimize power lost before it gets to your speakers. The surface mount technology, is incredibly durable and vibration resistant, allowing them to be damage resistant even when deployed in big systems. The entire top cover functions as a heat sink with a lot of surface area to effectively dissipate heat so that it can play louder and longer. The top cover includes removable side covers that allow for easy access to connections and settings even after installation.

    The feature set on the XTHUNDER1200.1 is loaded and enables full customization to ensure the best possible sound quality without distortion. Customization includes a low pass filter, subsonic filter, and bass boost that allow you to get exactly the sound you want from your subwoofers.

    Don't Forget The Amp Kit

    Remember, you cannot install an amplifier without an amplifier kit. MTX recommends using a ZN5K-00 or ZN5K-04 to power the XTHUNDER1200.1.

    How to Properly Set Your Amplifier's Gain

    Features
    Class D Topology Ensures Excellent Thermal Efficiency
    Low Profile Design Allows for Installation Anywhere
    Cast Aluminum Top Cover Efficiently Dissipates Heat
    Variable Butterworth Crossover 12dB/Oct
    Variable Bass Boost 0-18dB
    Variable Subsonic Filter
    Thermal, DC Offset, and Short Circuit Protection Circuitry
    Includes EBC Allowing for Bass Adjustment from Driver's Seat
    Tech Specs
    4 Ohm RMS Power Output 400 Watts
    Signal to Noise Ratio >60dB
    2 Ohm RMS Power Output 750 Watts
    1 Ohm RMS Power Output 1200 Watts
    THD <0.2%
    Frequency Response 10Hz - 250Hz
    Maximum Input Signal 5V
    Max Sensitivity 100mV
    Low Pass Filter Variable, 40Hz - 250Hz, 12dB/Oct
    Subsonic Filter 10Hz - 50Hz, 12dB/Oct, Variable
    Bass Boost 12dB @ 45Hz
    Topology Class D
    Depth 8.9" (226.7mm)
    Length 14.2" (359.9mm)
    Height 2.03" (51.5mm)
    Support Files
    MTX004783 XTHUNDER Series Owner's Manual (32 pages) View | Download
